Special Valve 2W2T Suppliers

Special Valve 2W2T

Special Valve 2W2T

Product Details

0
Views: 879

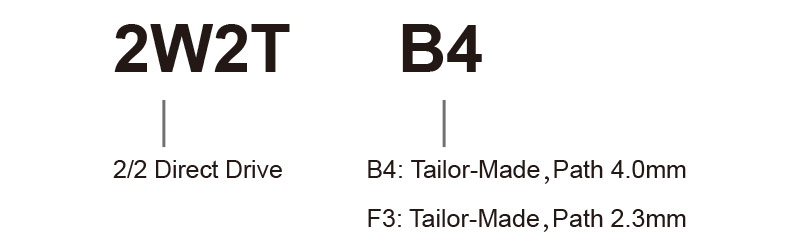

Ordering Code







Specification



Model 2W2T-B4 2W2T-F3
Working Medium 40 Micron Filtered Air
Motion Pattern Two-Position Two-Way Normally Closed
Path(mm) 4.0 2.3
Working-Pressure 0~0.35MPa 0~0.8MPa
Power Consumption DC:10W AC:19VA
Connection Threads G1/8 G1/8(With Joint PC8-01)
Material of Oil Seal EPDM NBR



Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Special Valve 2W2T Suppliers and Special Valve 2W2T company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Special Valve 2W2T are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
