MA、MAL Installing Accessory Suppliers

MA、MAL Installing Accessory

MA、MAL Installing Accessory

Product Details

0
Views: 620

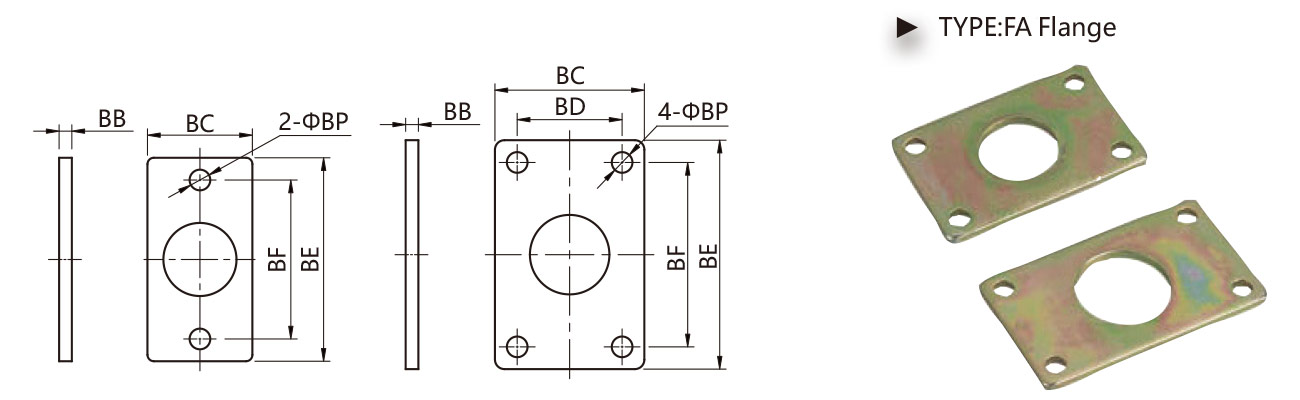

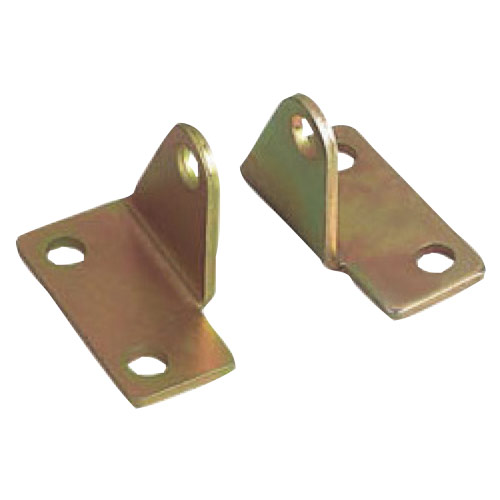

Overall Dimension





Dimension Sheet



Symbol/Bore(mm) 16 20 25 32 40
BB 3 4 4 4 4
BC 26 38 38 47 50
BD - - - 33 36
BE 52 64 64 72 84
BF 40 50 50 58 70
BP 5.5 6.5 6.5 6.5 6.5

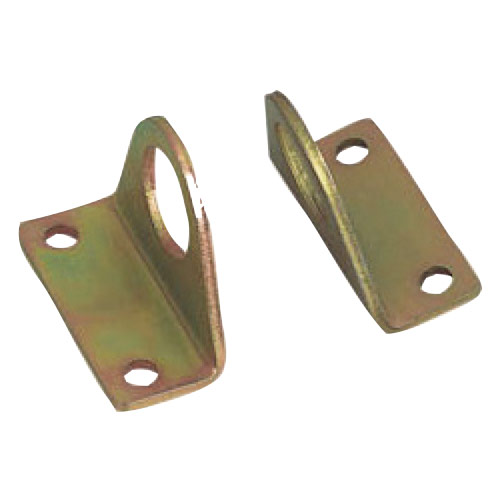

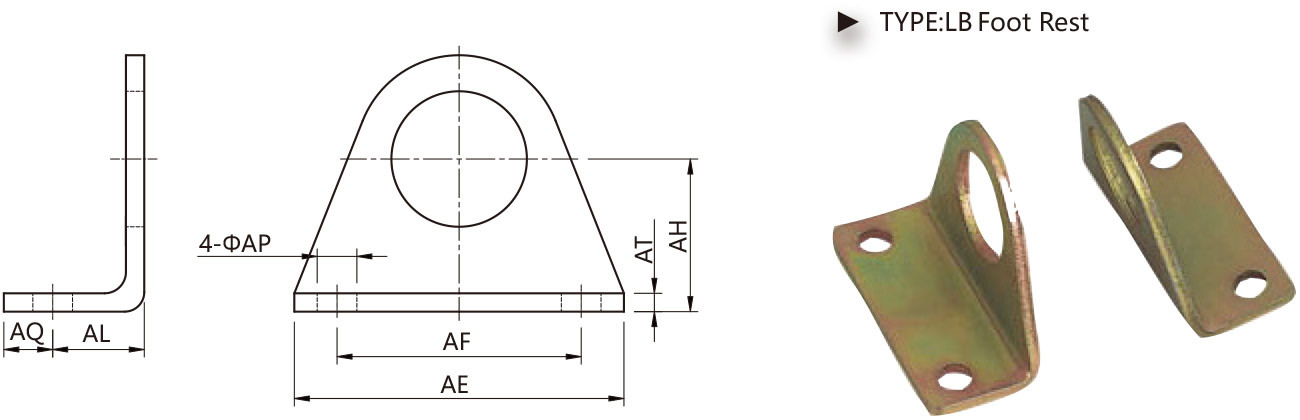

Overall Dimension







Dimension Sheet

Symbol/Bore(mm) 16 20 25 32 40
AE 44 54 54 59 64
AF 32 40 40 45 50
AH 20 25 25 32 36
AL 13 15 15 25 25
AP 5.5 6.5 6.5 6.5 6.5
AQ 6 8 8 8 8
AT 3 3 3 3 3

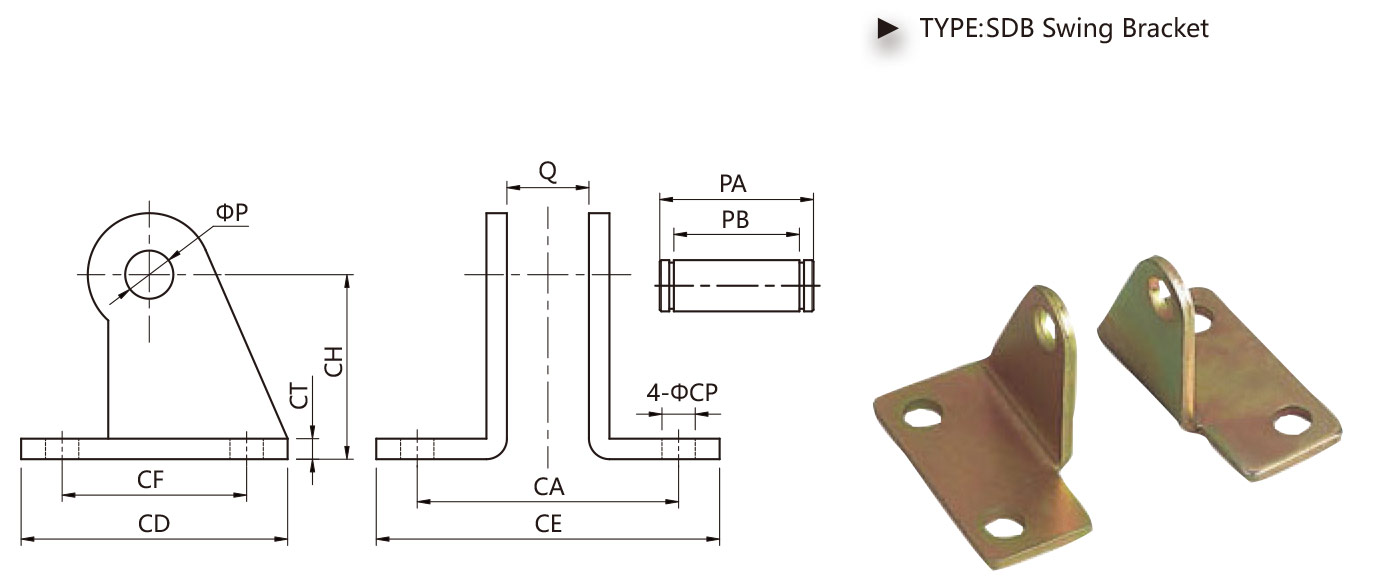

Overall Dimension





Dimension Sheet



Symbol/Bore(mm) 16 20 25 32 40
CA 44 54 54 41 52
CD 36 48 48 52 56
CE 56 67 67 67 67
CF 24 32 32 36 40
CH 25 32 32 36 40
CT 3 3 3 3 3
CP 5.5 6.5 6.5 6.5 6.5
Q 12 16 16 16 20
PA 21 27 27 30 32
PB 18.5 22.5 22.5 22.5 26.5
ΦP 6 8 8 10 12

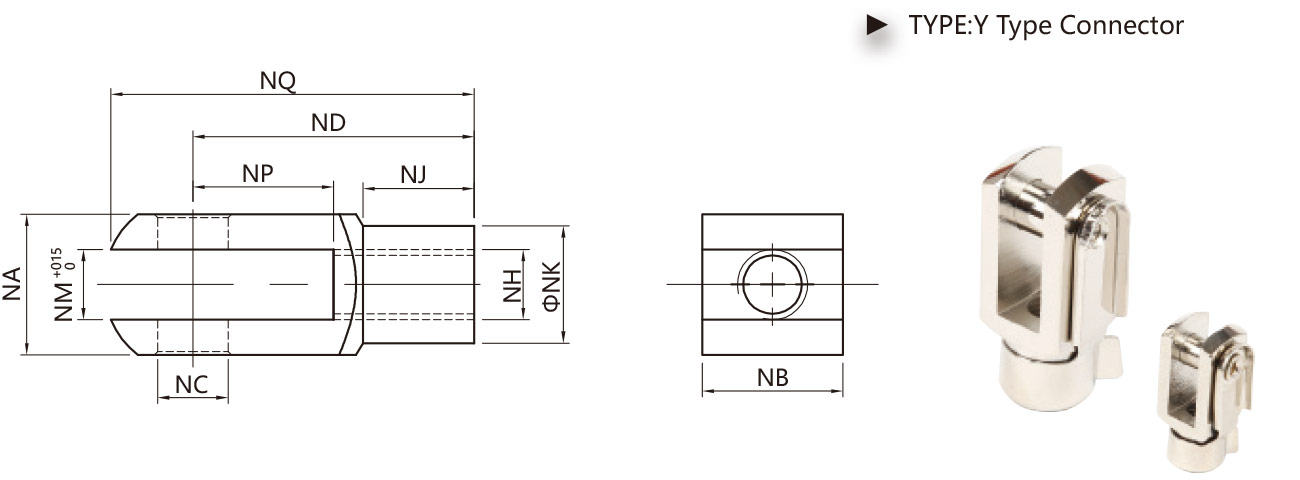

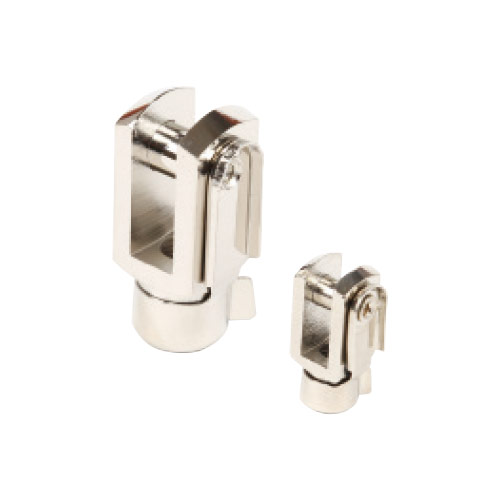

Overall Dimension



Dimension Sheet



Symbol/Bore(mm) 16 20 25 40 50 80
NA 12 16 19 24 32 40
NB 12 16 19 24 32 401
NC E L 10 12 3 -
ND 24 32 40 48 64 80
NH M6 M8 M 10x1.25 M12x1.25 M 16x1.75 M20x1.5
NJ 9.5 13.5 15.5 20.5 26 30
NK 10 34 16 20 30 39
NM 6 8 10 12 16 20
NP 12 16 20 24 32 39.5
NQ 31 42 52 62 83 105

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China MA、MAL Installing Accessory Suppliers and MA、MAL Installing Accessory company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our MA、MAL Installing Accessory are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
