LD22 Series Solenoid Valve Suppliers

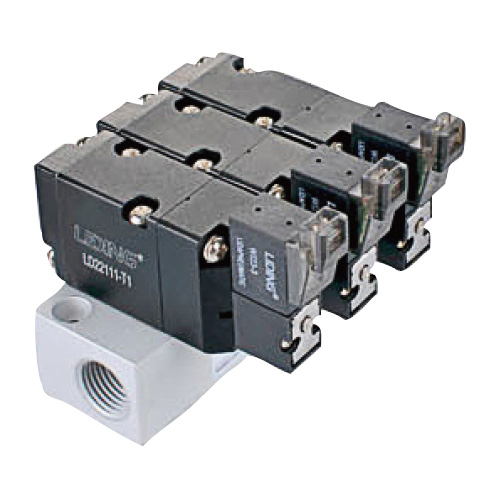

LD22 Series Solenoid Valve

LD22 Series Solenoid Valve

Product Details

0
Views: 375

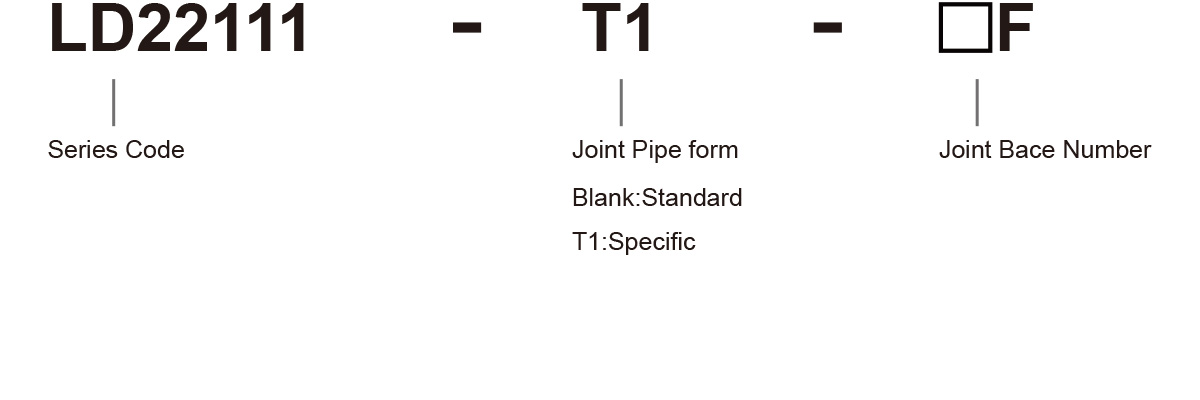

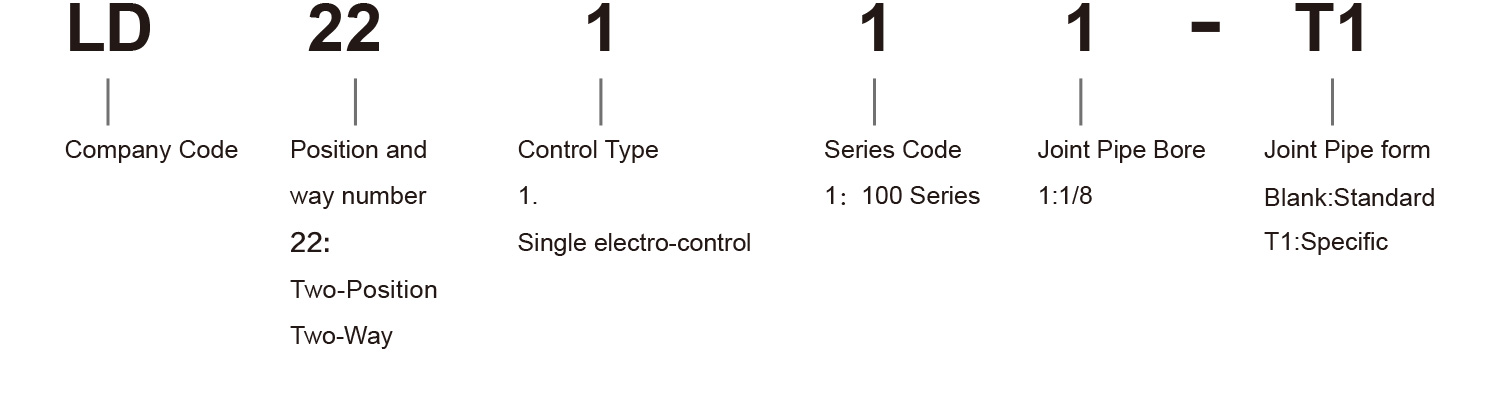

Ordering Code







Specification



Model

LD22111

LD22111-T1

Working Medium

40 Micron Filtered Air

Motion Pattern

Inner Guide Type

Joint Pipe Bore

Intake = Outlet =G1/8

Plate Installation

The Position Counting

Two-position Two-way

Operating Temperature

5~50℃ (41-122°F)

Effective Sectional Area

12mm² (Cv=0.67)

Working-Pressure

0.15~0.7MPa

MaxPressure Resistance

1.2MPa

Power Consumption

1W

Protection Class

IP65 (DIN40050)

Insulation

Class F

Wiring Form

Connector Type

Voltage Range

±10%

Highest Action Frepuency

5 Cycle/Sec

Shortest Excitation Time

0.05 Second

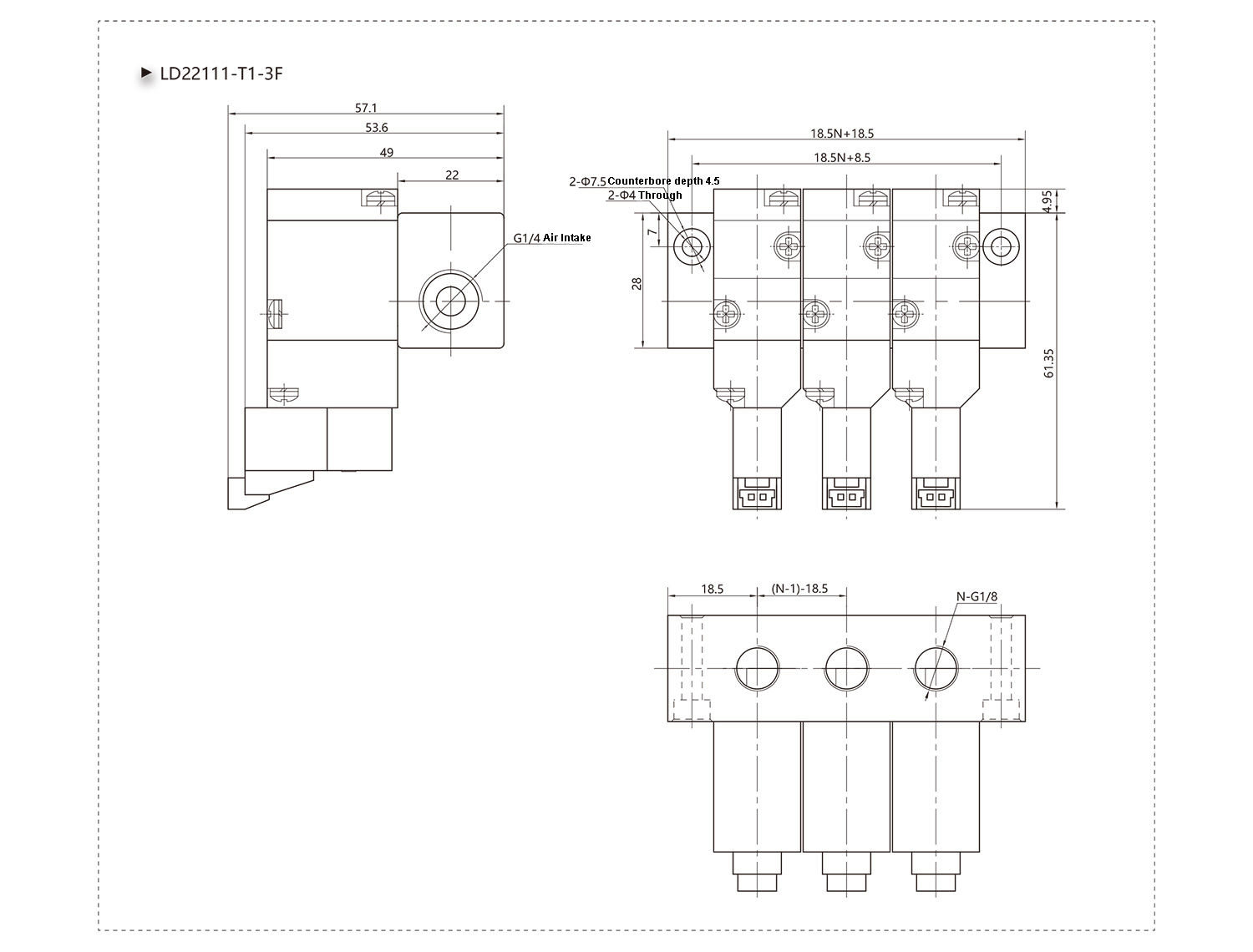

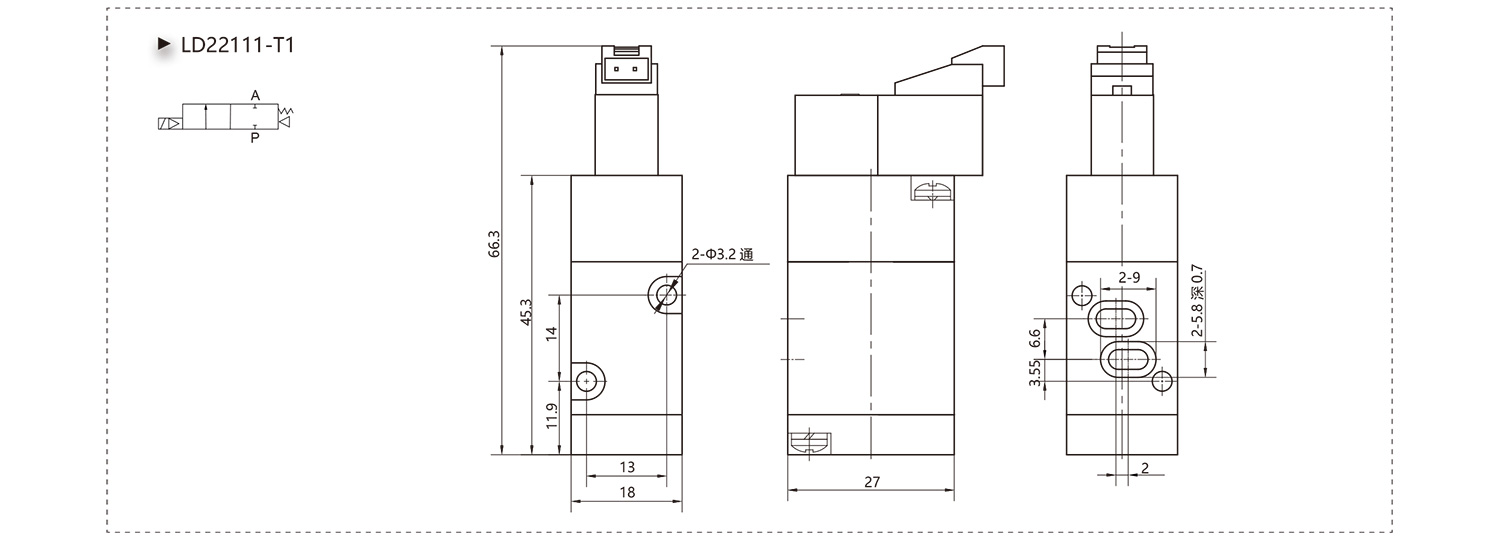

Overall Dimension





Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LD22 Series Solenoid Valve Suppliers and LD22 Series Solenoid Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LD22 Series Solenoid Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
