QF23.1-X Limit Valve Suppliers

QF23.1-X Limit Valve

QF23.1-X Limit Valve

Product Details

0
Views: 289

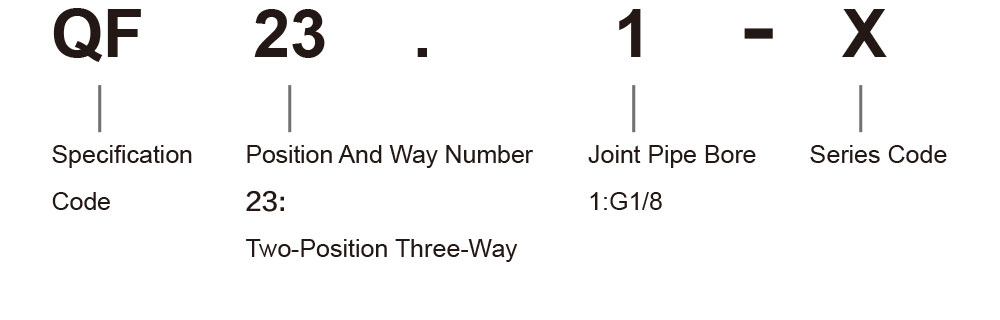

Ordering Code

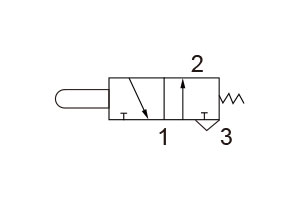

Graphic Symbol







Synopsis



The valve is a new product designed by our company. It is made of high-quality stainless steel, special sealing materials and advanced technology. It is suitable for various fluids. It has the advantages of simple appearance, beautiful appearance, sensitive reversal, good stability and long service life. It is widely used in various mechanical equipment.



Specification



Model QF23.1-X
Type Two-position Three-way Normally Open
Working Temperature Range -5~50℃
Working Medium Compressed Air,Water,Liquid
Medium Temperature 5~50°C
Nominal Diameter Ø3mm
Working-Pressure 0~1MPa
Pressure Resistance ≥1.2MPa
Reverse Stroke ≤0.4mm
Lubrication Need
Connection Mode Pipe Connection Type (G1/8)

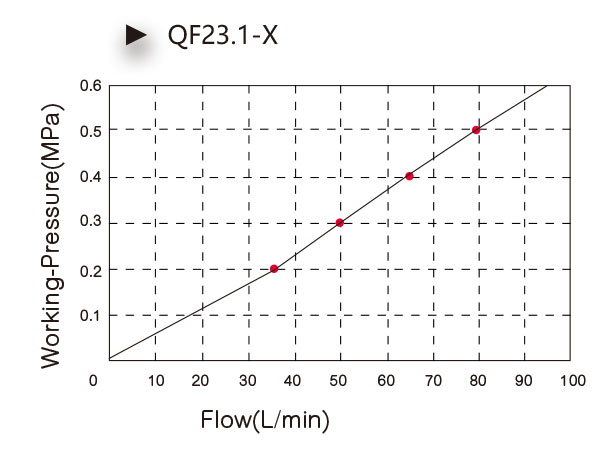

Flowing Character

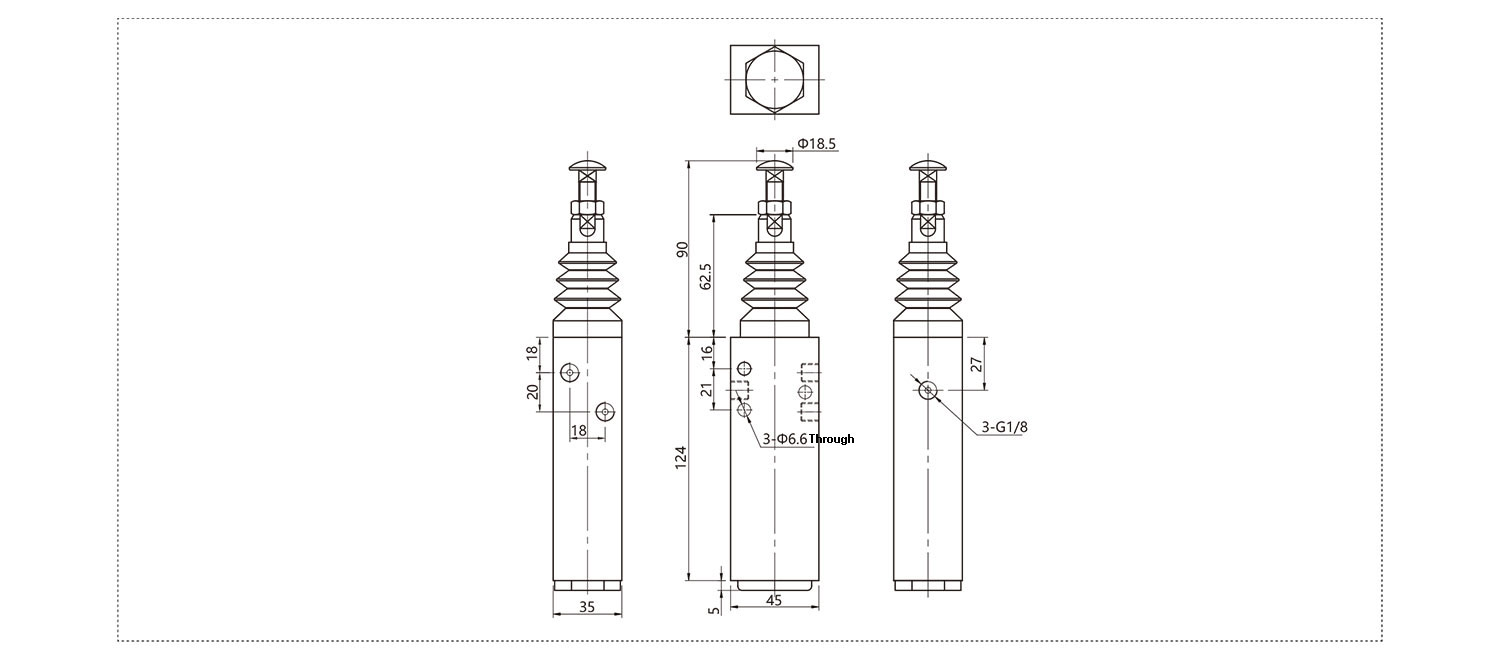

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China QF23.1-X Limit Valve Suppliers and QF23.1-X Limit Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our QF23.1-X Limit Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
