High Pressure Air Regulators Manufacturers

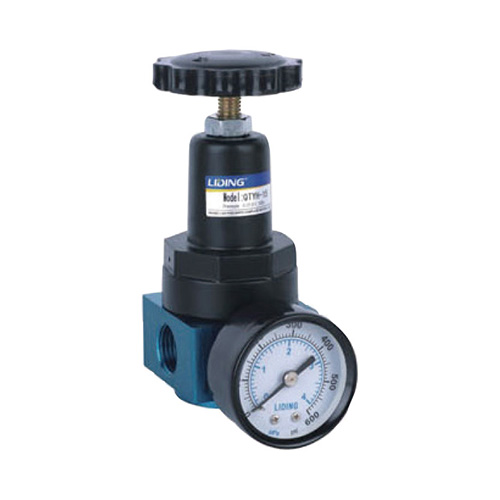

QTYH Series High Pressure Regulator

QTYH Series High Pressure Regulator

Product Details

0
Views: 319

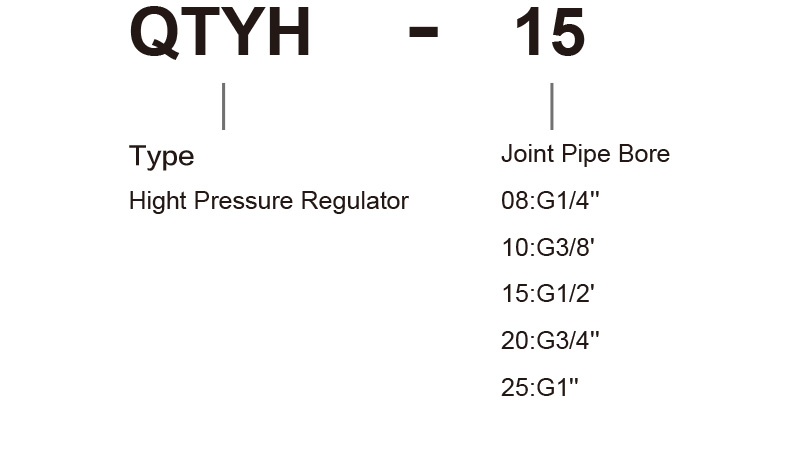

Ordering Code

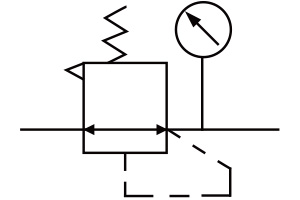

GraPhic symbol





Specification



Model

QTYH-08

QTYH-10

QTYH-15

QTYH-20

QTYH-25

Operating Fluid

Air

Joint Pipe Bore

G1/4

G3/8

G1/2

G3/4

G1

Range of Adjustable Pressure

0.05~3.0MPa

Max. Adjustable Pressure

4.OMPa

Operating Temperature Range

5~80℃

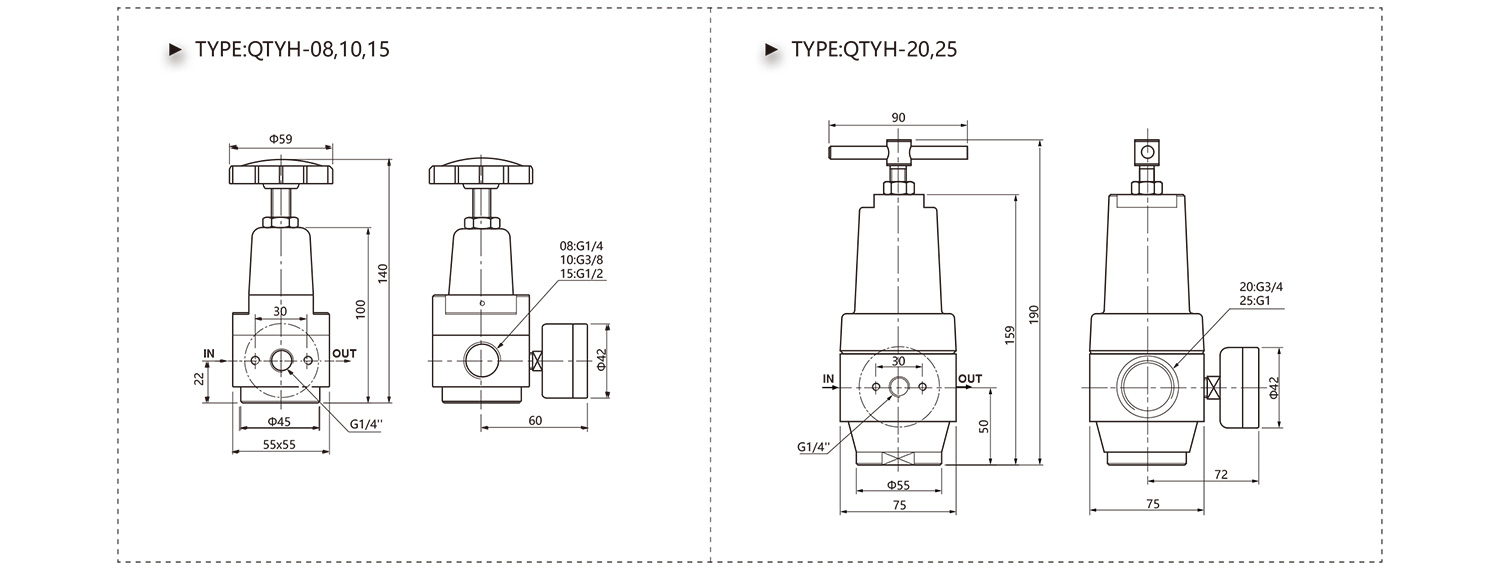

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China High Pressure Air Regulators Manufacturers and High Pressure Air Regulators suppliers,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our High Pressure Air Regulators are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
