LD4 Series Solenoid Valve,Pneumatic Control Valve Suppliers

LD4 Series Solenoid Valve,Pneumatic Control Valve

LD4 Series Solenoid Valve,Pneumatic Control Valve

Product Details

0
Views: 102

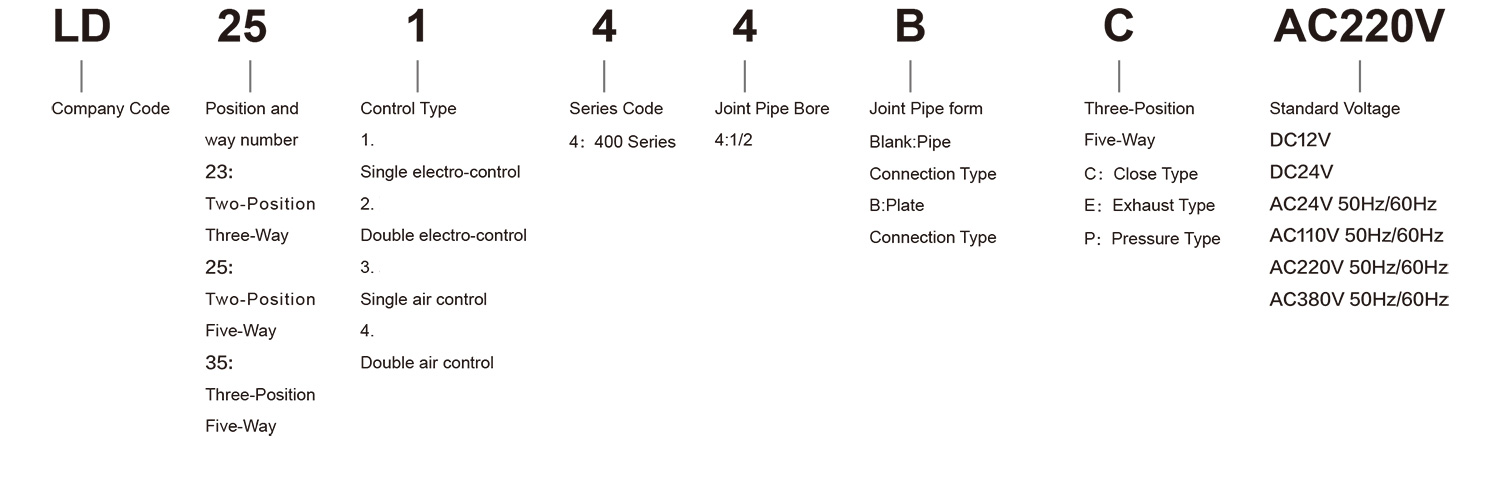

Ordering Code







Specification



Model

LD23144

LD23244

LD25144

LD25244

LD35244C

LD35244E

LD35244P

LD23344

LD23444

LD25344

LD25444

LD35444C

LD35444E

LD35444P

Working Medium

40 Micron Filtered Air

Motion Pattern

Inner Guide Type

Joint Pipe Bore

Intake = Outlet = Exhaust =G1/2

The Position Counting

Two-position Three-way

wo-position Five-way

Three-position Five-way

Operating Temperature

5~50℃ (41-122° F)

Effectjve Sectional Area

50mm²  (Cv=2.79)

50mm²  (Cv=2.79)



30mm²  (Cv=1.67)

Working-Pressure

0.15~0.8MPa

Max.Pressure Resistance

1.2MPa

Power Consumption

AC:3.2VA DC:3.7W

Protection Class

IP65 (DIN40050)

Insulation

Class F

Wiring Form

Lead Wire or Connector Type

Voltage Range

±10%

Highest Action Frepuency

5 Cycle/Sec

5 Cycle/Sec

3 Cycle/Sec

Shortest Excitation Time

0.05 Second

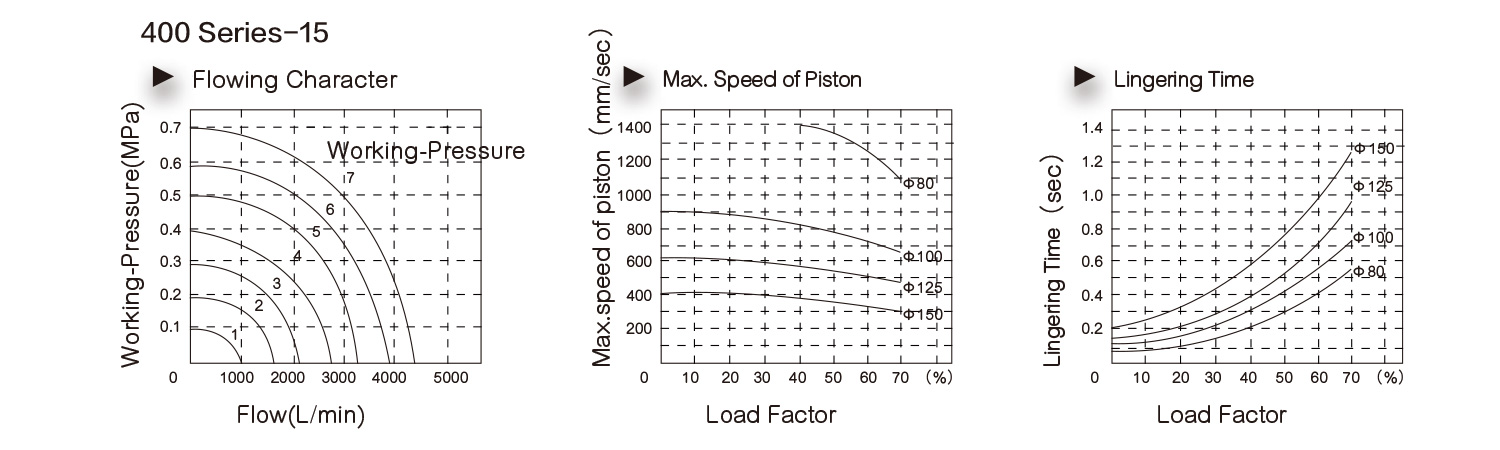

Flowing Character





Test Condition



Pressure

0.5MPa

Tube

PU Pipe 12×8 Bore:8mm

Fitting

4V410-15:PC12-04

Load Facto

Load Factor=Load/Cylinder Theoretical Output Power×100%

Cylinder Stroke

300mm

Value Model

4V400 Series

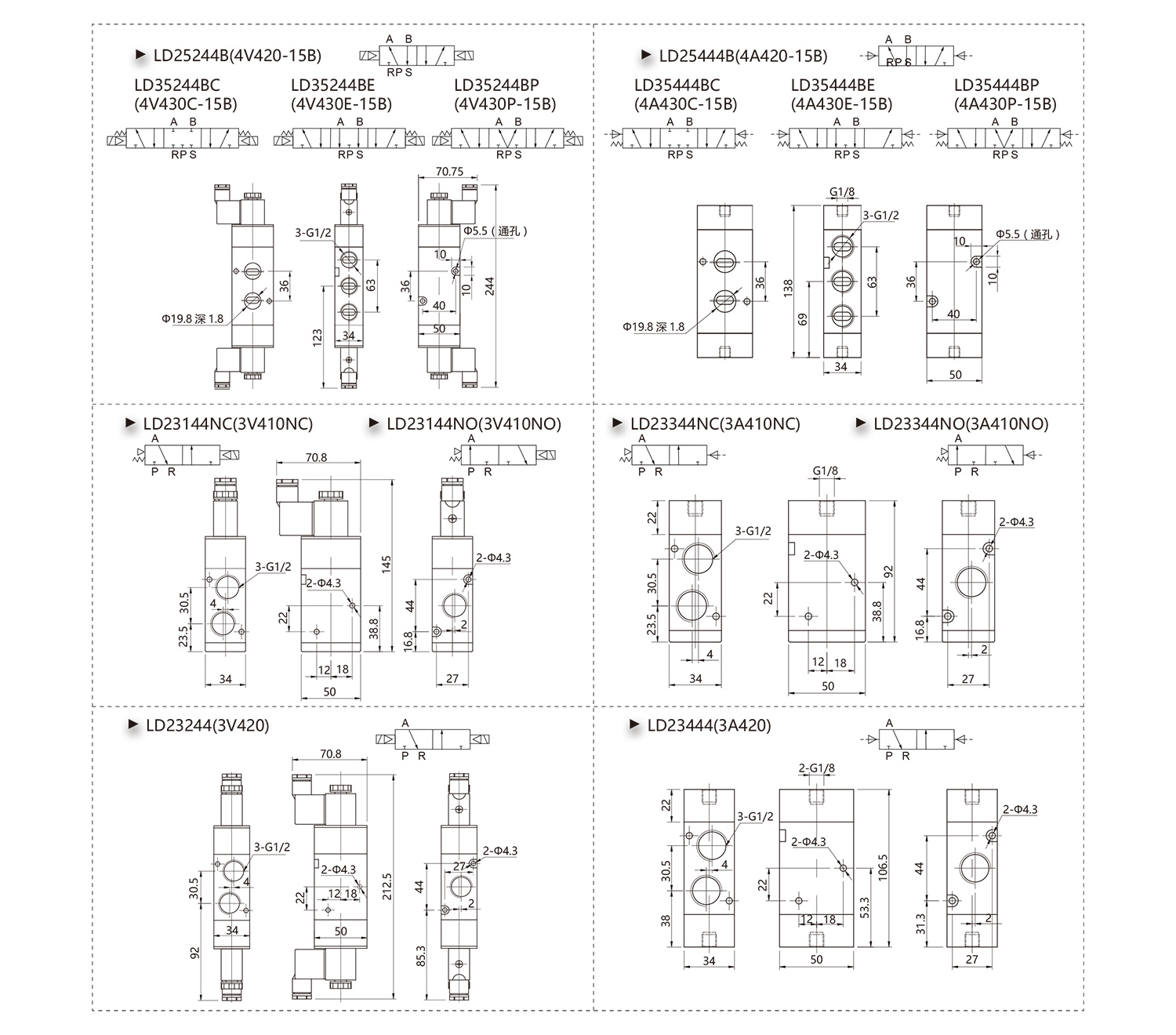

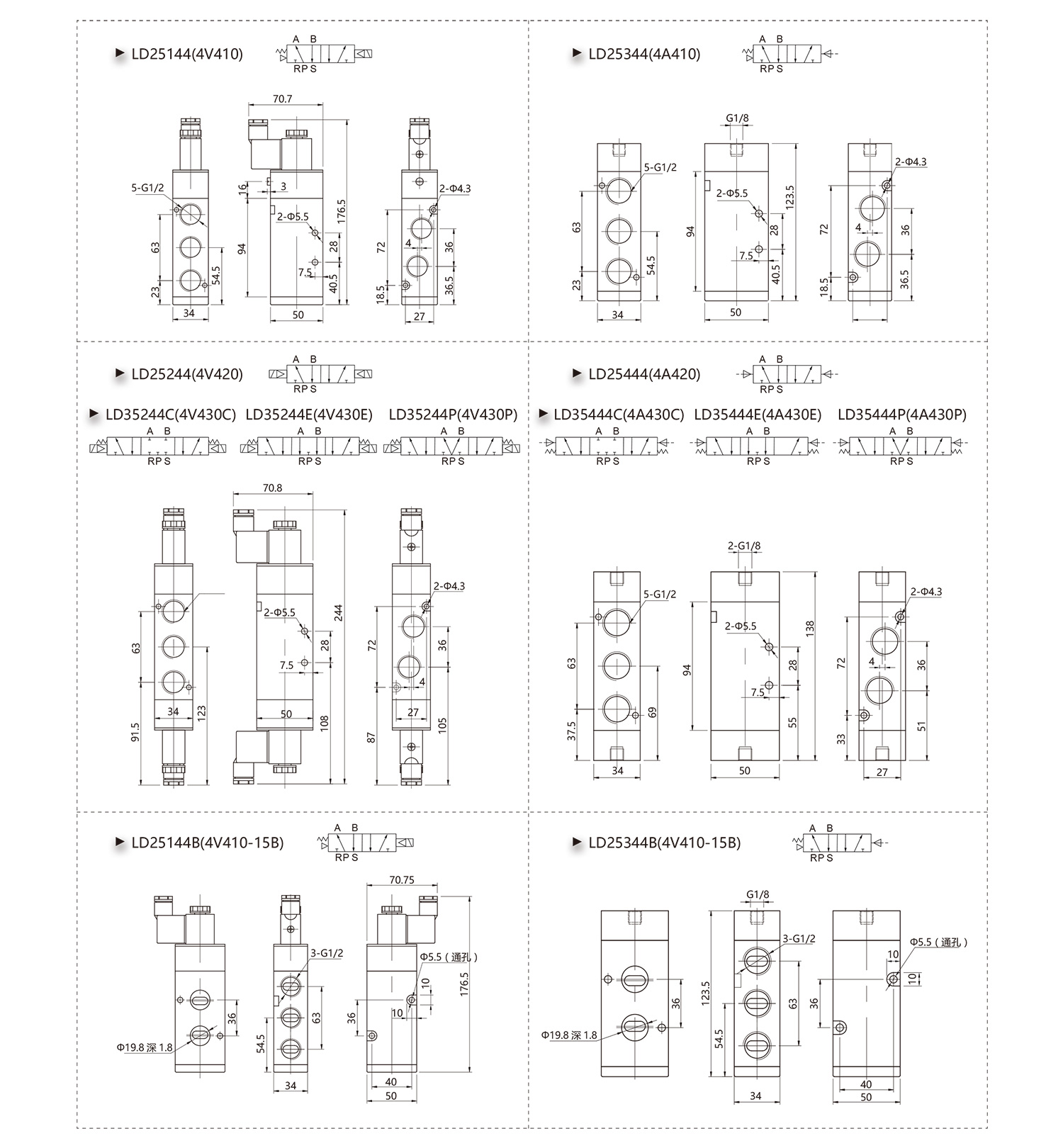

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LD4 Series Solenoid Valve,Pneumatic Control Valve Suppliers and LD4 Series Solenoid Valve,Pneumatic Control Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LD4 Series Solenoid Valve,Pneumatic Control Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
