WZA Miniature Solenoid Valve Introduction Suppliers

WZA Miniature Solenoid Valve Introduction

WZA Miniature Solenoid Valve Introduction

Product Details

0
Views: 782

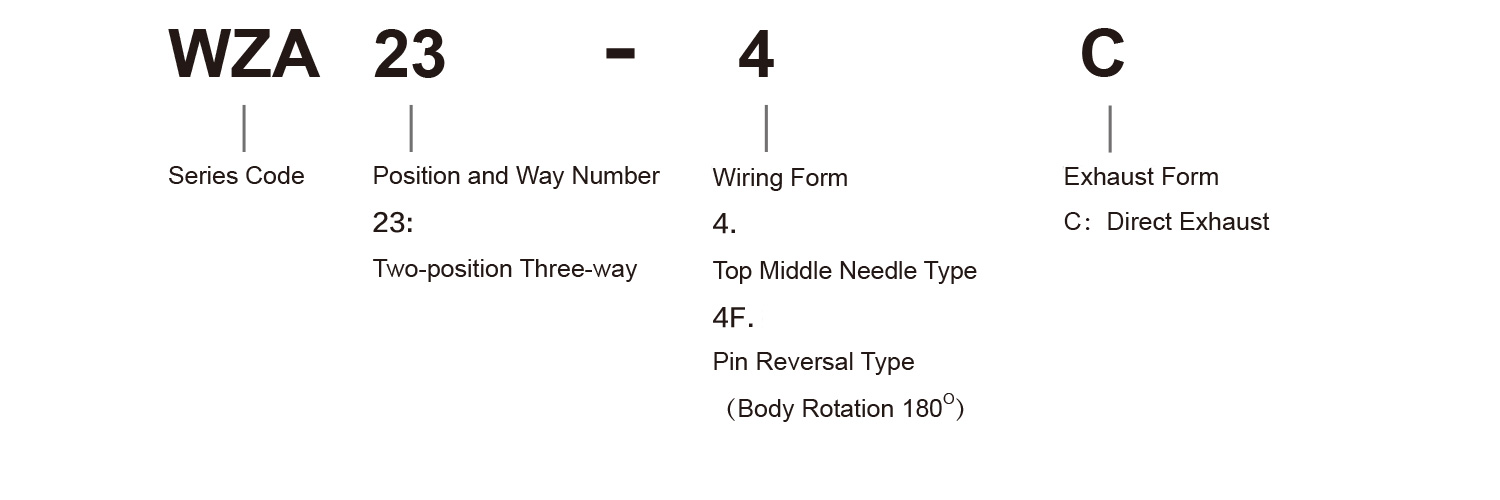

Ordering Code

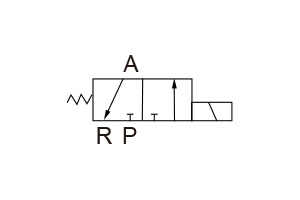

GraPhic symbol



Synopsis



The valve is a two-position three-way direct-acting miniature solenoid valve, which uses high-quality materials, reasonable structure design and advanced technology to make the product more stable, lower power consumption, more concise appearance, and is widely used in mechanical manufacturing, textile and other air control fields.



Specification



Model WZA23-4C
Working Medium 40 Micron Filtered Air
Operating Temperature -5~50℃
Nominal Diameter Ø0.7mm
Response time(ms) ≤10ms
Max Operating Frequency Cycle/Sec
Min. Operating Frequency Cycle/Day
Lubrication Not Lubrication
Working-Pressure 0.2~0.7MPa
Voltage Range DC24V
Allowable Voltage ±10%
Power Consumption 0.7W
Connection Mode Embedding Type

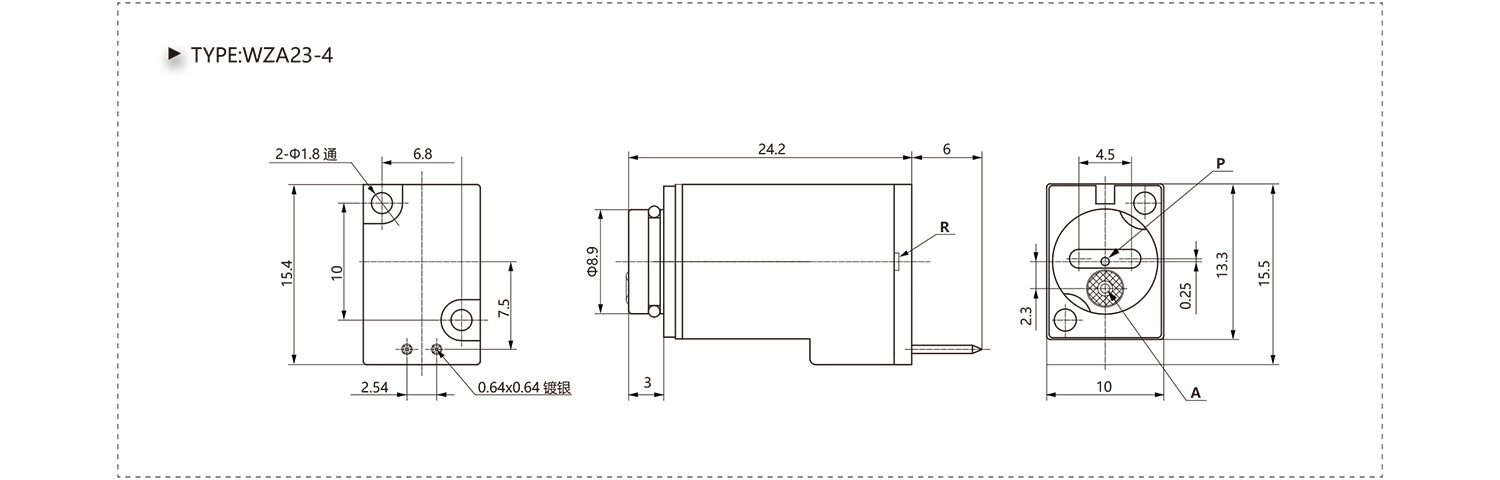

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China WZA Miniature Solenoid Valve Introduction Suppliers and WZA Miniature Solenoid Valve Introduction company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our WZA Miniature Solenoid Valve Introduction are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
