LQ110 Series Group Valve Suppliers

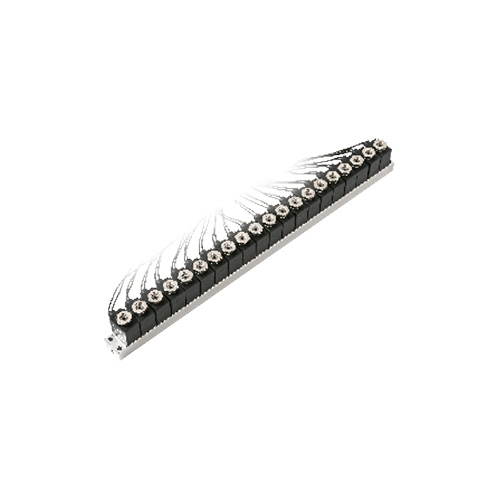

LQ110 Series Group Valve

LQ110 Series Group Valve

Product Details

0
Views: 168

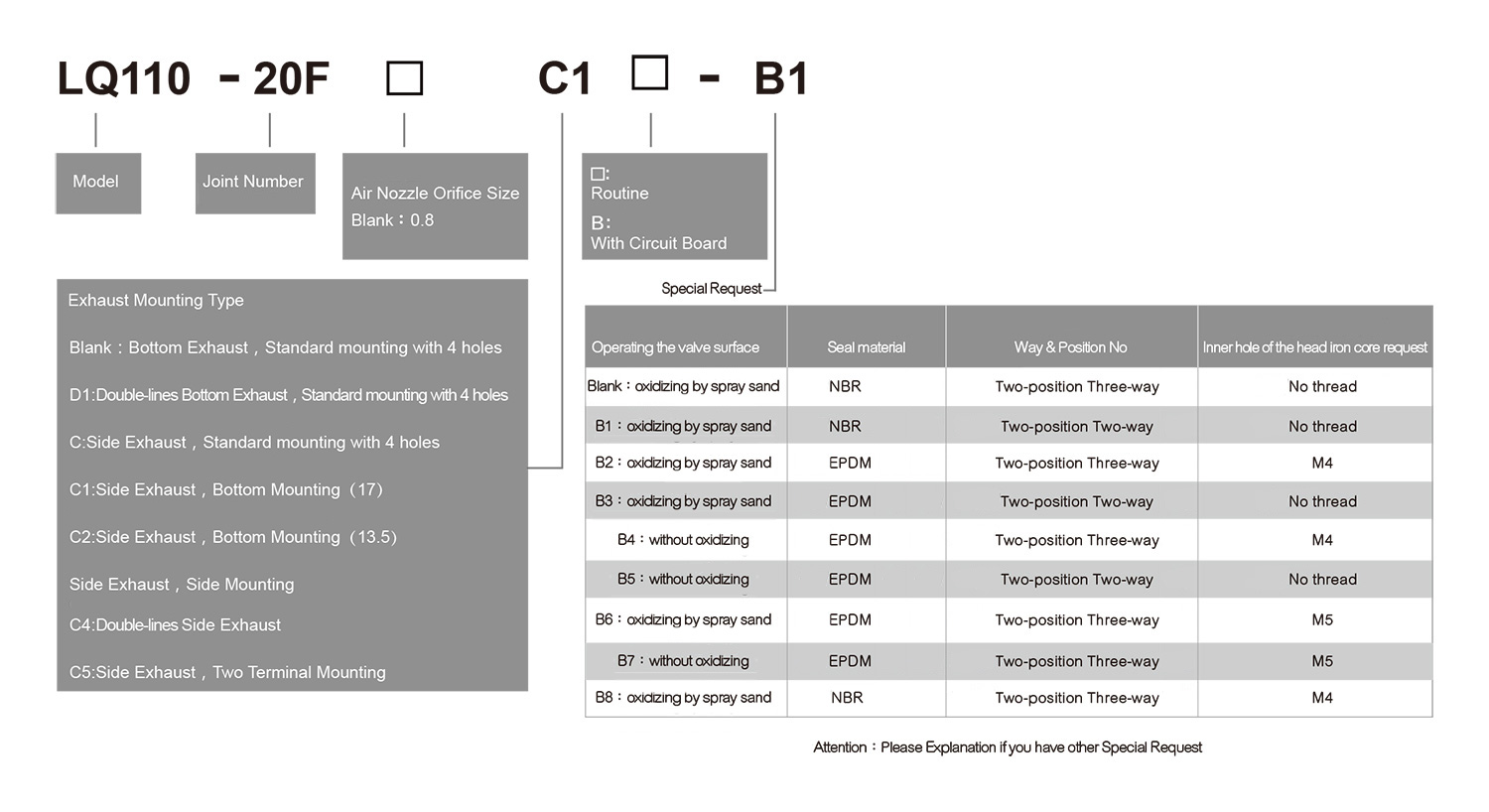

Ordering Code







Specification



Model

LQ110- □F

LQ110-□FC3

Working Medium

40 Micron Filtered Air

The Position Counting

Two-position Three-way

Joint Pipe Bore

M5

Operating Temperature

-5~60℃

Working-Pressure

0~0.8MPa

Max Pressure Resistance

1.2MPa

Standard Voltage

AC220V & DC24V

Voltage Range

±15%

Max. Testing Voltage

1500V

Proterction Class

IP65(DIN40050)

Insulation

Class F

Highest Action Frequency

5 Times Per Second

Use Life

5 Million Times

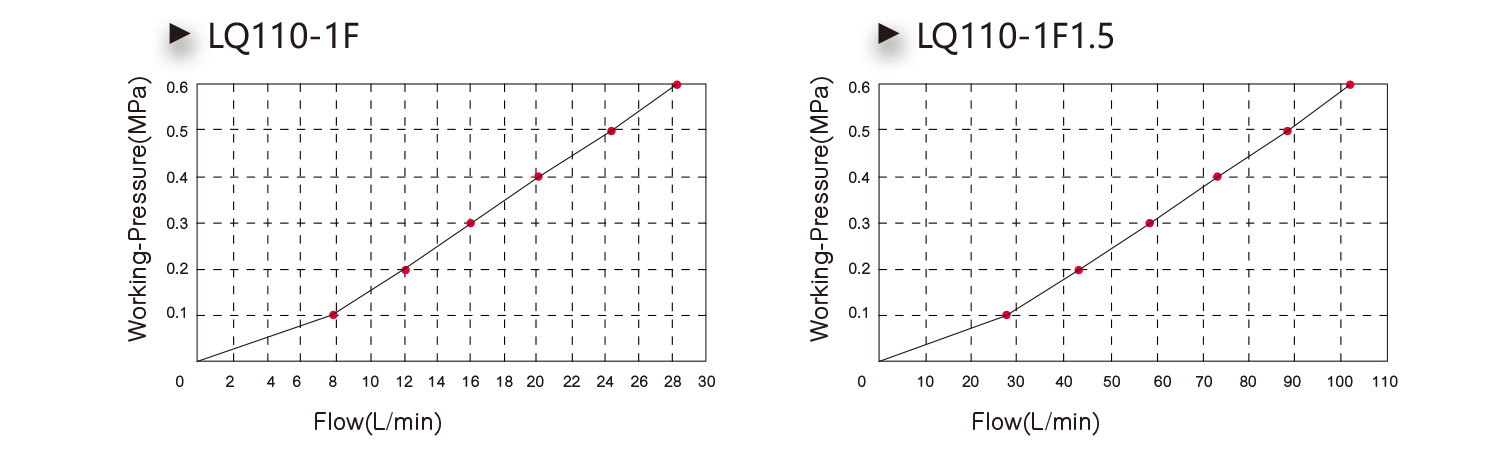

Flowing Character

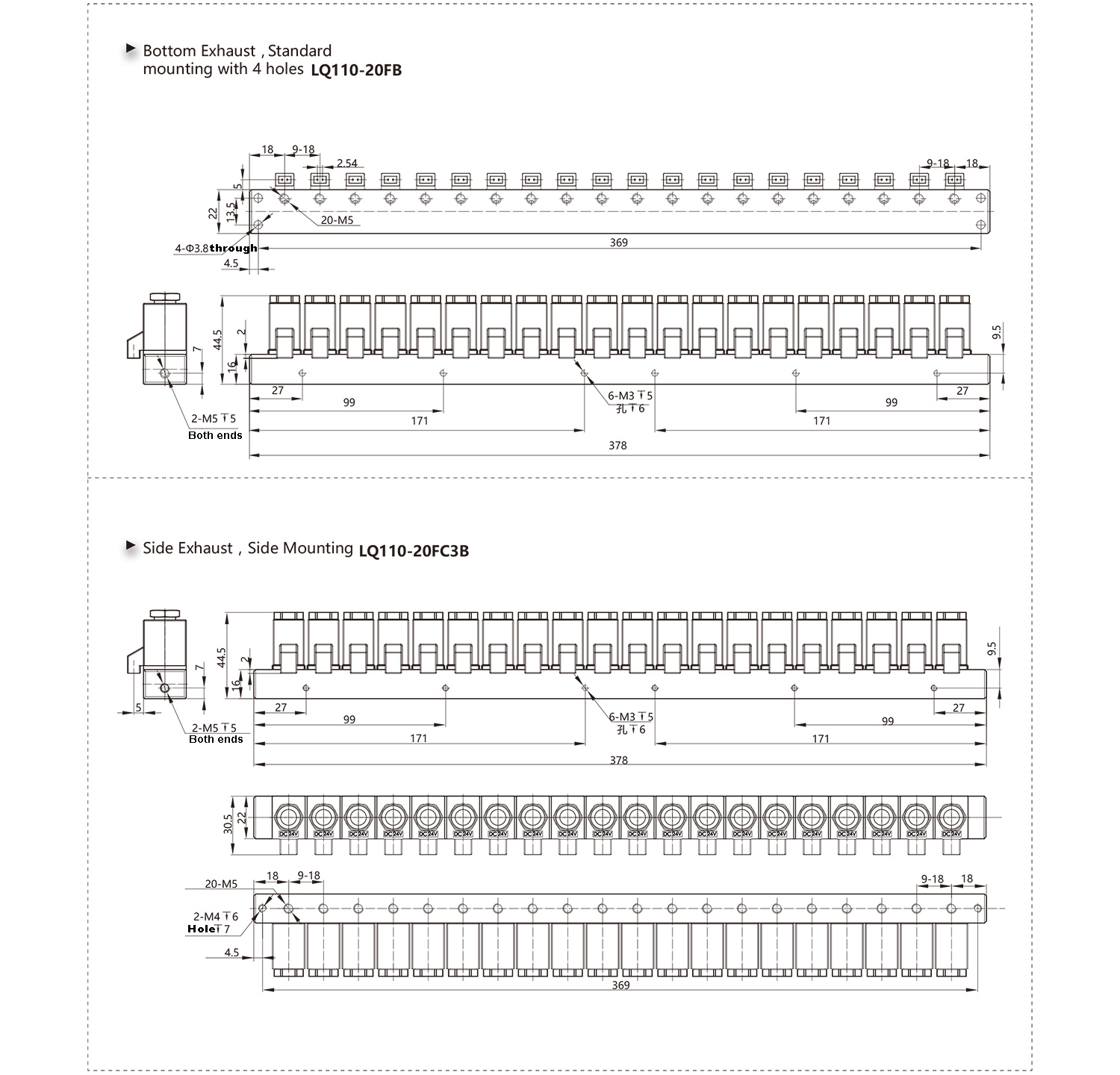

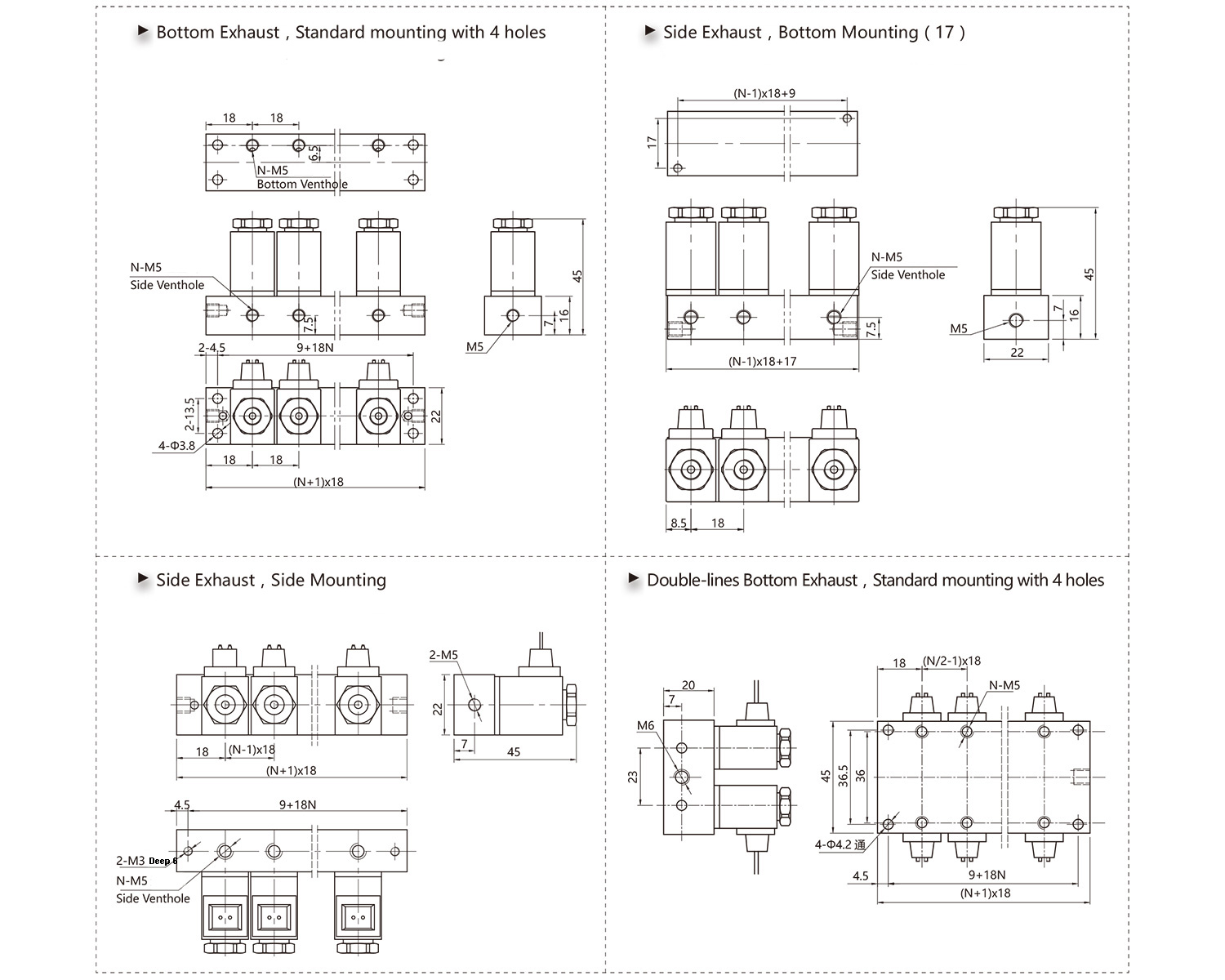

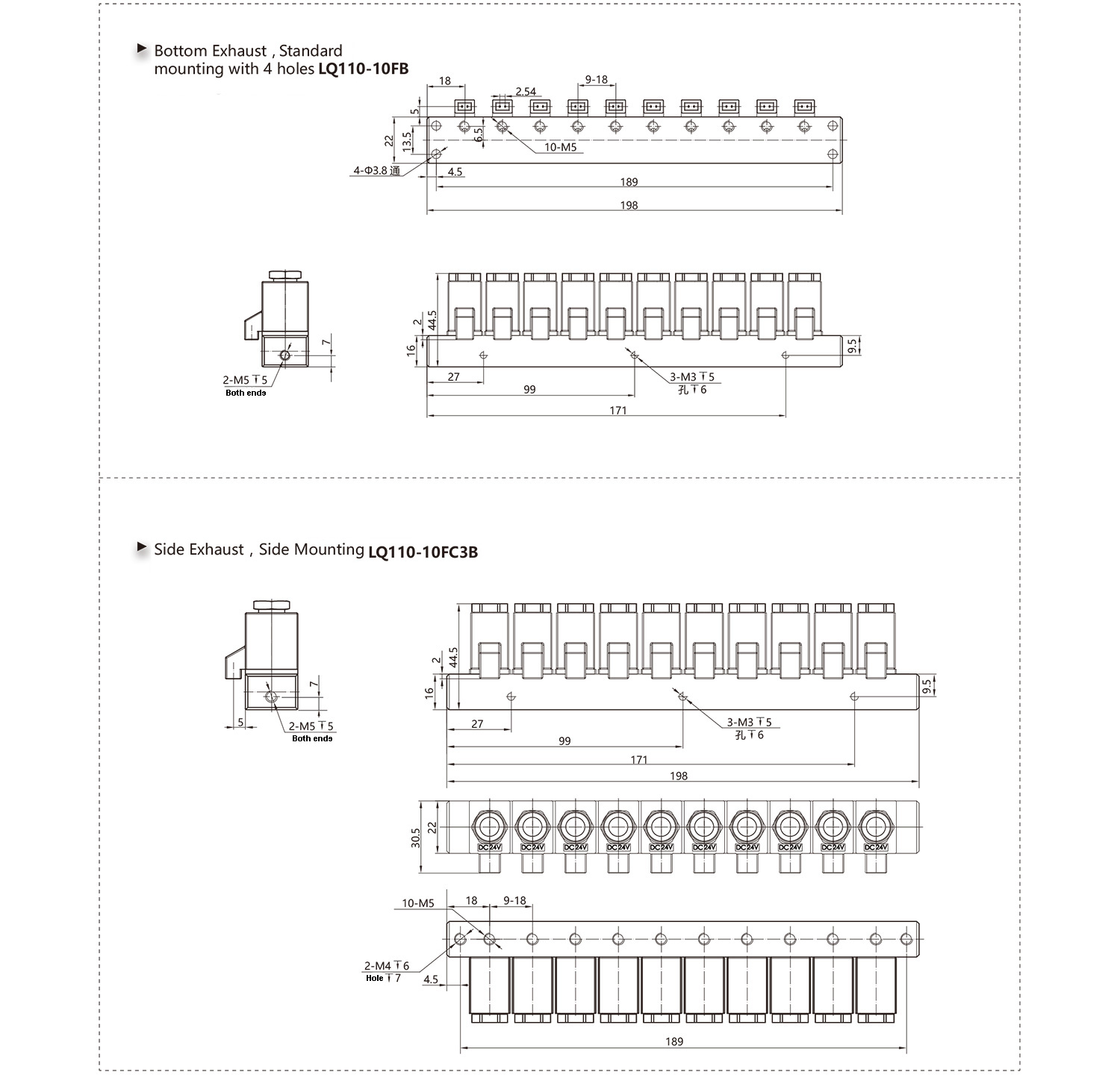

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LQ110 Series Group Valve Suppliers and LQ110 Series Group Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LQ110 Series Group Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
