OR MICRO Series Regulator Suppliers

OR MICRO Series Regulator

OR MICRO Series Regulator

Product Details

0
Views: 709

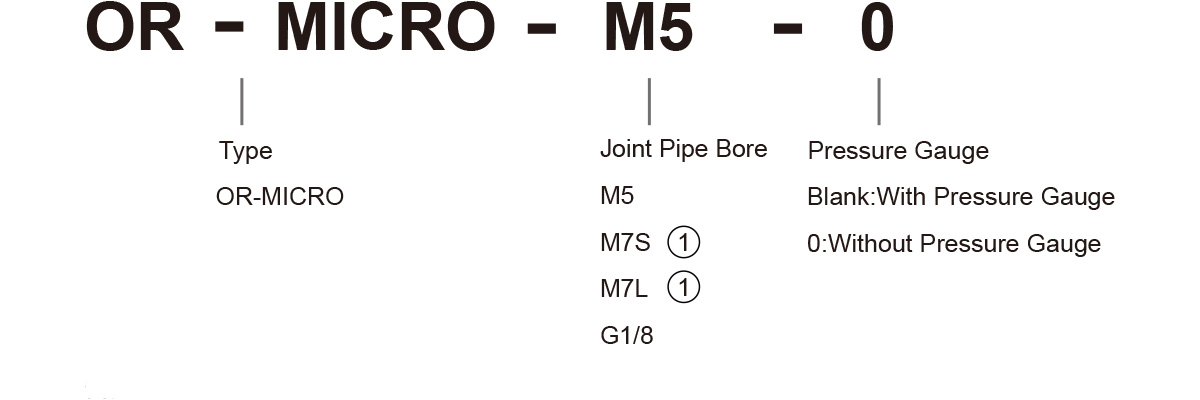

Ordering Code

Note:

①There are some differences during overall dimension and standard nominal flow rate aspects between M7S and M7L,the joint pipe bore of both is M7;

②This series of condensate drain are all turned manually.

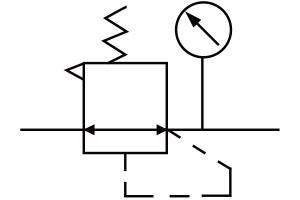

GraPhic symbol





Specification



Model

OR-MICRO

-M5

OR-MICRO

-M7S

OR-MICRO

-M7L

OR-MICRO

-1/8

Operating Fluid

Air

Joint Pipe Bore

M5

M7

M7

1/8

Standard Nominal Flow Rate

120

280

300

410

Min.Standard Nominal Flow Rate

3L/min

Capacity of Condensate Fluid

6.5cm

Filtering Eliment Roughness

5μm

Primary Pressure

0~1MPa

Range of Adjustable Pressure

0.05~0.7MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

0-60°C

Suggested Lube

ISO VG32 or Same Grade Oil

Material

Body

Wrought Aluminium Alloy

Filter & Oil Bowl Material

PC

Adjusting Knob

POM

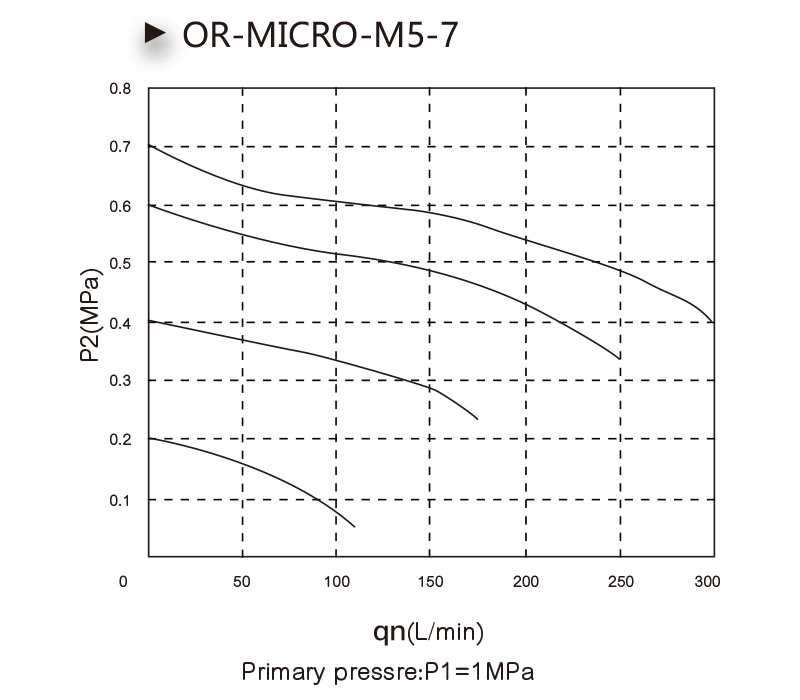

Flowing Character



Standard flow rate qn as a function of the output pressure p2

Model

B1

D1

OR-MICRO-M5

25

M5

OR-MICRO-M7S

25

M7

OR-MICRO-M7L

45

M7

OR-MICRO-1/8

45

1/8

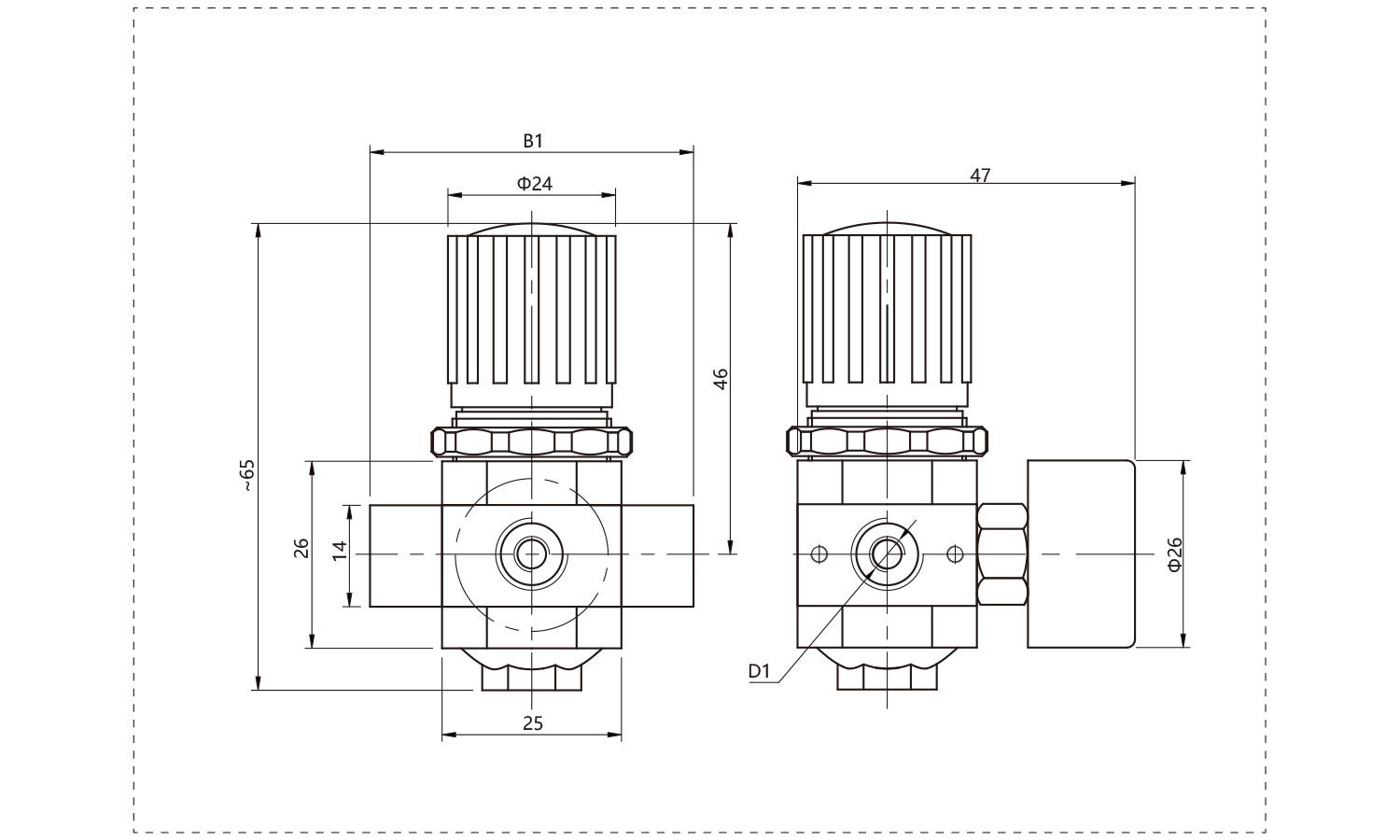

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China OR MICRO Series Regulator Suppliers and OR MICRO Series Regulator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our OR MICRO Series Regulator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
