OU Series Filter&Regulator,Lubricator
Product Details

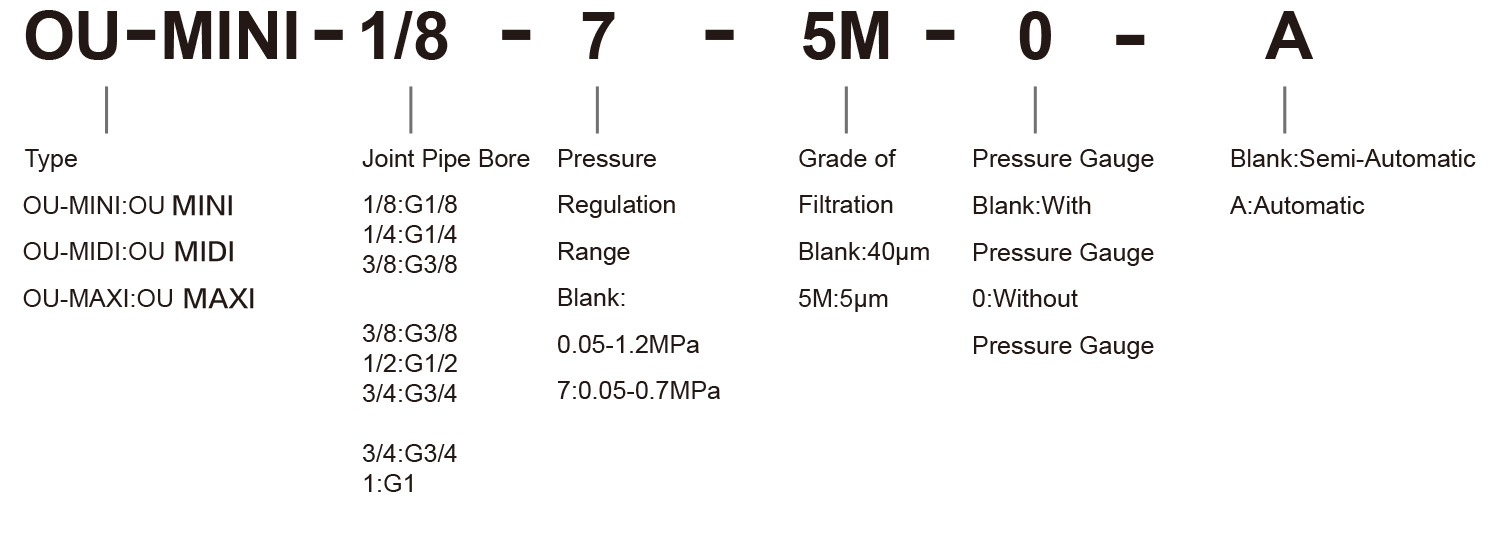

Ordering Code

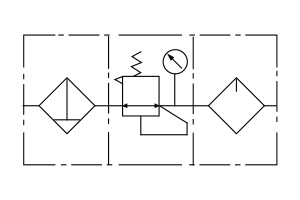

GraPhic symbol
Synopsis
The OU consisted of OFR and OL，each unit can be ordered separately.The OF with water separator cleans the compressed air of fluid oil,condensation and dirt particles.For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.
The proportional lubricator adds a regulated quantity of oil to the filtered air. The oil-mist content proportional to the flow and oil can be added during operation.The oil drip rate is controlled by the adjustable bolt.Normally,1 to 12 drops/1000L of the air is sufficient.
Specification
|
Model |
OU-MINI |
OU-MIDI |
OU-MAXI |
||||||
|
Operating Fluid |
Air |
||||||||
|
Joint Pipe Bore |
G1/8 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
|
|
Standard Nominal Flow Rate |
OU-...(-A) |
700 |
1000 |
1200 |
2000 |
2600 |
2600 |
8300 |
8500 |
|
OU-...-7-(-A) |
800 |
1350 |
1500 |
2000 |
2800 |
2800 |
8500 |
8700 |
|
|
OU-...-5M-(-A) |
600 |
850 |
1050 |
1700 |
1800 |
2100 |
7000 |
7200 |
|
|
Min.Standard Nominal Flow Rate |
3L/min |
6L/min |
10L/min |
||||||
|
Capacity of Condensate Fluid |
22ml |
43ml |
80ml |
||||||
|
Grade Of Filtration |
40μm/5μm |
||||||||
|
Primary Pressure |
Manual Condensate Drain |
0.1~1.6MPa |
|||||||
|
Automatic Condensate Drain |
0.15~1.2MPa |
||||||||
|
Working Pressure |
0.05~1.2MPa/0.05~0.7MPa |
||||||||
|
Operating Temperature Range |
0~60°C |
||||||||
|
Material |
Housing |
Zinc Die-Casting |
|||||||
|
Filter Bowl |
PC |
||||||||
|
Metal Bowl Guard |
Aluminium Alloy |
||||||||
|
Adjusting Knob |
POM |
||||||||

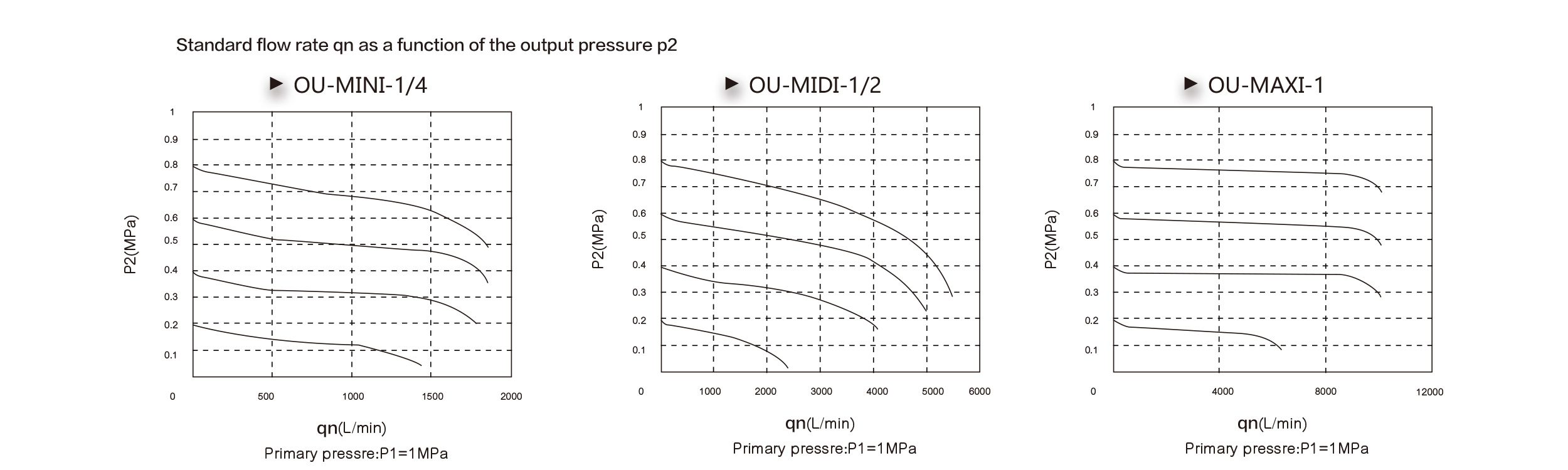

Flowing Character

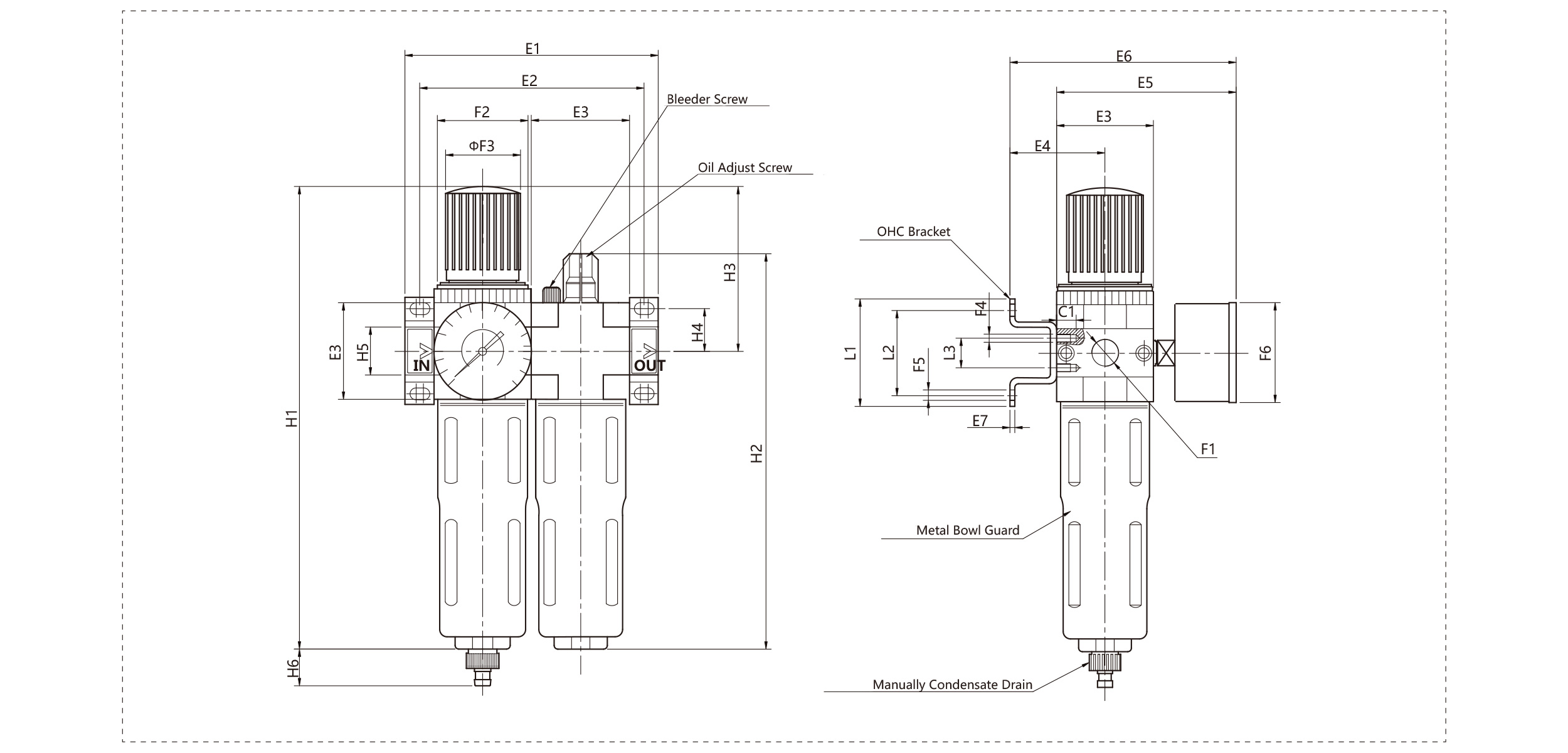

Overall Dimension
|
Model |
E1 |
E2 |
E3 |
E4 |
E5 |
E6 |
E7 |
F1 |
F2 |
F3 |
F4 |
F5 |
F6 |
L1 |
L2 |
L3 |
H1 |
H2 |
H3 |
H4 |
H5 |
H6 |
|
OU-MINI-... |
104 |
92 |
40 |
39 |
76 |
95 |
2 |
G1/8 G1/4G3/8 |
M36*1.5 |
31 |
M4 |
4.5 |
40 |
44 |
35 |
11 |
194 |
169 |
69 |
17.5 |
20 |
15 |
|
OU-MIDI-... |
140 |
125 |
55 |
47 |
93 |
112 |
3 |
G3/8 G1/2 G3/4 |
M52*1.5 |
50 |
M5 |
5.5 |
52 |
71 |
60 |
22 |
250 |
206 |
97 |
24.5 |
32 |
15 |
|
OU-MAXI-... |
162,182 |
146,157 |
66 |
53 |
104 |
「24 |
3 |
G3/4 G1 |
M36*1.5 |
31 |
M5 |
5.5 |
63 |
71 |
60 |
22 |
250 |
223 |
80 |
24.5 |
32,40 |
15 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China OU Series Filter&Regulator,Lubricator Suppliers and OU Series Filter&Regulator,Lubricator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our OU Series Filter&Regulator,Lubricator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
