Hand-Draw Valve Suppliers

Hand-Draw Valve

Hand-Draw Valve

Product Details

0
Views: 243

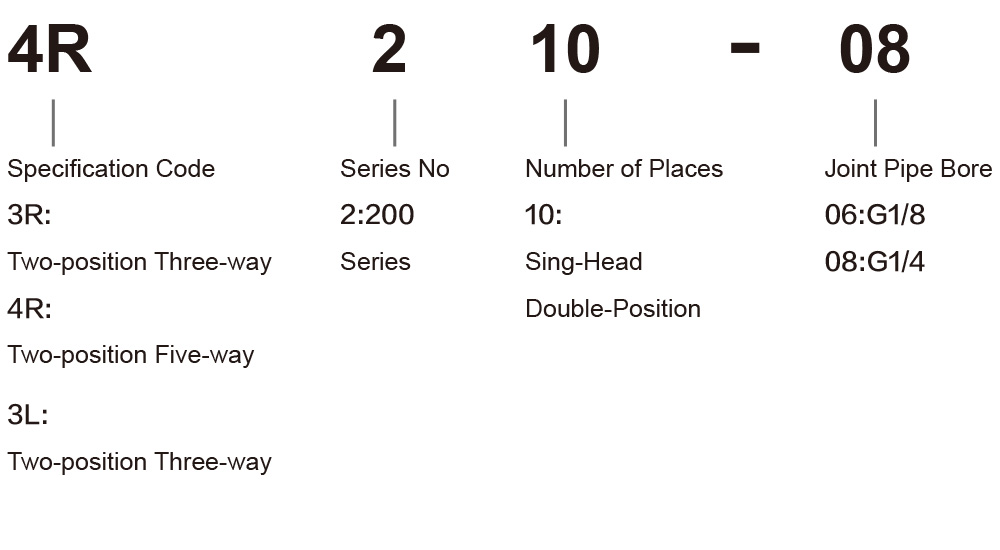

Ordering Code







Specification



Model (3L) 3R210-06 (3L) 3R210-08 4R210-06 4R210-08
Working Medium 40 Micron Filtered Air
Effective Sectional Area 14mm² (Cv=0.78) 16mm² (Cv=0.89) 14mm² (Cv=0.78) 16mm² (Cv=0.89)
Joint Pipe Bore Air lnlet=Air Outlet=Exhaust=G1/8 Air lnlet=Air Outlet
=G1 /4Exhaust=G1 /8
Air lnlet=Air Outlet=Exhaust=G1/8 Air lnlet=Air Outlet =G1/4Exhaust=G1/8
Operating Temperature 0~60℃
The Position Counting Two-position Three-way Two-position Five-way
Working-Pressure 0~0.8MPa

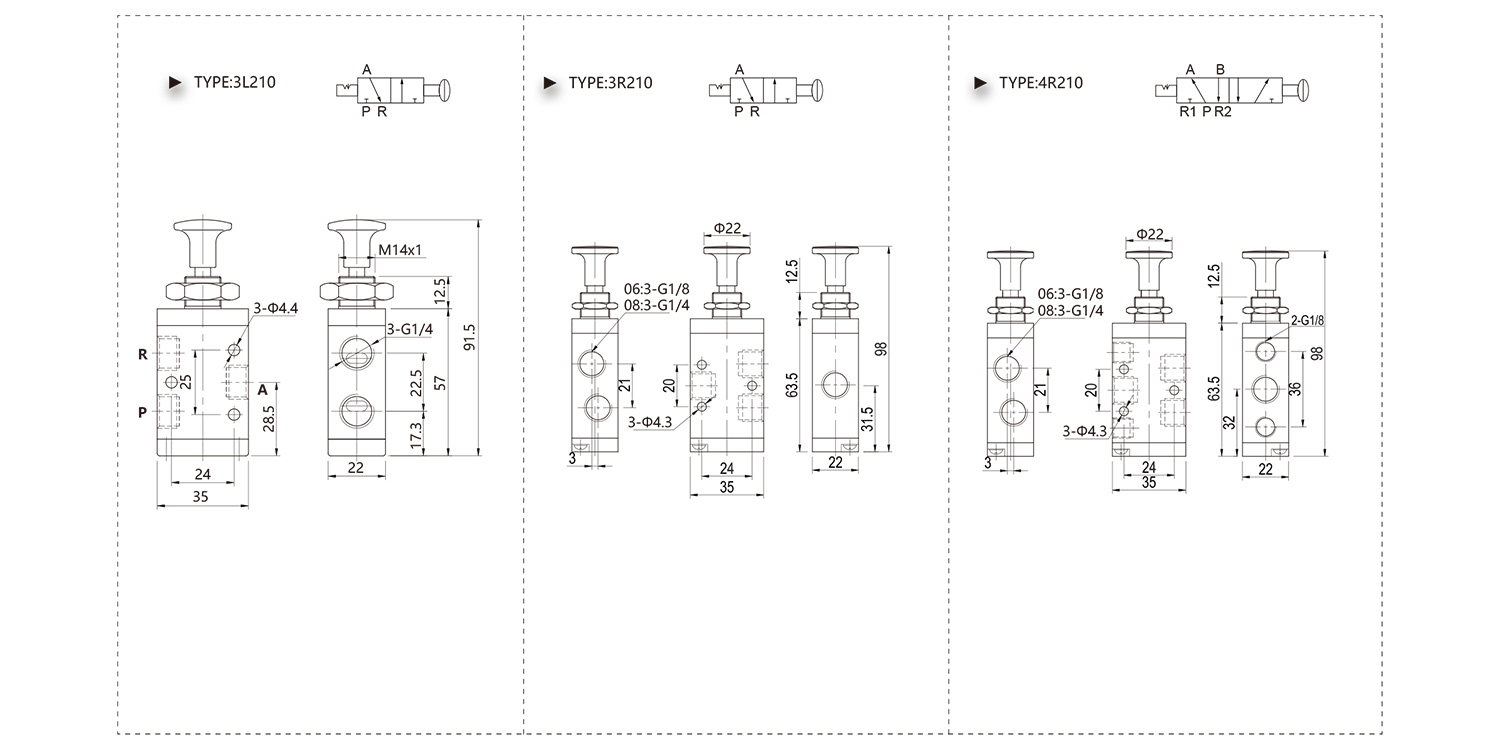

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Hand-Draw Valve Suppliers and Hand-Draw Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Hand-Draw Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
