Hand-Switching Valve Suppliers

Hand-Switching Valve

Hand-Switching Valve

Product Details

0
Views: 220

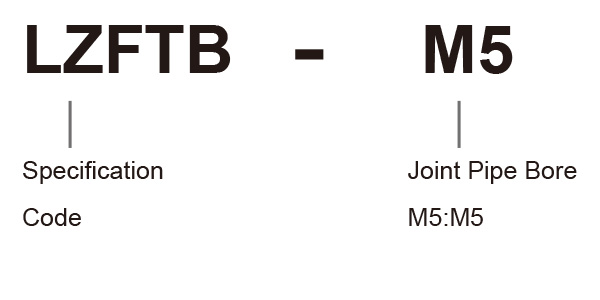

Ordering Code

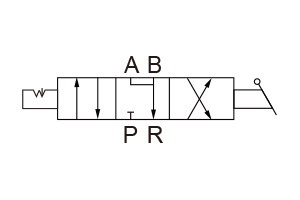

Graphic Symbol







Synopsis



The valve is made of T6061 profile, advanced processing technology and special sealing material. It is suitable for all kinds of fluids. It has concise and beautiful appearance and different use functions. It can be used as switch reversing valve or fluid distributor. The valve has good sealing performance, light control force and long service life. It is widely used in machinery and equipment.





Specification



Model LZFTB-M5
Working Medium Varieties of fluid
The Position Counting Three-position Four-way
Joint Pipe Bore M5
Operating Temperature Range -10~60°C
Working-Pressure 0~0.8MPa

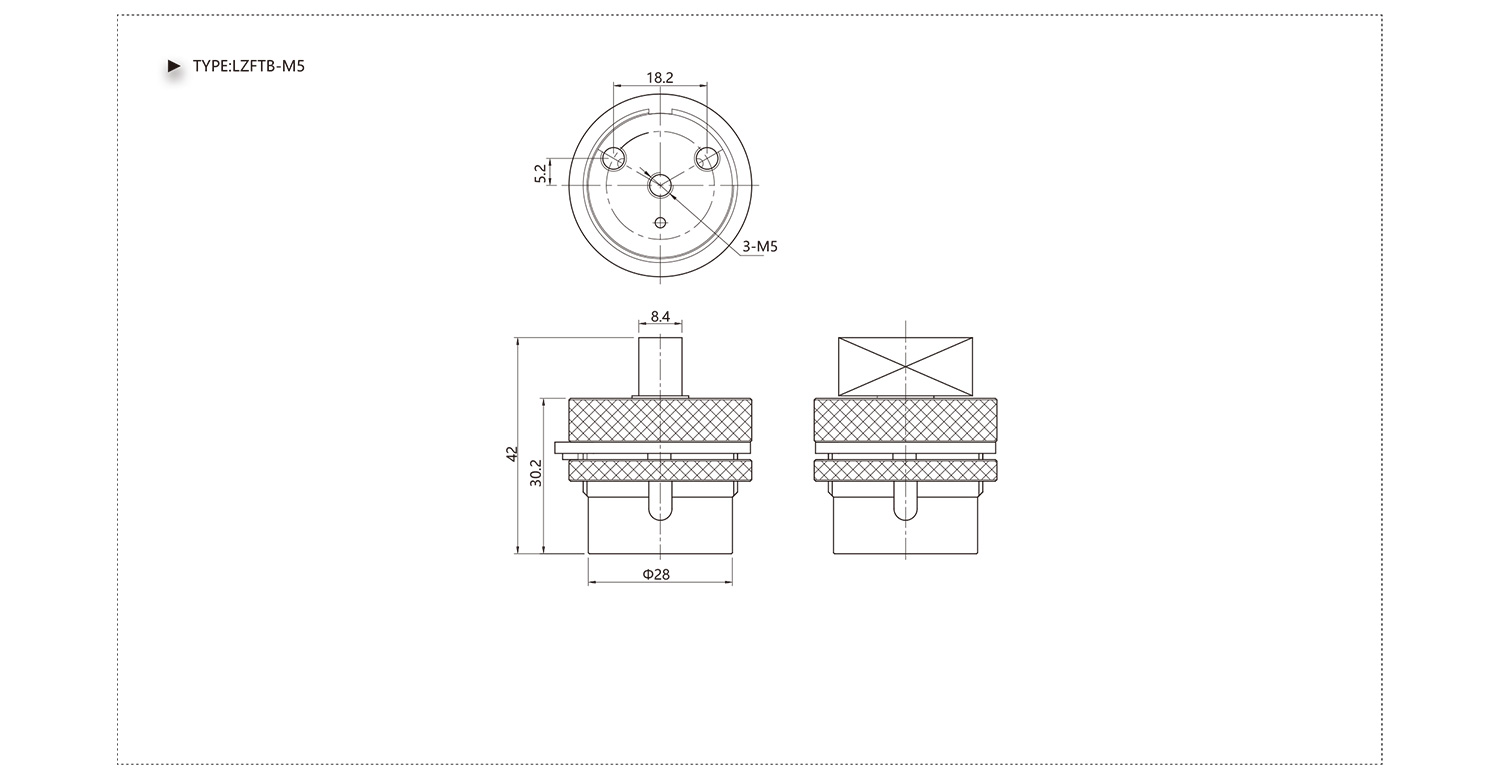

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Hand-Switching Valve Suppliers and Hand-Switching Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Hand-Switching Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
