LZY Oxygenerator Electromagnetic Valve Suppliers

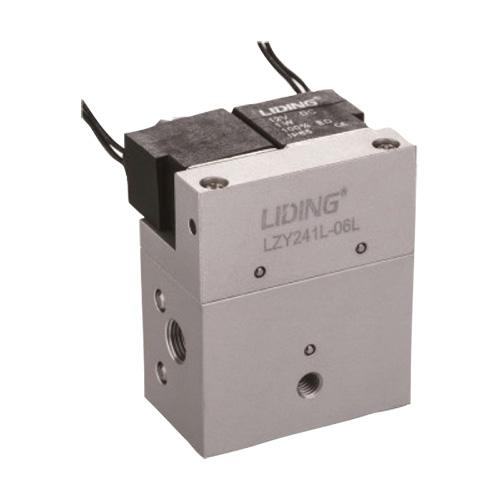

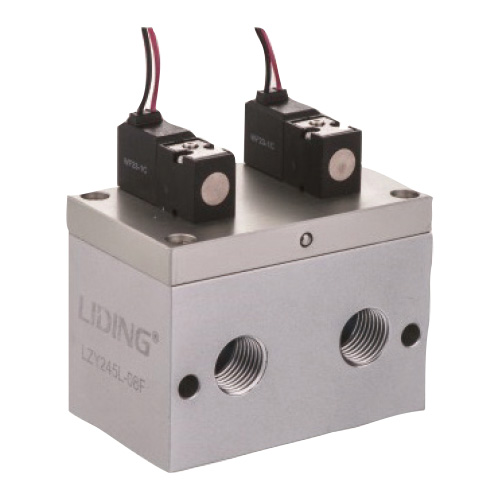

LZY Oxygenerator Electromagnetic Valve

LZY Oxygenerator Electromagnetic Valve

Product Details

0
Views: 147

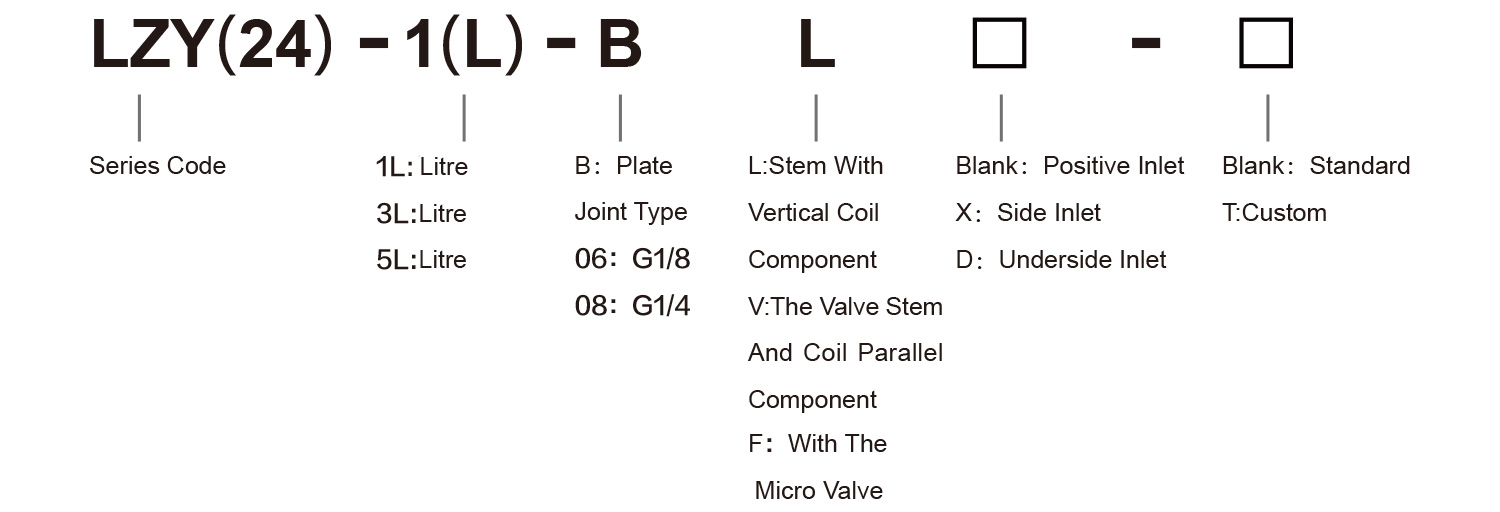

Ordering Code

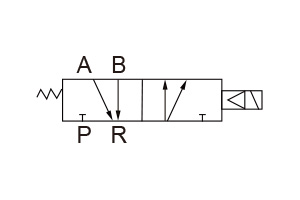

Graphic Symbol



Synopsis



The solenoid valve is a new product designed by our company. It is controlled by micro-electric signal. It has beautiful appearance, stable performance, sensitive action, low power consumption, low noise, high reliability, large flow and long service life. The company can design personalized solenoid valves for oxygen generator for users, and we hope that users can order drawings, samples or parameters.



Specification



Model LZY1 LZY3 LZY5
Working Medium 40 Micron Filtered Air
The Position Counting Two-Position Four-Way
Joint Pipe Bore G1/8 G1/4 G1/4
Path (mm) 6 9
Working-Pressure 0.035~0.35MPa
Action Mode Internal Lead Type
Lubrication No Oil
Noise ≤43dB
Medium Temperature -5~60°C
Power 1W 0.7W/1.3W
Service Time ≥500 万次/More Than 5 Million Times
Applicable Models 1-5 Liter Oxygenerator 5-10 Liter Oxygenerator More Than 10 Liter Oxygenerator

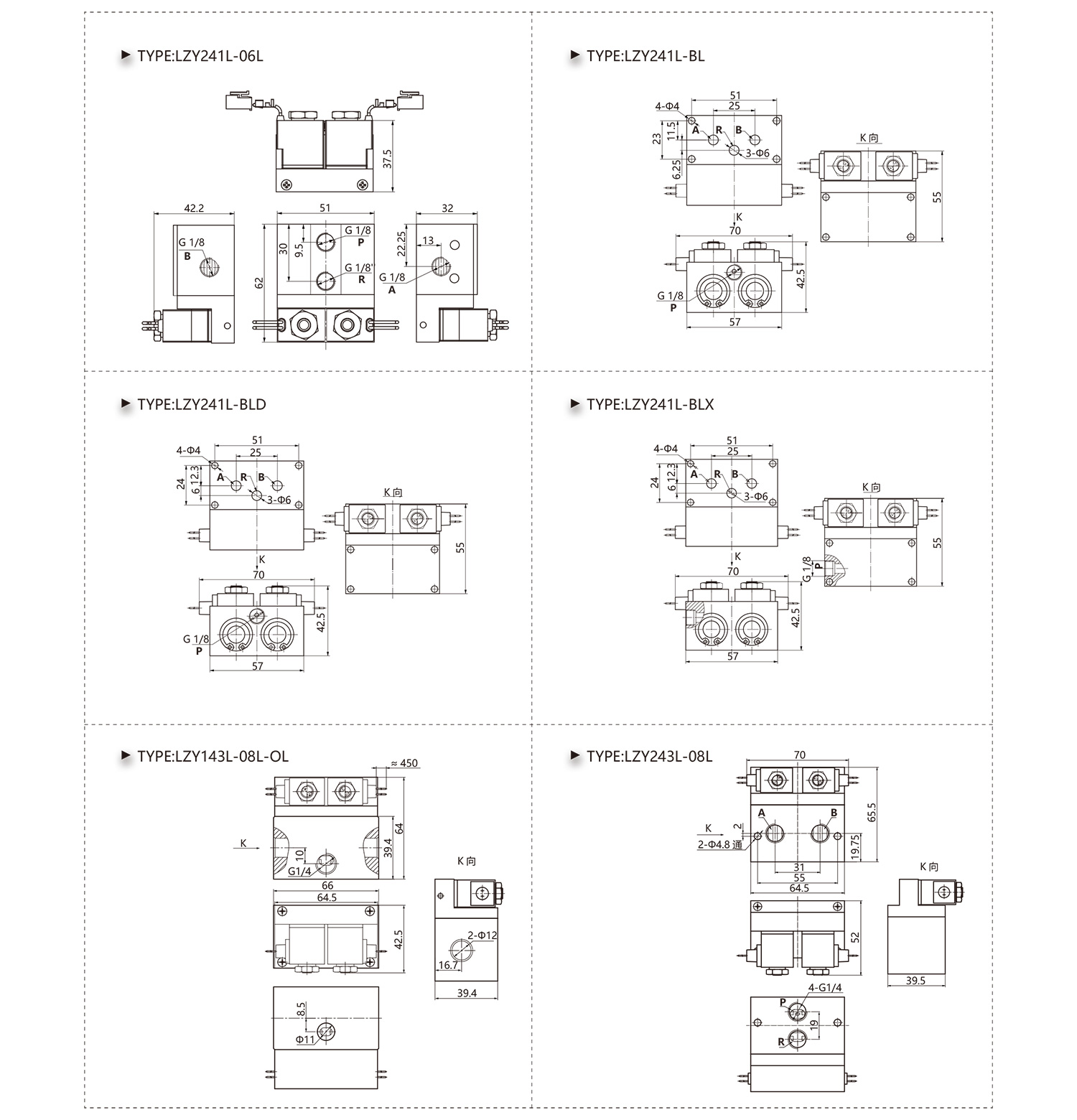

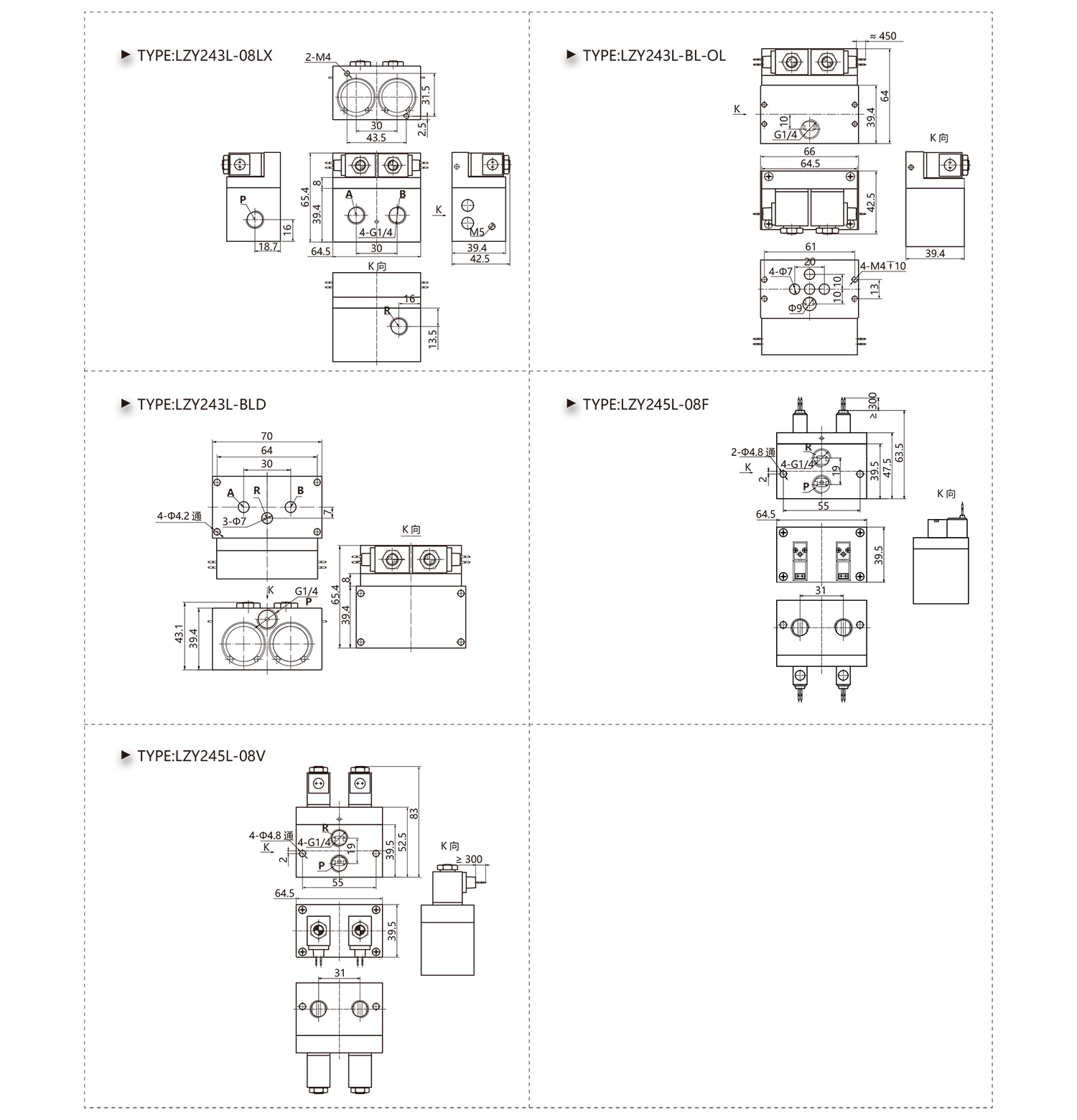

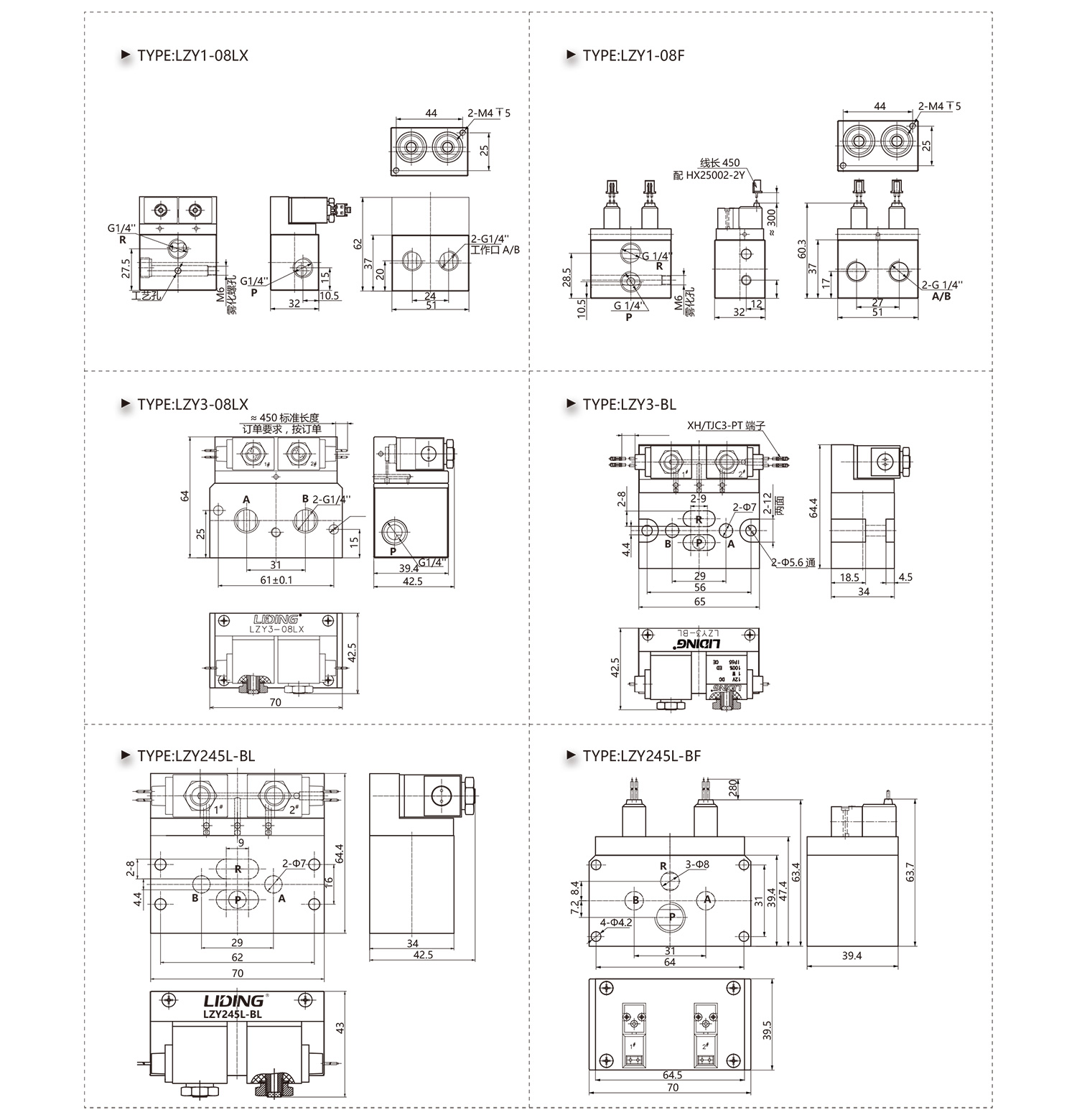

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LZY Oxygenerator Electromagnetic Valve Suppliers and LZY Oxygenerator Electromagnetic Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LZY Oxygenerator Electromagnetic Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
