LZFTA Hand-Switching Valve Suppliers

LZFTA Hand-Switching Valve

LZFTA Hand-Switching Valve

Product Details

0
Views: 203

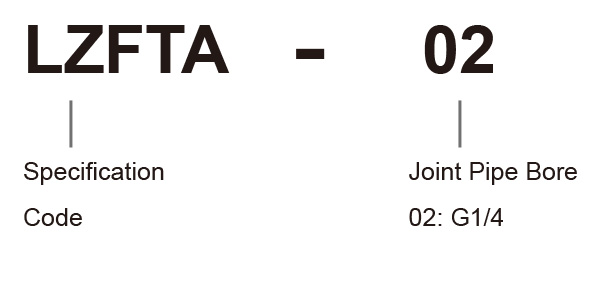

Ordering Code







Synopsis



The valve is made of high-quality stainless steel, special sealing materials and advanced manufacturing technology. It is suitable for various fluids and has a concise and beautiful appearance and various functions. It can be used as a fluid distributor in two routes and six routes. It can also control six different fluids passing through two outlets respectively. It is widely used in mechanical spraying equipment.





Specification



Model LZFTA-02
Working Medium Varieties of fluid
The Position Counting Two-position Eight-way
Joint Pipe Bore G1/4
Operating Temperature Range -10~60℃
Working-Pressure 0~0.8MPa

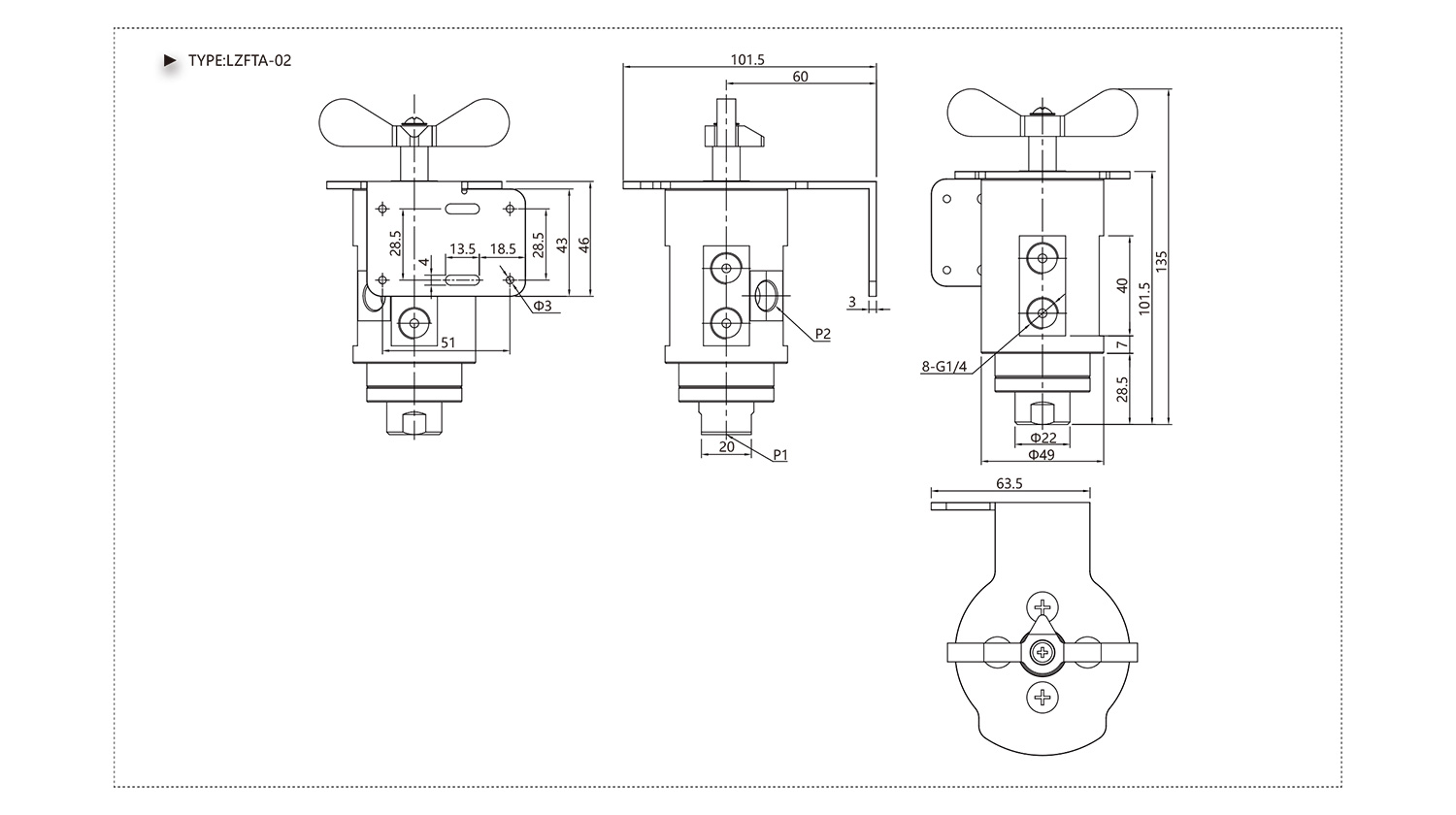

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LZFTA Hand-Switching Valve Suppliers and LZFTA Hand-Switching Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LZFTA Hand-Switching Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
