JM Series Mechanical Valve Suppliers

JM Series Mechanical Valve

JM Series Mechanical Valve

Product Details

0
Views: 173

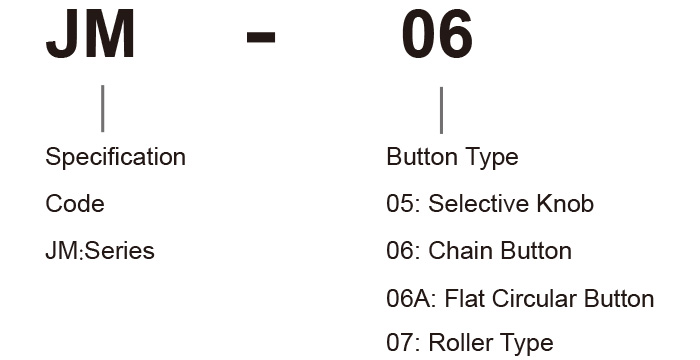

Ordering Code

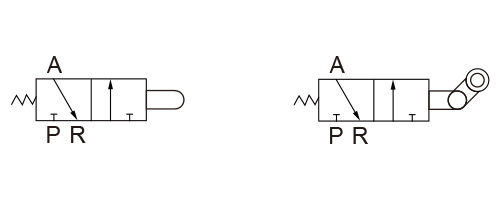

Graphic Symbol







Specification



Model JM-05 JM-06 JM-06A JM-07
Working Medium 40 Micron Filtered Air
The Position Counting Two-Position Three-Way
Joint Pipe Bore G1/8,G1/4
Operating Temperature 0~60°C
Working-Pressure 0~0.8MPa

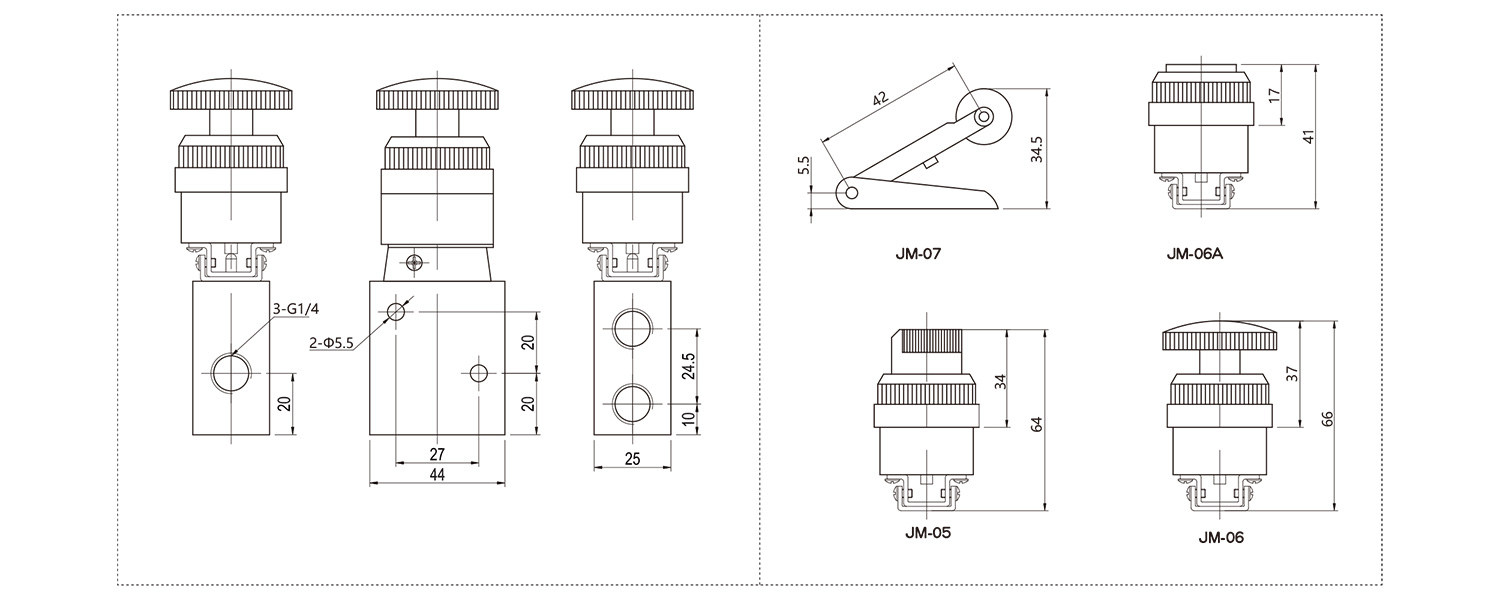

Overall Dimension





Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China JM Series Mechanical Valve Suppliers and JM Series Mechanical Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our JM Series Mechanical Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
