AZ305LLL Toggle Switch Suppliers

AZ305LLL Toggle Switch

AZ305LLL Toggle Switch

Product Details

0
Views: 183

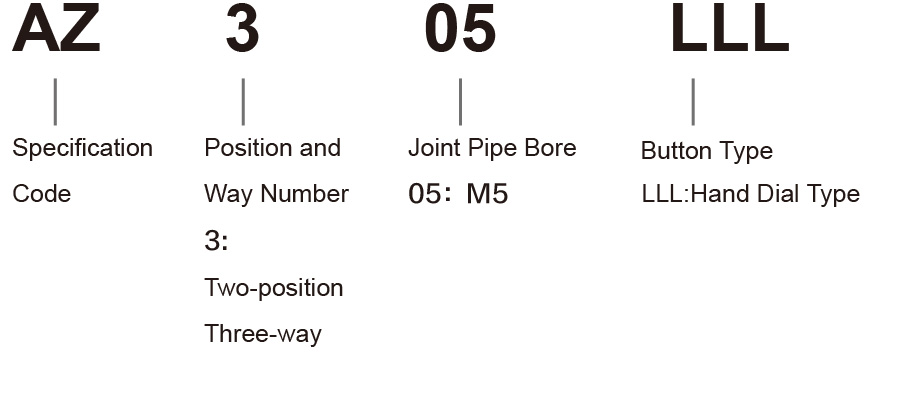

Ordering Code

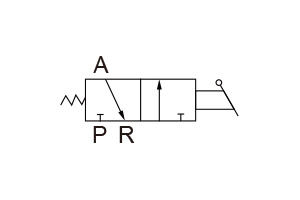

Graphic Symbol







Synopsis



The valve is made of high-quality copper and stainless steel, special sealing materials and advanced technology. It has simple appearance, good sealing, sensitive reversing, long service life, especially large flow, and is widely used in various mechanical equipment.





Specification



Model AZ305LLL
Working Medium 40 Micron Filtered Air
The Position Counting Two-Position Three-Way
Joint Pipe Bore M5
Operating Temperature 0~60℃
Working-Pressure 0~0.8MPa

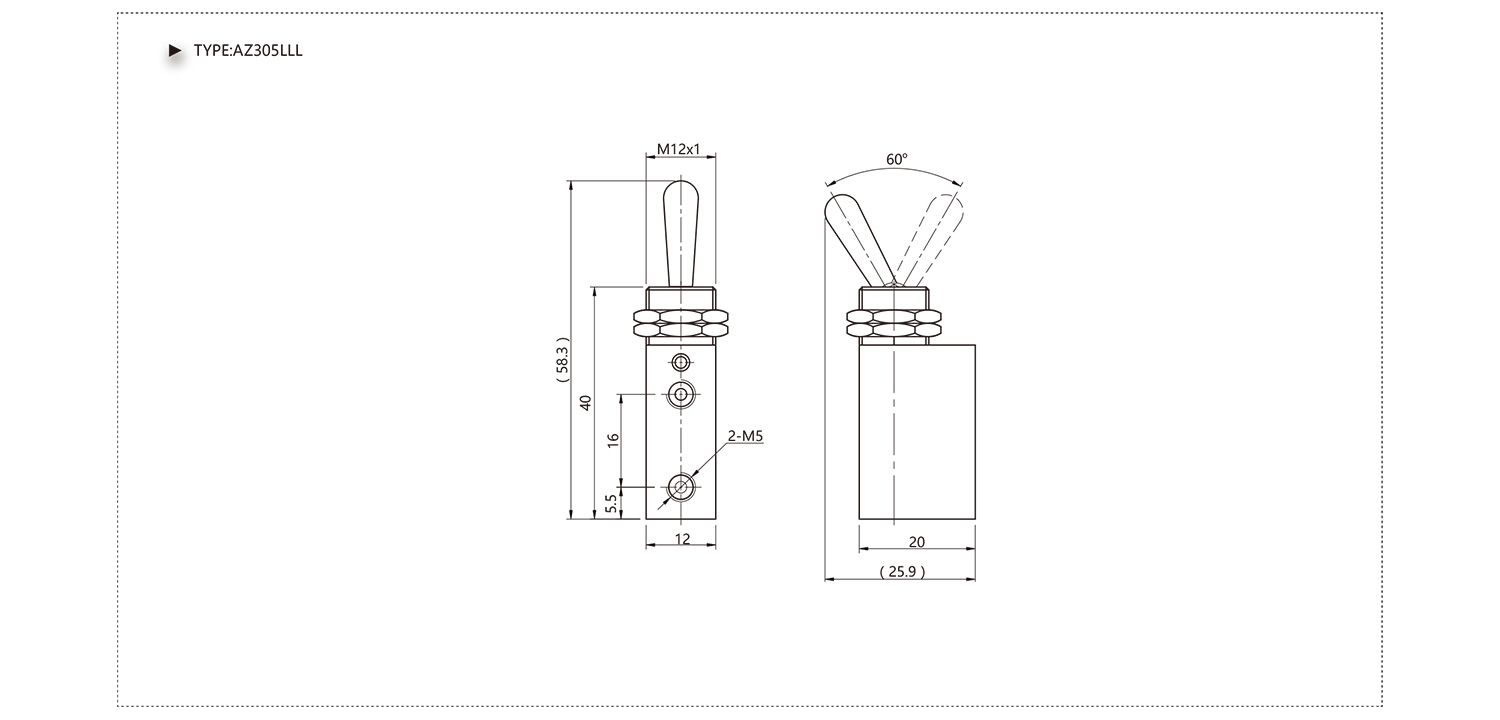

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China AZ305LLL Toggle Switch Suppliers and AZ305LLL Toggle Switch company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our AZ305LLL Toggle Switch are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
