AF、BF Series Filter Suppliers

AF、BF Series Filter

AF、BF Series Filter

Product Details

0
Views: 50

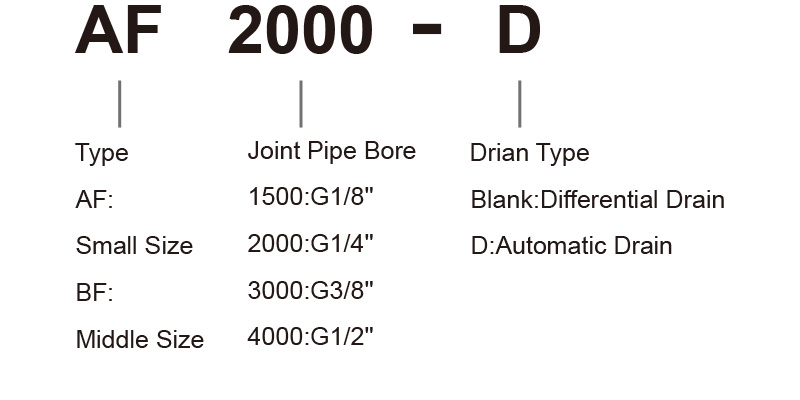

Ordering Code

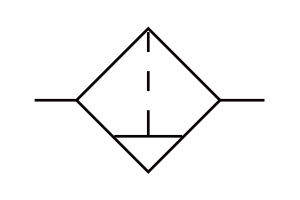

GraPhic symbol





Specification



Model

AF1500

AF2000

BF2000

BF3000BF4000

Operating Fluid

Air

Joint Pipe Bore

G1/8

G1/4G1/4G3/8G1/2

Filtering Eliment Roughness

40μ

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

Capacity of Filter Cup

15cc

60cc

Weight

0.14kg

0.33kg

Material

Body

Aluminum Die-casting Fomring

Container Cup



Proteclive Cup Cover

-

Iron





Pressure Character

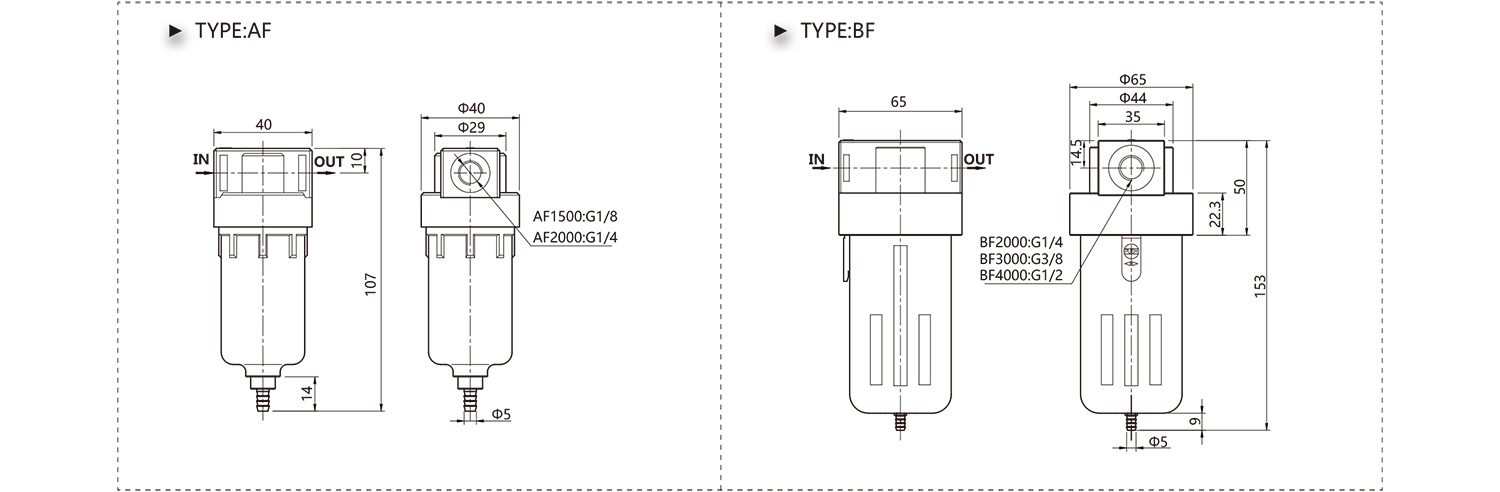

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China AF、BF Series Filter Suppliers and AF、BF Series Filter company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our AF、BF Series Filter are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
