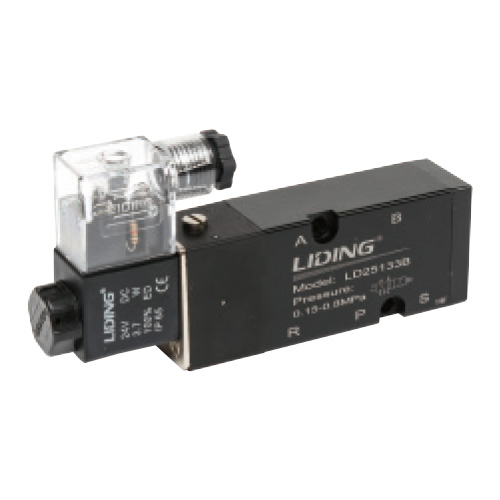

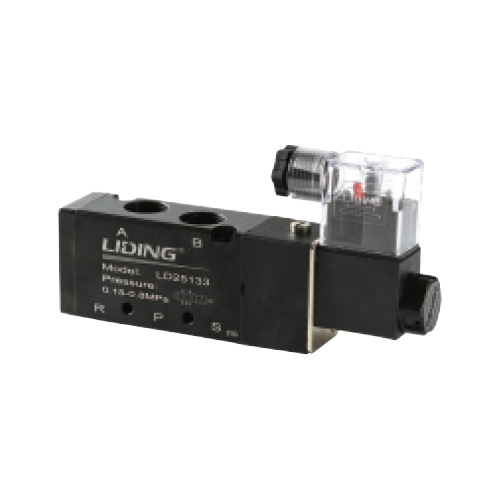

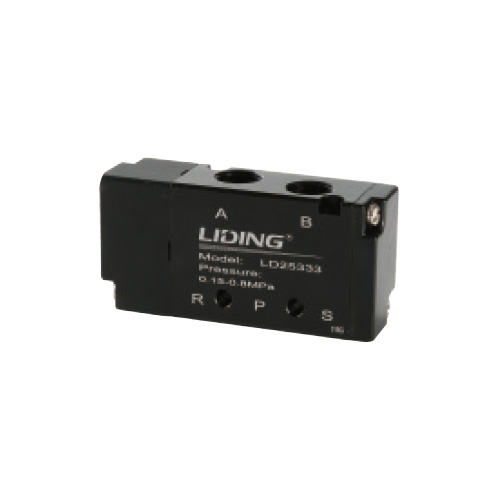

LD3 Series Solenoid Valve，Pneumatic Control Valve
Product Details
Ordering Code
Specification
|
Model |
LD23132 |
LD23232 | LD23133 | LD23233 | LD25132 | LD25232 | LD35232C | LD35232E | LD35232P | LD25133 | LD25233 | LD35233C | LD35233E | LD35233P |
|
LD23332 |
LD23432 | LD23333 | LD23433 | LD25332 | LD25432 | LD35432C | LD35432E | LD35432P | LD25333 | LD25433 | LD35433C | LD35433E | LD35433P | |
|
Working Medium |
40 Micron Filtered Air |
|||||||||||||
|
Motion Pattern |
Inner Guide Type |
|||||||||||||
|
Joint Pipe Bore |
Intake = Outlet = G1/4 |
Intake = Outlet = G3/8 | Intake = Outlet = Exhaust=G1/4 |
Intake = Outlet = Exhaust =G3/8 Exhaust =G1/4 |
||||||||||
|
The Position Counting |
Two-position Three-way |
Two-position Five-way | Three-position Five-way | Two-position Five-way |
Three-position Five-way |
|||||||||
|
Operating Temperature |
5~50℃ (41-122° F) |
|||||||||||||
|
Effectjve Sectional Area |
25mm²(Cv=1.39) |
30mm²(Cv=1.67) | 25mm²(Cv=1.39) | 18mm²(Cv=1.00) | 30mm²(Cv=1.67) |
18mm²(Cv=1.00) |
||||||||
|
Working-Pressure |
0.15~0.8MPa |
|||||||||||||
|
Max.Pressure Resistance |
1.2MPa |
|||||||||||||
|
Power Consumption |
AC:3.2 VA DC:3.7W |
|||||||||||||
|
Protection Class |
IP65（DIN40050） |
|||||||||||||
|
Insulation |
Class F |
|||||||||||||
|
Wiring Form |
Lead Wire or Connector Type |
|||||||||||||
|
Voltage Range |
±10% |
|||||||||||||
|
Highest Action Frepuency |
5 Cycle/Sec |
3 Cycle/Sec | 5 Cycle/Sec |
3 Cycle/Sec |
||||||||||
|
Shortest Excitation Time |
0.05 Second |
|||||||||||||
Flowing Character
Test Condition
Pressure
0.5MPa
Tube
PU Pipe 10×7.5 Bore：7.5mm
Fitting
4V310-08:PC10-02
4V310-10:PC10-03
Load Factor
Load Factor= Load/Cylinder Theoretical Output Power × 100%
Cylinder Stroke
300mm
Value Model
4V300 Series
Overall Dimension
