WYJ-2W2T Stainless Steel Valve Suppliers

WYJ-2W2T Stainless Steel Valve

WYJ-2W2T Stainless Steel Valve

Product Details

0
Views: 137

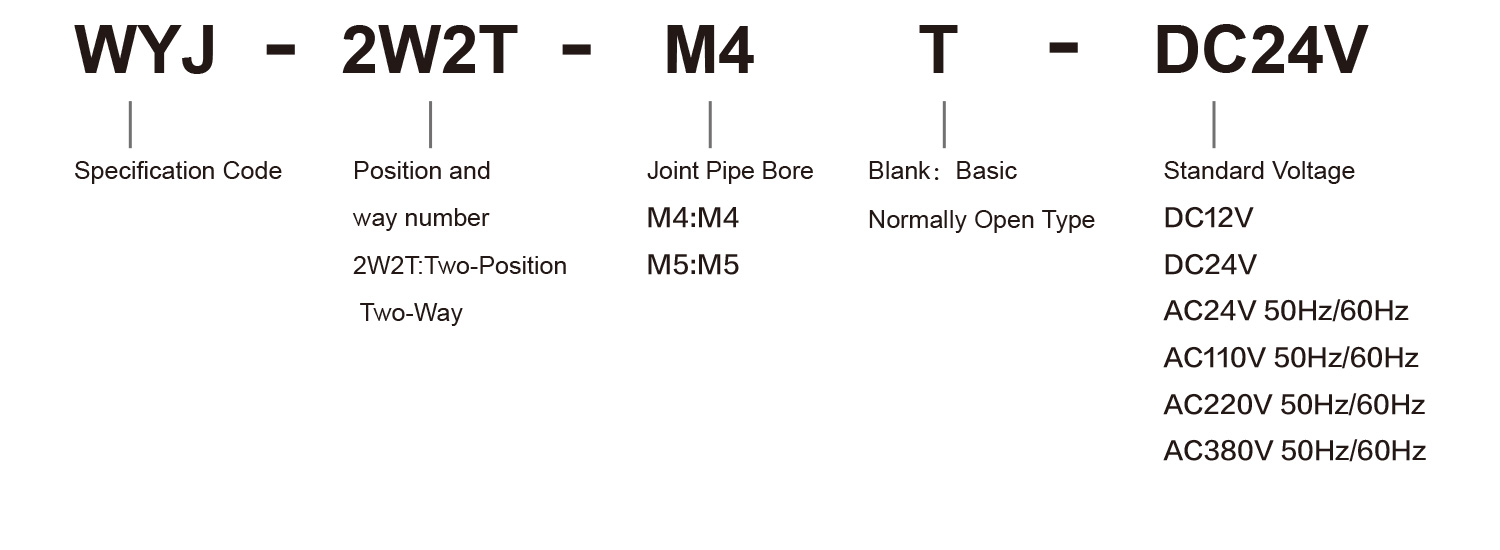

Ordering Code

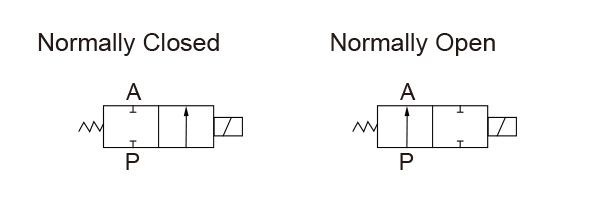

Graphic Symbol







Synopsis



The valve is made of high quality stainless steel, special sealing material and advanced technology. It is suitable for all kinds of fluids. It has simple appearance, good reversing sensitivity, good stability and long service life. It is widely used in mechanical spraying equipment.





Specification



Model WYJ-2W2T-M4  WYJ-2W2T-M5
Working Medium 40 Micron Filtered Air
Motion Pattern Direct Drive Type
The Position Counting Two-position Two-way
Joint Pipe Bore M4  M5
Air Outlet Diameter 1mm
Operating Temperature Range -10~80℃
Working-Pressure 0~0.8MPa
Max Pressure Resistance 1MPa
Voltage Range ±10%
Power Consumption Form Lead Wire Type or Connector Type
Voltage Range IP65
Power Consumption AC:4.5VA/DC:3W
Material of Body Stainless Steel
Highest Operating Frequency 10 Cycle/Sec
Shortest Excitation Time 0.05 Second

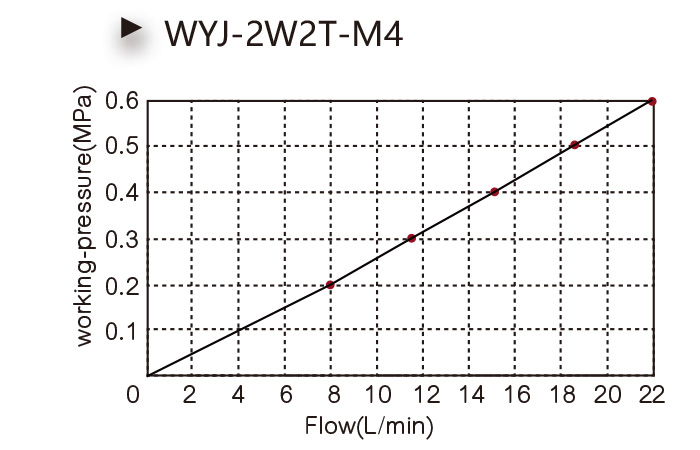

Flowing Character

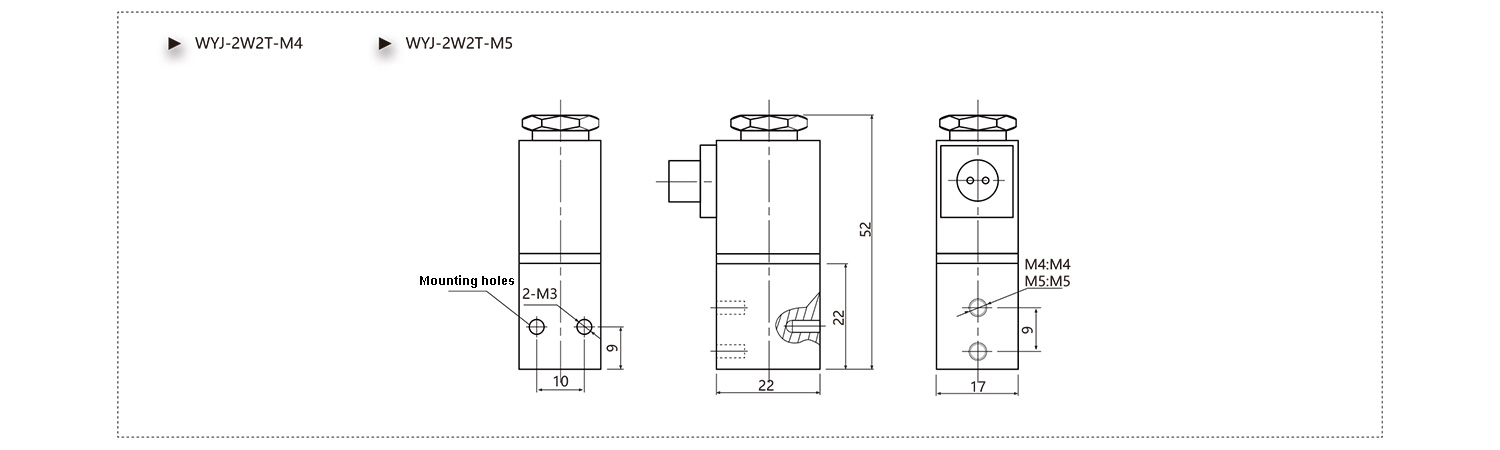

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China WYJ-2W2T Stainless Steel Valve Suppliers and WYJ-2W2T Stainless Steel Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our WYJ-2W2T Stainless Steel Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
