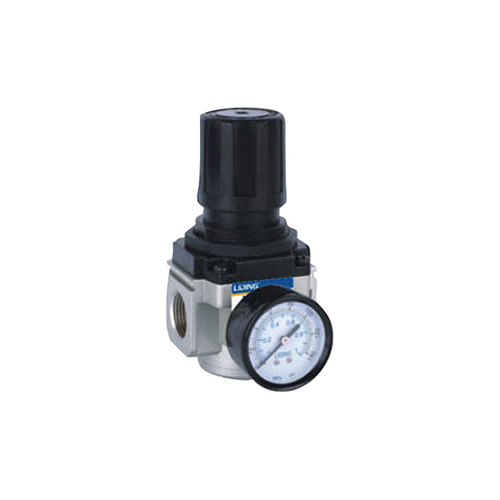

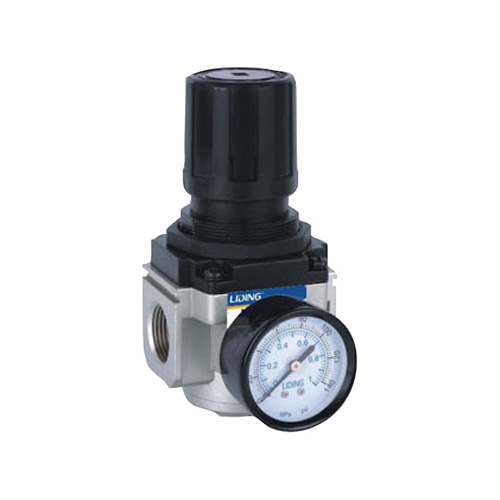

LAR Series air flow regulator

LAR Series air flow regulator

Product Details

Brand Name: LIDA

Place of Origin: China

LAR Series air flow regulator

The range of adjustable pressure is 0.05 - 0.85Mpa.

Price: Negotiate

1+
Views: 2,153

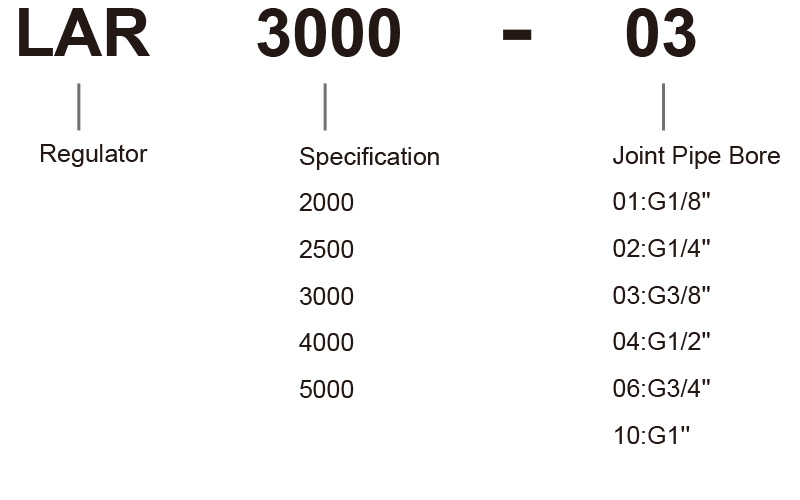

Ordering Code

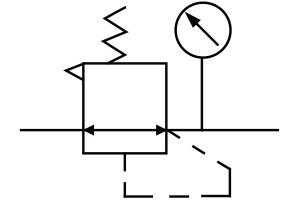

GraPhic symbol





Specification



Model

LAR2000

-01

LAR2000

-02

LAR2500

-02

LAR2500

-03

LAR3000

-02

LAR3000

-03

LAR4000

-03

LAR4000

-04

LAR4000

-06

LAR5000

-06

LAR5000

-10

Rated Flow

550

550

2000

2000

2500

2500

6000

6000

6000

8000

8000

Joint Pipe Bore

G1/8

G1/4

G1/4

G3/8

G1/4

G3/8

G3/8

G1/2

G3/4

G3/4

G1

Range of Adjustable Pressure

0.05~0.85MPa

Max. Adjustable Pressure

1.0MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

Valve Type

With Overflow

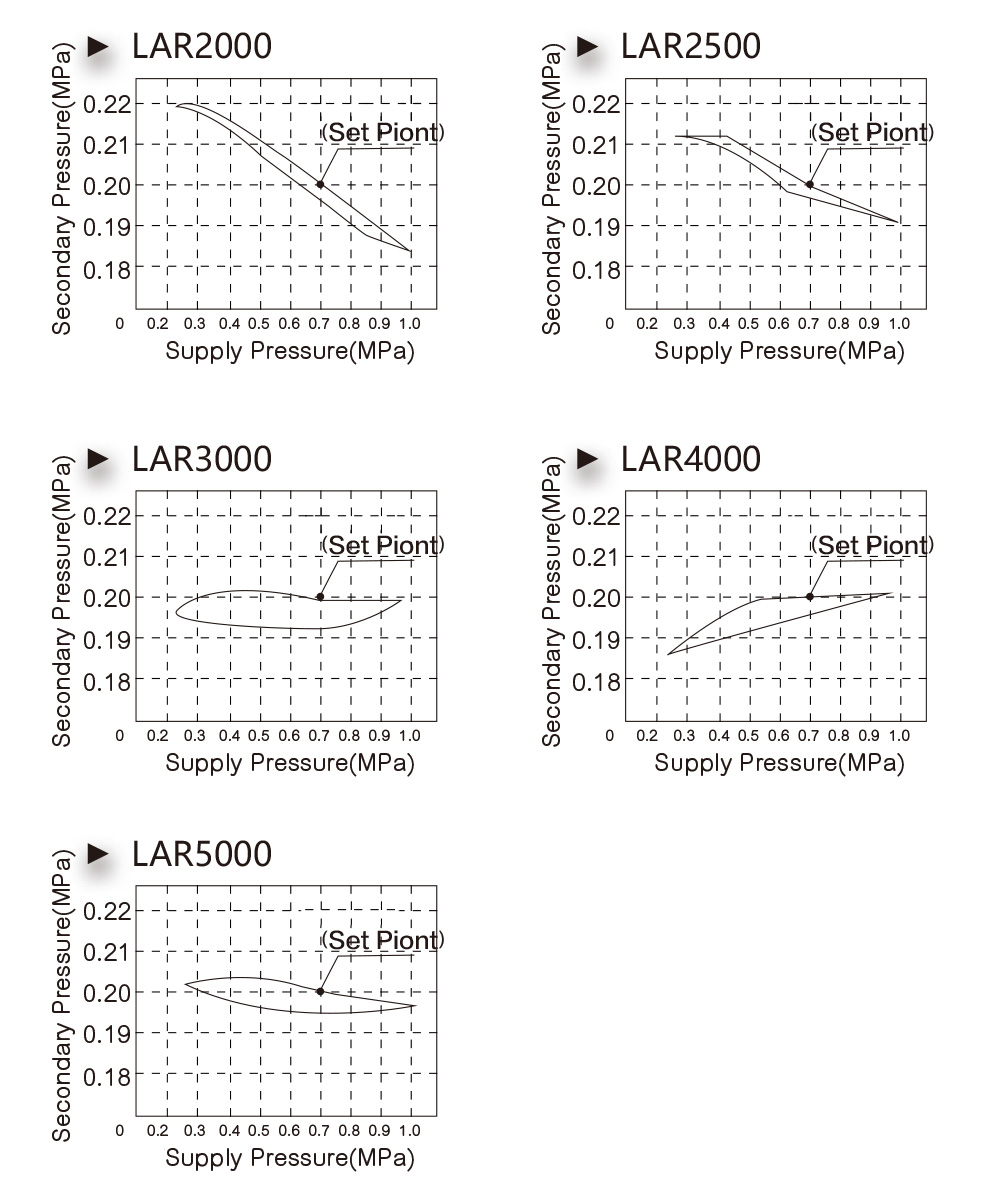

Pressure Character

Supply pressure=0.7MPa Secondary Pressure=0.2MPa Flow=20L/min

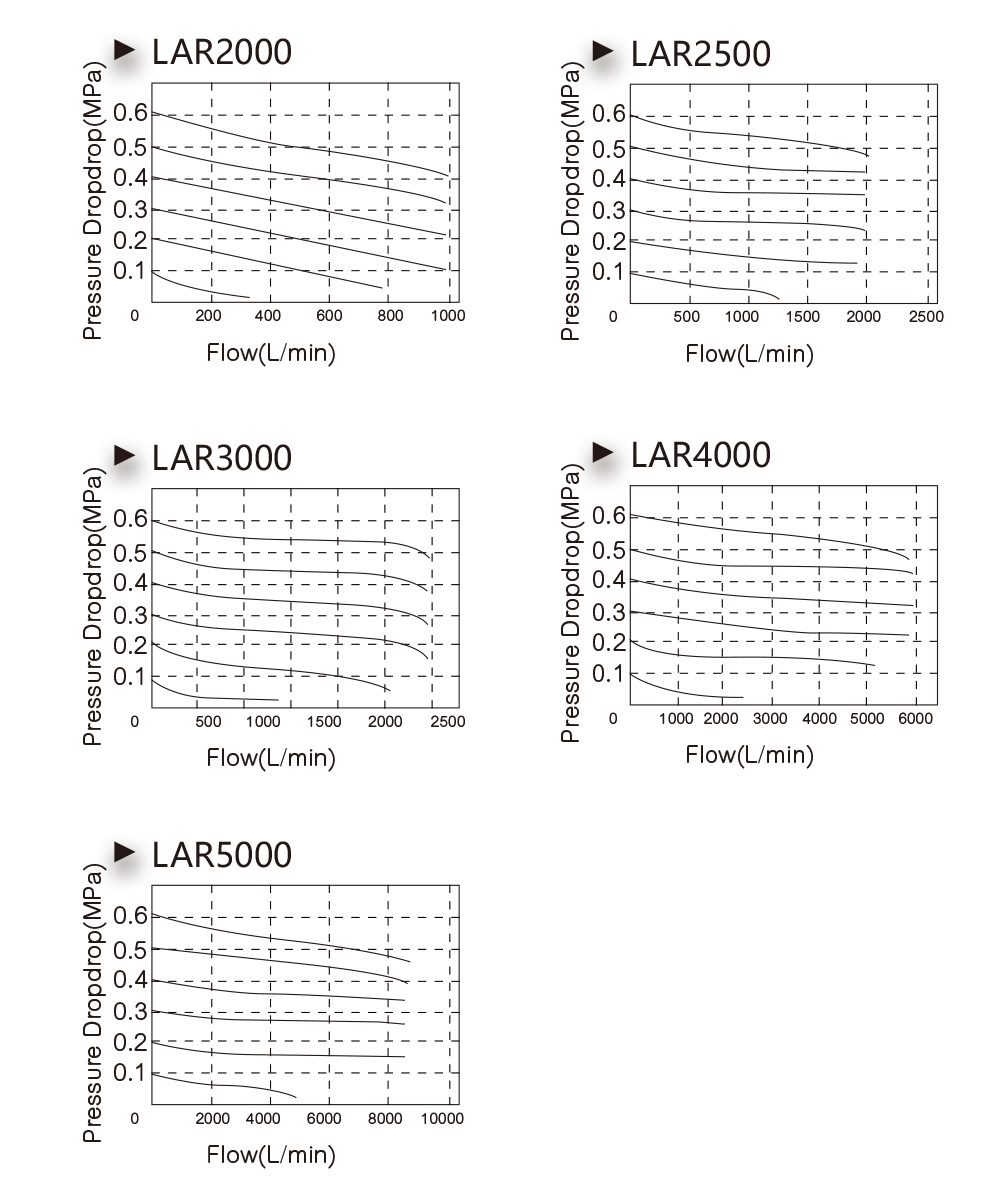

Flowing Character

Supply pressure=0.7MPa

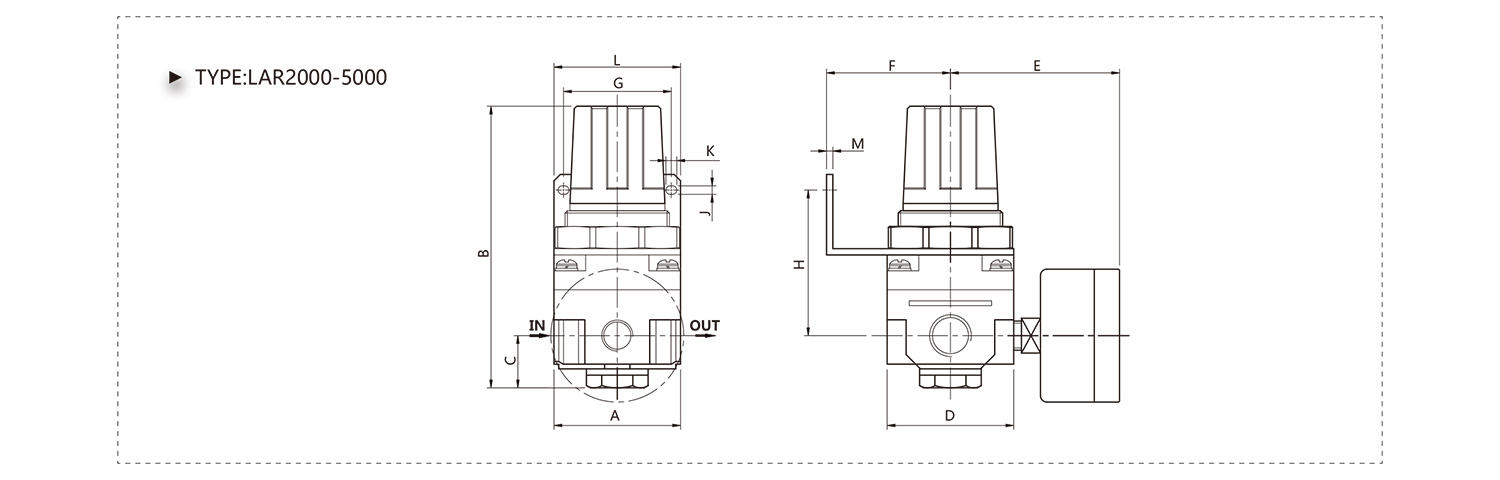

Overall Dimension



Model

Bore

A

B

C

D

E

F

G

H

J

K

L

LAR2000

1/8*1/4

40

95

17

40

56.8

30

34

45

5.4

15.4

55

LAR2500

1/4*3/8

53

102.5

25

48

60.8

30

34

44

5.4

15.4

55

LAR3000

1/4*3/8

53

127.5

35

53

60.8

41

40

46

6.5

8

53

LAR4000

3/8*1/2

70

149.5

37.5

70

65.5

50

54

54

8.5

10.5

70

LAR4000-06

3/4

75

154.5

40.5

70

69.5

50

54

56

8.5

10.5

70

LAR5000

3/4*1

90

168

48

90

75.5

70

66

65.8

11

13

90



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LAR Series air flow regulator Suppliers and LAR Series air flow regulator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LAR Series air flow regulator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
