LD1 Series Pneumatic Solenoid Valve
Product Details
LD1 Series Pneumatic Solenoid Valve
Price: Negotiate
LD series solenoid valve and air valve can replace 3V and 4V valves. LD is same dimensions and function as 3V,4V. They are improved from 3V and 4V valves.
Supply Ability: 1000 Piece/Pieces per Day
Packaging Details Carton packaging of pneumatic components
Port Shanghai or Ningbo

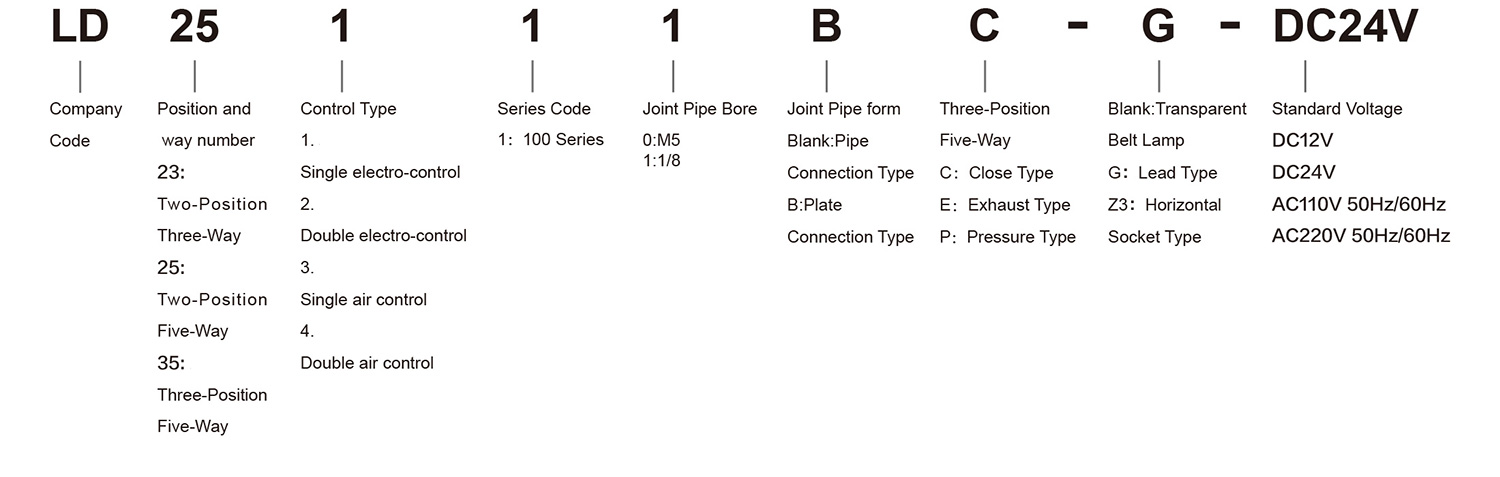

Ordering Code
Specification
|
Model |
LD23110 |

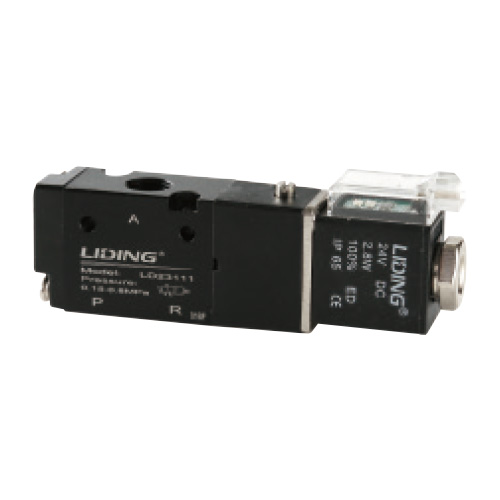

LD23210 | LD23111 | LD23211 |
LD25110 |
LD25210 | LD35210C | LD35210E | LD35210P |

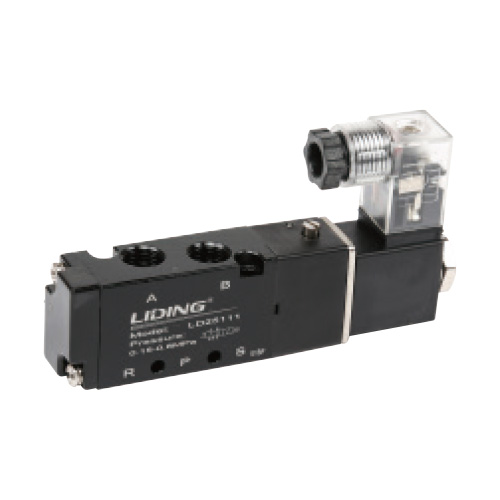

LD25111 |
LD25211 | LD35211C | LD35211E | LD35211P |
|
LD23310 |
LD23410 | LD23311 | LD23411 |
LD25310 |
LD25410 | LD35410C | LD35410E | LD35410P |

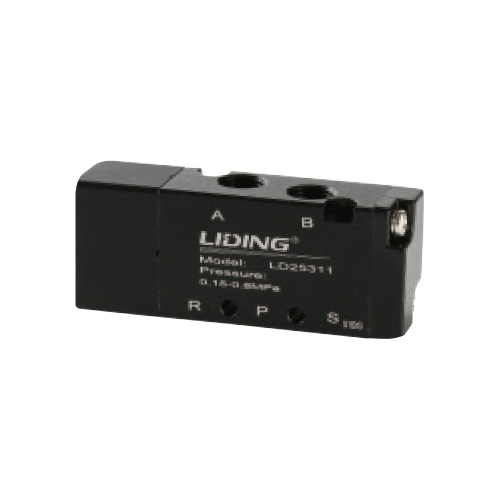

LD25311 |
LD25411 | LD35411C | LD35411E | LD35411P | |
|
Working Medium |
40 Micron Filtered Air |
|||||||||||||
|
Motion Pattern |
Inner Guide Type |
|||||||||||||
|
Joint Pipe Bore |
Intake = Outlet = M5 |
Intake = Outlet = G1 / 8 |
Intake = Outlet = Exhaust = M5 |
Intake = Outlet = Exhaust = G1 / 8 |
||||||||||
|
The Position Counting |
Two-position Three-way |
Three-position Five-way |
Three-position Five-way |
Two-position Five-way |
Three-position Five-way | |||||||||
|
Operating Temperature |
5~50℃ (41-122°F) |
|||||||||||||
|
Effective Sectional Area |
5.5mm²(Cv=0.31) |
12mm²(Cv=0.67) | 5.5mm²(Cv=0.31) | 5mm²(Cv=0.28) |
12mm²(Cv=0.67) |
9mm²(Cv=0.5) | ||||||||
|
Working-Pressure |
0.15~0.8MPa |
|||||||||||||
|
MaxPressure Resistance |
1.2MPa |
|||||||||||||
|
Power Consumption |
DC：2.8W |
|||||||||||||
|
Protection Class |
IP65 (DIN40050) |
|||||||||||||
|
Insulation |
Class F |
|||||||||||||
|
Wiring Form |
Lead Wire or Connector Type |
|||||||||||||
|
Voltage Range |
±10% |
|||||||||||||
|
Highest Action Frepuency |
5 Cycle/Sec |
3 Cycle/Sec |
5 Cycle/Sec |
3 Cycle/Sec | ||||||||||
|
Shortest Excitation Time |
0.05 秒 /0.05 Second |
|||||||||||||
Flowing Character
Test Condition
Pressure
0.5MPa
Tube
PU Pip 6×4 Bore：4mm
Fitting
4V110-M5:PC6-M5
4V110-06:PC6-01
Load Factor
Load Factor=Load/Cylinder Theoretical Output Power × 100%
Cylinder Stroke 300mm
Value Model 4V100 Series
Overall Dimension
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LD1 Series Pneumatic Solenoid Valve Suppliers and LD1 Series Pneumatic Solenoid Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LD1 Series Pneumatic Solenoid Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
