AC、BC Series F.R.L Combination Suppliers

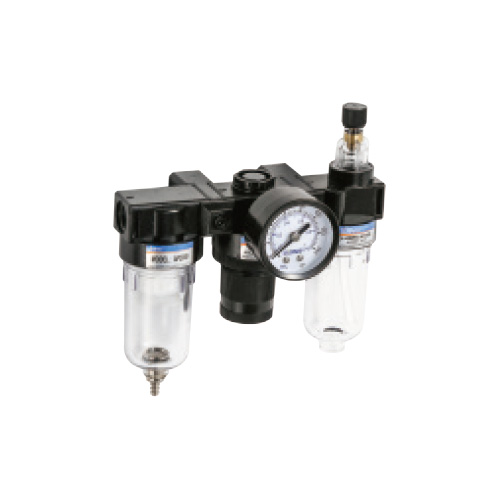

AC、BC Series F.R.L Combination

AC、BC Series F.R.L Combination

Product Details

2+
Views: 129

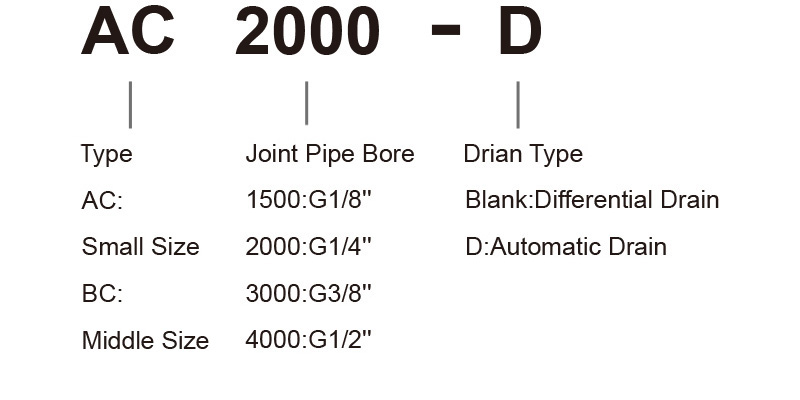

Ordering Code

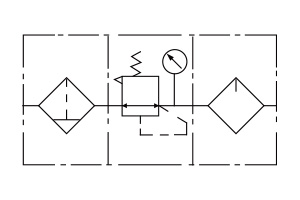

GraPhic symbol







Specification



Model

AC1500

AC2000

BC2000

BC3000

BC4000

Operating Fluid

Air

Joint Pipe Bore

G1/8

G1/4

G1/4

G3/8

G1/2

Filtering Eliment Roughness

40μ

Range of Adjustable Pressure

0.05~0.85MPa

Max. Adjustable Pressure

0.95MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

Capacity of Filter Cup

15cc

60cc

Capacity of Oil Feed Cup

25cc

90cc

Suggested Lube

ISO VG32 or Same Grade Oil

Weight

0.7kg

0.9kg

Material

Body

Aluminum Die-casting Fomring

Container Cup

PE

Proteclive Cup Cover

-

Iron

Composing Elements

Filter

AF1500

AF2000

BF2000

BF3000

BF4000

Regulator

AR1500

AR2000

BR2000

BR3000

BR4000

Lubricator

AL1500

AL2000

BL2000

BL3000

BL4000







Pressure Character

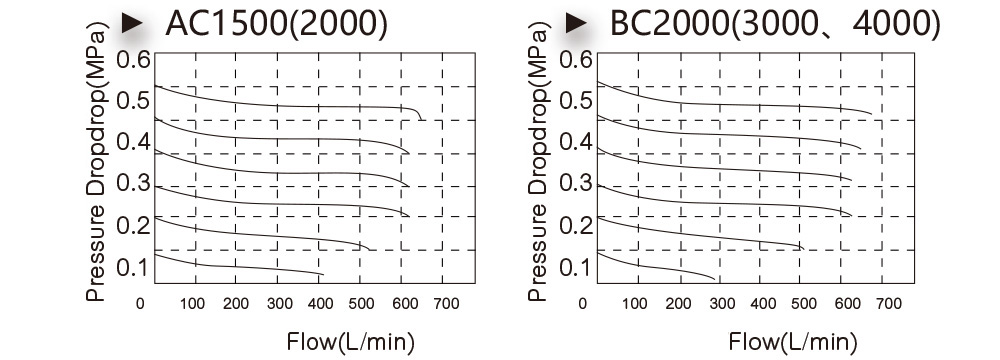

Flowing Character





Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China AC、BC Series F.R.L Combination Suppliers and AC、BC Series F.R.L Combination company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our AC、BC Series F.R.L Combination are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
