2WA2T/3T Series Solenoid Valve Suppliers

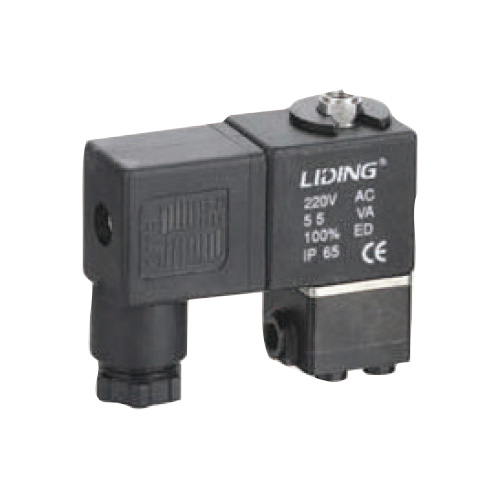

2WA2T/3T Series Solenoid Valve

2WA2T/3T Series Solenoid Valve

Product Details

0
Views: 158

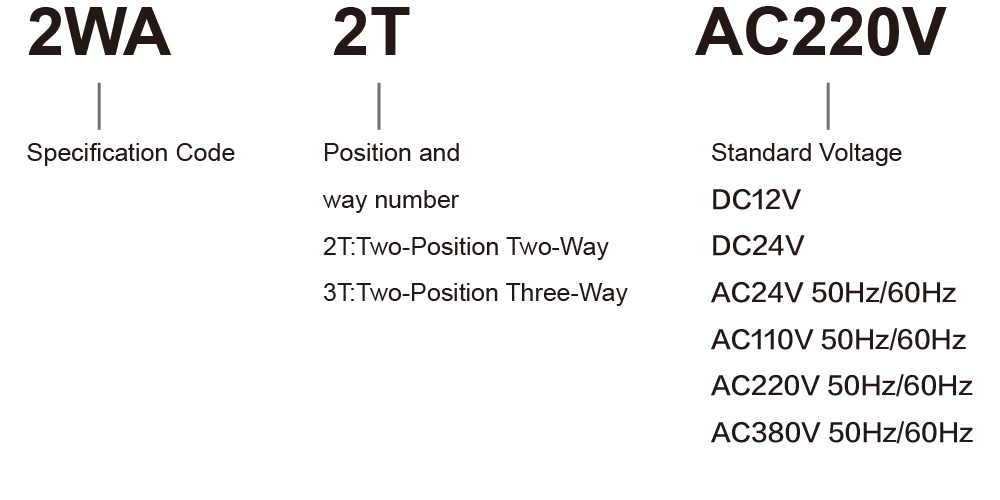

Ordering Code

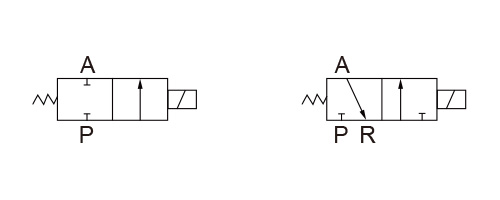

Graphic Symbol







Specification



Model 2WA2T  2WA3T
Working Medium Air、Water、Oil
Motion Pattern Direct Drive Type
Joint Pipe Bore M5
Air Outlet Diameter 1.5
Operating Temperature Range -10~80℃
Voltage Range ±10%
Working-Pressure 0.05~0.7MPa
Max. Pressure Resistance 0.95MPa
Voltage Range IP65
Highest Action Frequency 10 Cycle/ Second
Wiring Form Lead Wire Type or Connector Type
Insulation F

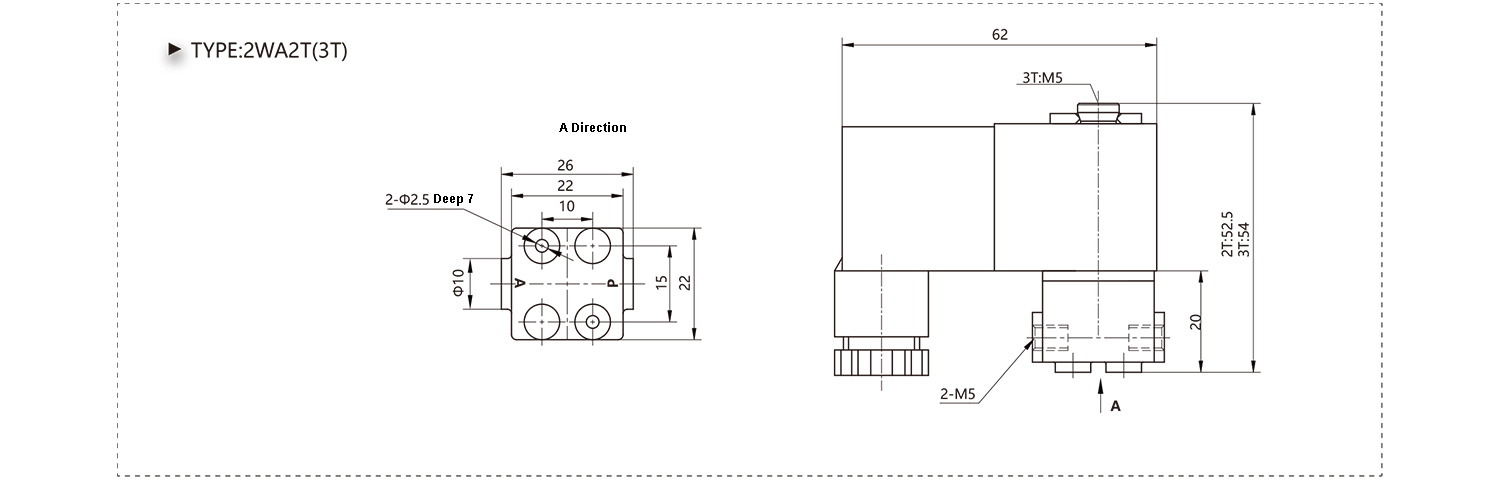

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China 2WA2T/3T Series Solenoid Valve Suppliers and 2WA2T/3T Series Solenoid Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our 2WA2T/3T Series Solenoid Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
