Pedal Valve Suppliers

Pedal Valve

Pedal Valve

Product Details

0
Views: 668

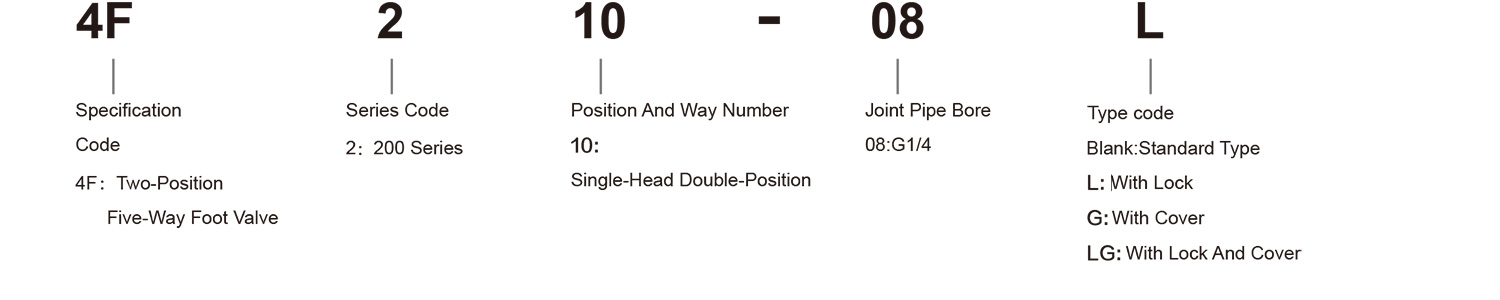

Ordering Code









Specification



Model 4F210-08    4F210-08L 4F210-08G 4F210-08LG
Working Medium 40 Micron Filtered Air
Motion Pattern Direct Drive Type
Joint Pipe Bore Air lnlet=Air Outlet=G1/4Exhaust=G1/8
Operating Temperature 0~60℃
The Position Counting Two-position Five-way
Working-Pressure 0~0.8MPa

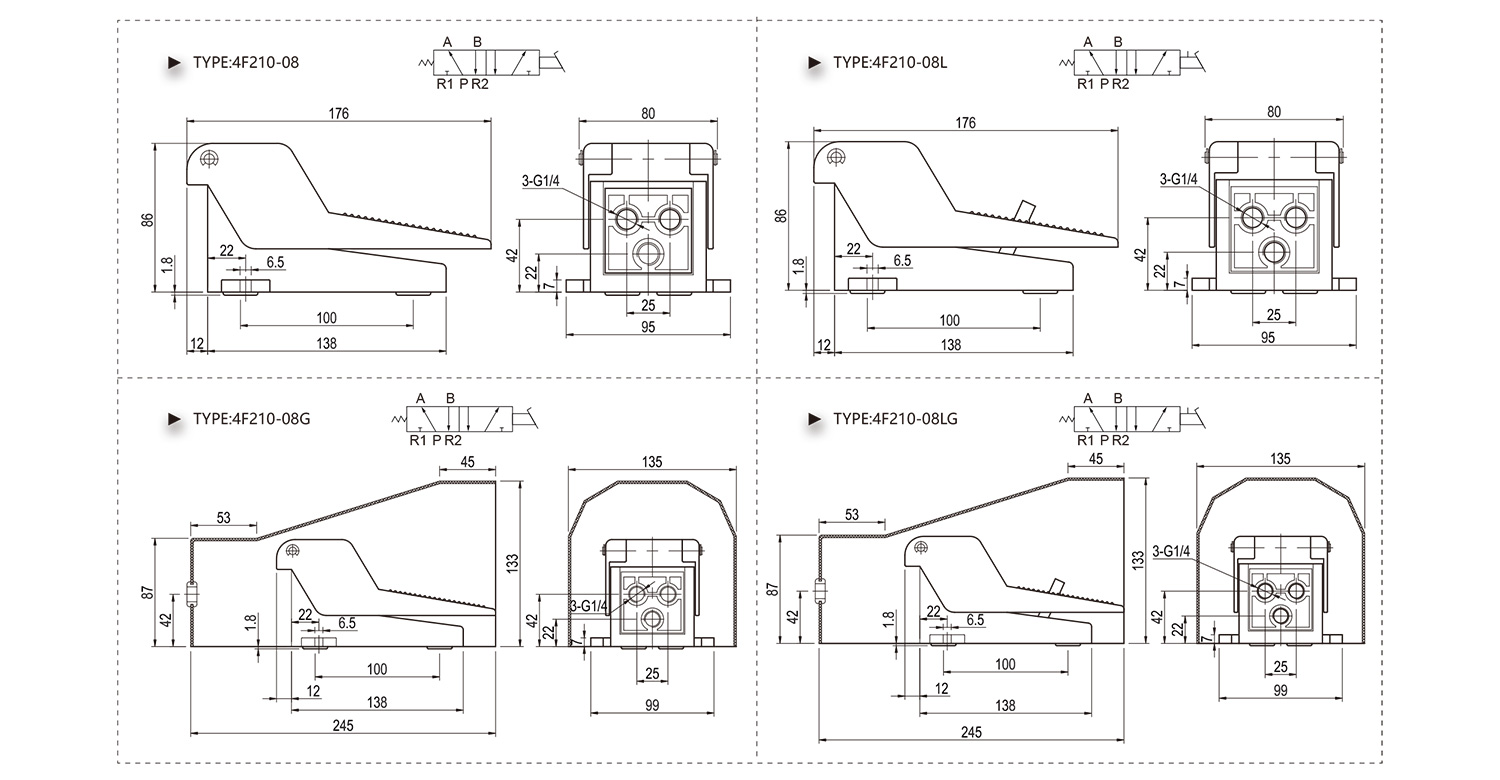

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Pedal Valve Suppliers and Pedal Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Pedal Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
