LHY Gas Claw Suppliers

LHY Gas Claw

LHY Gas Claw

Product Details

0
Views: 241

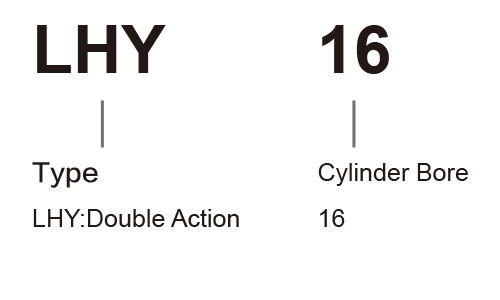

Ordering Code







Product Performance



1. Its structure is a double-acting structure with constant grasping moment and high repetition accuracy.
2. It has a variety of installation methods.
3. Self-contained speed-regulating throttle valve can adjust the action speed of its claws.
4. All series are magnetized and controlled accurately by magnetic induction switch.
5. Short travel, compact structure and less gas consumption.





Specification



Cylinder Bore (mm)

16

Operating Fluid

Air

Operating Voltage Range

Double-Acting

0.1~0.7MPa

Single-Acting

0.25~0.7MPa

Max Operating Frequency

180c.p.m

Operating Temperature Range

0~60℃

To The Oil

Not To Give Oil Cylinder Clip Toe To ApplyGrease

Clamping Jaw Opening And Closing Angle

-10°~30°

Attached To The Magnetic

Attached To The Magnetic

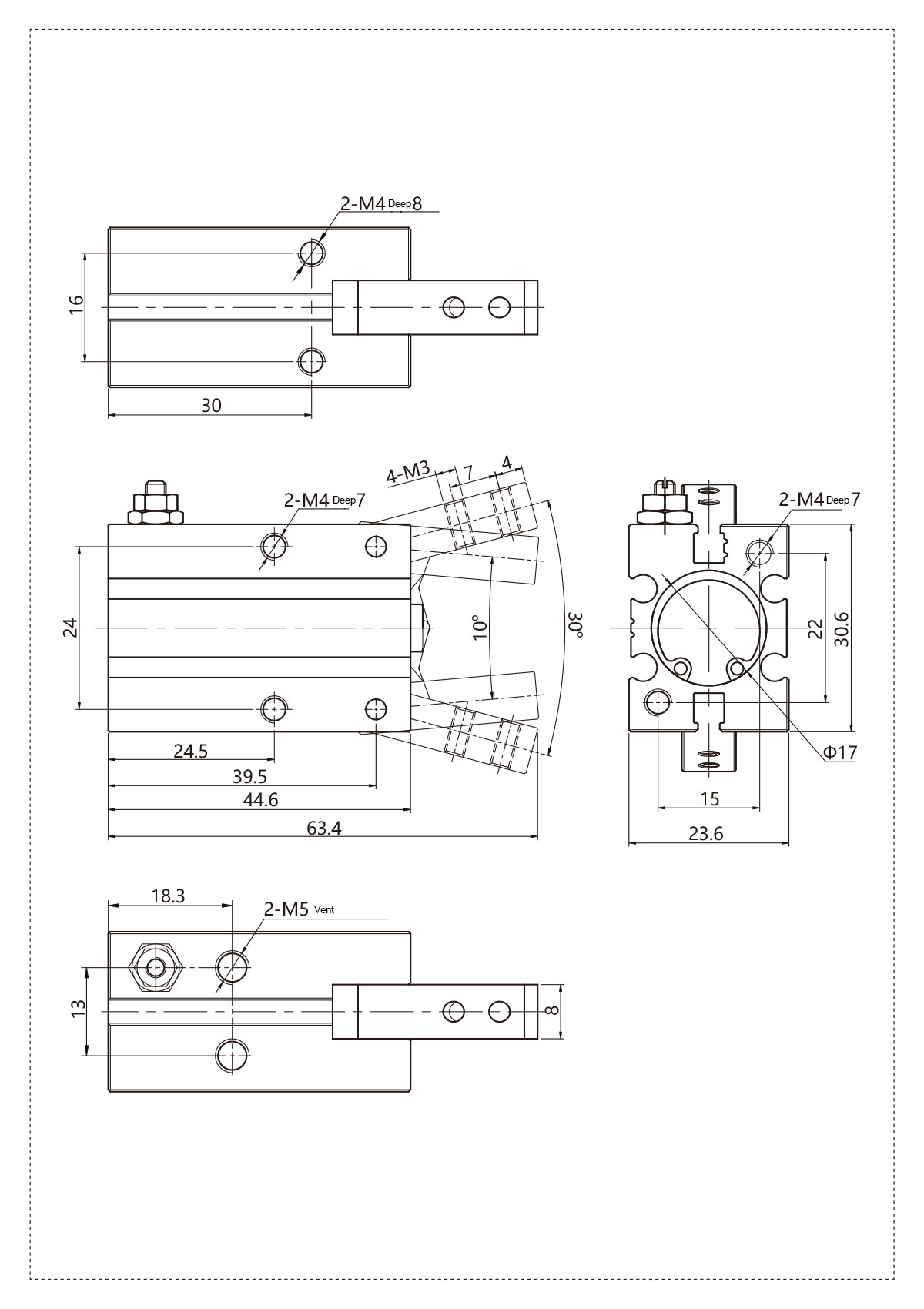

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LHY Gas Claw Suppliers and LHY Gas Claw company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LHY Gas Claw are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
