OU MICRO Series Filter, Regulator,Lubricator Suppliers

OU MICRO Series Filter, Regulator,Lubricator

OU MICRO Series Filter, Regulator,Lubricator

Product Details

0
Views: 218

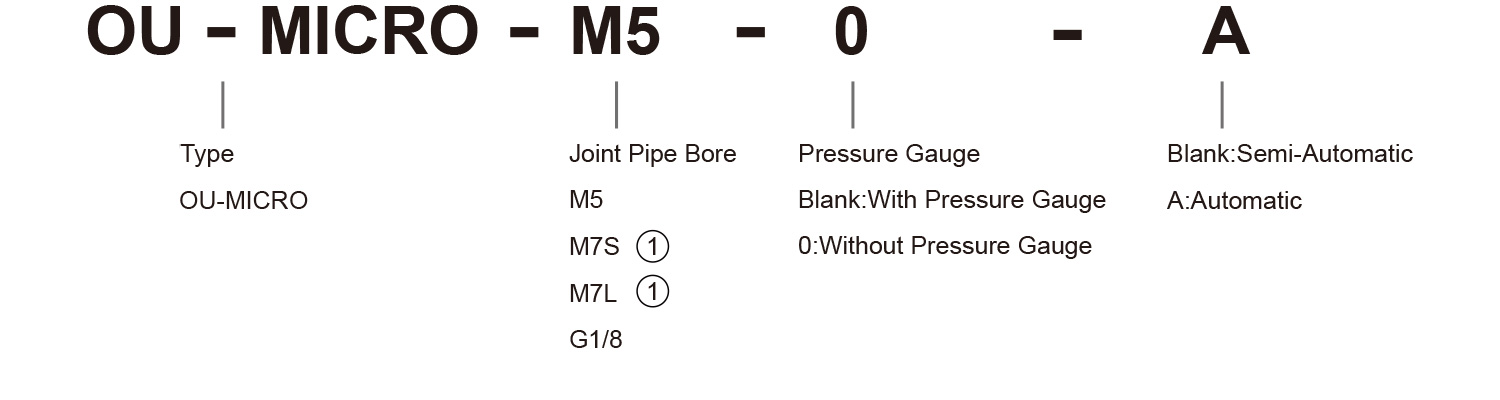

Ordering Code

Note:

①There are some differences during overall dimension and standard nominal flow rate aspects between M7S and M7L,the joint pipe bore of both is M7;

②This series of condensate drain are all turned manually.

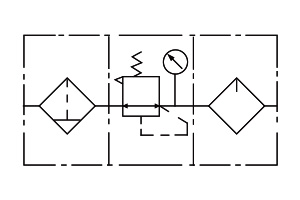

GraPhic symbol





Specification



Model

OU-MICRO

-M5

OU-MICRO

-M7S

OU-MICRO

-M7L

OU-MICRO

-1/8

Operating Fluid

Air

Joint Pipe Bore

M5

M7

M7

1/8

Standard Nominal Flow Rate

90

130

170

240

Min.Standard Nominal Flow Rate

3L/min

Capacity of Condensate Fluid

6.5cm

Filtering Eliment Roughness

5μm

Primary Pressure

0~1MPa

Range of Adjustable Pressure

0.05~0.7MPa

Operating Temperature Range

0~60℃



Material



Body

Wrought Aluminium Alloy

Filter & Oil Bowl Material

PC

Adjusting Knob

POM

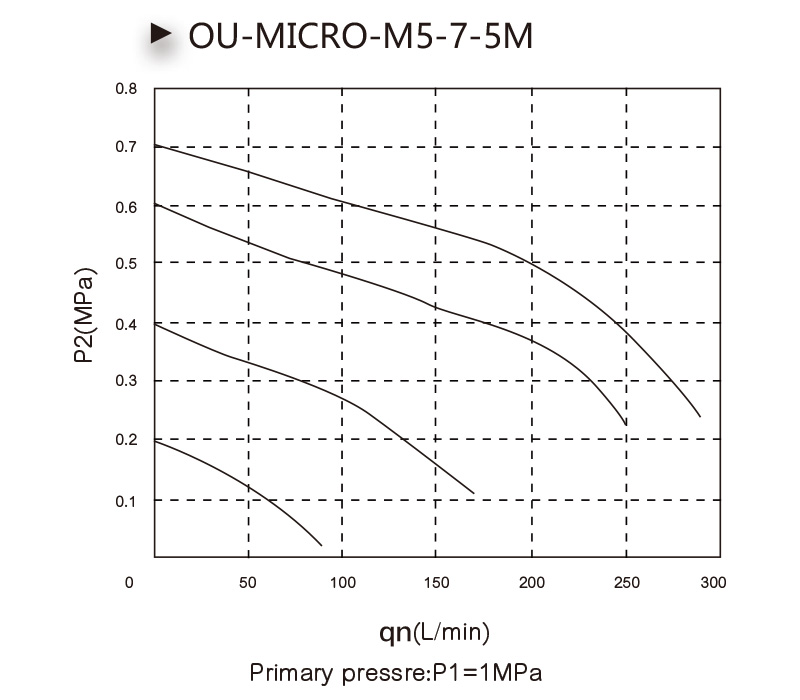

Flowing Character

Standard flow rate qn as a function of the output pressure p2

Model

B1

D1

OU-MICRO-M5

25

M5

OU-MICRO-M7S

25

M7

OU-MICRO-M7L

45

M7

OU-MICRO-1/8

45

1/8

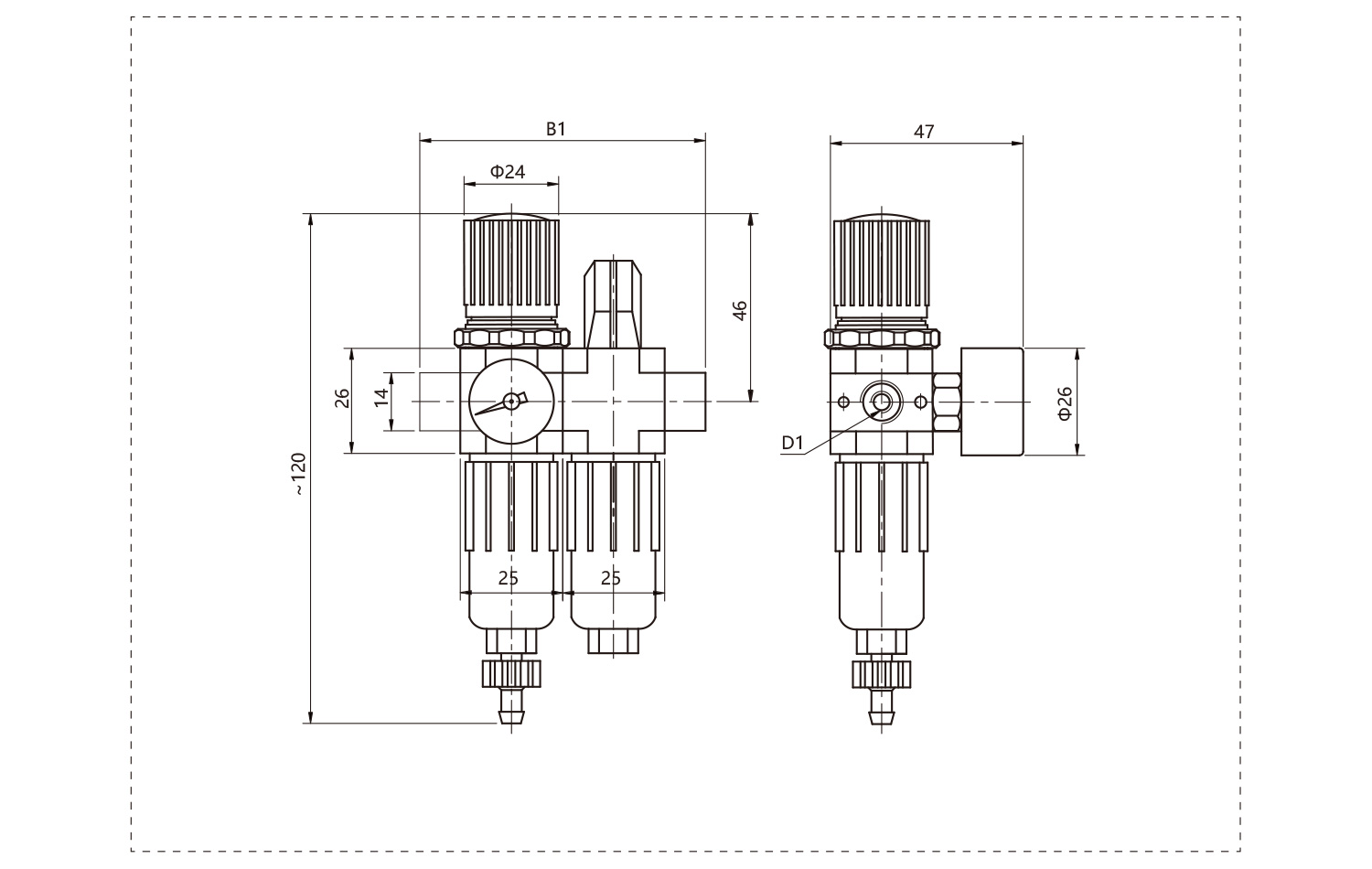

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China OU MICRO Series Filter, Regulator,Lubricator Suppliers and OU MICRO Series Filter, Regulator,Lubricator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our OU MICRO Series Filter, Regulator,Lubricator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
