AFC、BFC Series F.R.L Air filter regulator combo Suppliers

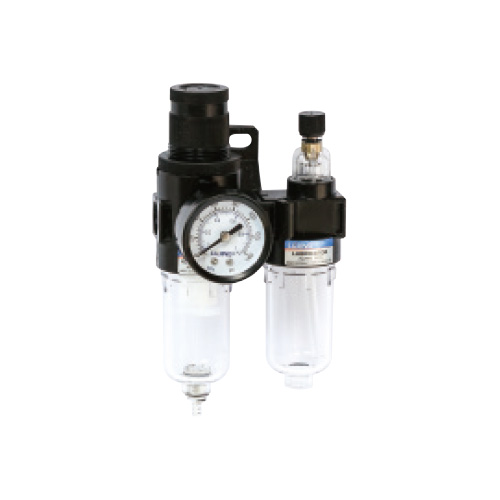

AFC、BFC Series F.R.L Air filter regulator combo

AFC、BFC Series F.R.L Air filter regulator combo

Product Details

0
Views: 120

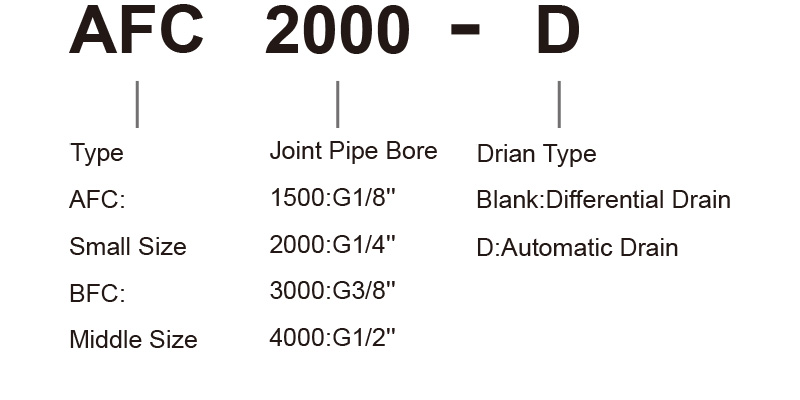

Ordering Code

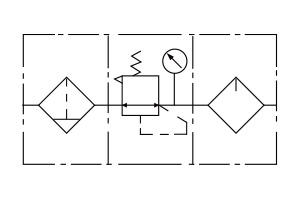

GraPhic symbol







Specification



Model

AFC1500

AFC2000

BFC2000

BFC3000

BFC4000

Operating Fluid

Air

Joint Pipe Bore

G1/8

G1/4G1/4G3/8G1/2

Filtering Eliment Roughness

40μ

Range of Adjustable Pressure

0.05~0.85MPa

Max. Adjustable Pressure

0.95MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

Capacity of Filter Cup

15cc

60cc

Capacity of Oil Feed Cup

25cc

90cc

Suggested Lube

ISO VG32 or Same Grade Oil

Weight

0.5kg

0.7kg


Material

Body

Aluminum Die-casting Fomring

Container Cup

PE

Proteclive Cup Cover

-

Iron

Composing Elements

Filter & Regulator

AFR1500

AFR2000

BFR2000

BFR3000

BFR4000

Lubricator

AL1500

AL2000

BL2000

BL3000

BL4000

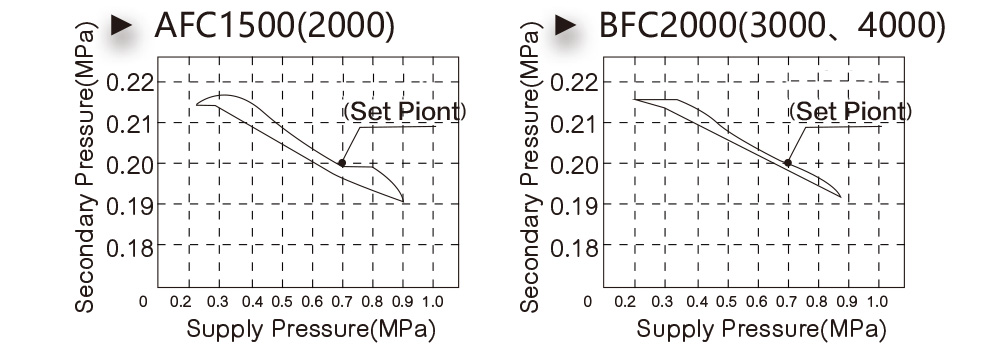

Pressure Character

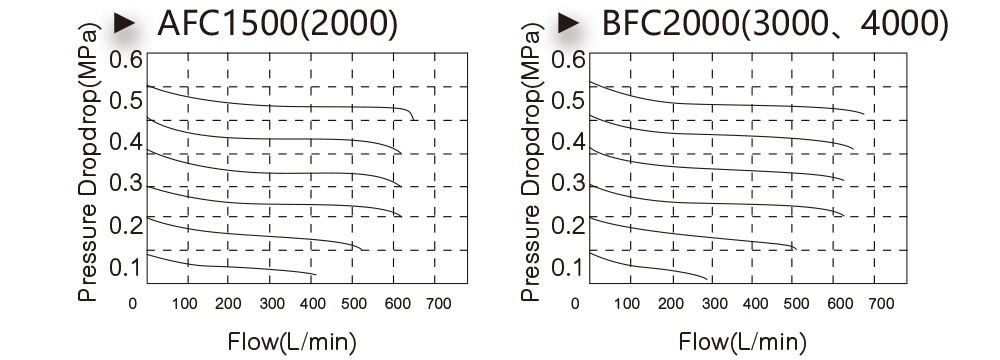

Flowing Character

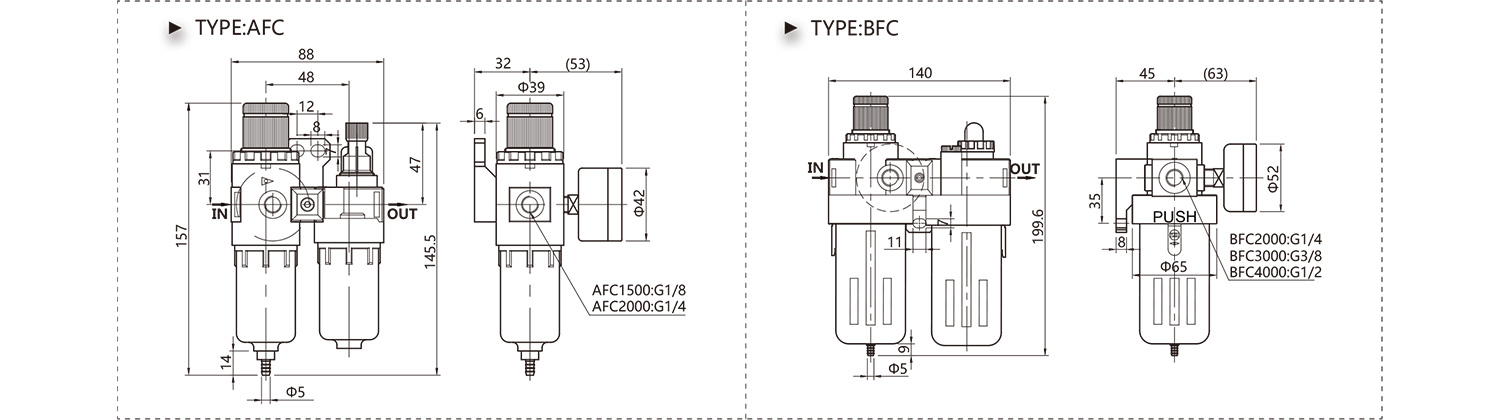

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China AFC、BFC Series F.R.L Air filter regulator combo Suppliers and AFC、BFC Series F.R.L Air filter regulator combo company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our AFC、BFC Series F.R.L Air filter regulator combo are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
