TN Series Double-Shaft Cylinder Suppliers

TN Series Double-Shaft Cylinder

TN Series Double-Shaft Cylinder

Product Details

0
Views: 321

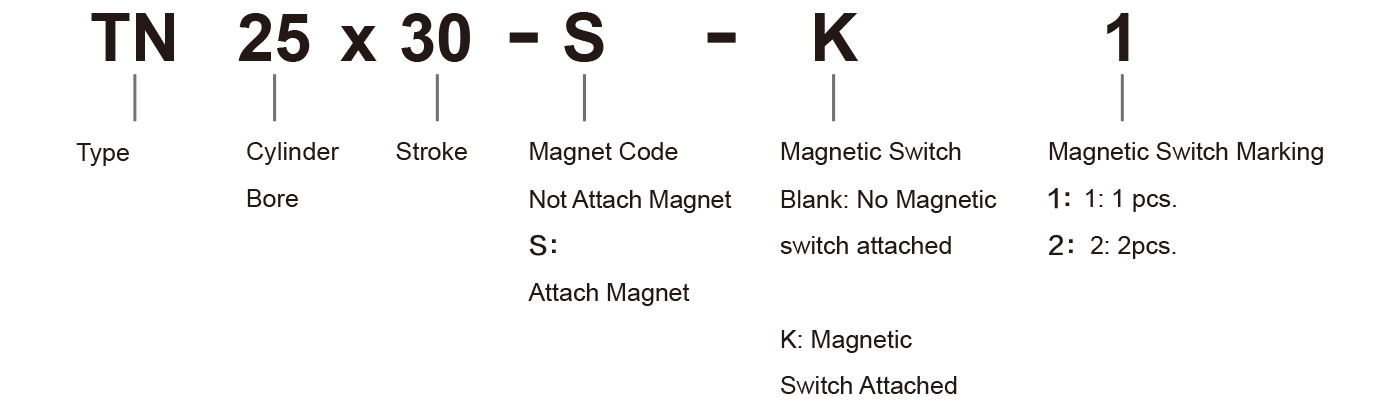

Ordering Code







Specification



Bore (mm) 16 20 25 32
Motion Pattern Double Action
Working Medium 40 Micron Filtered Air
Working-Pressure 0.1~0.9MPa(14~128Psi)
Ensured Pressure Resistance 1.5MPa(213Psi)
Operating Temperature -5~70℃
Operating Speed Range 100~500mm/s
Adjustment Stroke -10~0
Buffer Type Fixed Buffer
Non-Rotation Accuracy 0.3°
Joint Pipe Bore M5  PT1/8





Stroke



Bore (mm) Standard Stroke Max. Stroke Permissible Stroke
16 10 20 30 40 50 60 70 80 90 100 125 150 150 200
20 10 20 30 40 50 60 70 80 90 100 125 150 150 200
25 10 20 30 40 50 60 70 80 90 100 125 150 150 200
32 10 20 30 40 50 60 70 80 90 100 125 150 150 200

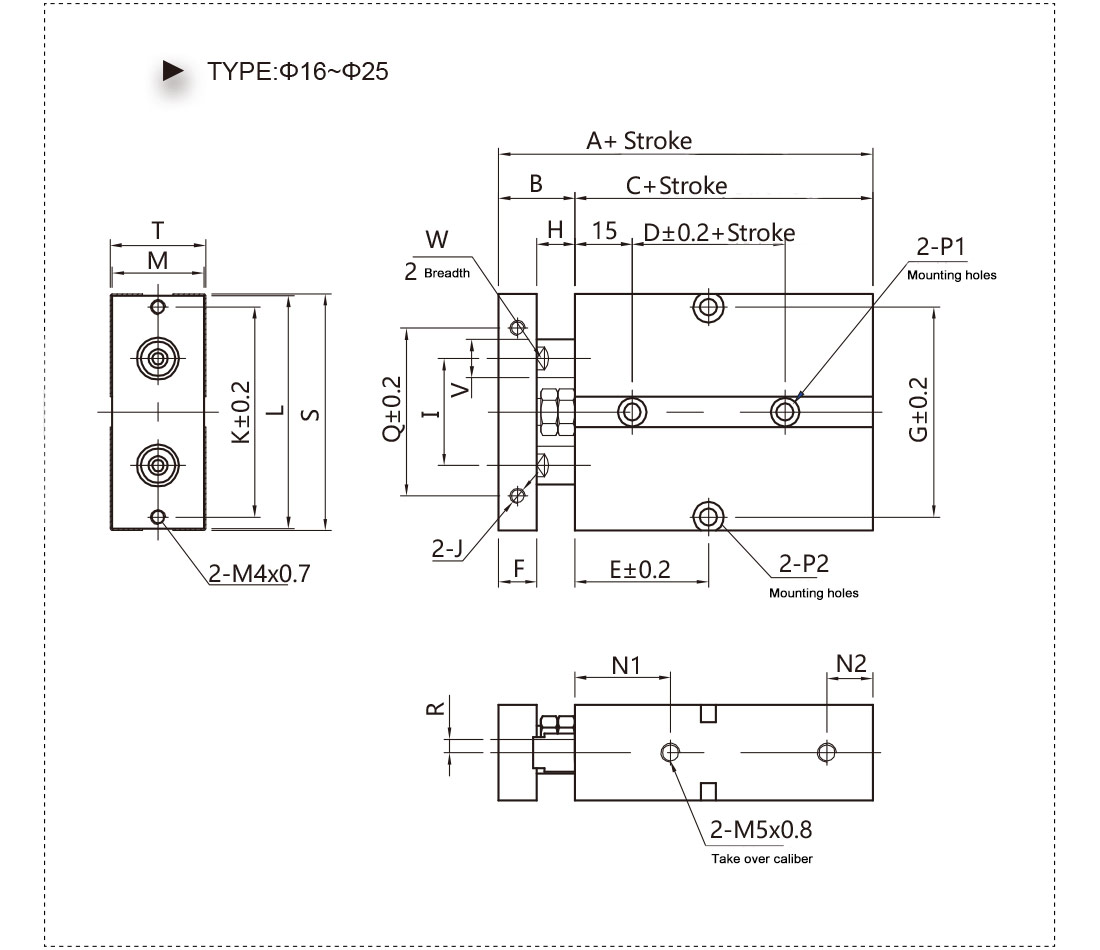

Overall Dimension







Dimension Sheet



(mm)
Symbol/Bore
A B C D Storke≤ 10 20 30 40 50 60 70 80 90 100 125 150 F G I
16 68 15 53 20 E 30 35 40 45 50 55 60 65 70 75 87.5 100 8 47 7 24
20 78 20 58 20 E 35 35 40 45 50 55 60 65 70 75 87.5 100 10 55 10 28
25 81 19 62 30 E 40 40 45 50 55 65 65 70 75 80 92.5 105 10 66 66 34



Symbol/Bor mm J K L M N1  N2 P1  P2 Q R S T V W
16 M4 Deep 5 47 53 20 22 11 Both Side:Φ7.5 Deep 7.2mm
Through Hole:Φ4.5
Both Side:Φ8 Deep 4.5mm
Through Hole:Φ4.5
34 3 54 21 8 6.1
20 M4 Deep 5 55 61 24 25 12 Both Side:Φ7.5 Deep7.2mm
Through Hole:Φ4.5
Both Side:Φ8 Deep 4.5mm
Through Hole:Φ4.5
44 3.5 62 25 10 8.1
25 M4 Deep6 66 72 29 27 12 Both Side:Φ7.5 Deep7.2mm
Through Hole:Φ4.5
Both Side:Φ8 Deep 4.5mm
Through Hole:Φ4.5
56 6 73 30 12 10.1

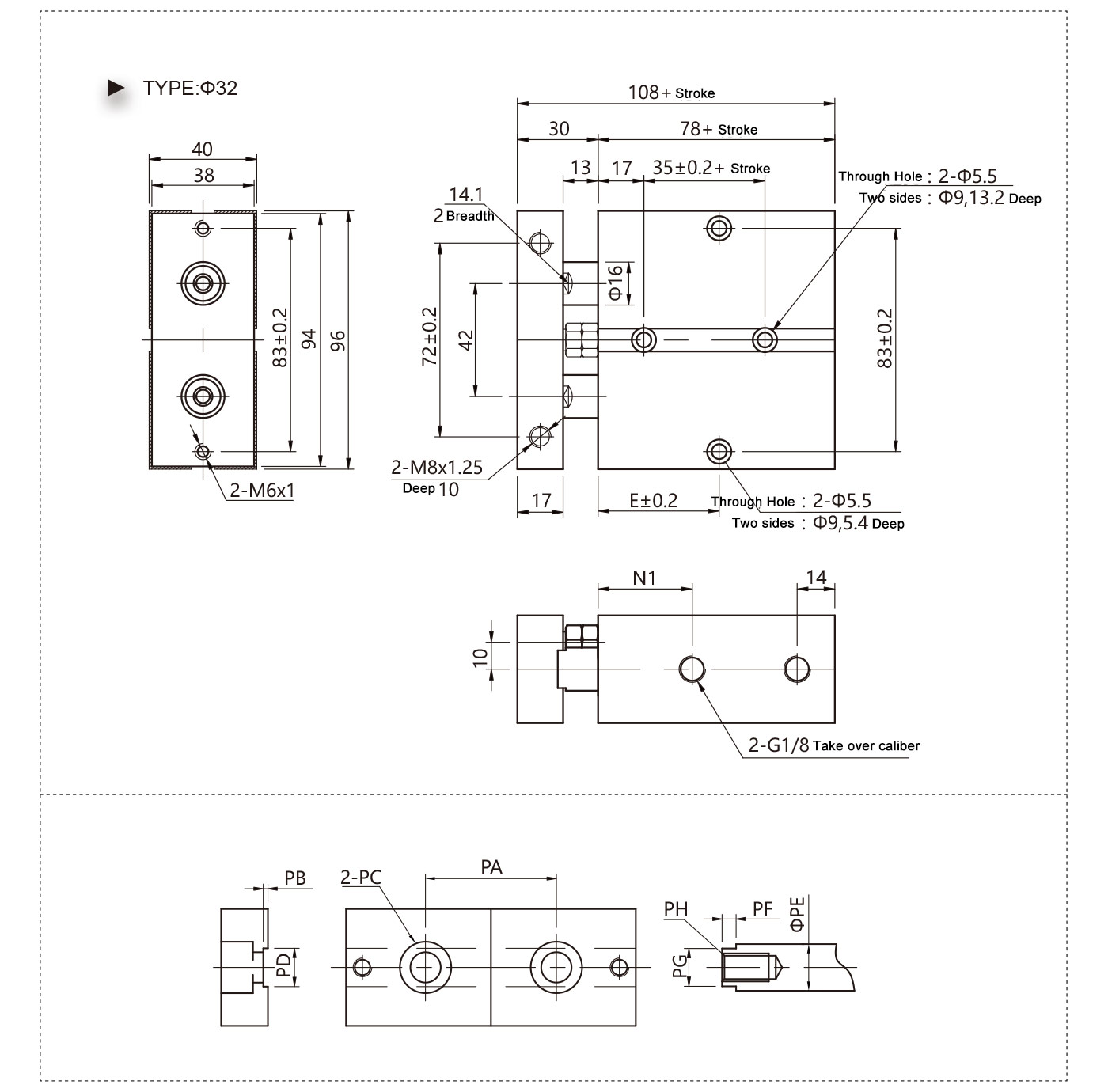

Overall Dimension







Specification



 Stroke/Symbol E N1
10 45 35
20 50 40
30 55 40
40 60 40
50 65 40
60 70 40
70 75 40
80 80 40
90 85 40
100 90 40
125 102.5 40
150 115 40





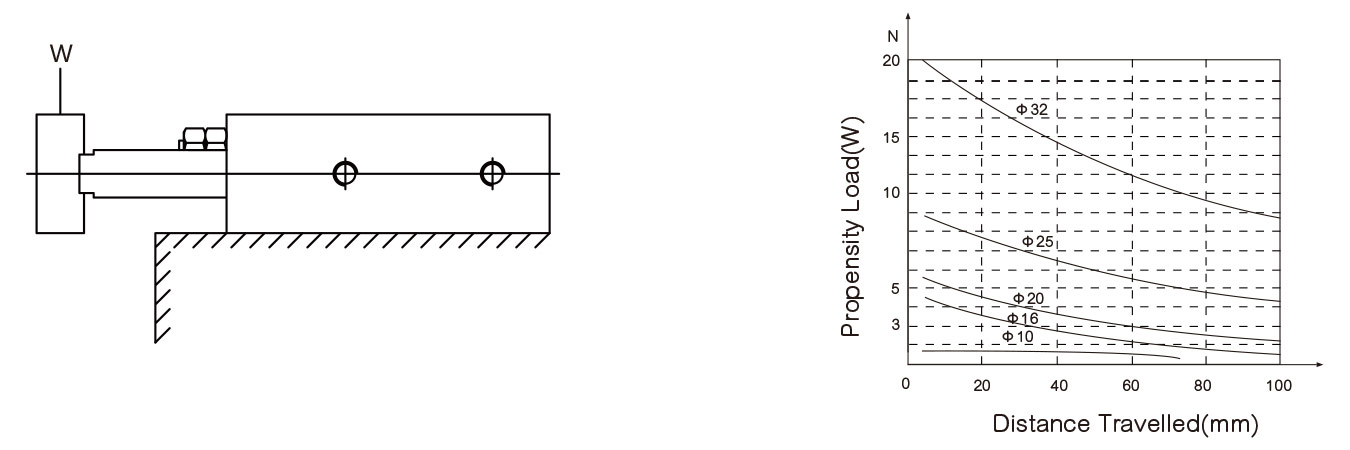

Dimension Sheet



Symbol/Bore(mm)  PA PB PC PD PE PF PC PH
10 18 0.7 Ø6.2x3.5 Deep Through Hole:Ø3.3 5.2 6 2.2 5.1 M3 5.5 Deep
16 24 1 Ø7.8x4.6 Deep Through Hole:Ø4.3 6.2 8 3 6.1 M4 9 Deep
20 28 1 Ø11 x6.8 Deep Through Hole:Ø6.5 8.2 10 3 8.1 M6 10 Deep
25 34 1 Ø11x6.8 Deep Through Hole:Ø6.5 10.2 12 3 10.1 M6 10 Deep
32 42 2 Ø17x12 Deep Through Hole:Ø10.5 14.2 16 3 14.1 M10 13 Deep
