LAF Series Air Filter with auto drain Suppliers

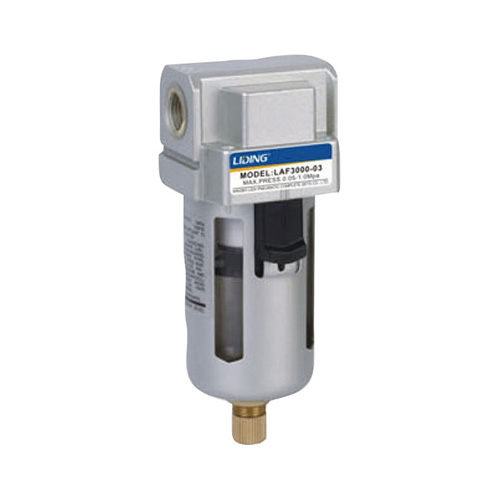

LAF Series Air Filter with auto drain

LAF Series Air Filter with auto drain

Product Details

Place of Origin: China

Brand Name: LIDA

LAF Series Air Filter with auto drain

steady performance. High quality filter elements supply clear air for valve and cylinder.

We manufacture all important parts by ourself to insure the quality.Outs LAF filter are same style as SMC.It has standard dimensions and outsourcing parts were selected and tested very strictly.





0
Views: 151

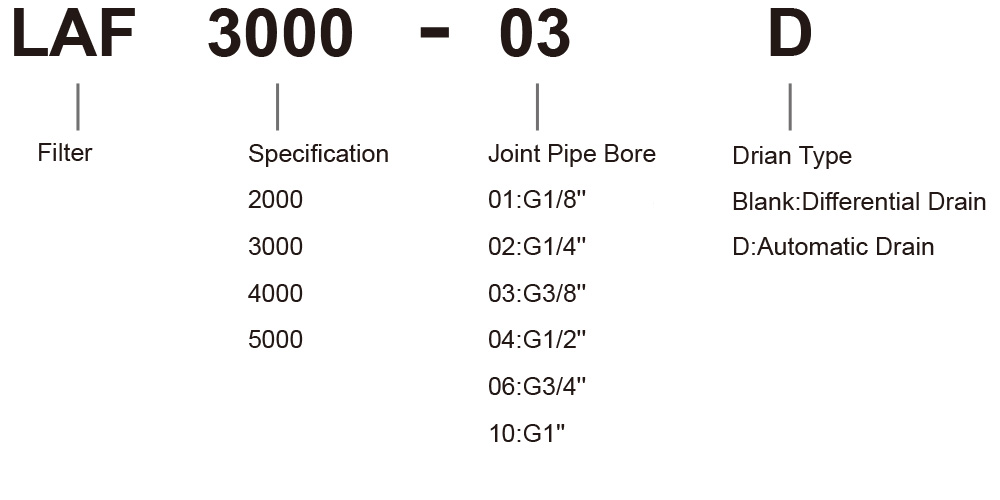

Ordering Code

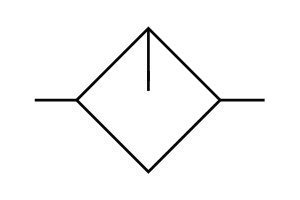

GraPhic symbol





Specification



Model

LAF2000

-01

LAF2000

-02

LAF3000

-02

LAF3000

-03

LAF4000

-03

LAF4000

-04

LAF4000

-06

LAF5000

-06

LAF5000

-10

Rated Flow

750

750

1500

1500

4000

4000

6000

7000

7000

Joint Pipe Bore

G1/8

G1/4

G1/4

G3/8

G3/8

G1/2

G3/4

G3/4

G1

Filtering Eliment Roughness

25μ

Max. Adjustable Pressure

1.0MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

Container Material

Polycarbonate

Protective Cover

Not Available

Available

Drain Function

Differential Drain

Differential Drain ' Automatic Drain

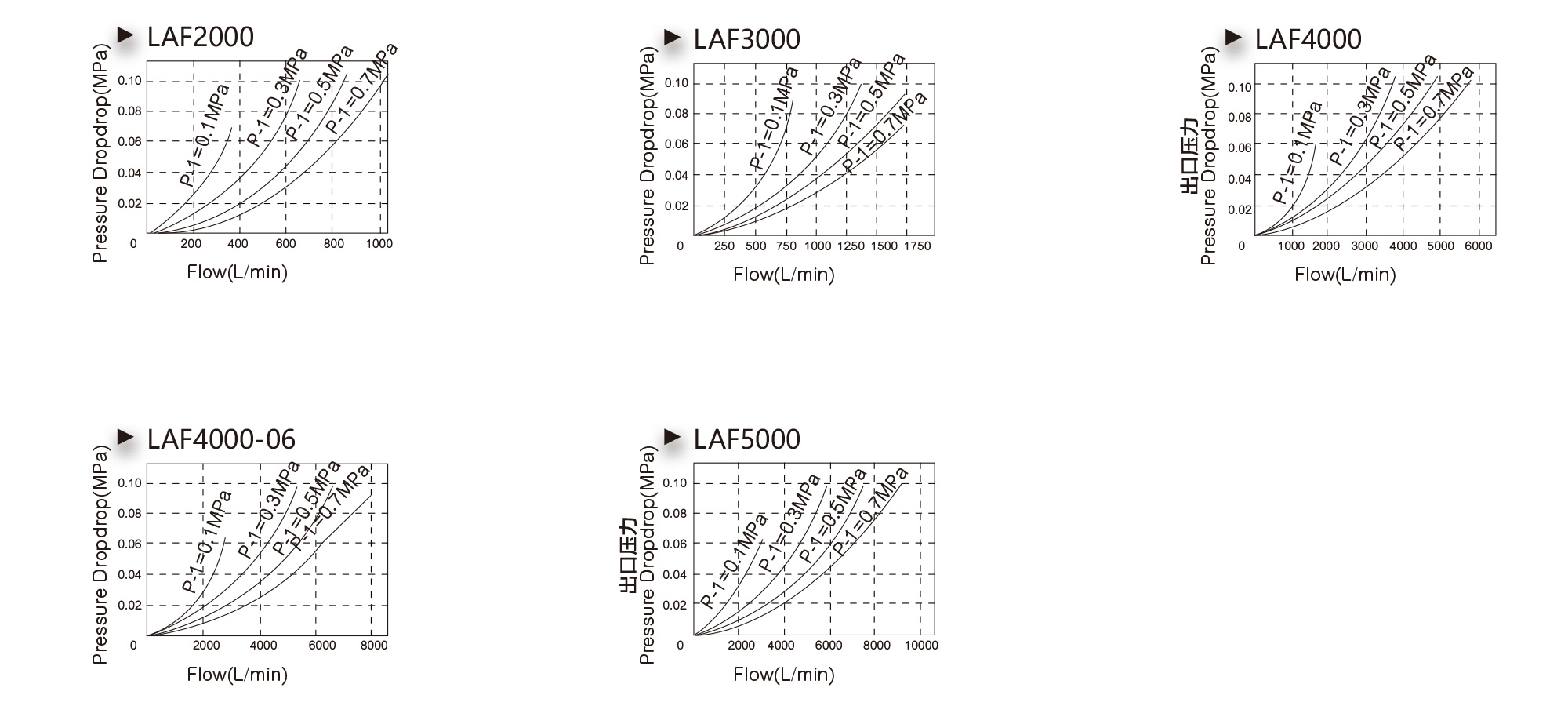

Flowing Character

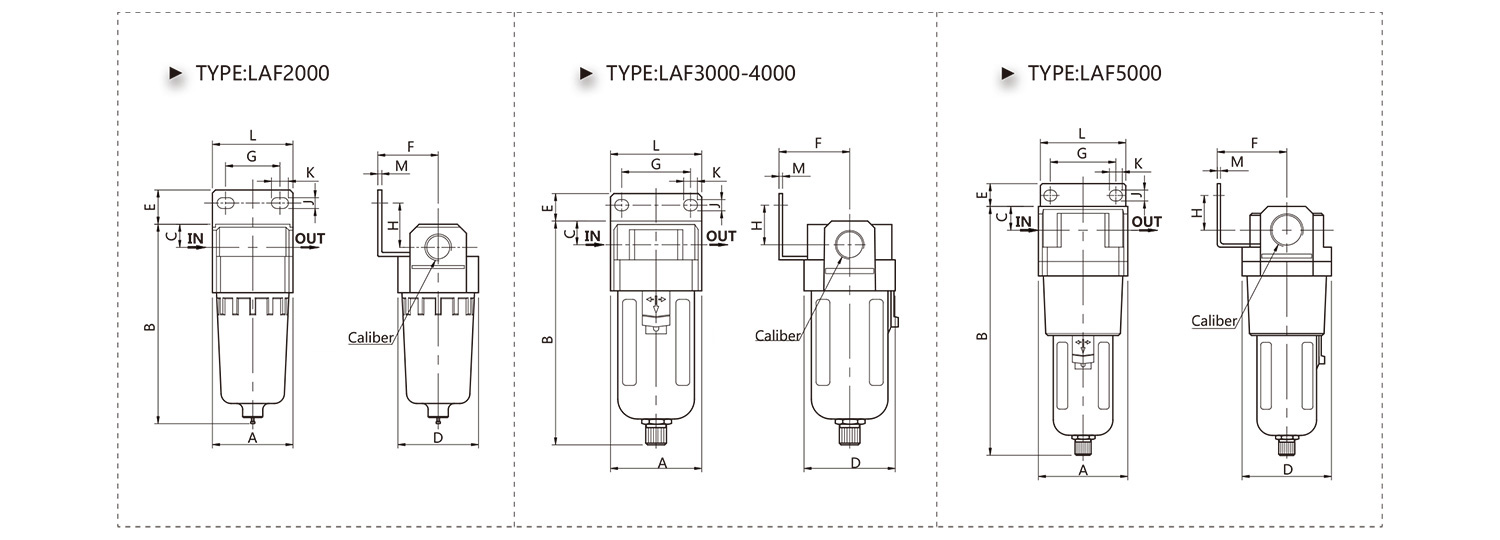

Overall Dimension

Model

Bore

A

B

C

D

E

F

G

H

J

K

L

LAF2000

1/8*1/4

40

97.5

11

40

17

30

27

22

5.4

8.4

40

LAF3000

1/4*3/8

53

132.5

14

53

16

41

40

23

6.5

8

53

LAF4000

3/8*1/2

70

168.5

18

70

17

50

54

26

8.5

10.5

70

LAF4000-06

3/4

75

172.5

20

70

14

50

54

25

8.5

10.5

70

LAF5000

3/4*1

90

247.5

24

90

23

70

60

35

11

13

90

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LAF Series Air Filter with auto drain Suppliers and LAF Series Air Filter with auto drain company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LAF Series Air Filter with auto drain are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
