2W(Small Aperture) Series Solenoid Valve Suppliers

2W(Small Aperture) Series Solenoid Valve

2W(Small Aperture) Series Solenoid Valve

Product Details

0
Views: 156

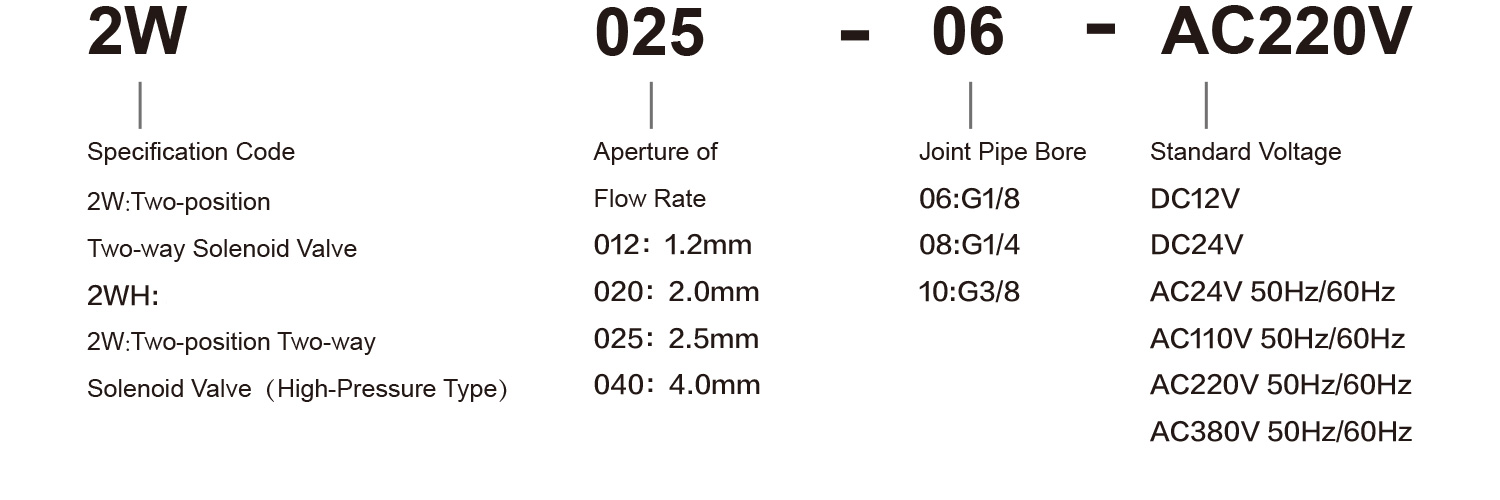

Ordering Code

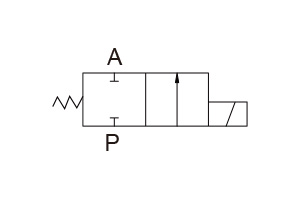

Graphic Symbol







Specification



Model 2W025-06 2W025-08 2W040-10 2WH012-06 2WH012-08 2WH012-10
Aperture of Flow Rate 2.5 4 1.2 2
CVValue 0.23 0.6 0.05 0.15
Joint Pipe Bore G1/8 G1/4 G3/8 G1/8 G1/4 G3/8
Motion Pattern Direct Drive Type
Working Medium Air、Water、Oil
Type Normal Close Type
Operation Fluid Viscosity 20 CST Below
Working-Pressure 2W:0~0.7MPa 2WH:0~2MPa
Max. Pressure Resistance 2W:1MPa 2WH:3.5MPa
Operating Temperature Range -10~80℃
Voltage Range ±10%
Material of Body Brass
Material of Oil Seal NBR/FKM

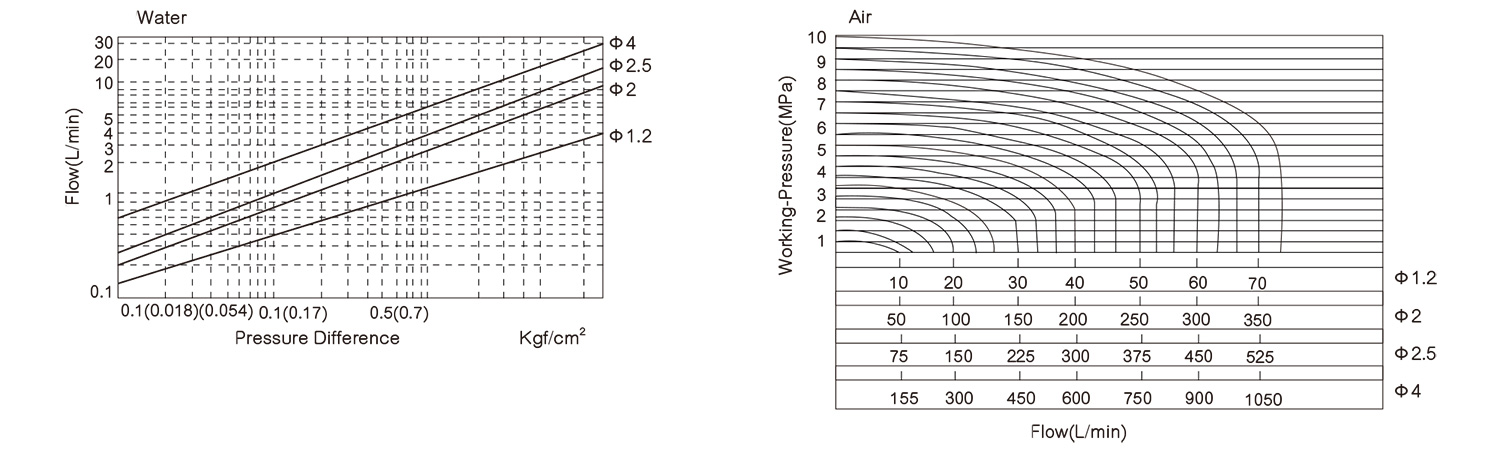

Flowing Character

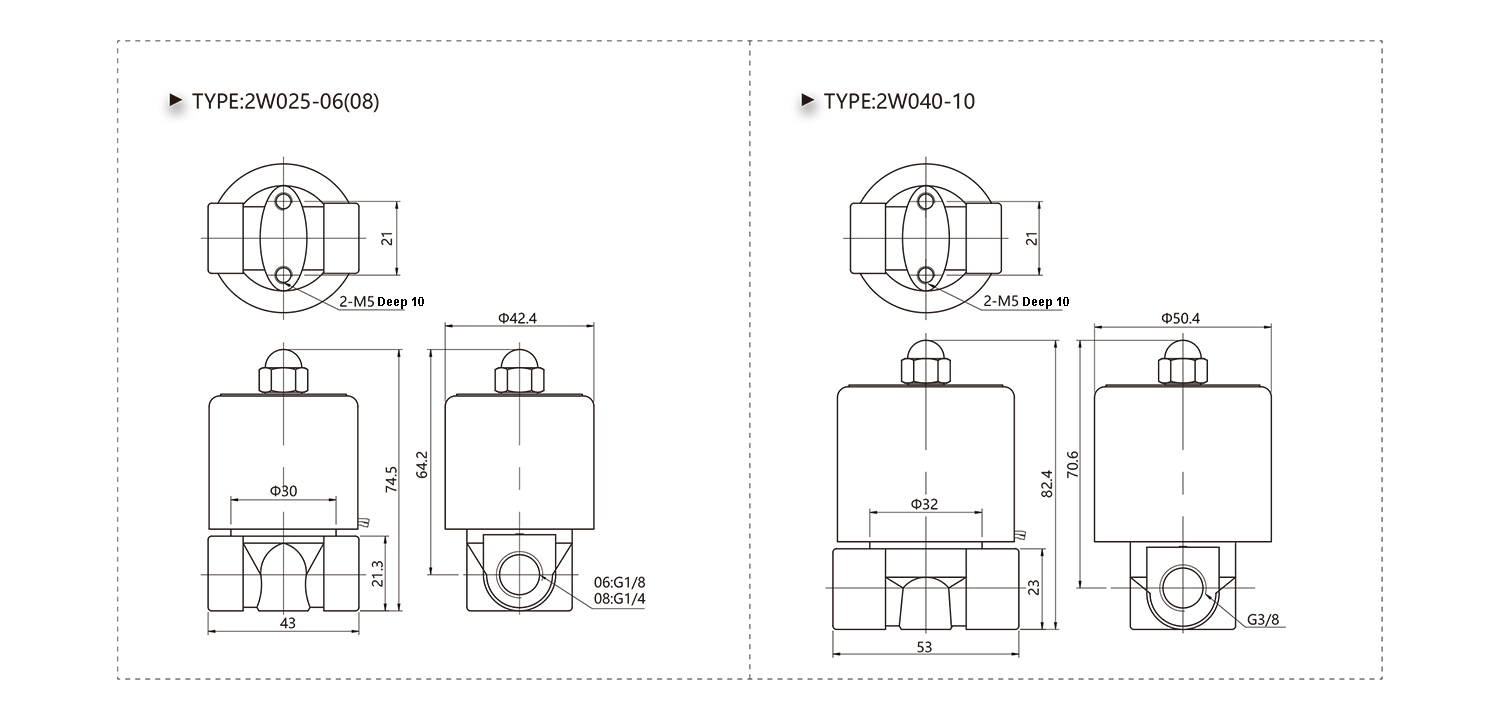

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China 2W(Small Aperture) Series Solenoid Valve Suppliers and 2W(Small Aperture) Series Solenoid Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our 2W(Small Aperture) Series Solenoid Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
