WF Series Mini-Valve、Collecting Plate、Special Valve Set Suppliers

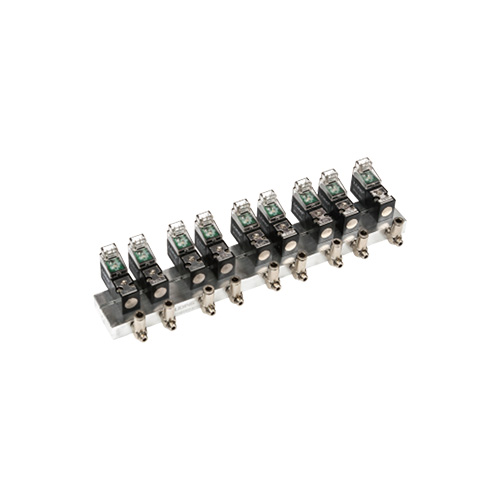

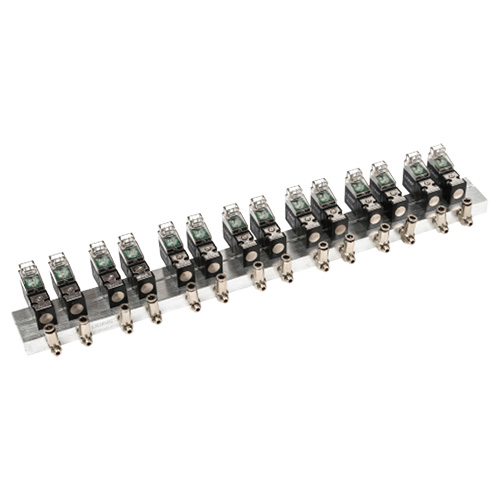

WF Series Mini-Valve、Collecting Plate、Special Valve Set

WF Series Mini-Valve、Collecting Plate、Special Valve Set

Product Details

1+
Views: 816

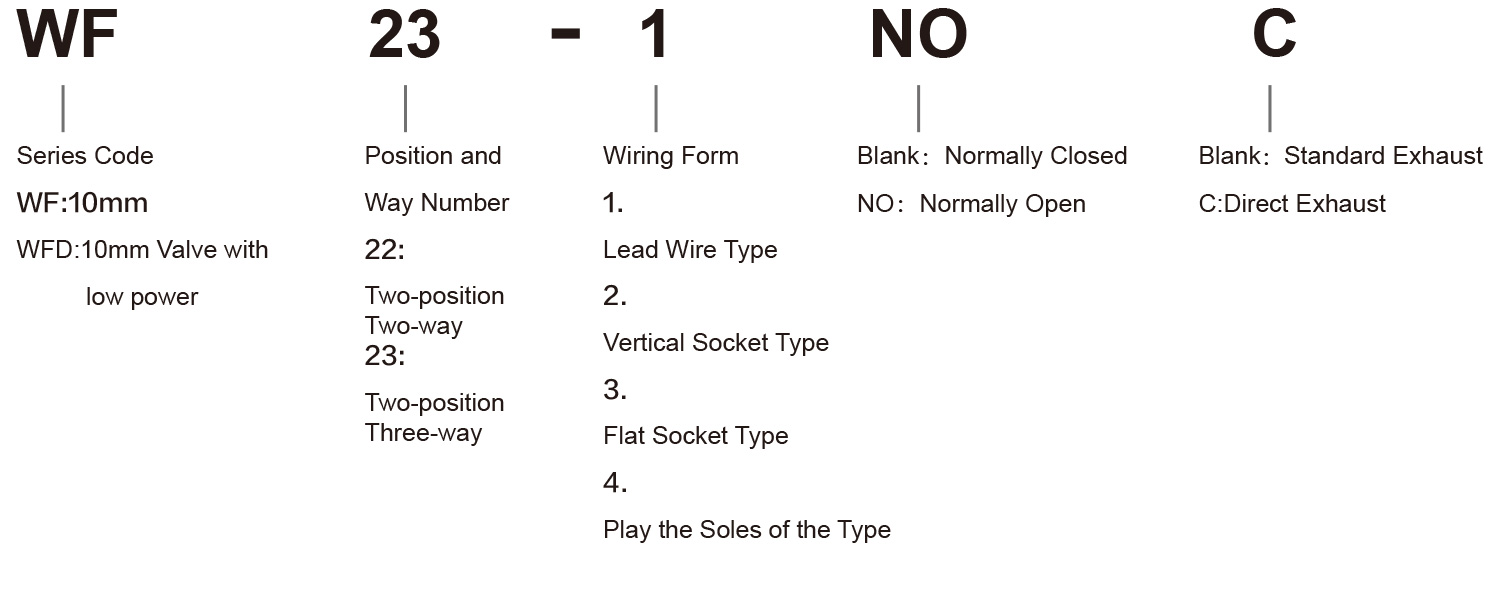

Ordering Code




Synopsis
WF series micro-valve is a new type of direction control component designed and manufactured by our company. It belongs to our patented product. Patent No. ZL200810163094.9. The micro-valve is refined with high-quality materials and advanced technology. It has beautiful appearance, small power, low energy consumption and stable performance. It is widely used in the field of air-way direction control such as textile machinery.

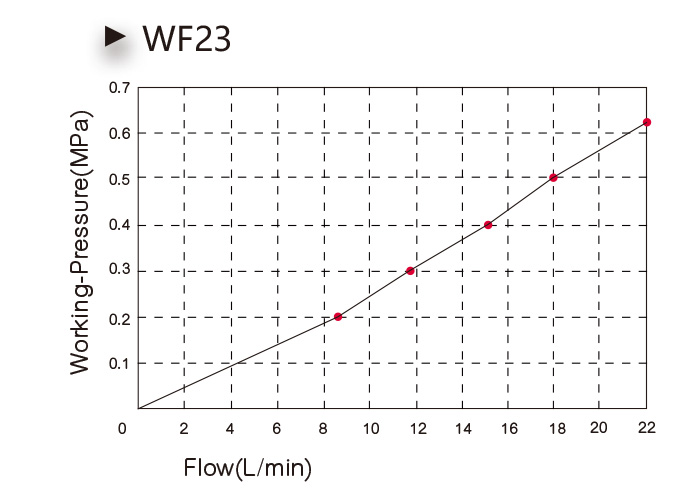

Flowing Character

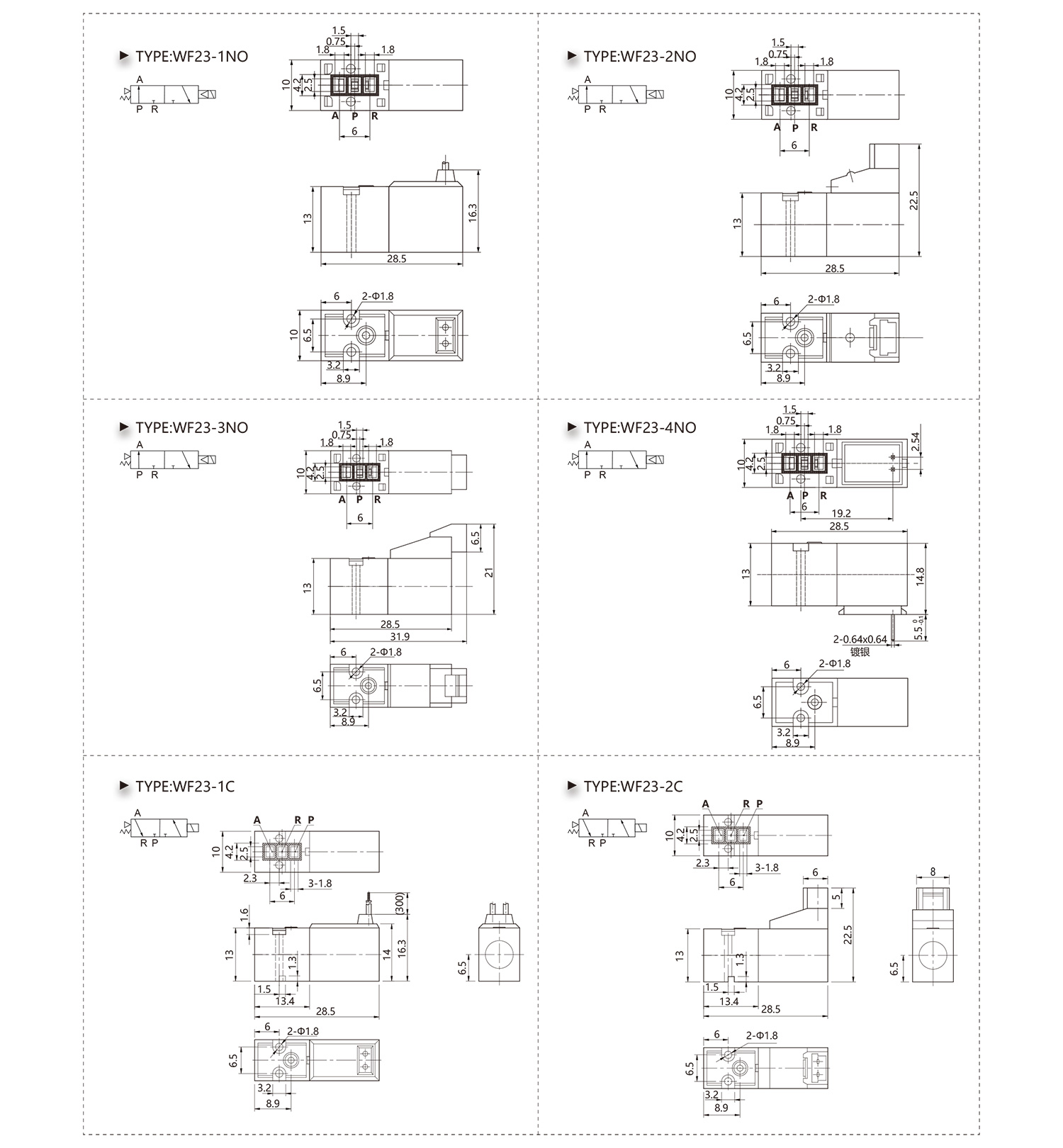

Overall Dimension

Specification

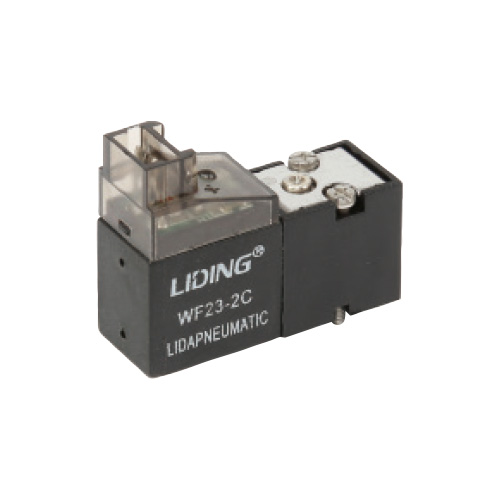

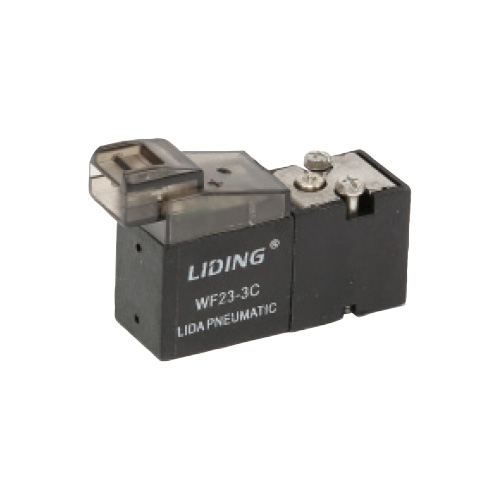

Model WF23-1C  WF23-1NO WFD23-2C
WF23-2C  WF23-2NO
WF23-3C  WF23-3NO WFD23-3C

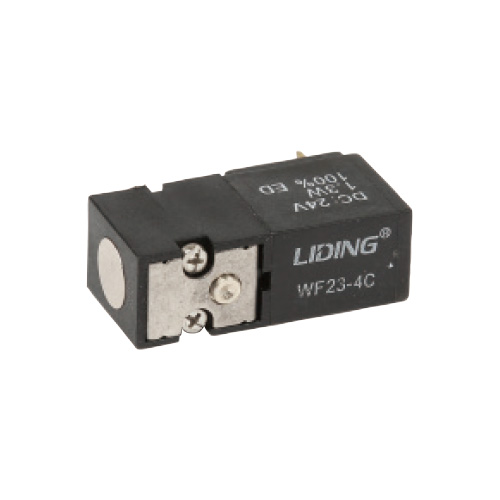

WF23-4C  WF23-4NO
Working Medium 40 Micron Filtered Air
Operating Temperature -5~50℃
Response time(ms) ≤10ms
Max Operating Frequency Cycle/Sec
Min. Operating Frequency Cycle/Day
Lubrication Not Lubrication
Manual Override Not Lubrication
Enclosure Dust-Proof
Electrical Entry Lead Wire Type/
Vertical Socket Type / Flat Socket Type / Play the Soles of the Type
Working-Pressure 0~0.7MPa
Standard Voltage DC24V.12V.6V DC24V.12V
Allowable Voltage ±10%
Power Consumption 1.3W ≤0.7W
Joint Pipe Bore Plate Connection Type

Model

WG23-4

WG23-4NO

WG23-5

Working Medium

40 Micron Filtered Air

Operating Temperature

-25~50°C

Response time(ms)

<10ms/10ms or Less

Max Operating Frequency

20 Cycle 1 Sec

Min. Operating Frequency

1 Cycle /30 Day

Lubrication

Not Lubrication

Manual Override

Not Lubrication

Enclosure

Dust-Proof

Electrical Entry

Play the Soles of the Type

Connector Type

Working-Pressure

0~0.7MPa

Standard Voltage

DC24V.12V.6V

Allowable Voltage

±10%

Power Consumption

2.0W

Joint Pipe Bore

Plate Connection Type

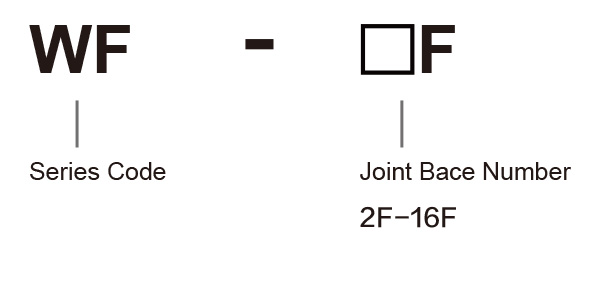

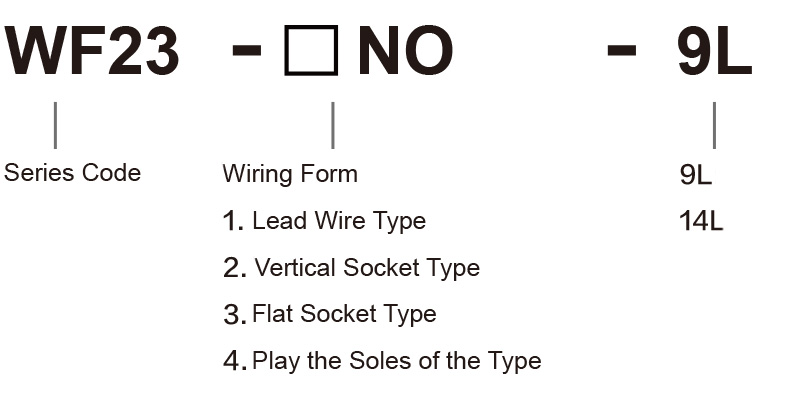

Base Ordering Code

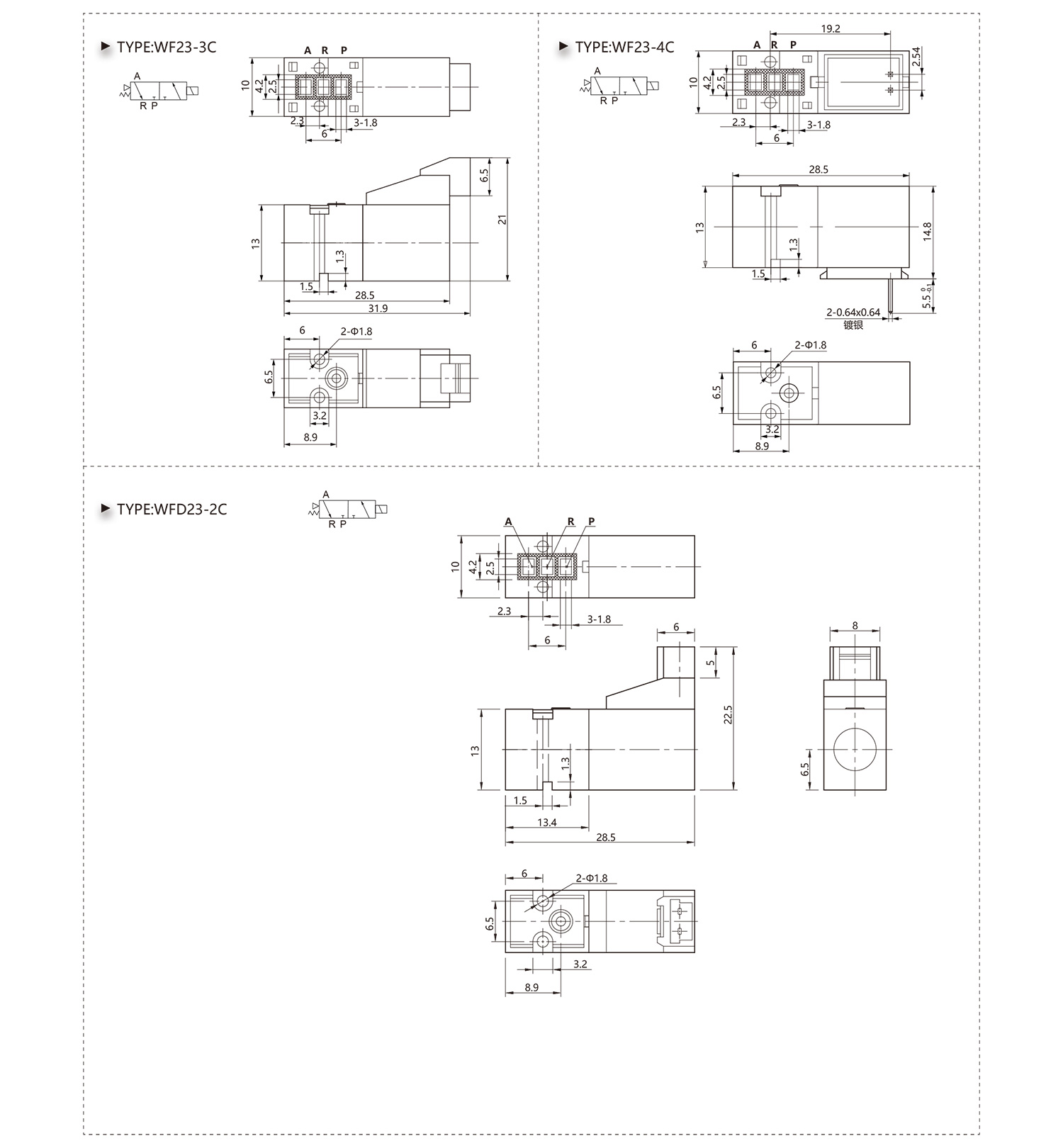

Overall Dimension

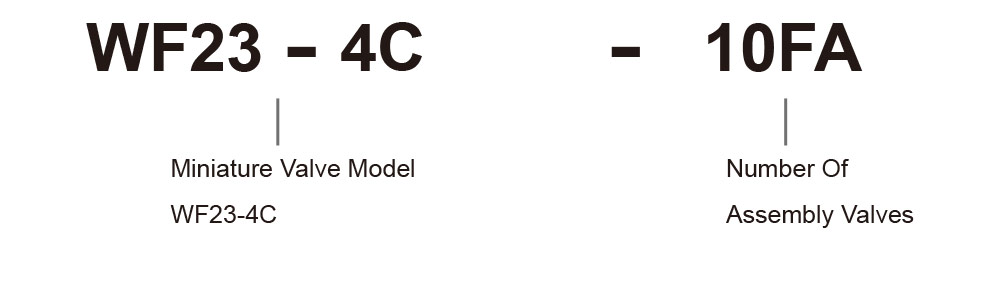

Ordering Code







Specification

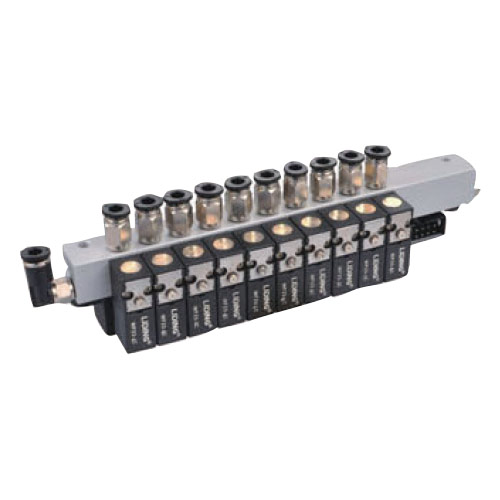

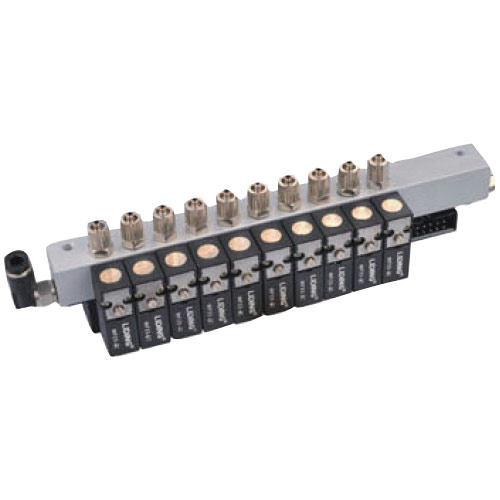

Model WF23-4C-10FA WF23-4C-10F
Working Medium 40 Micron Filtered Air
Operating Temperature -5~50℃
Working-Pressure 0~0.7MPa
Standard Voltage DC24V.12V.6V
Allowable Voltage ±10%
Power Consumption <1.3W

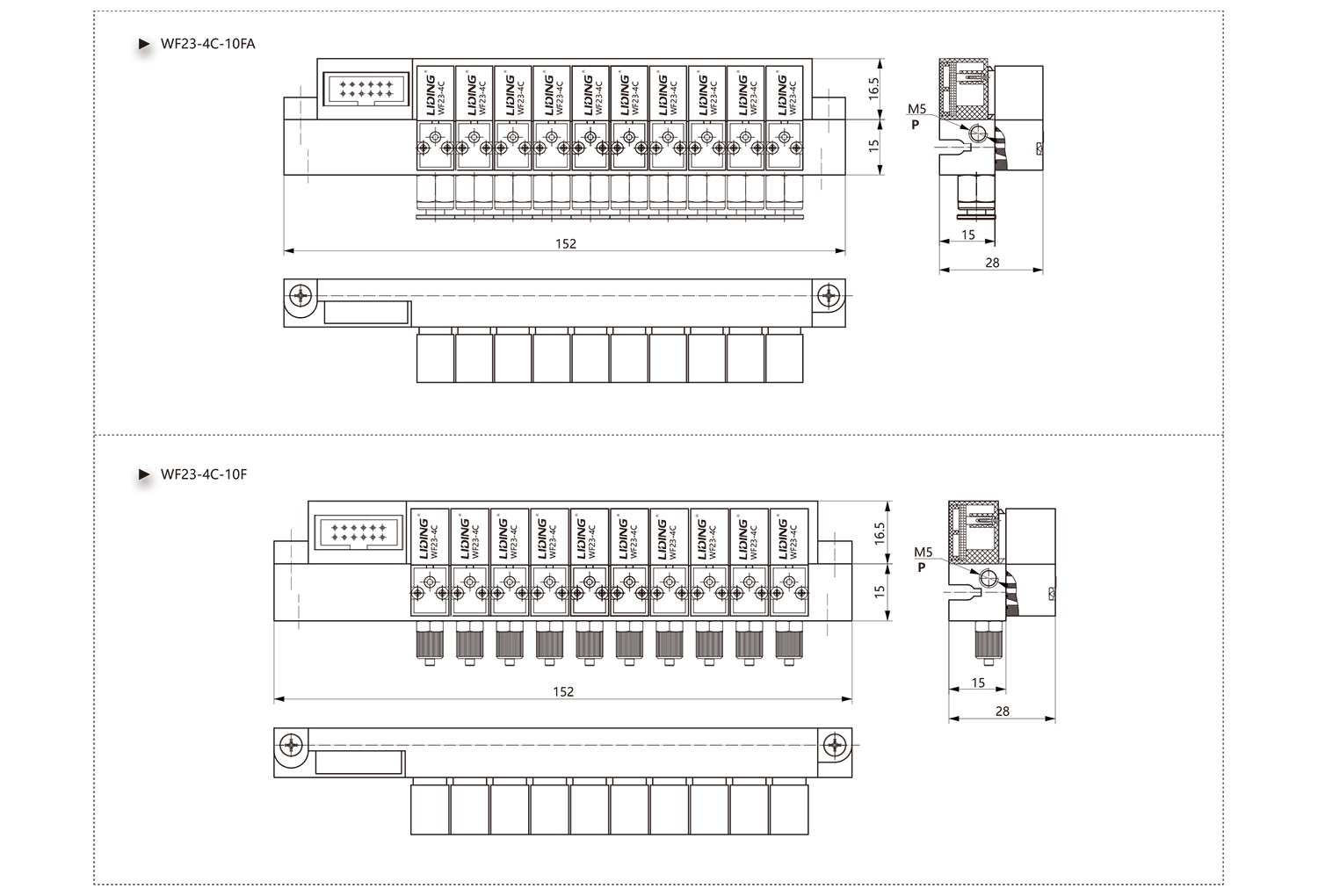

Overall Dimension

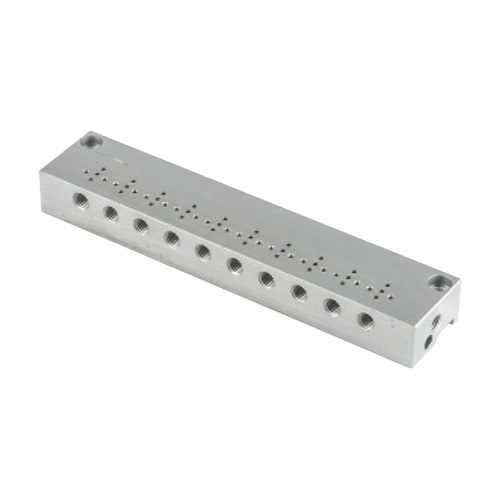

Base Ordering Code

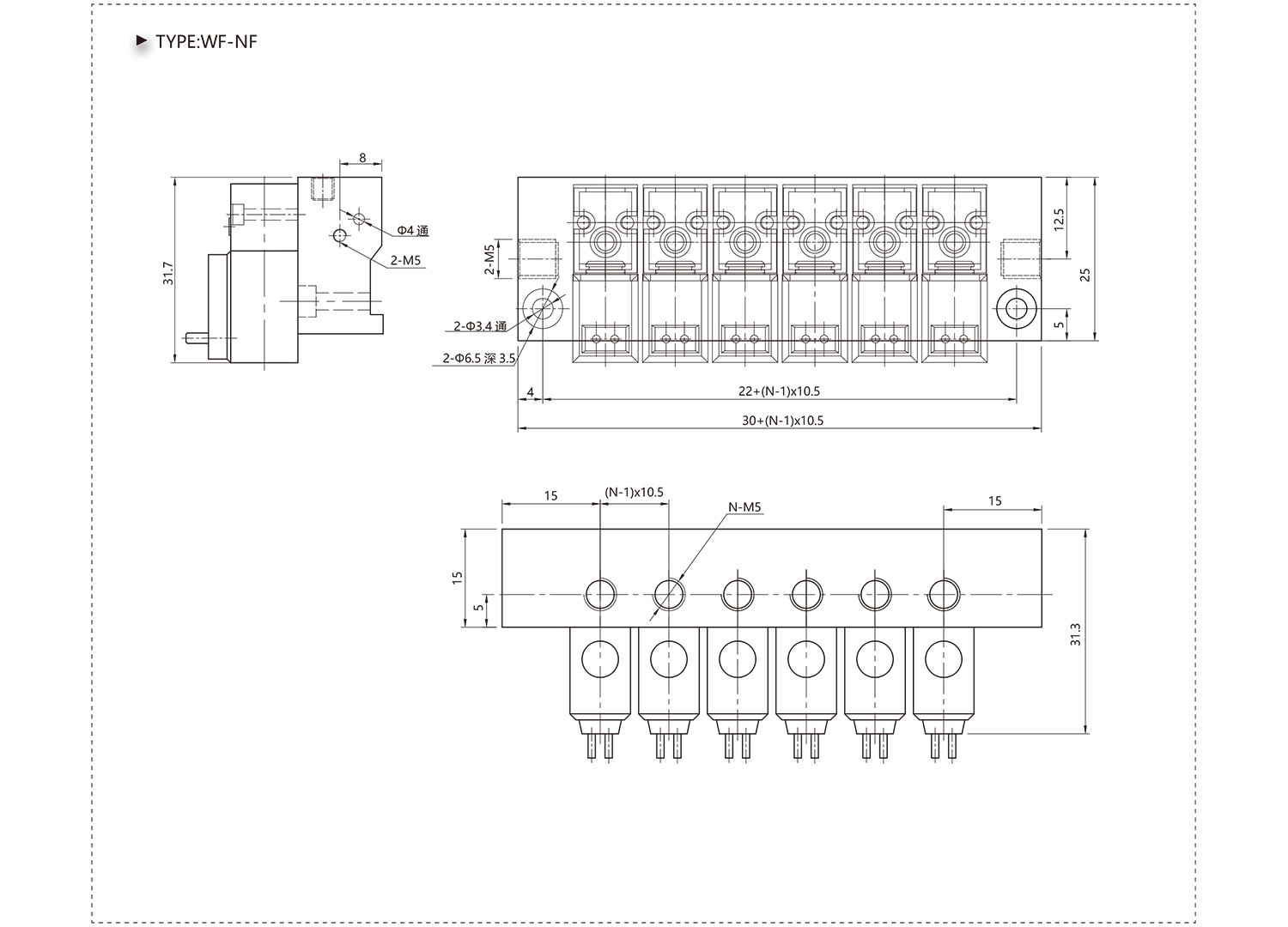

Overall Dimension







Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China WF Series Mini-Valve、Collecting Plate、Special Valve Set Suppliers and WF Series Mini-Valve、Collecting Plate、Special Valve Set company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our WF Series Mini-Valve、Collecting Plate、Special Valve Set are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
