LQ Series Solenoid Valve Suppliers

LQ Series Solenoid Valve

LQ Series Solenoid Valve

Product Details

0
Views: 979

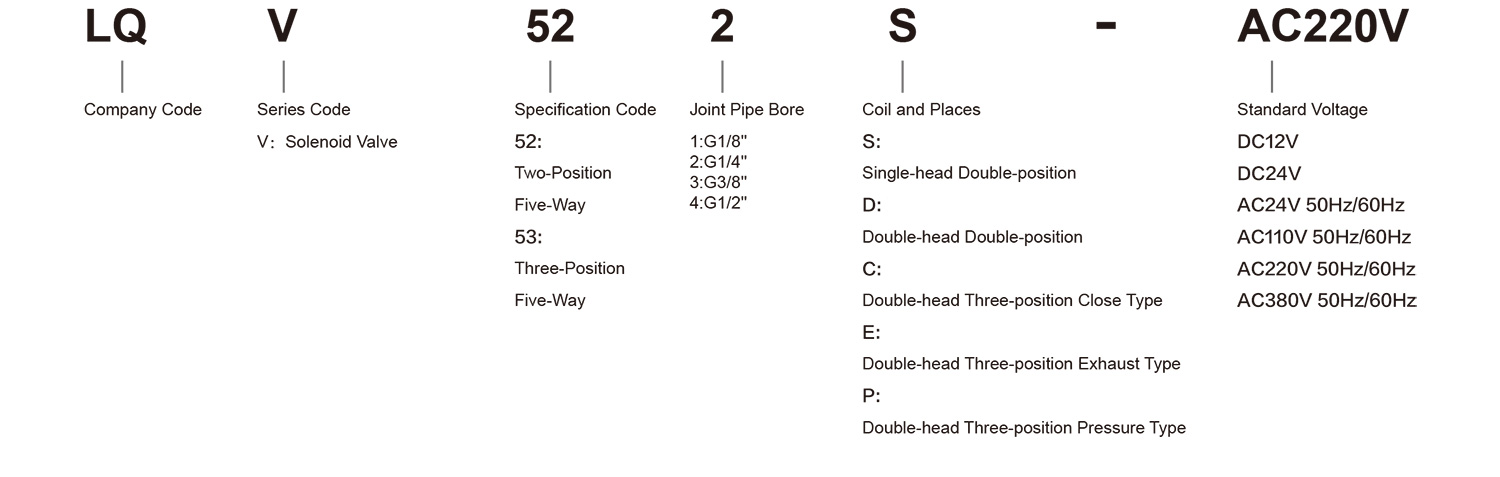

Ordering Code







Specification



Model

LQV522S

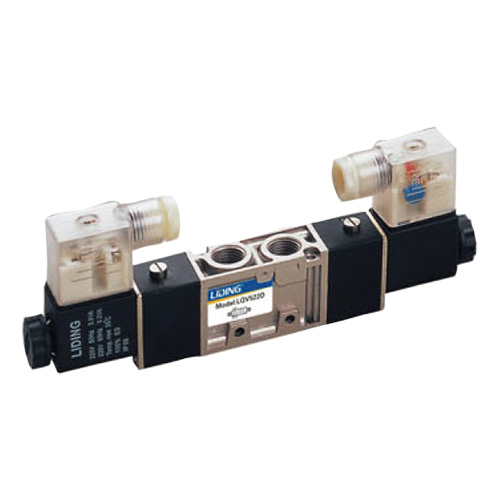

LQV522D

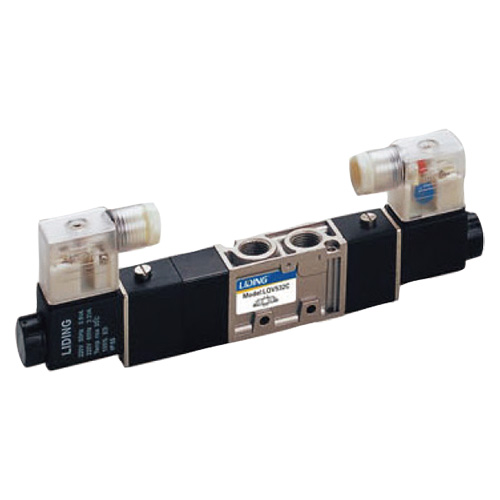

LQV532C(E/P)

LQV523S

LQV523D

LQV533C(E/P)

LQV524S

LQV524D

LQV534C(E/P)

LQA522S

LQA522D

LQA532C(E/P)

LQA523S

LQA523D

LQV533C(E/P)

LQA524S

LQA524D

LQA534C(E/P)

Working Medium

40 Micron Filtered Air

/Motion Pattern

Inner Guide Type

Joint Pipe Bore

Intake = Outlet = G1/4 Exhaust = G1/ 8

Intake = Outlet = G3/8 Exhaust = G1/4

Intake = Outlet = Exhaust =G1/2

The Position Counting

Two-position Five-way

Three-position Five-way

Two-position Five-way

Three-position Five-way

Two-position Five-way

Three-position Five-way

Effective Sectional Area

14mm² (Cv=0.78)

12mm² (Cv=0.69)

25mm² (Cv=1.39)

18mm² (Cv=1.00)

50mm² (Cv=2.79)

30mm² (Cv=1.67)

Operating Temperature

5~50℃ (41~122°F)

Working-Pressure

0.15~0.8MPa

MaxPressure Resistance

1.2MPa

Power Consumption

AC:4.5VA DC:3W

Protection Class

IP65 (DIN40050)

Insulation

Class F

Wiring Form

Lead Wire Type or Connector Type

Voltage Range

±10%

Highest Action Frepuency

5 Cycle/Sec

Shortest Excitation Time

0.05 Second

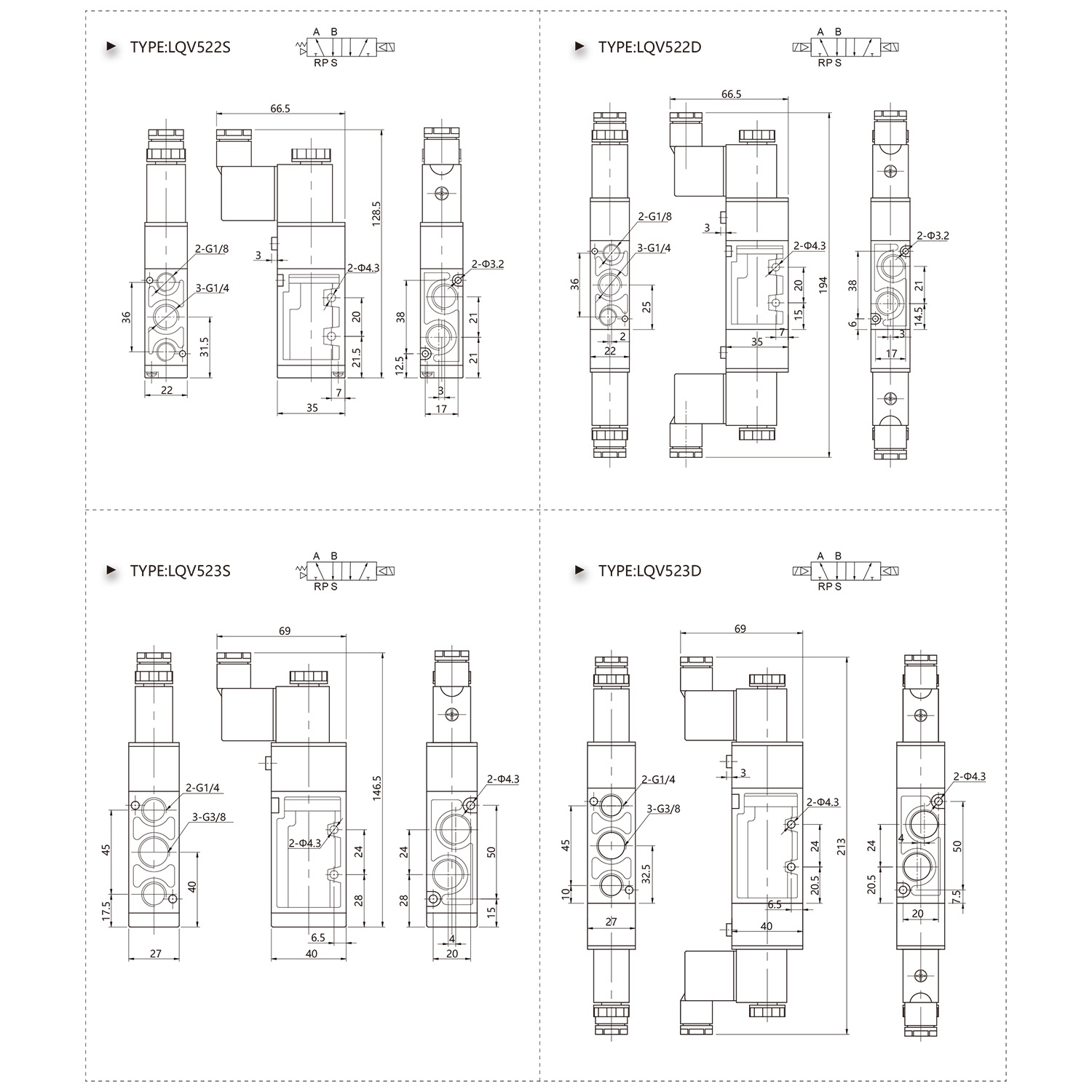

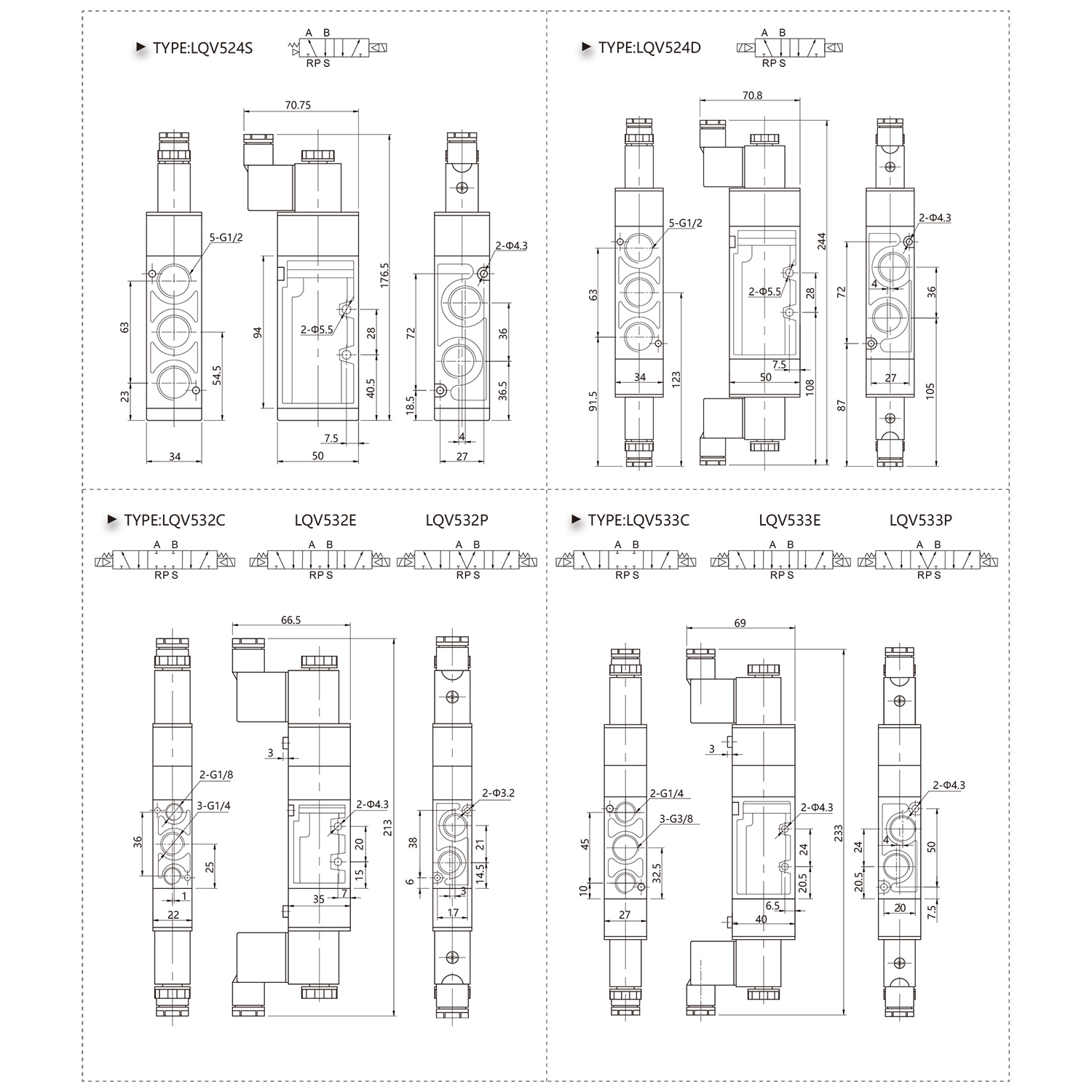

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LQ Series Solenoid Valve Suppliers and LQ Series Solenoid Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LQ Series Solenoid Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
