MTV Toggle Switch Suppliers

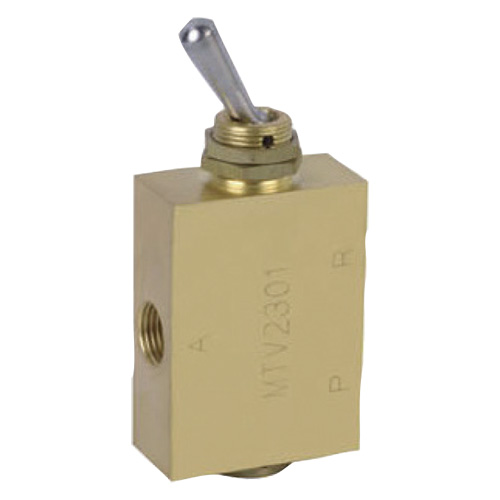

MTV Toggle Switch

MTV Toggle Switch

Product Details

Views: 867

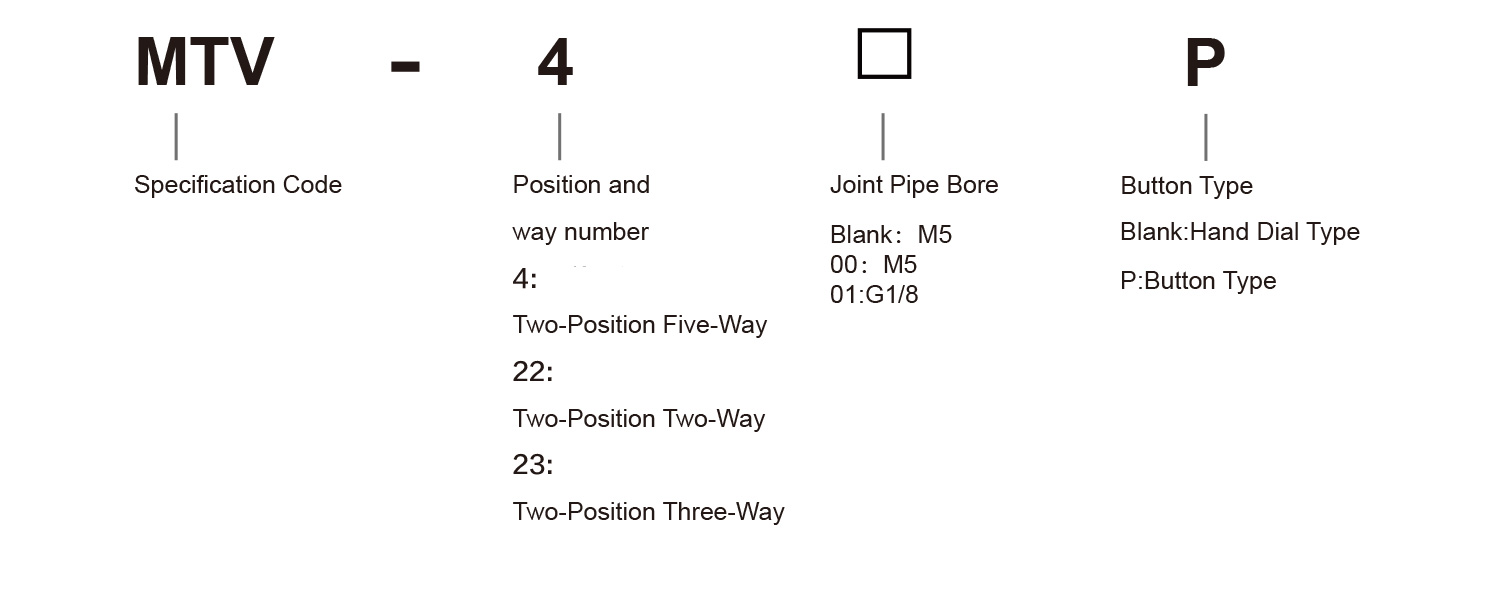

Ordering Code






The valve is made of high quality copper material, special sealing material and advanced technology. It is simple and beautiful in appearance, good in sealing, sensitive in reversing direction and long in service life. It is widely used in various mechanical equipment.





Model MTV-4 MTV-4P MTV-2300 MTV-2301 MTV-2201
Working Medium 40 Micron Filtered Air
The Position Counting Two-position Five-way Two-position Three-way Two-position Two-way
Joint Pipe Bore M5 G1/8
Operating Temperature 0~60℃
Working'Pressure 0~0.8MPa

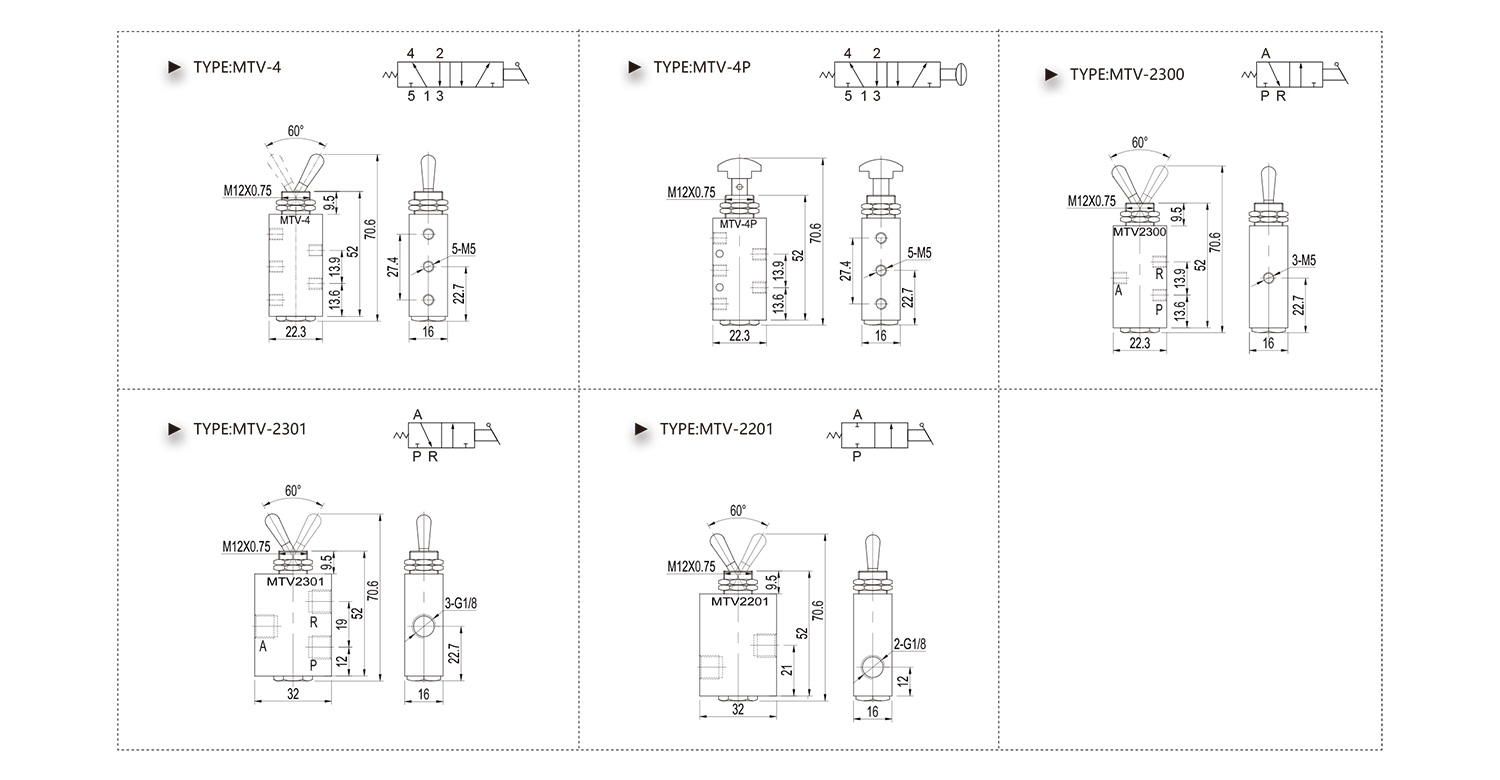

Overall Dimension


Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China MTV Toggle Switch Suppliers and MTV Toggle Switch company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our MTV Toggle Switch are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
