LVF、VZ Series Solenoid Valve,Pneumatic Control Valv Suppliers

LVF、VZ Series Solenoid Valve,Pneumatic Control Valv

LVF、VZ Series Solenoid Valve,Pneumatic Control Valv

Product Details

0
Views: 218

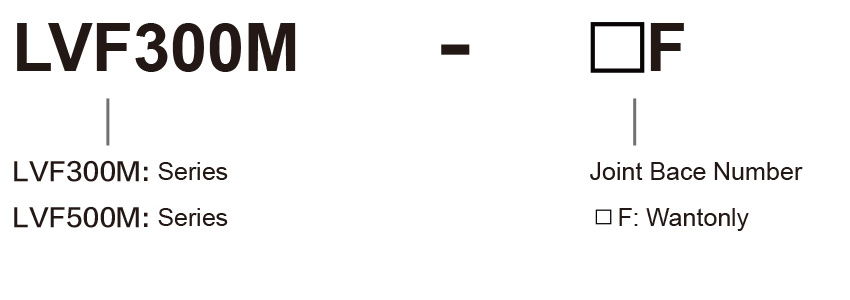

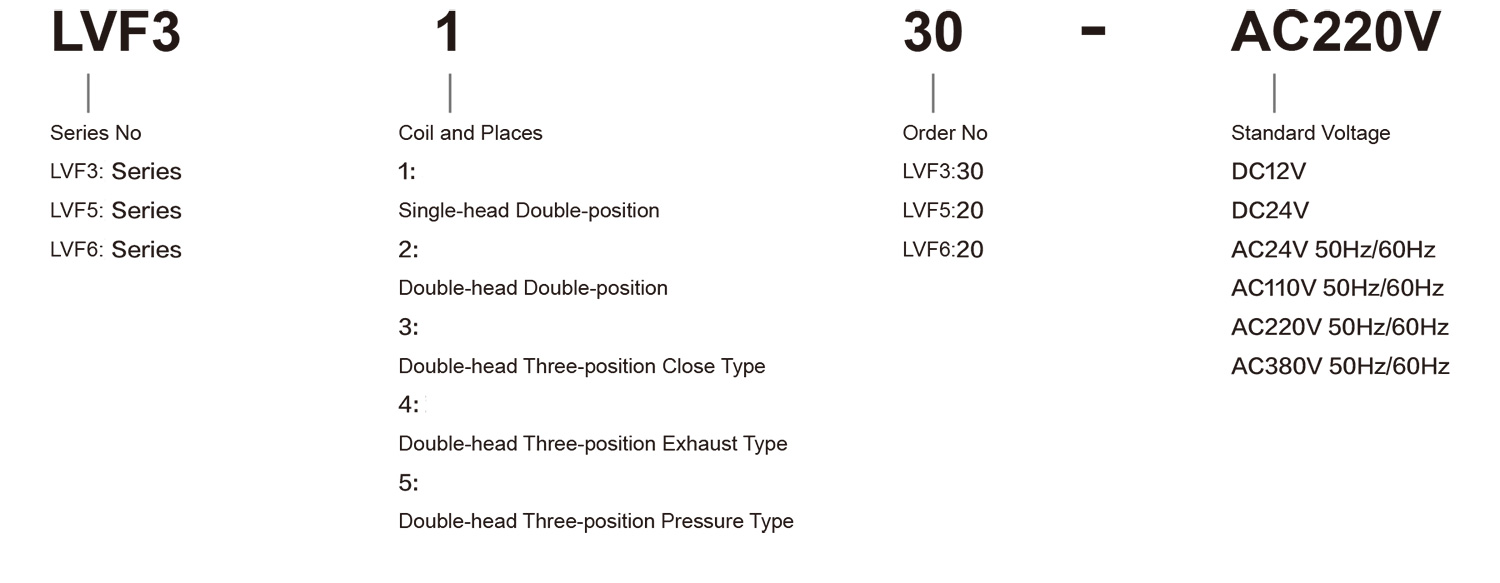

Ordering Code







Specification



Model

LVF3130

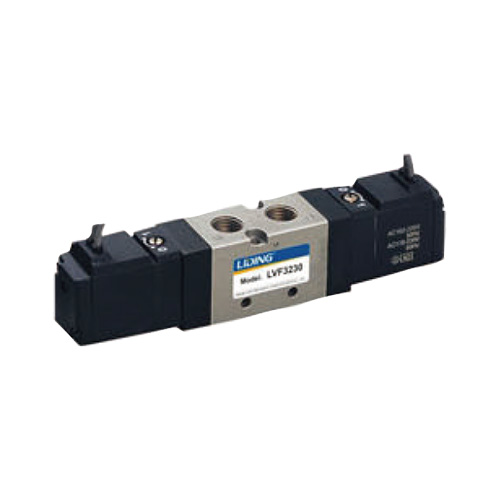

LVF3230 LVF33 (4/5) 30

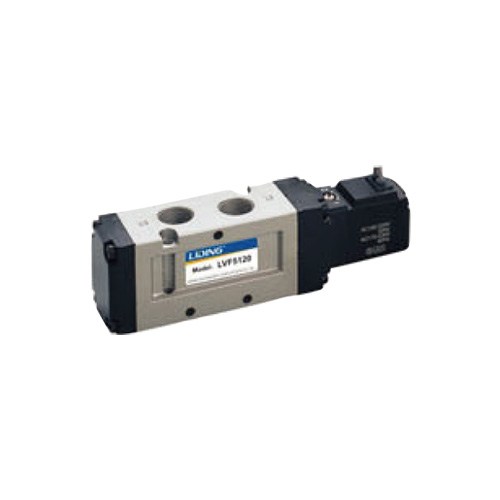

LVF5120

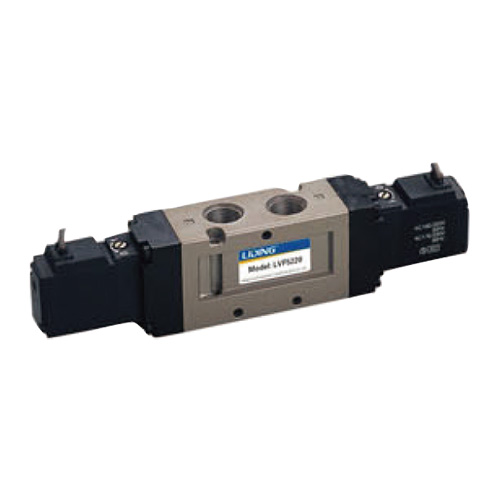

LVF5220 LVF53 (4/5) 20

LVZ5120

LVZ5220 LVZ53 (4/5) 20

Working Medium

40 Micron Filtered Air

Motion Pattern

Inner Guide Type

Joint Pipe Bore

Intake = Outlet=G1/4 Exhaust=G1/8

Intake = Outlet = Exhaust=G3/8

Intake = Outlet = Exhaust=G1/8

The Position Counting

Two-position Five-way

Three-position Five-way

Two-position Five-way

Three-position Five-way

Two-position Five-way

Three-position Five-way

Effective Sectional Area

14mm²(Cv=0.78)

12mm²(Cv=0.69)

25mm²(Cv=1.39)

18mm²(Cv=1.00)

12mm² (Cv=0.67)

9mm²(Cv=0.50)

Operating Temperature

5~50℃ (41~122°F)

Working-Pressure

0.15-0.8MPa

MaxPressure Resistance

1.2MPa

Power Consumption

AC:4.5VA DC:3W

 Protection Class

IP65 (DIN40050)

Insulation

Class F

Wiring Form

Lead Wire Type or Connector Type

Voltage Range

±10%

Highest Action Frepuency

5 Cycle/Sec

Shortest Excitation Time

0.05 Second





Overall Dimension





Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LVF、VZ Series Solenoid Valve,Pneumatic Control Valv Suppliers and LVF、VZ Series Solenoid Valve,Pneumatic Control Valv company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LVF、VZ Series Solenoid Valve,Pneumatic Control Valv are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
