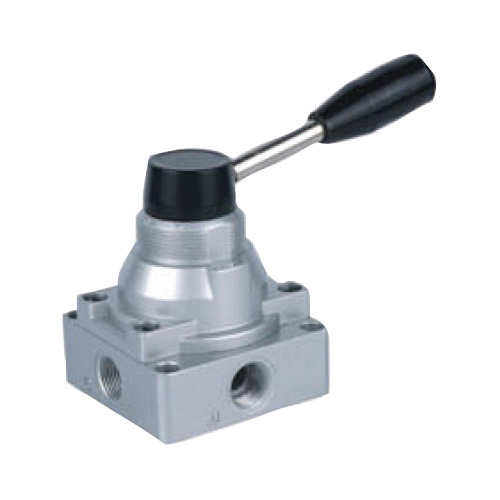

HV Hand-Switching Valve
Product Details

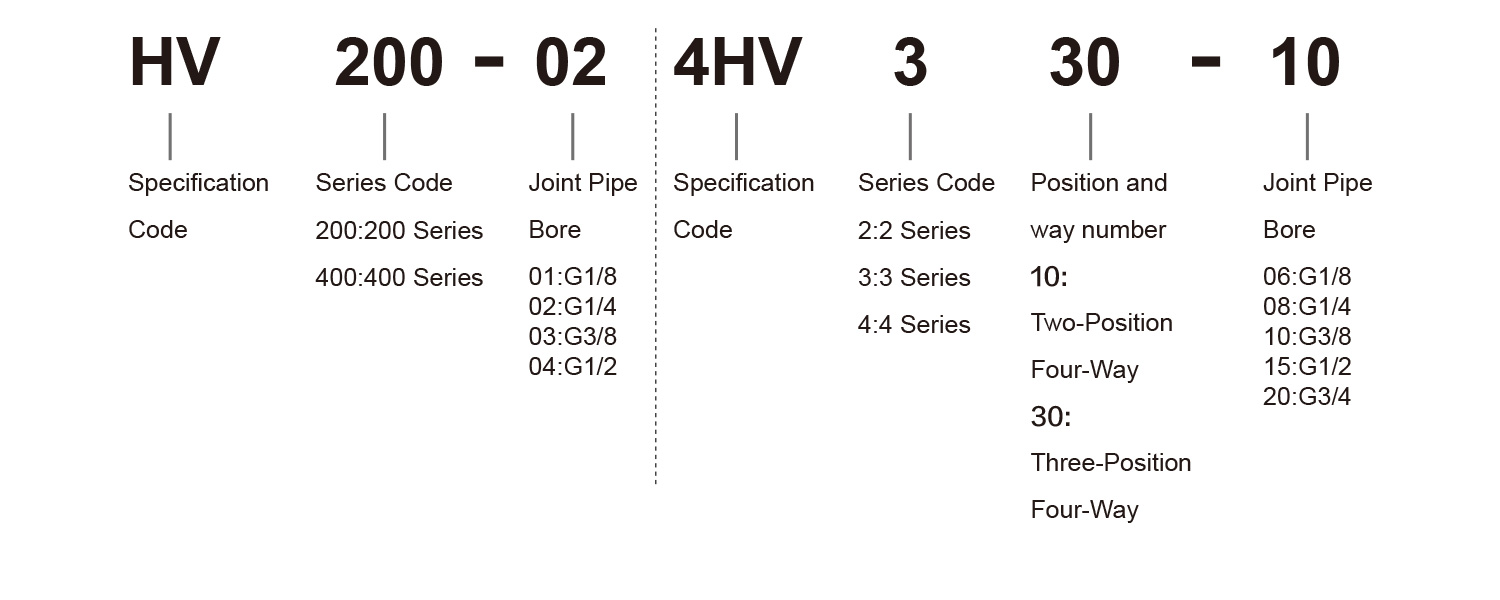

Ordering Code
Specification
| Model | HV200-01 | HV200-02 | HV400-02 | HV400-03 | HV400-04 | 4HV210-06 | 4HV210-08 | 4HV310-08 | 4HV310-10 | 4HV410-15 | 4HV410-20 |
| 4HV230-06 | 4HV230-08 | 4HV330-08 | 4HV330-10 | 4HV430-15 | 4HV430-20 | ||||||
| Working Medium | 40 Micron Filtered Air | ||||||||||
| Joint Pipe Bore | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 | G3/4 |
| Operating Temperature | 0～60℃ | ||||||||||
| Working-Pressure | 0～0.8MPa | ||||||||||
| Max.Pressure Resistance | 1.0Mpa | ||||||||||

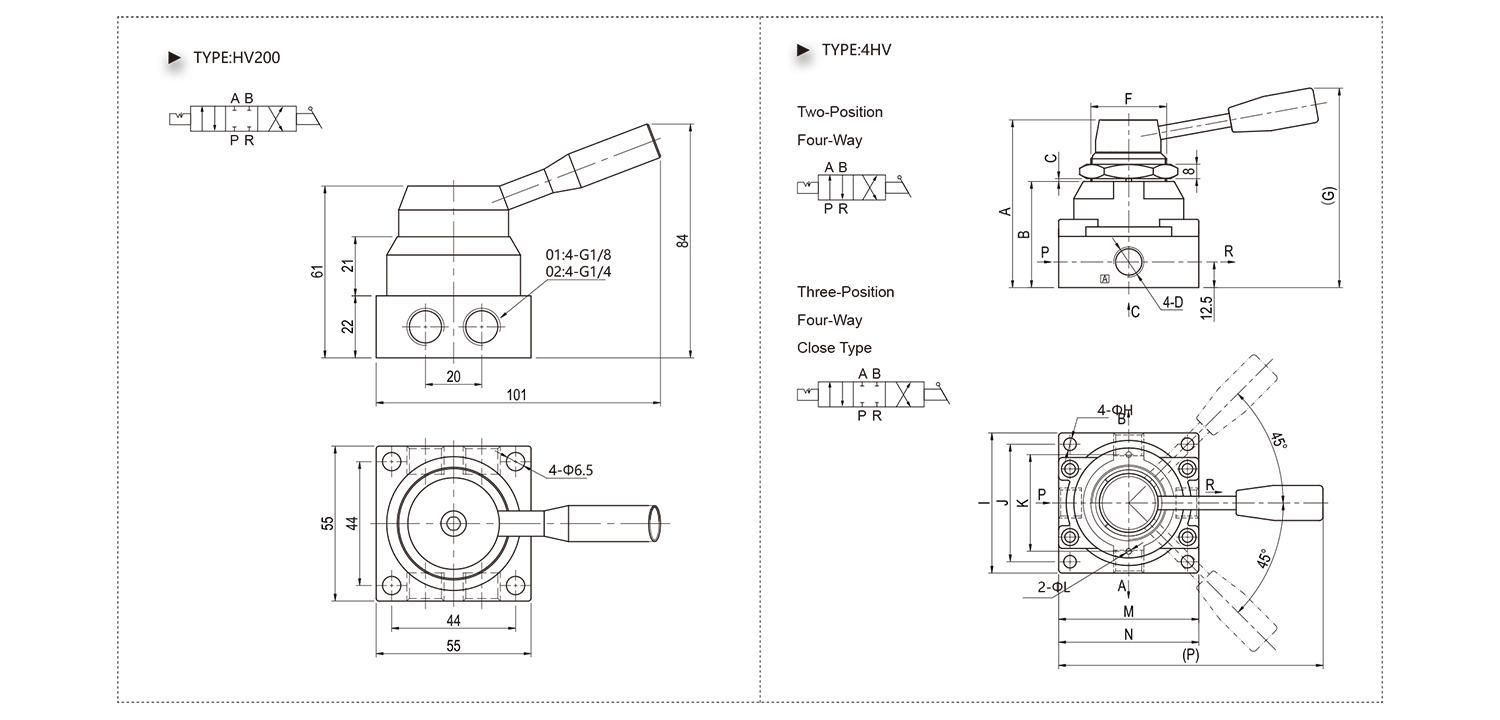

Overall Dimension
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P |
| 4HV210-06/4HV230-06 | 72.6 | 45 | 1.5 | G1/8 | 11.5 | M34×1.5 | 92.5 | 5 | 62 | 49 | 40 | 3 | 40 | 62 | 120 |
| 4HV210-08/4HV230-08 | 72.6 | 45 | 1.5 | G1/4 | 11.5 | M34×1.5 | 92.5 | 5 | 62 | 49 | 40 | 3 | 40 | 62 | 120 |
| 4HV310-08/4HV330-08 | 88.5 | 56 | 1.5 | G1/4 | 13.5 | M40×1.5 | 104 | 6.6 | 74 | 62 | 51 | 3 | 62 | 74 | 140 |
| 4HV310-10/4HV330-10 | 88.5 | 56 | 1.5 | G3/8 | 13.5 | M40×1.5 | 104 | 6.6 | 74 | 62 | 51 | 3 | 62 | 74 | 140 |
| 4HV410-15/4HV430-15 | 110.3 | 72 | 2 | G1/2 | 18 | M52×1.5 | 102 | 6.6 | 102 | 89 | 64 | 3 | 81 | 94 | 160 |
| 4HV410-20/4HV430-20 | 110.3 | 72 | 2 | G3/4 | 18 | M52×1.5 | 102 | 6.6 | 102 | 89 | 64 | 3 | 81 | 94 | 160 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China HV Hand-Switching Valve Suppliers and HV Hand-Switching Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our HV Hand-Switching Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
