AL、BL Series Lubricator Suppliers

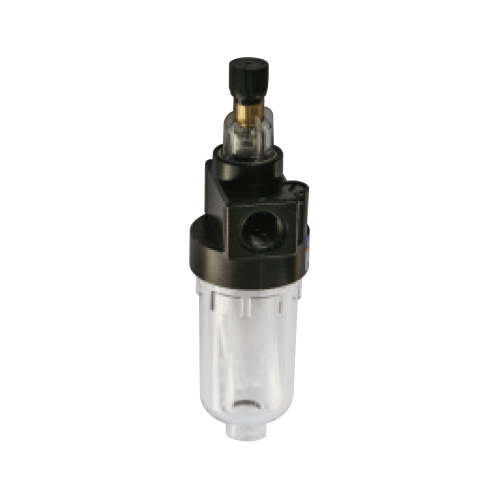

AL、BL Series Lubricator

AL、BL Series Lubricator

Product Details

0
Views: 50

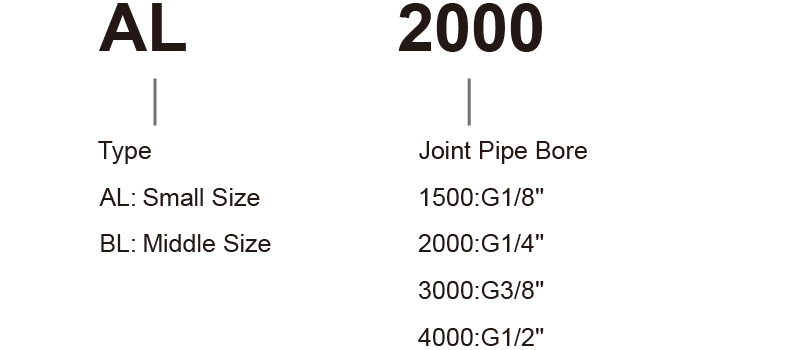

Ordering Code

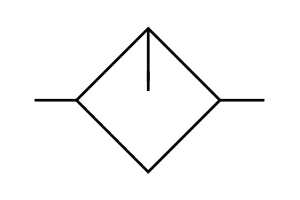

GraPhic symbol





Specification



Model

AL1500

AL2000

BL2000

BL3000BL4000

Operating Fluid

Air

Joint Pipe Bore

G1/8

G1/4

G1/4

G3/8G1/2

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

Capacity of Oil Feed Cup

25cc

90cc

Suggested Lube

ISO VG32 or Same Grade Oil

Weight

0.17kg

0.25kg

Material

Body

Aluminum Die-casting Fomring

Container Cup

PE

Proteclive Cup Cover

-

Iron

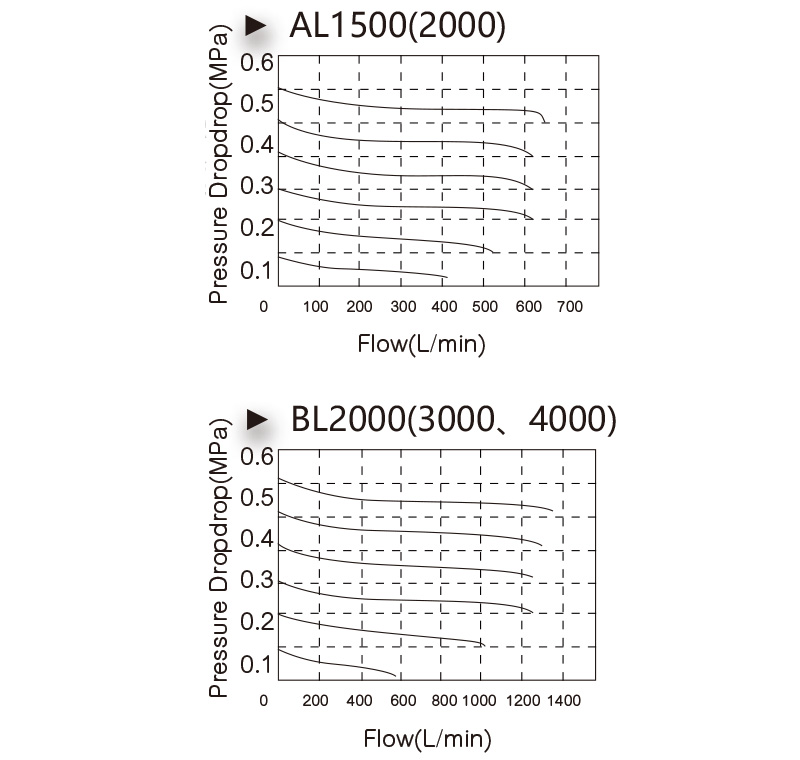

Pressure Character

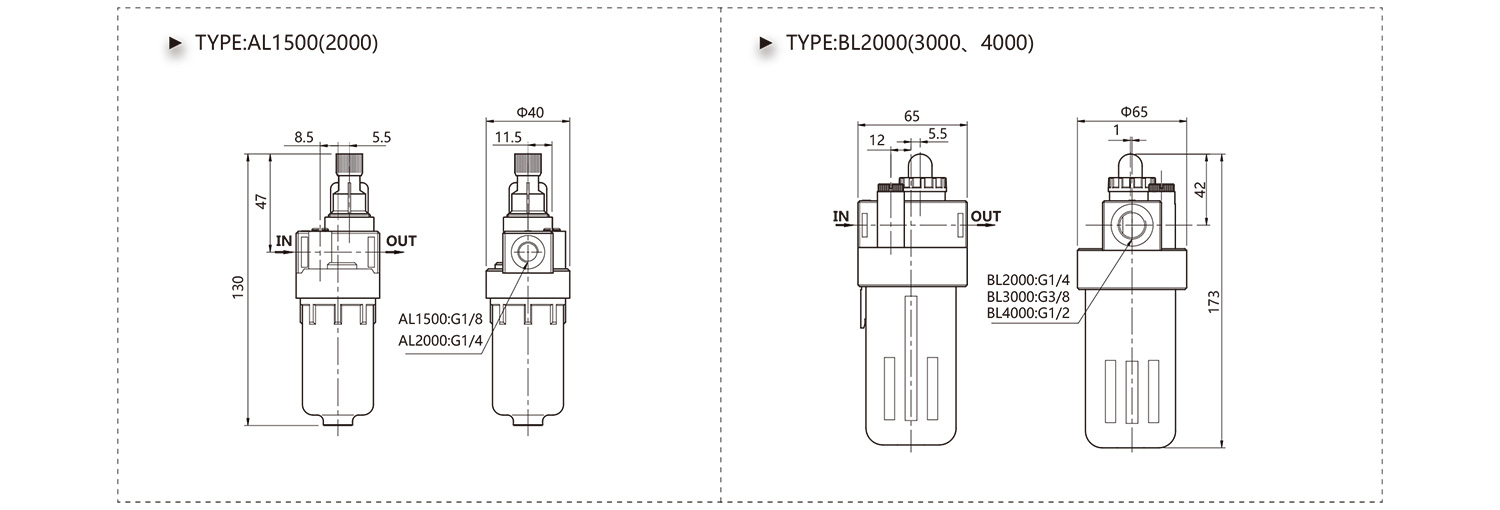

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China AL、BL Series Lubricator Suppliers and AL、BL Series Lubricator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our AL、BL Series Lubricator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
