3V1 Series Three-Position Two-Way Solenoid Valve Suppliers

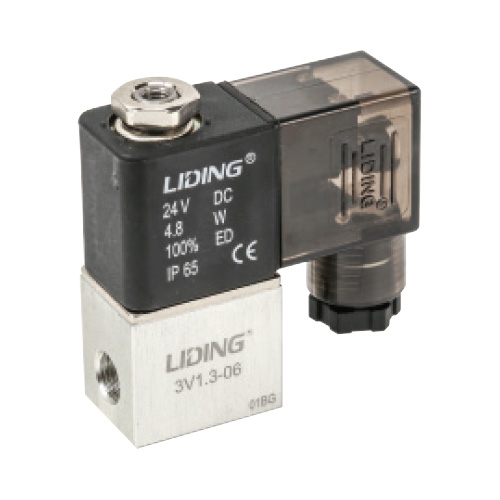

3V1 Series Three-Position Two-Way Solenoid Valve

3V1 Series Three-Position Two-Way Solenoid Valve

Product Details

0
Views: 200

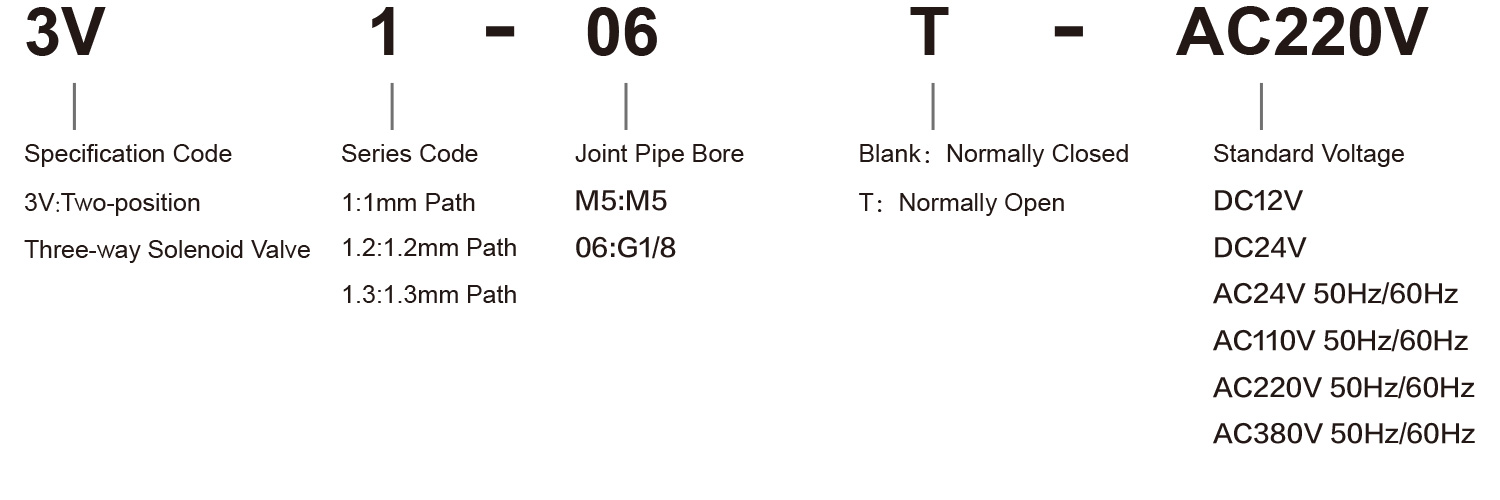

Ordering Code

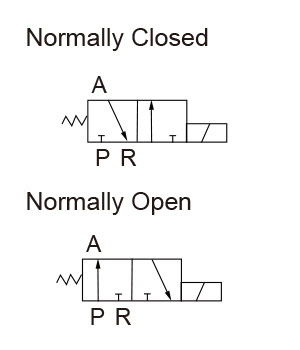

Graphic Symbol





Specification



Model 3V1-M5 3V1-06 3V012-06T
Working Medium 40 Micron Filtered Air
Motion Pattern Direct Drive Type
Joint Pipe Bore M5 G1/8 G1/8
Air Outlet Diameter(mm) 1 1 1.2
Operating Temperature Range -10~60℃
Lubrication Not Lubrication
Working-Pressure 0~0.8MPa
Max Pressure Resistance 1.2MPa
Voltage Range ±10%
Power Connection Form Connector Type
Protection Class IP65
Insulation F
Power Consumption AC:5.5VA/DC:4.8W AC:5.5VA/DC:4.8W DC:6.5W
Material of Body Aluminum alloy
Max. Operating Frequency 10 Cycle/Sec
Shortest Excitation Time 0.05 Second

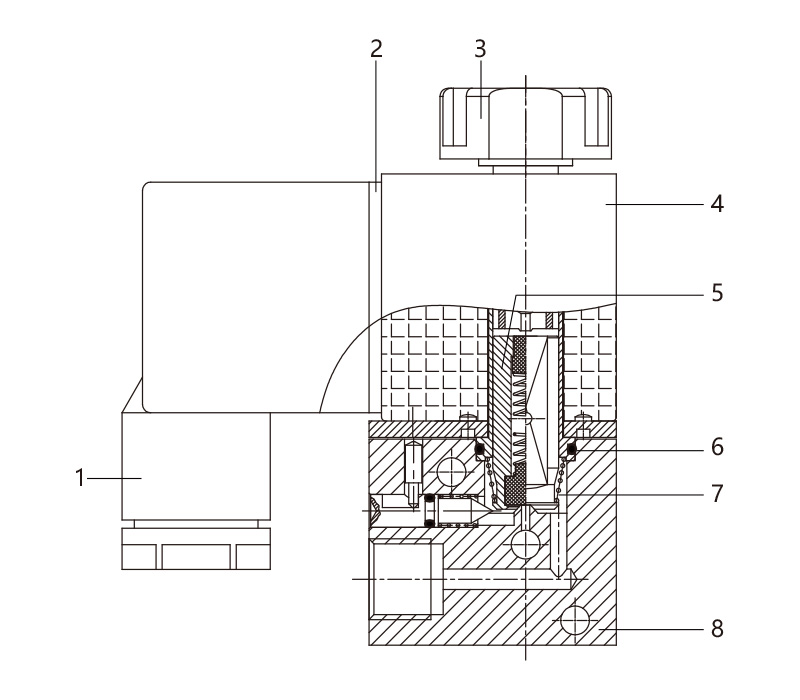

Inner Construction



Serial Number Name
1 Wiring Port
2 Port Gasket
3 Nut
4 Coil
5 Movable Iron Module
6 O-ring
7 Return spring
8 Valve body

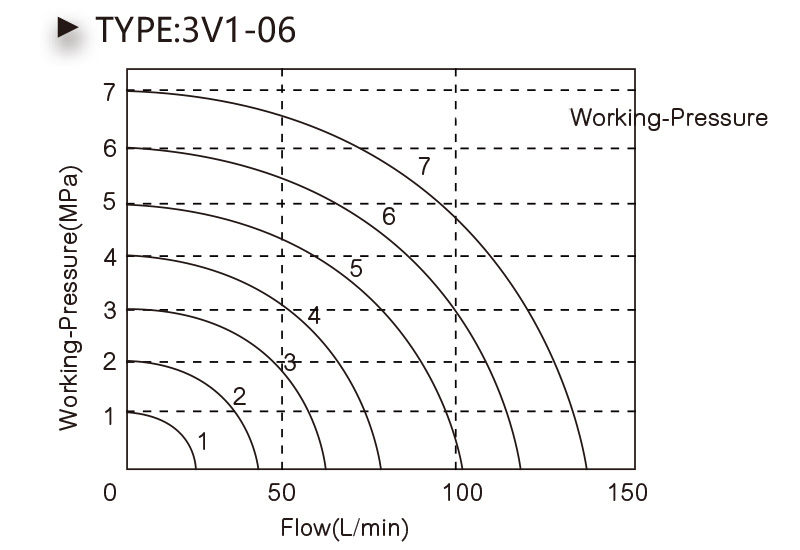

Flowing Character

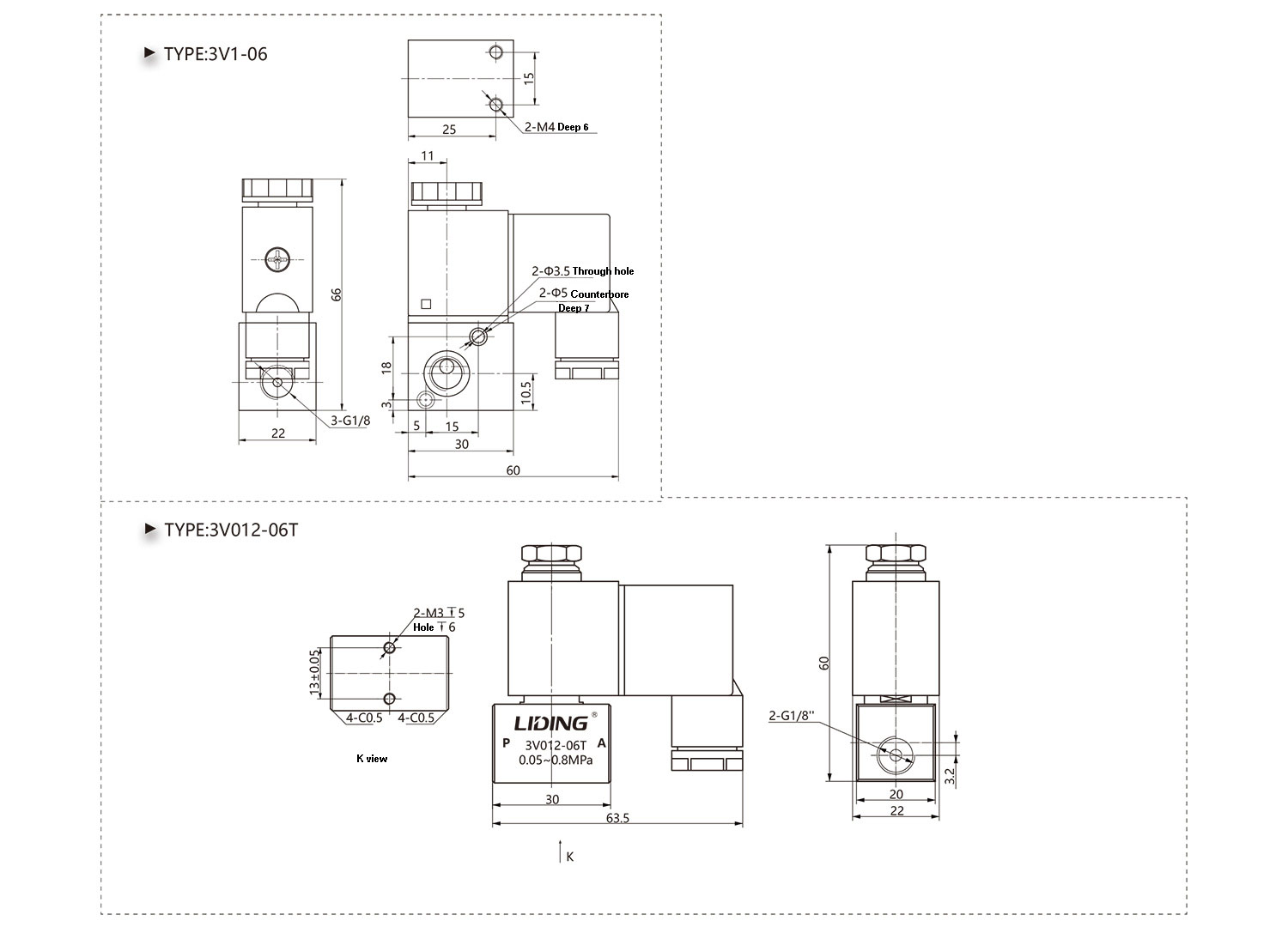

Overall Dimension





Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China 3V1 Series Three-Position Two-Way Solenoid Valve Suppliers and 3V1 Series Three-Position Two-Way Solenoid Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our 3V1 Series Three-Position Two-Way Solenoid Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
