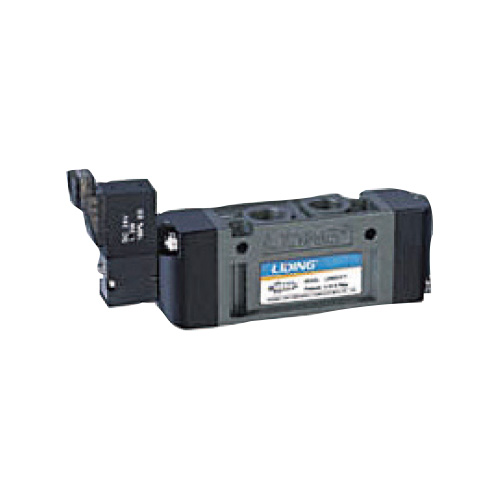

LDW Series Solenoid Valve,Pneumatic Control Valve、Collecting Plate Suppliers

LDW Series Solenoid Valve,Pneumatic Control Valve、Collecting Plate

LDW Series Solenoid Valve,Pneumatic Control Valve、Collecting Plate

Product Details

0
Views: 833

Ordering Code







Specification



Model

LD253F00

LDW251

LDW252F10 LDW352F10C LDW352F10E LDW352F10P

LDW351F11

LDW352F11 LDW352F11C LDW352F11E LDW352F11P

LD251F00C

LDW253F10

LDW254F10 LDW354F10C LDW354F10E LDW354F10P

LDW353F11

LDW354F11 LDW354F11C LDW354F11E LDW354F11P

Working Medium

40 Micron Filtered Air

Motion Pattern

Inner Guide Type

Joint Pipe Bore

Intake = Outlet=M3

Intake = Outlet =M5

Intake = Outlet=G1/8

The Position Counting

Two-position Five-way

Three-position Five-way

Two-position Five-way

Three-position Five-way

Operating Temperature

5~50℃

Effective Sectional Area

0.9mm²

3.4mm²

3.0mm²

10.5mm²

8mm²

Working-Pressure

0.15~0.7MPa

MaxPressure Resistance

1.0MPa

Power Consumption

<1.2W

Protection Class

IP65 (DIN40050)

Insulation

Class F

Wiring Form

Lead Wire Type or Vertical Socket Type or Flat Socket Type

Voltage Range

±10%

Highest Action Frepuency

10 Cycle/Sec

8 Cycle/Sec

10 Cycle/Sec

8 Cycle/Sec

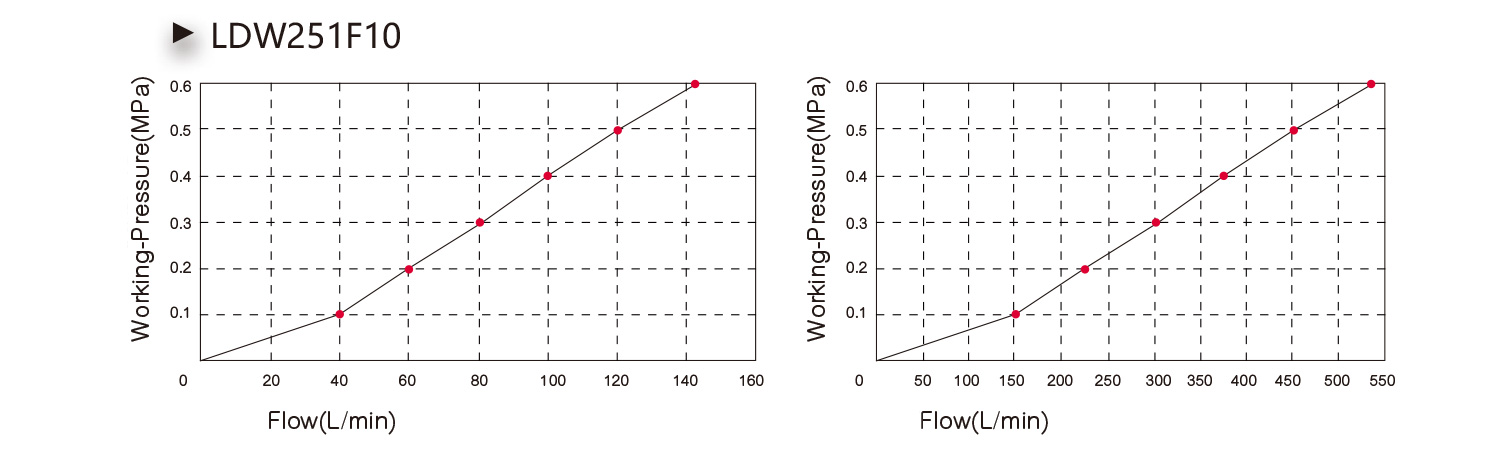

Flowing Character







Test Condition



Pressure

0.5MPa

Tube

PU Pipe 6x4 Bore:4mm

Fitting

LDW251F10:PC6-M5

LDW251F11:PC6-01

Load Factor

Load Factor=Load/Cylinder TheoreticalOutput Power×100%

Cylinder Stroke

300mm

Value Model

LDW251F10

LDW251F11

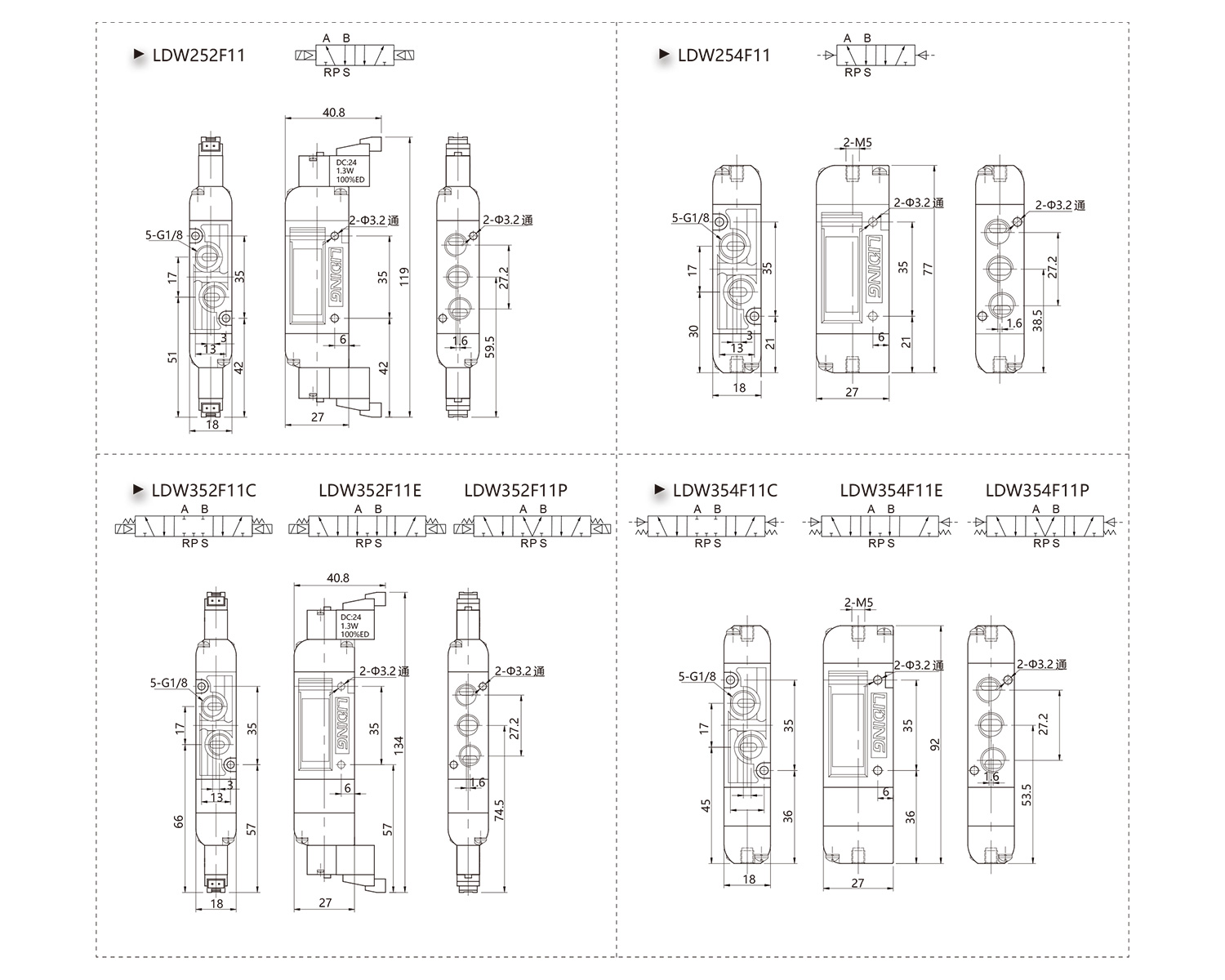

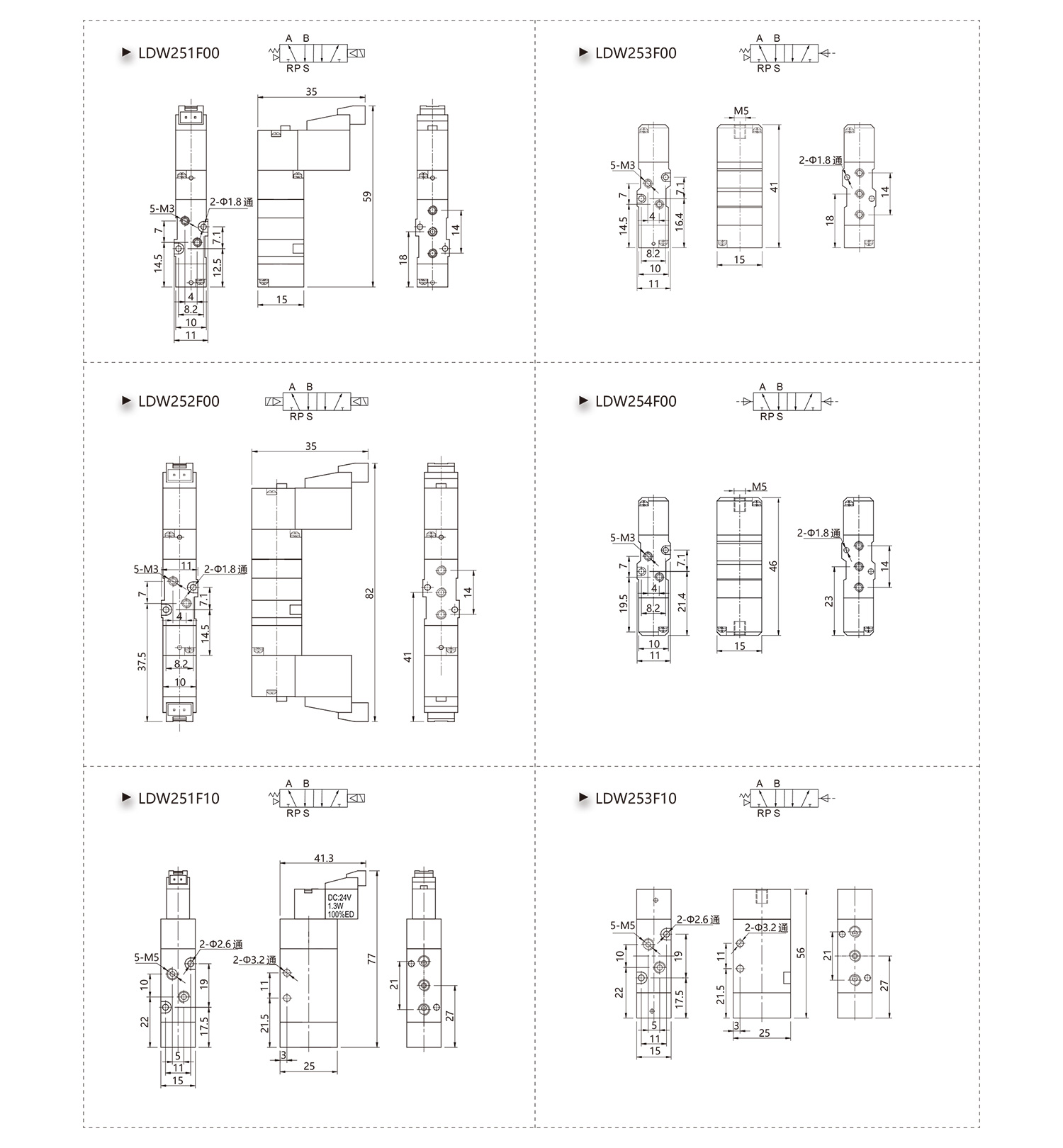

Overall Dimension

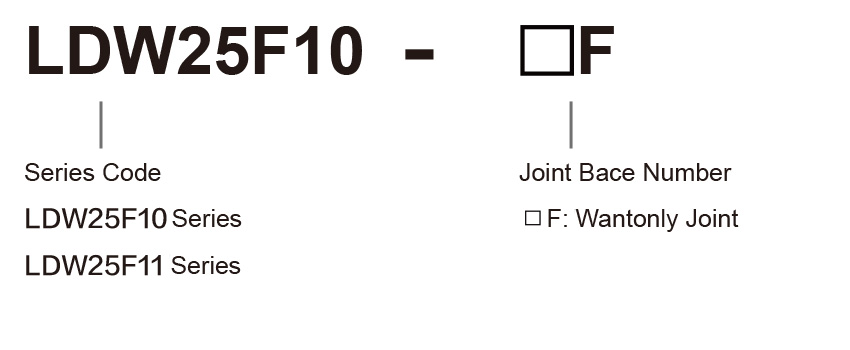

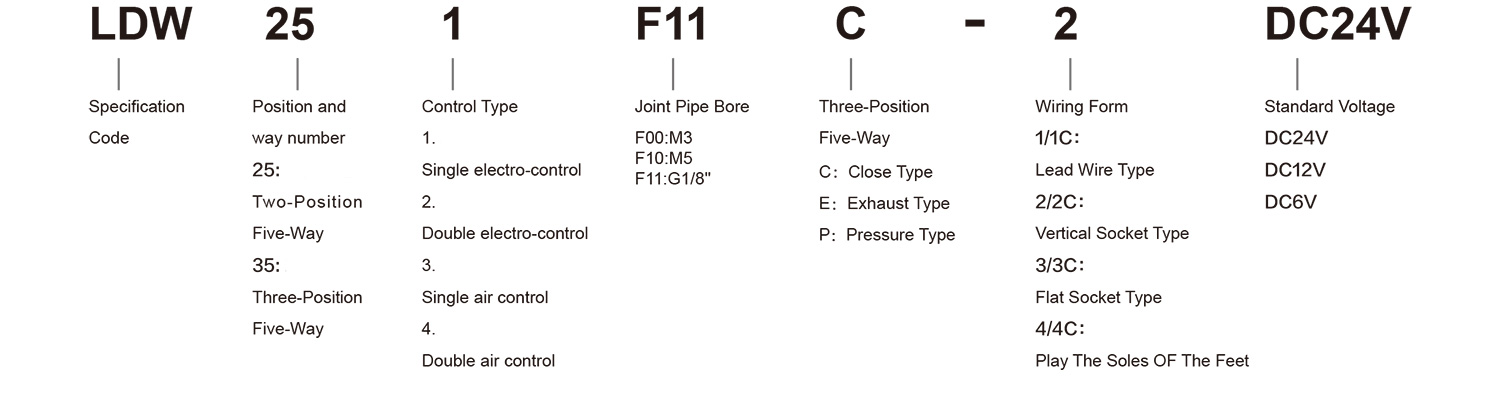

Ordering Code

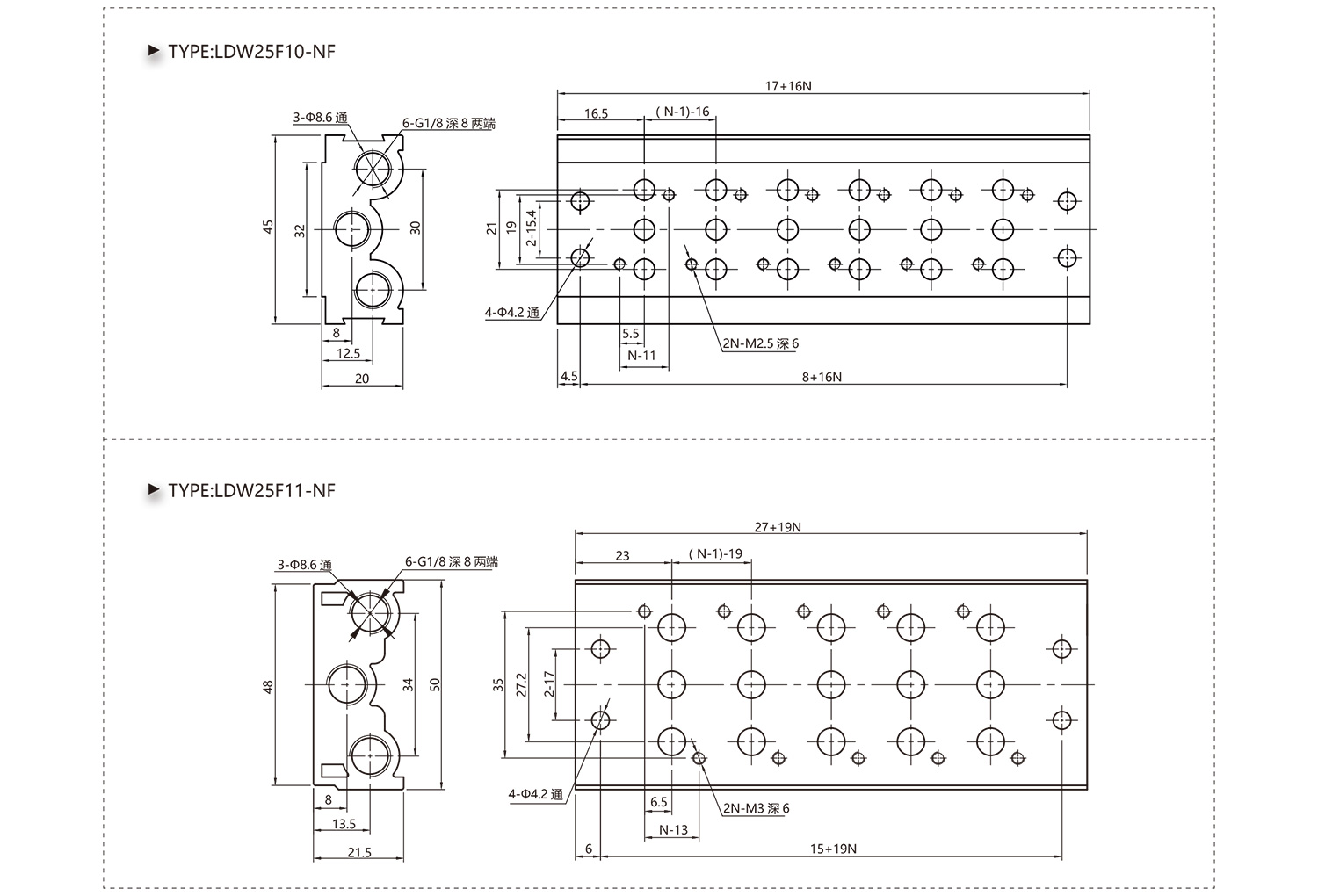

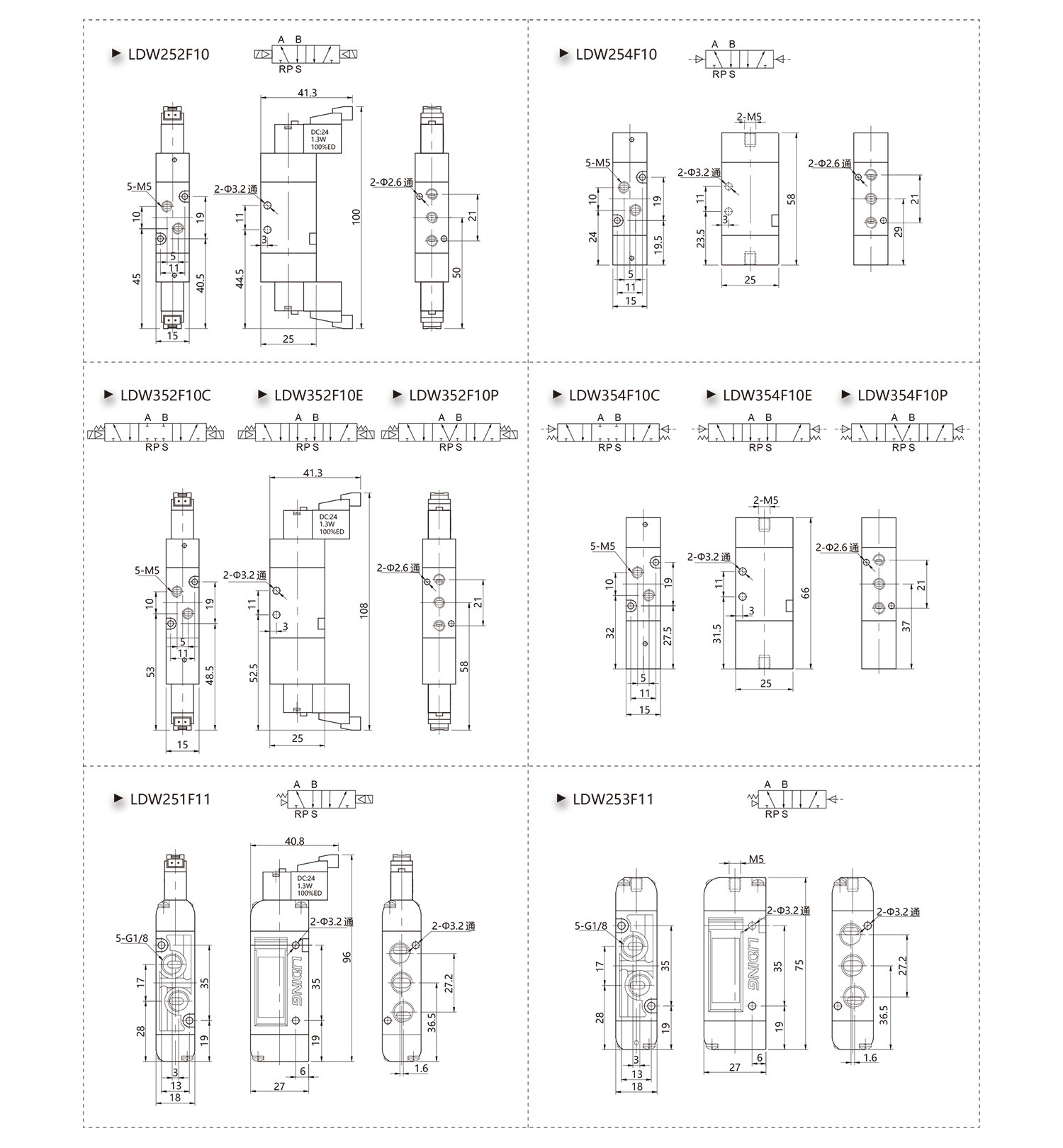

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LDW Series Solenoid Valve,Pneumatic Control Valve、Collecting Plate Suppliers and LDW Series Solenoid Valve,Pneumatic Control Valve、Collecting Plate company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LDW Series Solenoid Valve,Pneumatic Control Valve、Collecting Plate are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
