BFRH Series High Pressure Filter & Regulator Suppliers

BFRH Series High Pressure Filter & Regulator

BFRH Series High Pressure Filter & Regulator

Product Details

0
Views: 173

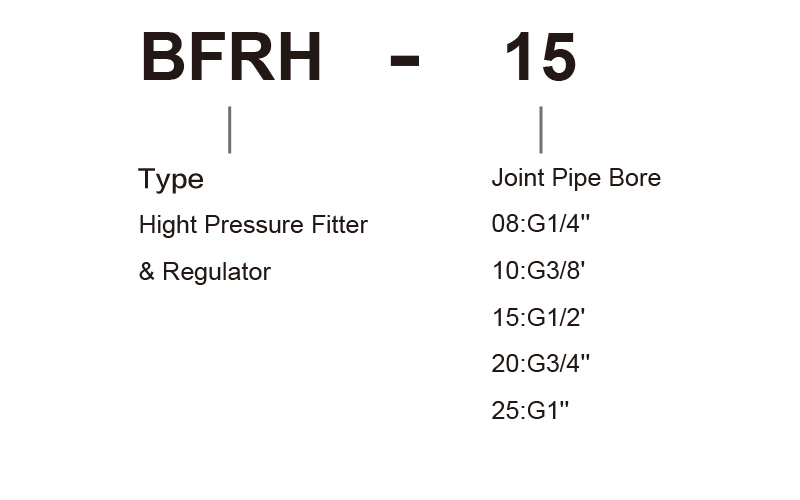

Ordering Code

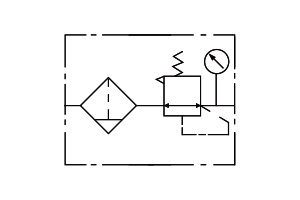

GraPhic symbol





Synopsis

BFRH series High pressure filter & Regulator is one of the new pneumatic components,this type is be Designed and manufactured by ourselves.It belongs to our company's patent product and the patent NO is ZL200910096424.1;ZL200920114689.5;ZL200830284951.1,This High pressure filter & Regulato is be made by high quality material with advanced technology.
it is of tidy and pleasing appearance,high precision for Regulating pressure,fine seal with big regulator range,large flow and well stability.It is widely be used in Machinery manufacturing and pneumatic reversing control field.





Specification



Model

BFRH-08

BFRH-10

BFRH-15

BFRH-20

BFRH-25

Operating Fluid

Air

Joint Pipe Bore

G1/4

G3/8

G1/2

G3/4

G1

Filtering Eliment Roughness

40μ

Range of Adjustable Pressure

0.05~3.0MPa

Max. Adjustable Pressure

4.0MPa

Operating Temperature Range

5~80℃

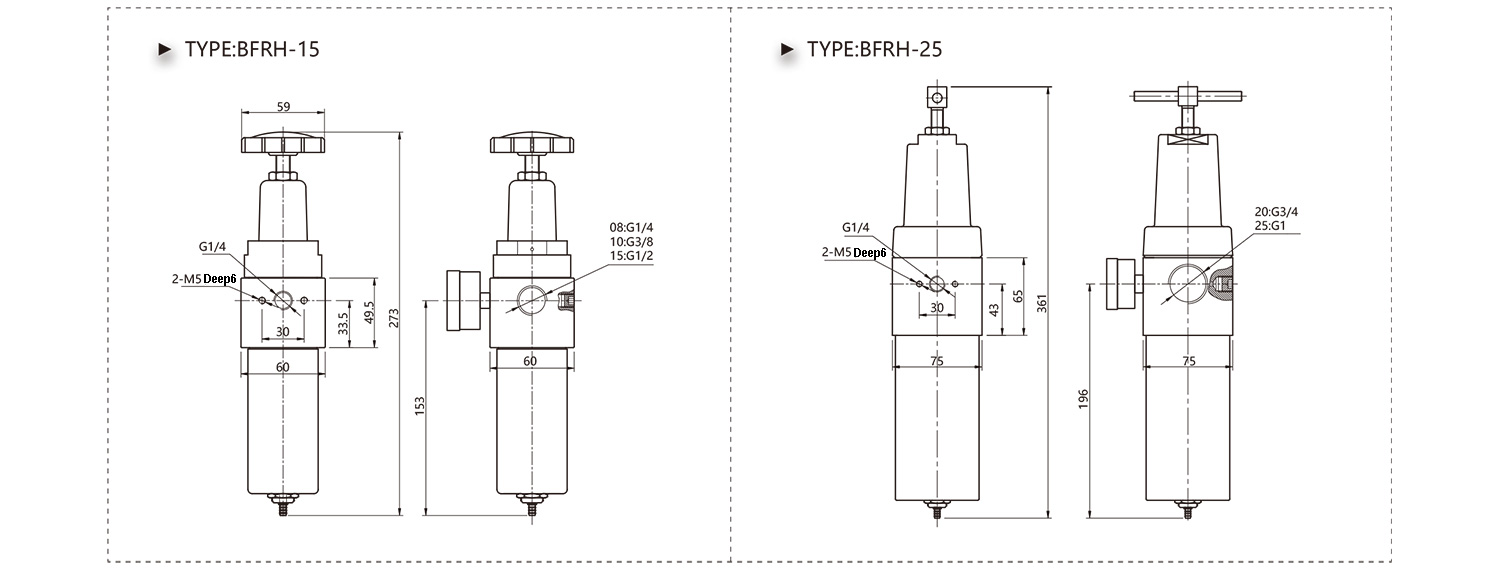

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China BFRH Series High Pressure Filter & Regulator Suppliers and BFRH Series High Pressure Filter & Regulator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our BFRH Series High Pressure Filter & Regulator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
