AFR、BFR Series lubricator Regulator air treatment units Filter Suppliers

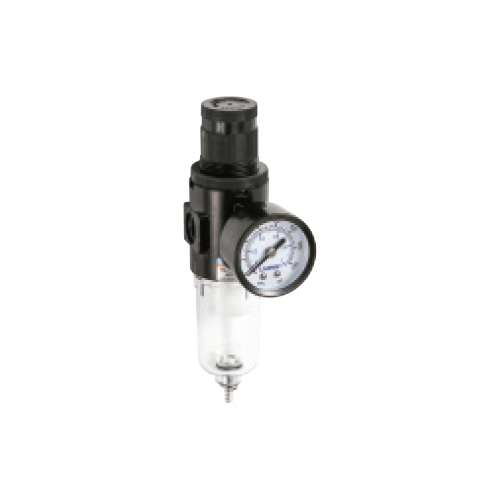

AFR、BFR Series lubricator Regulator air treatment units Filter

AFR、BFR Series lubricator Regulator air treatment units Filter

Product Details

0
Views: 465

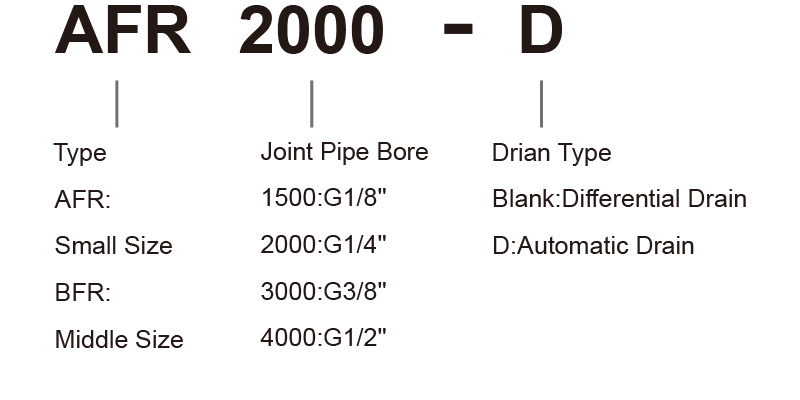

Ordering Code





GraPhic symbol





Specification



Model

AFR1500

AFR2000 BFR2000 BFR3000 BFR4000

Operating Fluid

Air

Joint Pipe Bore

G1/8

G1/4 G1/4 G3/8 G1/2

Filtering Eliment Roughness

40μ

Range of Adjustable Pressure

0.05~0.85MPa

Max. Adjustable Pressure

0.95MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

Capacity of Filter Cup

15cc

60cc

Weight

0.26kg

0.4kg

Material

Body

Aluminum Die-casting Fomring

Container Cup

PE

Proteclive Cup Cover

-

Iron

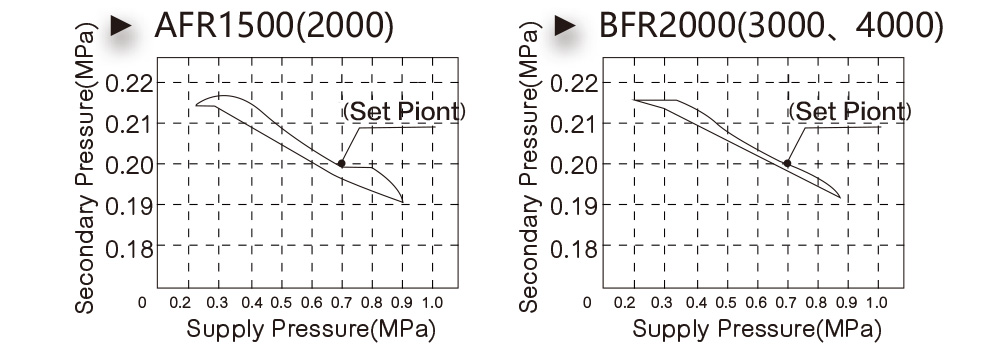

Pressure Character

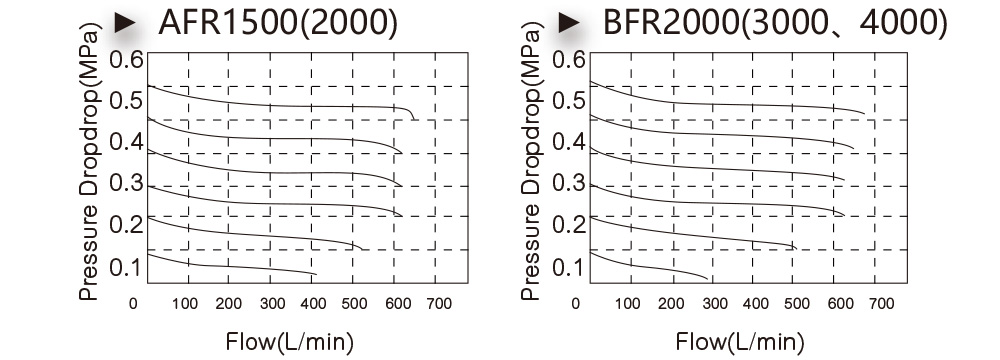

Flowing Character

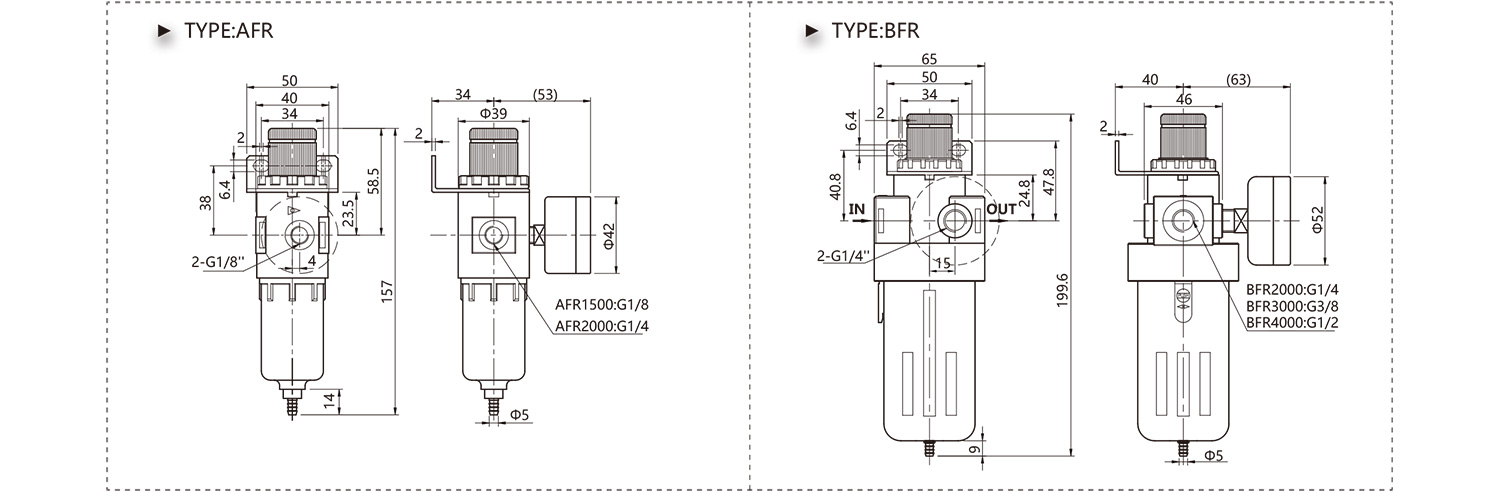

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China AFR、BFR Series lubricator Regulator air treatment units Filter Suppliers and AFR、BFR Series lubricator Regulator air treatment units Filter company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our AFR、BFR Series lubricator Regulator air treatment units Filter are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
