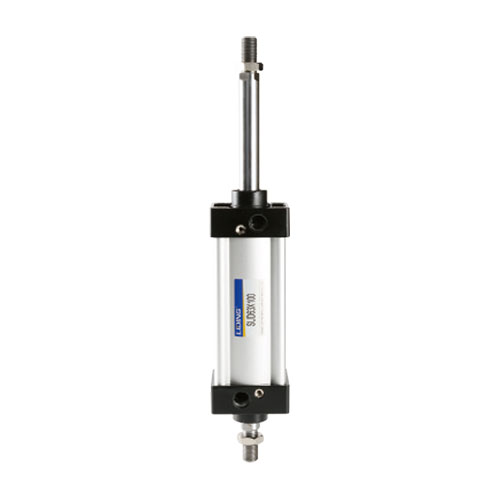

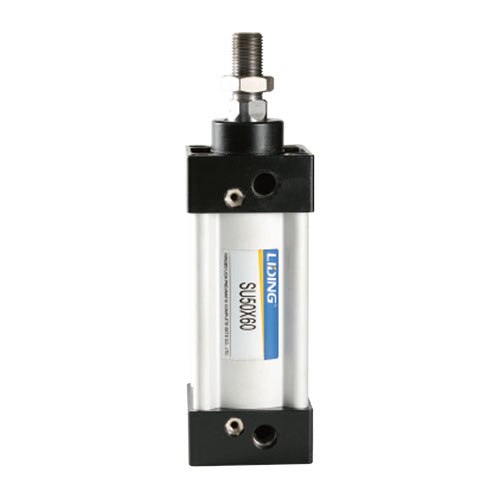

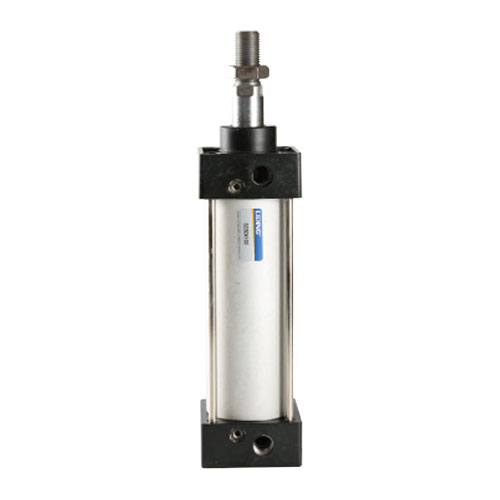

SC Series Standard Cylinder
Product Details

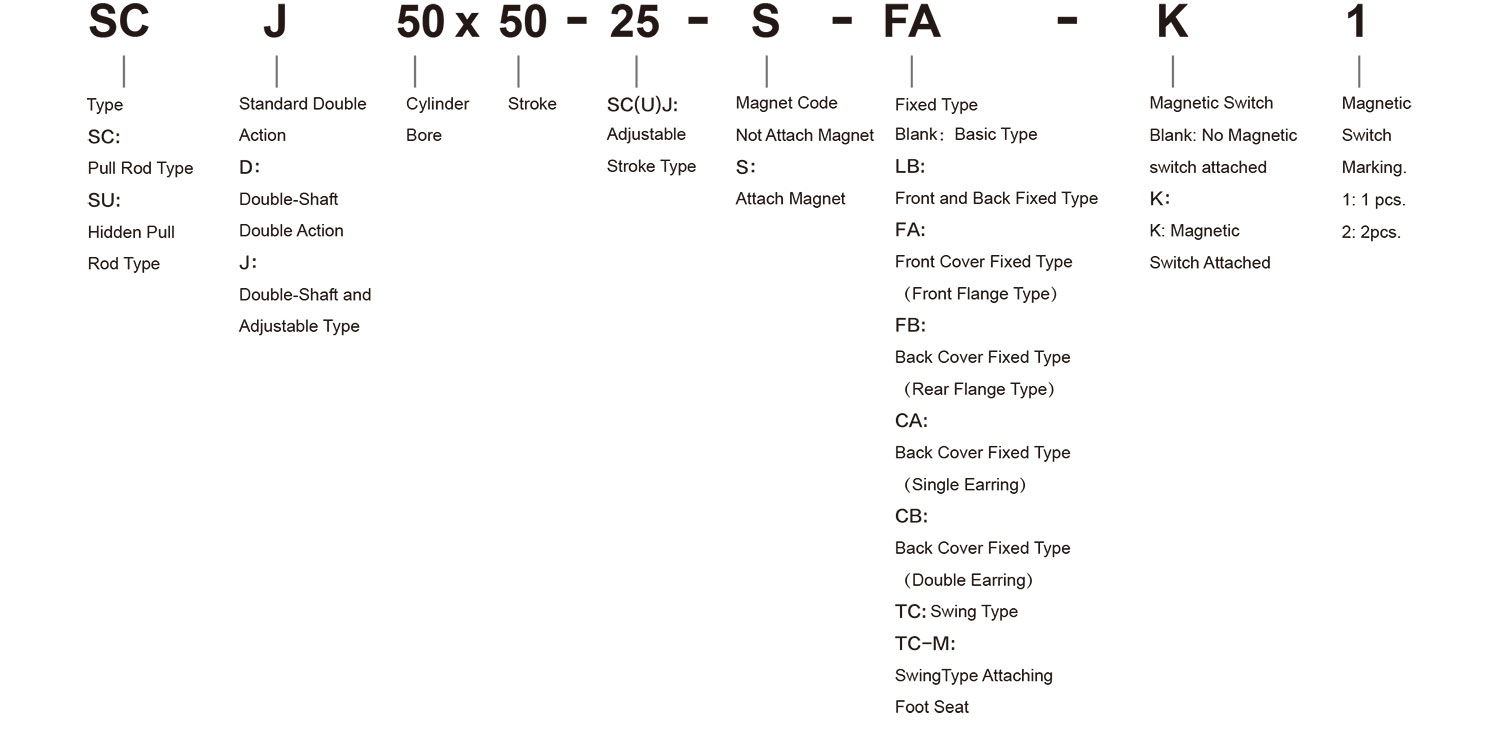

Ordering Code
Specification
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Motion Pattern | Double Action | ||||||
| Working Medium | Air | ||||||
| Fixed Type | Basic Type. FA Type. FB Type, CA Type. CB Type LB Type. TC Type. TC-M Type | ||||||
| OperatingVoltage Range | 1～9Kgf/cm² | ||||||
| Ensured Pressure Resistance | 13.5Kgf/cm² | ||||||
| Operating Temperature Range | 0～70℃ | ||||||
| Operating Speed Range | 500～800mm/s | ||||||
| Buffer Form | Adjustable Buffer | ||||||
| Buffer Travel | 20 | 25 | |||||
| Joint Pipe Bore | G1/8 | G1/4 | G3/8 | G1/2 | |||
※SCD、SCJ Fixed Type：FA 、 FB 、 LB 、 TC 、 TC-M.
Cylinder Theory Output Sheet
| Cylinder I.D. (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | ||||||||
| Piston Rod O.D. (mm) | 12 | 16 | 20 | 20 | 25 | 25 | 32 | ||||||||
| Motion Pattern | Double Action | ||||||||||||||
| Pressure Side |
Pull Side |
Pressure Side |
Pull Side |
Pressure Side |
Pull Side |
Pressure Side |
Pull Side |
Pressure Side |
Pull Side |
Pressure Side |
Pull Side |
Pressure Side |
Pull Side |
||
| Compression Area (cm²) | 8.04 | 6.9 | 12.56 | 10.55 | 19.63 | 16.49 | 31.17 | 28.03 | 50.26 | 45.36 | 78.53 | 73.62 | 122.7 | 114.6 | |
| Air Pressure (Kgf/cm²) | 1 | 8.04 | 6.9 | 12.56 | 10.55 | 19.63 | 16.49 | 31.17 | 28.03 | 50.26 | 45.36 | 78.53 | 73.62 | 122.7 | 114.6 |
| 2 | 16.08 | 13.8 | 25.12 | 21.1 | 39.26 | 32.98 | 62.34 | 56.06 | 100.52 | 90.72 | 157.06 | 147.24 | 245.4 | 229.2 | |
| 3 | 24.12 | 20.7 | 37.68 | 31.65 | 58.89 | 49.47 | 93.51 | 84.09 | 150.78 | 136.08 | 235.59 | 220.86 | 368.1 | 343.8 | |
| 4 | 32.16 | 27.6 | 50.24 | 42.2 | 78.52 | 65.96 | 124.68 | 112.12 | 201.04 | 181.44 | 314.12 | 294.48 | 490.8 | 458.4 | |
| 5 | 40.2 | 34.5 | 62.8 | 52.75 | 98.15 | 82.45 | 155.85 | 140.15 | 251.3 | 226.8 | 392.65 | 368.1 | 613.5 | 573 | |
| 6 | 48.24 | 41.4 | 75.36 | 63.3 | 117.78 | 98.94 | 187.02 | 168.18 | 301.56 | 272.16 | 471.18 | 441.72 | 736.2 | 687.6 | |
| 7 | 56.28 | 48.3 | 87.92 | 73.85 | 137.41 | 115.43 | 218.19 | 196.21 | 351.82 | 317.52 | 549.71 | 515.34 | 858.9 | 802.2 | |
| 8 | 64.32 | 55.2 | 100.48 | 84.4 | 157.04 | 131.92 | 249.36 | 224.24 | 402.08 | 362.88 | 628.24 | 588.96 | 981.6 | 916.8 | |
| 9 | 72.36 | 62.1 | 113.04 | 94.95 | 176.67 | 148.41 | 280.53 | 252.27 | 452.34 | 408.24 | 706.77 | 662.58 | 1104.3 | 1031.4 | |
Stroke
| Bore (mm) | Standard Stroke | Max. Stroke | Permissible Stroke | ||||||||||||||||||
| 32 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 1000 | 2000 | |||||
| 40 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 1200 | 2000 | ||
| 50 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 2000 |
| 63 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1500 | 2000 |
| 80 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1500 | 2000 |
| 100 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1500 | 2000 |
| 125 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1500 | 2000 |
※Please contact with our company if your cylider stroke is special.

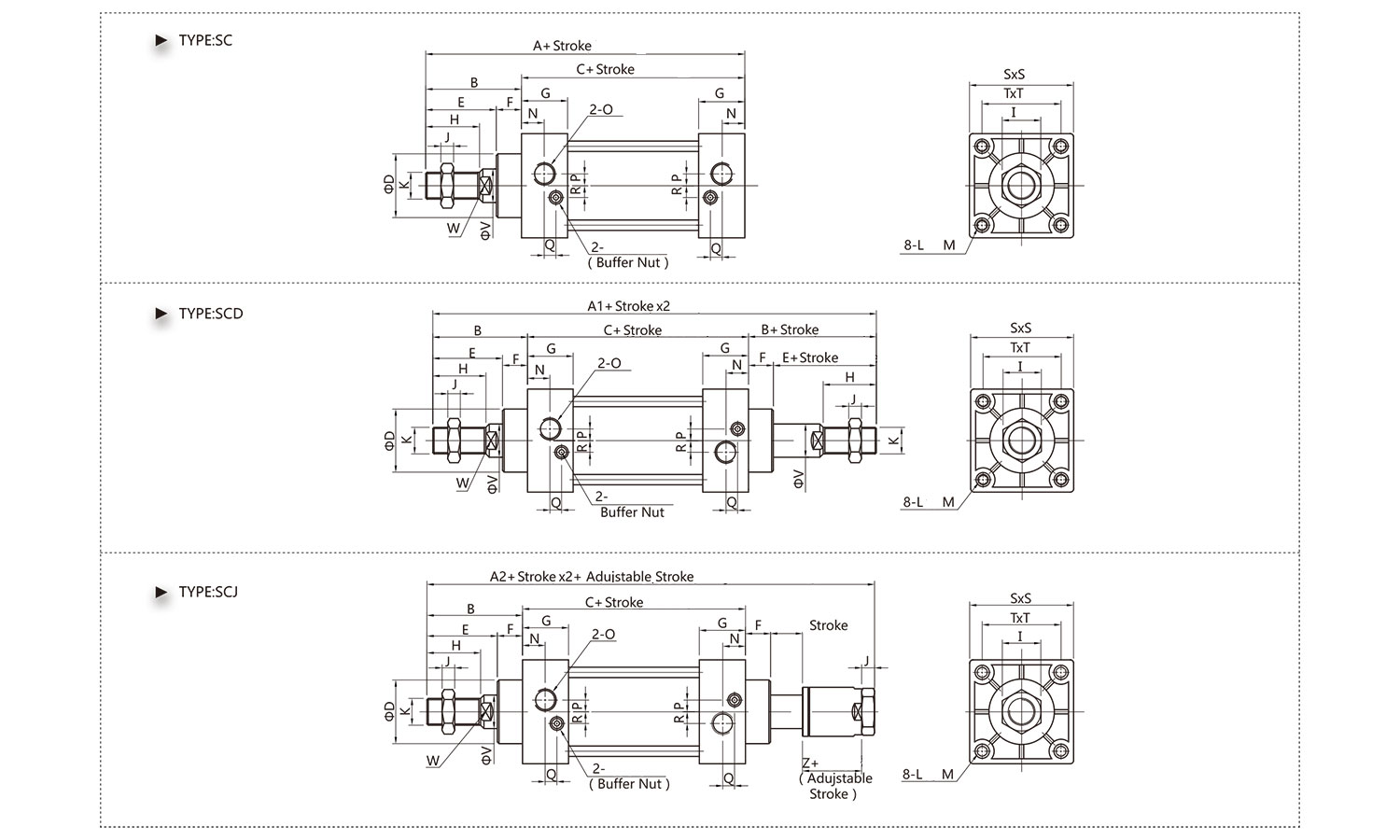

Overall Dimension
Dimension Sheet
| Symbol/Bore(mm) | A | A1 | A2 | B | C | D | E | F | G | H | I | J | K | L |
| 32 | 140 | 187 | 182 | 47 | 93 | 25.5 | 32 | 15 | 27.5 | 22 | 17 | 6 | M10x1.25 | M6 |
| 40 | 142 | 191 | 185 | 49 | 93 | 30 | 34 | 15 | 27.5 | 24 | 17 | 7 | M12x1.25 | M6 |
| 50 | 150 | 207 | 196 | 57 | 93 | 35 | 42 | 15 | 27.5 | 32 | 23 | 8 | M16x1.5 | M6 |
| 63 | 153 | 210 | 199 | 57 | 96 | 35 | 42 | 15 | 27.5 | 32 | 23 | 8 | M16x1.5 | M8 |
| 80 | 183 | 258 | 242 | 75 | 108 | 45.5 | 54 | 21 | 33 | 40 | 26 | 10 | M20x1.5 | M10 |
| 100 | 189 | 264 | 248 | 75 | 114 | 45.5 | 54 | 21 | 33 | 40 | 26 | 10 | M20x1.5 | M10 |
| 125 | 218 | 312 | 286 | 94 | 124 | 55 | 64 | 30 | 33 | 45 | 35 | 11 | M27x2 | M12 |
| 160 | 311 | 312 | 418 | 143 | 168 | 63.5 | 103 | 40 | 50 | 72 | - | 12 | M36x2 | M16 |
| Symbol/Bore | M | N | O | P | Q | R | S | T | V | W | Z |
|
32 |
9.5 |
12.5 |
G1/8 |
3.5 |
7.5 |
7 |
45 |
33 |
12 |
10 |
20 |
|
40 |
9.5 |
13.5 |
G1/4 |
6 |
8.2 |
9 |
50 |
37 |
16 |
14 |
20 |
|
50 |
9.5 |
13.5 |
G1/4 |
8.5 |
8.2 |
9 |
62 |
47 |
20 |
17 |
21 |
|
63 |
9.5 |
13.5 |
G3/8 |
7 |
8.2 |
8.5 |
75 |
56 |
20 |
17 |
21 |
|
80 |
11.5 |
16.5 |
G3/8 |
10 |
9.5 |
14 |
94 |
70 |
25 |
22 |
20 |
|
100 |
11.5 |
16.5 |
G1/2 |
11 |
9.5 |
14 |
112 |
84 |
25 |
22 |
20 |
|
125 |
12 |
16.5 |
G1/2 |
10 |
7.5 |
10 |
140 |
110 |
32 |
29 |
26 |
|
160 |
12 |
25 |
G1/2 |
9 |
- |
- |
180 |
140 |
40 |
36 |
26 |
Overall Dimens
Dimension Sheet
|
Symbol/Bore(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
AA |
153 |
169 |
173 |
184 |
200 |
210 |
250 |
|
AC |
134 |
140 |
149 |
158 |
168 |
174 |
214 |
|
AD |
9.5 |
14.5 |
12 |
13 |
16 |
18 |
18 |
|
AE |
50 |
57 |
68 |
80 |
97 |
112 |
140 |
|
AF |
33 |
36 |
47 |
56 |
70 |
84 |
90 |
|
AG |
20.5 |
23.5 |
28 |
31 |
30 |
30 |
45 |
|
AH |
28 |
30 |
36.5 |
41 |
49 |
57 |
90 |
|
AP |
9 |
12 |
12 |
12 |
14 |
14 |
16 |
|
AT |
3.2 |
3.2 |
3.2 |
3.2 |
4 |
4 |
6 |
Overall Dimens
Dimension Sheet
|
Symbol/Bore(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
BA |
28.3 |
32.3 |
38.3 |
38.3 |
47.3 |
47.3 |
56 |
|
BB |
10 |
10 |
10 |
12 |
16 |
16 |
20 |
|
BC |
47 |
52 |
65 |
76 |
95 |
115 |
140 |
|
BD |
33 |
36 |
47 |
56 |
70 |
84 |
90 |
|
BE |
72 |
84 |
104 |
116 |
143 |
162 |
224 |
|
BF |
58 |
70 |
86 |
98 |
119 |
138 |
180 |
|
BH |
6.5 |
6.5 |
6.5 |
8.5 |
10.5 |
10.5 |
15 |
|
AJ |
10.5 |
10.5 |
10.5 |
13.5 |
16.5 |
16.5 |
19 |
|
AK |
6.5 |
6.5 |
6.5 |
8.5 |
10.5 |
10.5 |
12.5 |
|
BP |
7 |
7 |
9 |
9 |
11 |
11 |
16 |
|
T |
33 |
|
47 |
56 |
70 |
84 |
110 |
Overall Dimens
Dimension Sheet
|
Symbol/Bore(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
S |
44 |
50 |
62 |
75 |
94 |
112 |
140 |
|
T |
33 |
37 |
47 |
56 |
70 |
84 |
110 |
|
DC |
34 |
34 |
34 |
34 |
48 |
48 |
50 |
|
DD |
13 |
14 |
15 |
15 |
20 |
20 |
25 |
|
DE |
12 |
14 |
14 |
14 |
20 |
20 |
25 |
|
DJ |
13 |
14 |
15 |
15 |
20 |
20 |
25 |
|
DQ |
16 |
20 |
20 |
20 |
32 |
32 |
70 |
|
DH |
10 |
10 |
10 |
10 |
15 |
15 |
15 |
|
D |
6.5 |
6.5 |
6.5 |
8.5 |
10.5 |
10.5 |
12.5 |
Overall Dimens
Dimension Sheet
|
Symbol/Bore(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
S |
48 |
50 |
62 |
75 |
94 |
112 |
140 |
|
T |
33 |
37 |
47 |
56 |
70 |
84 |
110 |
|
CC |
19 |
19 |
19 |
19 |
32 |
32 |
50 |
|
CD |
5 |
5 |
3 |
3 |
8 |
8 |
25 |
|
CE |
12 |
14 |
14 |
14 |
20 |
20 |
25 |
|
CJ |
13 |
13 |
15 |
15 |
21 |
21 |
25 |
|
CP |
16.3 |
20.5 |
20.3 |
20.3 |
32.3 |
32.3 |
70 |
|
CT |
32 |
44 |
52 |
52 |
64 |
64 |
120 |
|
PA1 |
41 |
51.8 |
60.3 |
60.3 |
73.8 |
73.8 |
130 |
|
PB1 |
33.5 |
45.8 |
54 |
54 |
65.5 |
65.5 |
121.5 |
|
CH |
10 |
10 |
10 |
10 |
15 |
15 |
15 |
|
D |
6.5 |
6.5 |
6.5 |
8.5 |
10.5 |
10.5 |
12.5 |
Overall Dimension
| Symbol/Bore(mm) | EB | EC | ED | EE | EP | ET | HA | HB | HC | HD | HE | HF | HI | HJ | HP | HQ | HT |
| 40 | 113 | 63 | 37 | 80 | 45.5 | 22 | 109 | 86 | 81.5 | 50 | 12 | 23 | 12 | ||||
| 50 | 126 | 76 | 47 | 76 | 25 | 30 | 110 | 80 | 55.5 | 22 | 122 | 99 | 88 | 50 | 12 | 23 | 12 |
| 63 | 138 | 88 | 56 | 88 | 25 | 30 | 110 | 80 | 68.5 | 22 | 134 | 111 | 94 | 50 | 12 | 23 | 12 |
| 80 | 164 | 114 | 70 | 114 | 25 | 35 | 110 | 80 | 87.5 | 22 | 160 | 137 | 127 | 70 | 14 | 23 | 14 |
| 100 | 182 | 132 | 84 | 132 | 25 | 40 | 110 | 80 | 107.5 | 22 | 178 | 155 | 136 | 70 | 14 | 23 | 14 |
| 125 | 209 | 154 | 110 | 158 | 30 | 36 | 145 | 105 | - | - | 212 | 185 | - | 85 | 18 | 27 | 28 |
Overall Dimension
| Symbol/Bore(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| NA | 12 | 16 | 20 | 19 | 25.4 | 32 | 32 | 44.4 | 44.4 | 62 |
| NB | 6 | 8 | 10 | 20 | 24 | 32 | 32 | 40 | 40 | 49 |
| NC | 6 | 8 | 10 | - | 12 | 16 | 16 | 20 | 20 | 20 |
| ND | 24 | 32 | 40 | 40 | 48 | 64 | 64 | 80 | 80 | 100 |
| NE | 30 | 40 | 52 | - | 67 | 89 | 89 | 112 | 112 | 120 |
| NF | 8.5 | 11 | 15 | 15 | 24 | 32 | 32 | 40 | 40 | 1 |
| NG | 10 | 15 | 20 | 20 | 20 | 23 | 23 | 30 | 30 | 55 |
| NH | M6 | M8 | M 10x1.25 | M10x1.25 | M 12x1.25 | M16x1.5 | M16x1.5 | M20x1.5 | M20x1.5 | M27x2 |
| NJ | 6 | 10 | 14 | - | 20 | 22 | 22 | 30 | 30 | - |
| NK | 11.5 | 14 | 18 | 18 | 23 | 30 | 30 | 39 | 39 | 38 |
| NM | 6 | 8 | 11 | - | 12 | 16 | 16 | 20 | 20 | 32.5 |
| NP | 10 | 17 | 21 | 20 | 24 | 32 | 32 | 40 | 40 | 40 |
| NQ | 30 | 40 | 51 | - | 62 | 83 | 83 | 105 | 105 | 120 |
| PA | 17 | 19 | 25 | 25 | 32.8 | 39.3 | 39.3 | 53.3 | 53.3 | 74 |
| PB | 12 | 16 | 20 | 19.5 | 26.5 | 33 | 33 | 45 | 45 | 64 |
