LAL Series pneumatic lubricator Suppliers

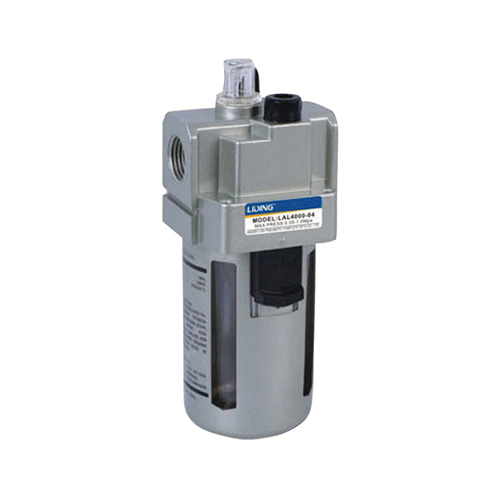

LAL Series pneumatic lubricator

LAL Series pneumatic lubricator

Product Details

0
Views: 1,587

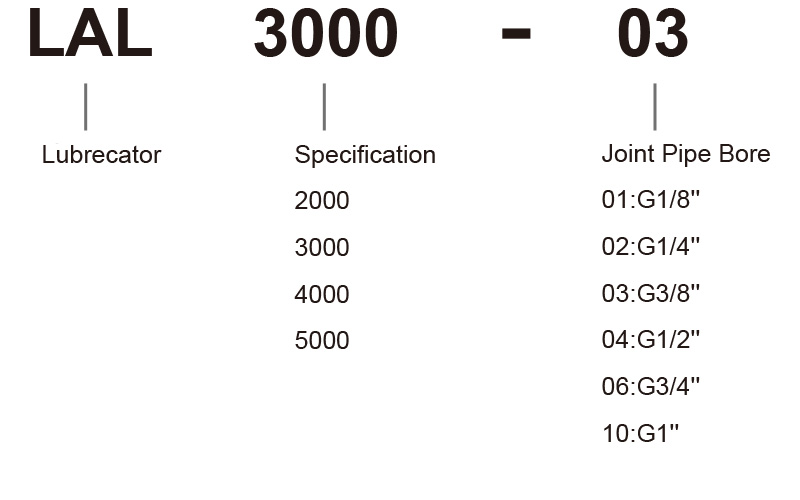

Ordering Code

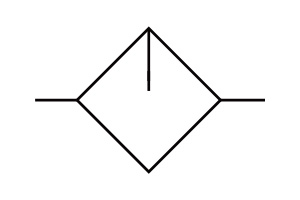

GraPhic symbol





Specification



Model

LAL2000

-01

LAL2000

-02

LAL3000

-02

LAL3000

-03

LAL4000

-03

LAL4000

-04

LAL4000

-06

LAL5000

-06

LAL5000

-10

Rated Flow

800

800

1700

1700

5000

5000

6300

7000

7000

Joint Pipe Bore

G1/8

G1/4

G1/4

G3/8

G3/8

G1/2

G3/4

G3/4

G1

Max. Adjustable Pressure

1.0MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

Recommended Oil Use

ISOVG32

Container Material

Polycarbonate

Protective Cover

Not Available

Available

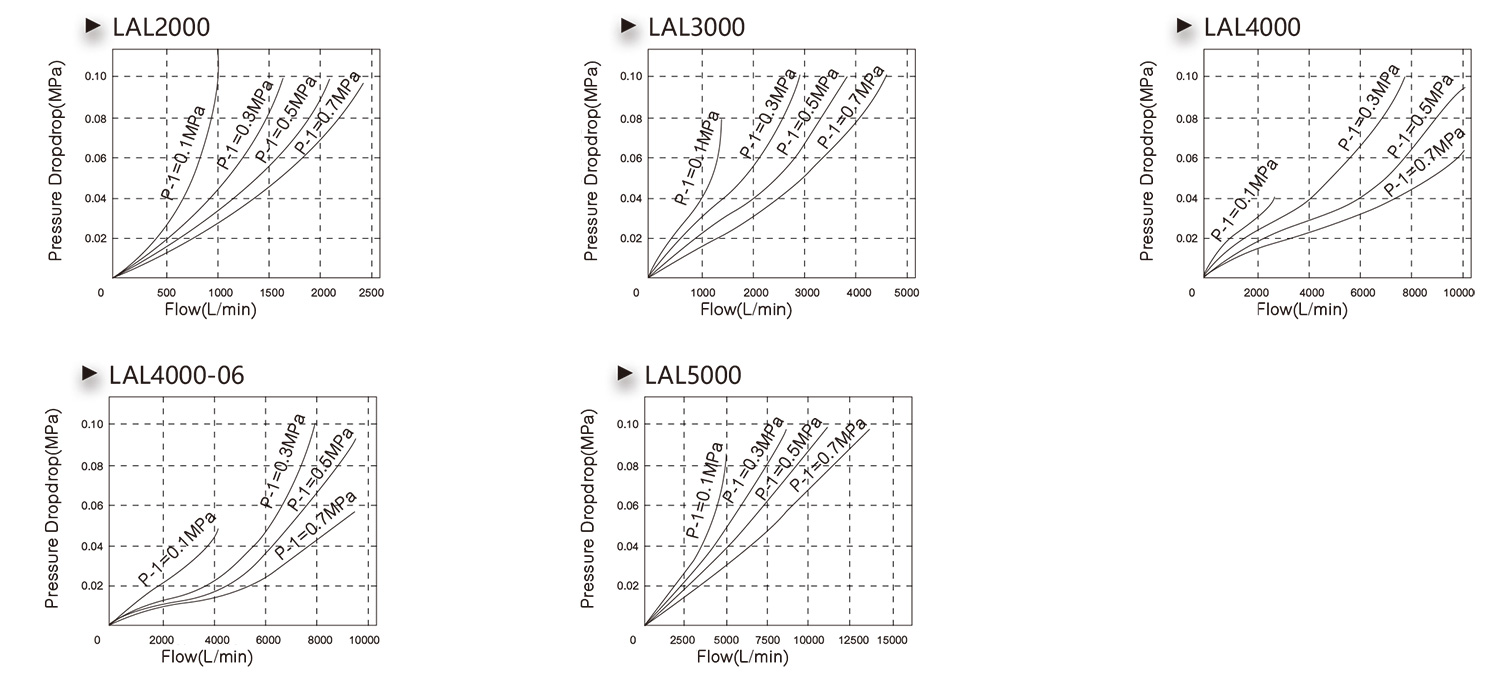

Flowing Character

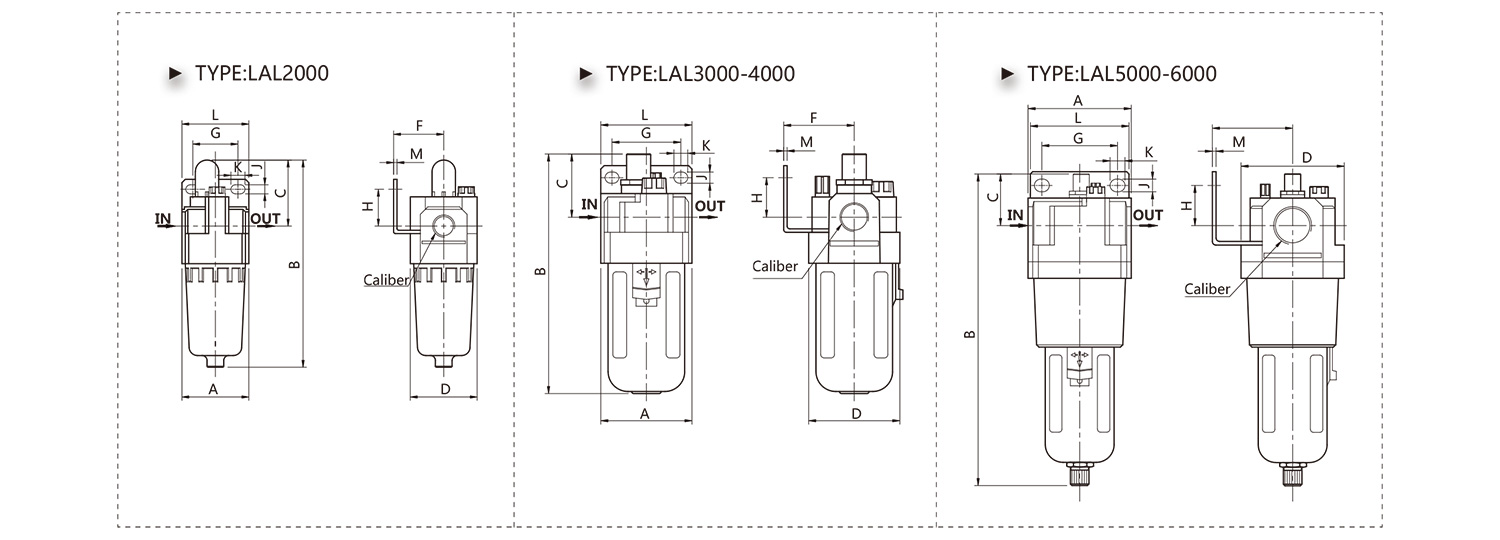

Overall Dimension

Model

Bore

A

B

C

D

F

G

H

J

K

L

LAL2000

1/8*1/4

40

122

38

40

30

27

22

5.4

8.4

40

LAL3000

1/4*3/8

53

142

38

53

41

40

23

6.5

8

53

LAL4000

3/8*1/2

70

177

41

70

50

54

26

8.5

10.5

70

LAL4000-06

3/4

75

177

39

70

50

54

25

8.5

10.5

70

LAL5000

3/4*1

90

254

45

90

70

66

35

11

13

90

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LAL Series pneumatic lubricator Suppliers and LAL Series pneumatic lubricator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LAL Series pneumatic lubricator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
