LQW Series Micro-Cylinder
Product Details

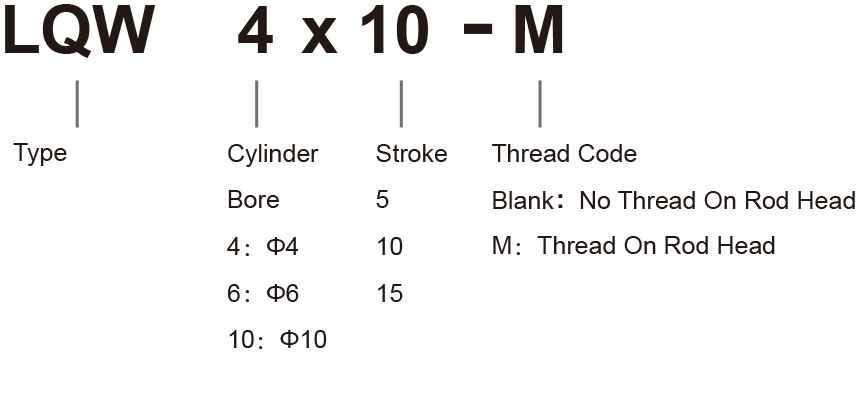

Ordering Code
Specification
| Bore (mm) | 4 | 6 | 10 |
| Motion Pattern | Single Move Back Type | ||
| Working Medium | Air | ||
| Buffer Form | - | Buffer Spacer | |
| OperatingVoltage Range | 2～7Kgf/cm² | ||
| Ensured Pressure Resistance | 10.5Kgf/cm² | ||
| Operating Temperature Range | 0～60℃ | ||
| Lubrication | Not Lubrication | ||
| Stroke | 5、 10、 15 | 5、10、15、20 | |
| Joint Pipe Bore | Tu0425 | M5 | M5 |
Overall Dimension
Dimension Sheet
| Specifications | A | B | C | D | E | H | J | K | M | V |
| LQW4x5 | 41 | 29 | - | - | - | - | - | - | - | - |
| LQW4x10 | 46 | 34 | - | - | - | - | - | - | - | - |
| LQW4x15 | 54 | 42 | - | - | - | - | - | - | - | - |
| LQW6x5 | 60 | 40 | 32 | 8 | 16 | 20 | 3 | M6 | M3 | 3 |
| LQW6x10 | 65 | 45 | 37 | 8 | 16 | 20 | 3 | M6 | M3 | 3 |
| LQW6x15 | 70 | 50 | 42 | 8 | 16 | 20 | 3 | M6 | M3 | 3 |
| LQW6x20 | 77.5 | 57.5 | 49.5 | 8 | 16 | 20 | 3 | M6 | M3 | 3 |
| LQW10x5 | 69 | 49 | 41 | 11 | 15 | 20 | 3 | M8x1 | M4 | 4 |
| LQW10x10 | 74 | 54 | 46 | 11 | 15 | 20 | 3 | M8x1 | M4 | 4 |
| LQW10x15 | 79 | 59 | 51 | 11 | 15 | 20 | 3 | M8x1 | M4 | 4 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Micro Pneumatic Cylinder Manufacturers and Micro Pneumatic Cylinder suppliers,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Micro Pneumatic Cylinders are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
