Quick Exhaust Valve Suppliers

Quick Exhaust Valve

Quick Exhaust Valve

Product Details

0
Views: 258

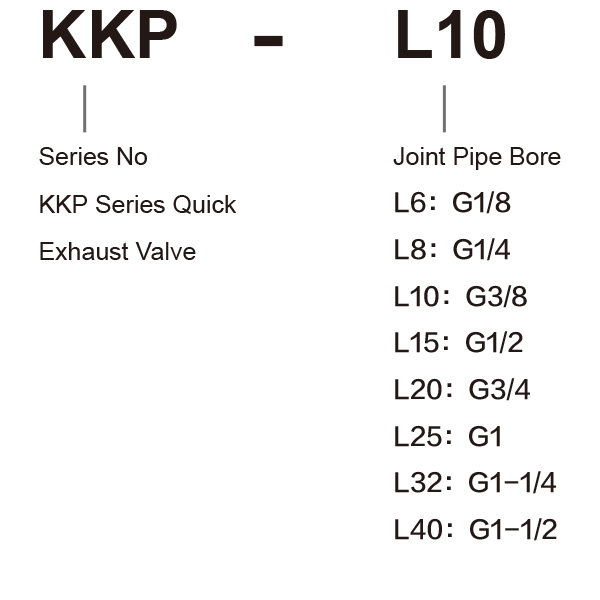

Ordering Code

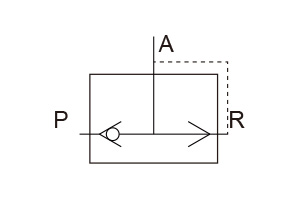

Graphic Symbol





Specification

Model KKP-L6 KKP-L8 KKP-L10 KKP-L15 KKP-L20 KKP-L25 KKP-L32 KKP-L40
Working Medium 40 Micron Filtered Air
Joint Pipe Bore G1/8 G1/4 G3/8 G1/2 G3/4 G1 G1-1/4 G1-1/2
Operating Temperature 0~60℃
Working-Pressure 0.1~0.8MPa
Max Pressure Resistance 1.2MPa

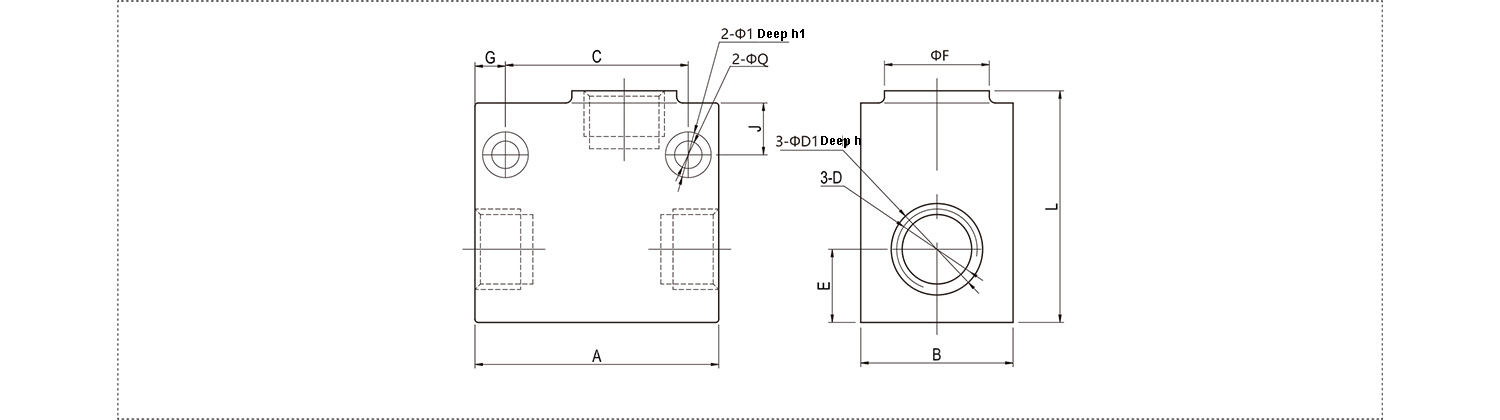

Overall Dimension





Dimension Sheet



Model A B C D D1 E F G h h1 J L Q Q1
KKP-L6 56 25 36 M10x1(G1/8) 13 14 10 1.8 5 9 40 4.8 8
KKP-L8 58 30 36 M12x1.25(G1/4) 16 18.5 11 1.8 5 9 45 4.8 8
KKP-L10 80 44 58 M16x1.5(G3/8) 20 23 12 1.8 6 8 60 7 12
KKP-L15 80 44 58 M20x1.5(G1/2) 24 23 12 2.7 6 8 60 7 12
KKP-L20 128 72 98 M27x2 (G3/4) 32 36 50 15 2.7 8 10 95 10 15
KKP-L25 128 72 98 M33x2 (G1) 40 36 50 15 2.7 8 10 95 10 15
KKP-L32 158 88 126 M42x2 (G1-1/4) 48 44 64 16 2.7 8 10 112 10 15
KKP-L40 158 88 126 M48x2 (G1-1/2) 54 44 64 16 2.7 8 10 112 10 15

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Quick Exhaust Valve Suppliers and Quick Exhaust Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Quick Exhaust Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
