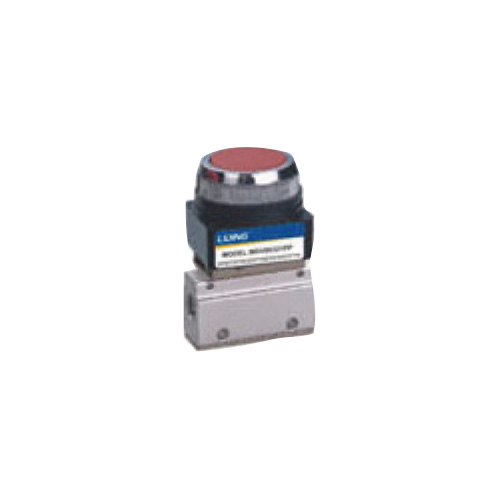

MSV Series Mechanical Valve Suppliers

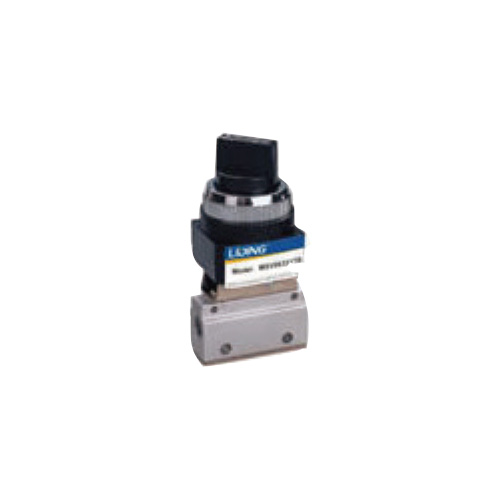

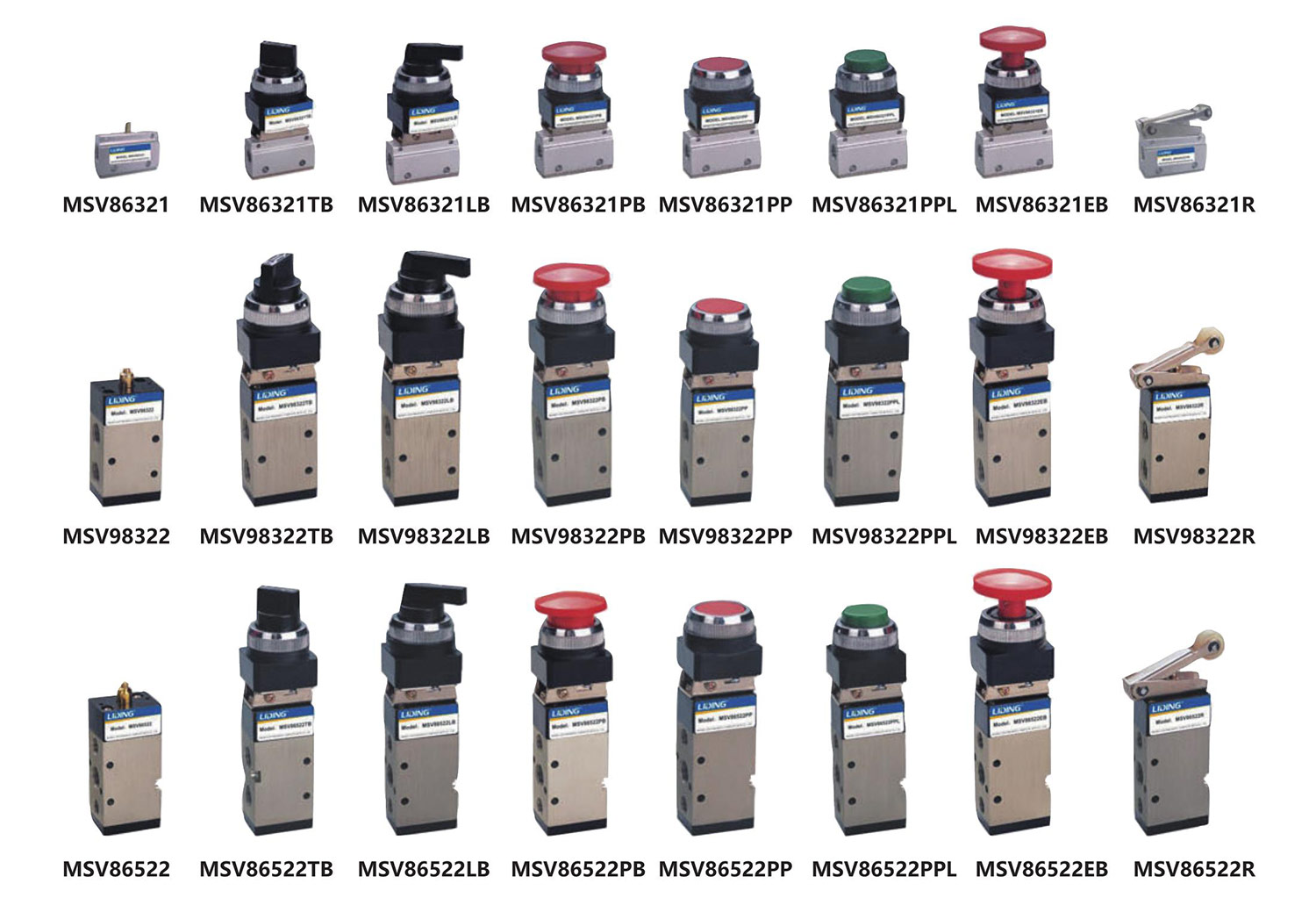

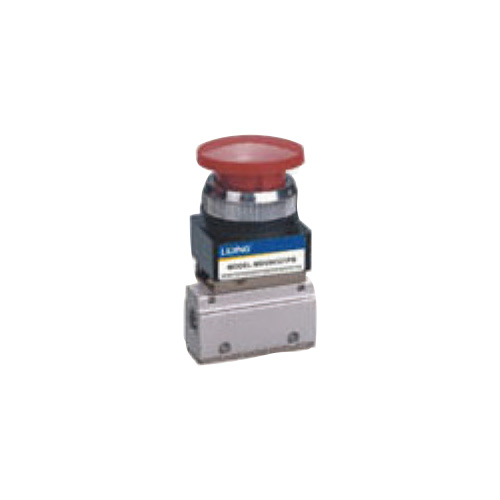

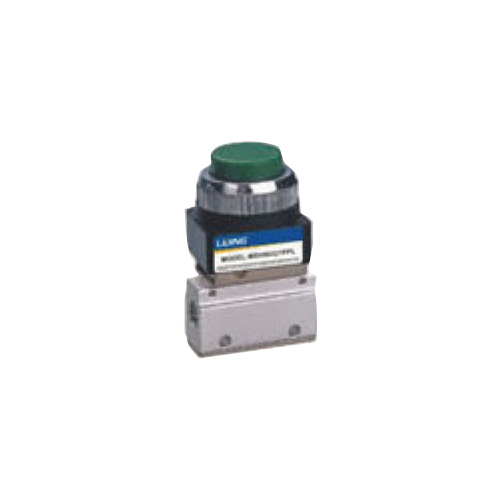

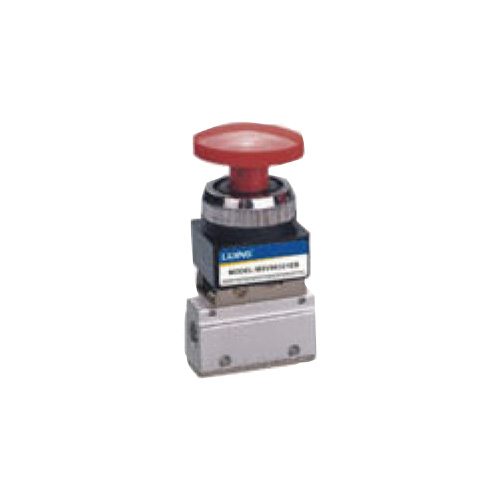

MSV Series Mechanical Valve

MSV Series Mechanical Valve

Product Details

0
Views: 252

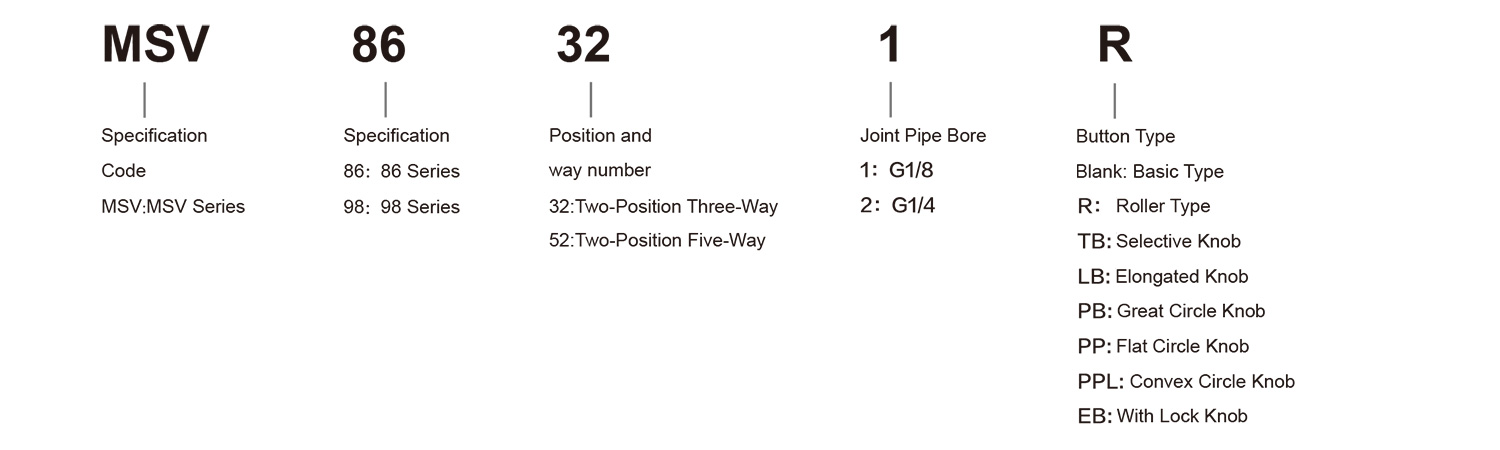

Ordering Code

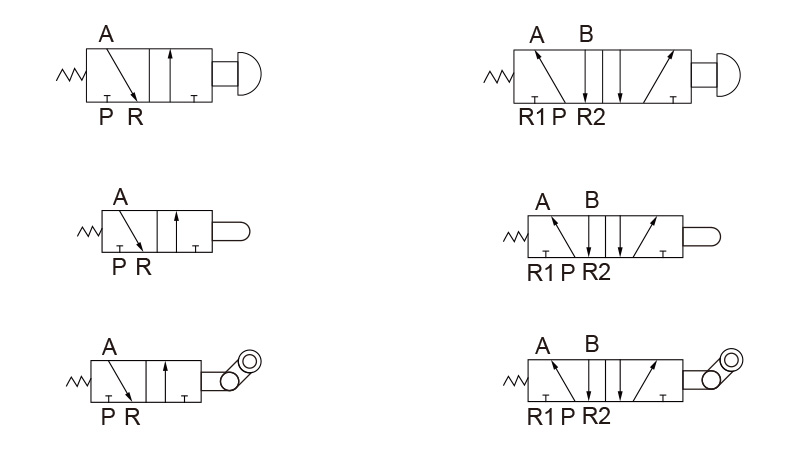

Graphic Symbol







Specification



Model MSV86321 MSV86522 MSV98322
Working Medium 40 Micron Filtered Air
The Position Counting Two-Position Three-Way Two-Position Five-Way  Two-Position Three-Way
Joint Pipe Bore G1/8 G1/8.G1/4
Operating Temperature 0~60℃
Effective Sectional Area 12mm² (Cv=0.67) 16mm² (Cv=0.89) 16mm² (Cv=0_89)
Working-Pressure 0~0.8MPa

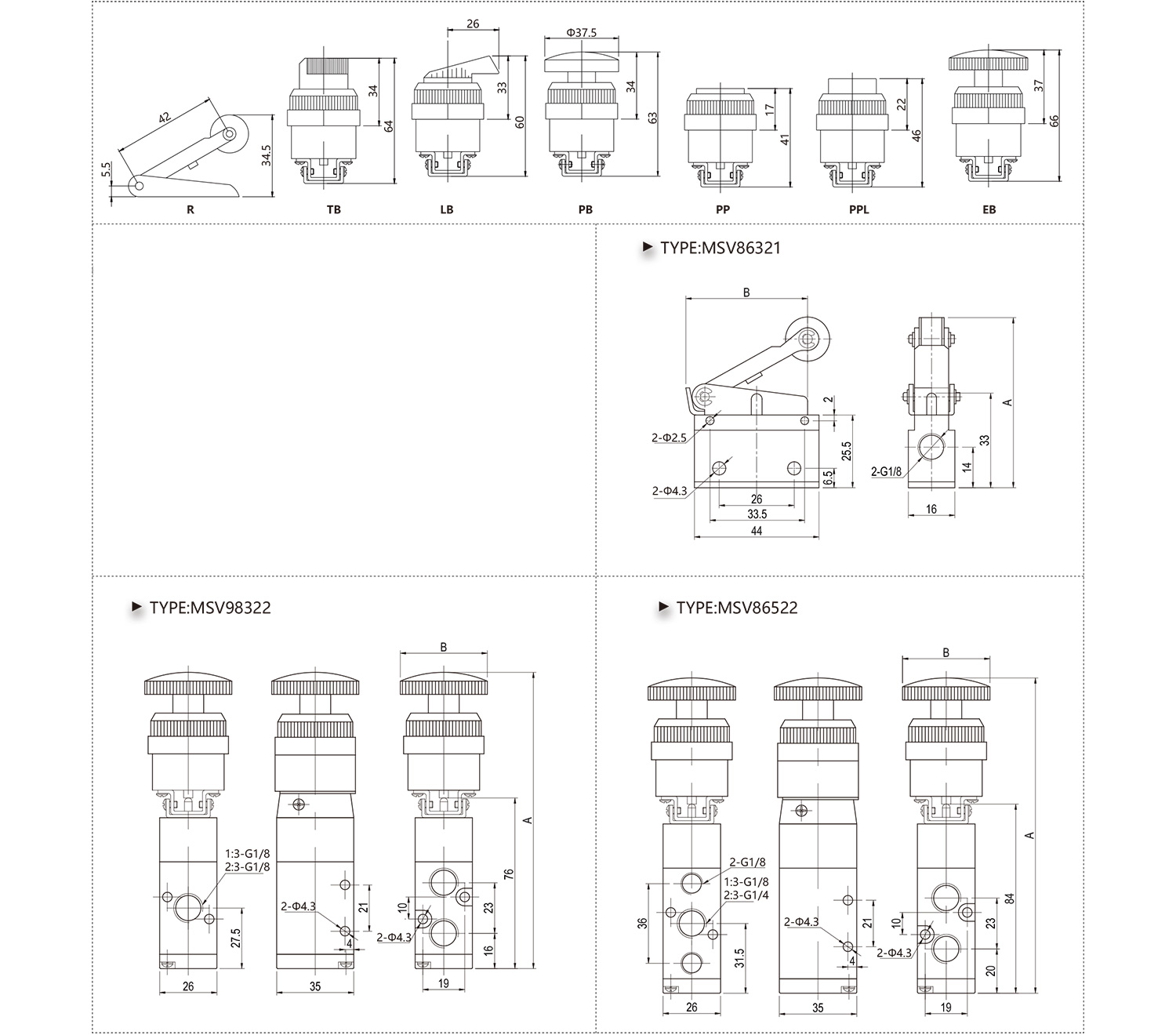

Overall Dimension





Series Symbol
Model
R TB LB PB PP PPL EB
MSV86321 A 59.5 88.5 85 83 66 71 86
B 42.5 36.5 26.5 37.5 39.5 24.5 39.5
MSV86522 A 107.5 136.5 133 131 114 119 134
B 42.5 36.5 26.5 37.5 39.5 24.5 39.5
MSV98322 A 99.5 129.5 125 123 106 111 126
B 42.5 36.5 26.5 37.5 39.5 24.5 39.5

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China MSV Series Mechanical Valve Suppliers and MSV Series Mechanical Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our MSV Series Mechanical Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
