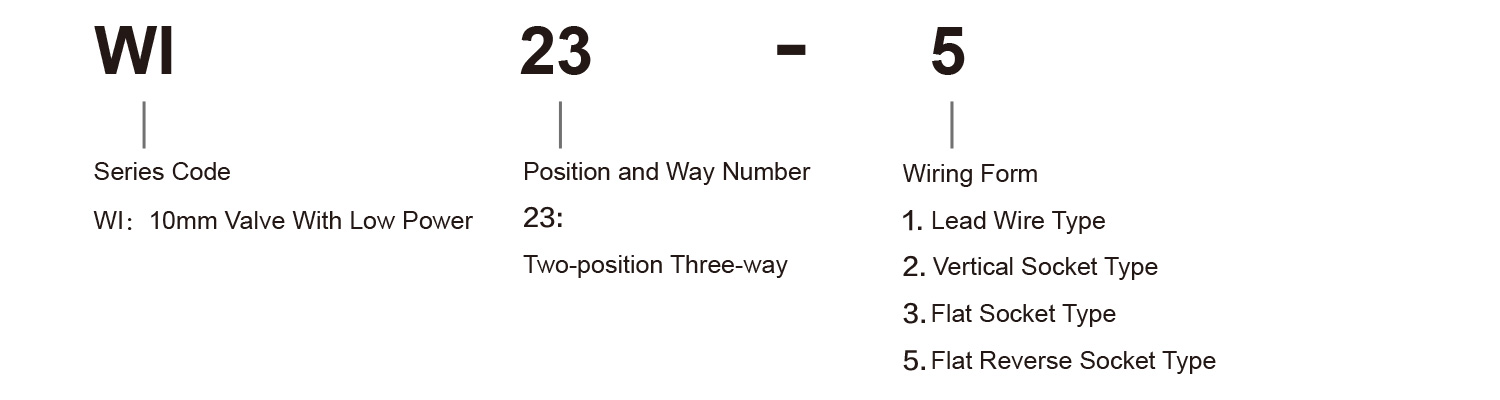

Ordering Code

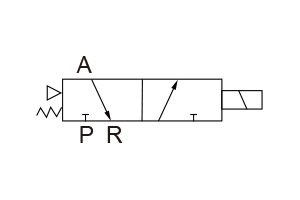

Graphic Symbol







Synopsis

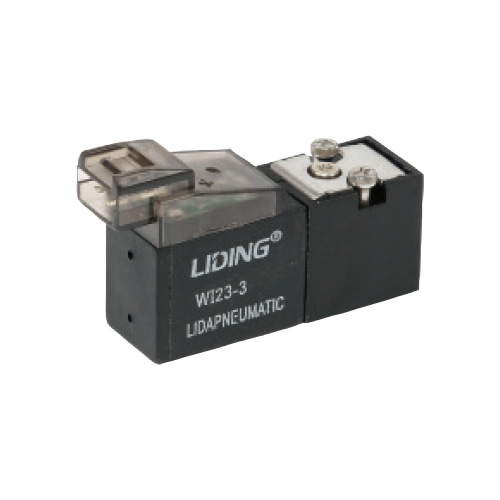

The valve is a two-position three-way 10mm miniature solenoid valve. Its intake direction is different from that of the conventional WF23 series valves. There are many different connection modes. When the power of the valve is 1W and the flow rate is more than 30L/min at 0.5MPa, the temperature rise is low, the performance is stable and the service life is long.



Specification



Model WI23-2   WI23-3 W 123*5
Working Medium 40 Micron Filtered Air
Operating Temperature -5~50℃
Medium Temperature 5~50℃
Nominal Diameter Ø1mm
0.5 MPa Flow Rate ≥30L/min
Response time(ms) ≤10ms
Max Operating Frequency Cycle/Sec
Min. Operating Frequency Cycle/Day
Lubrication Not Lubrication
Manual Override Not Lubrication
Electrical Entry Lead Wire Type
Working-Pressure 0-0.7MPa
Voltage Range DC24V
Allowable Voltage ±10%
Power Consumption <1W
Connection Mode Plate Connection Type

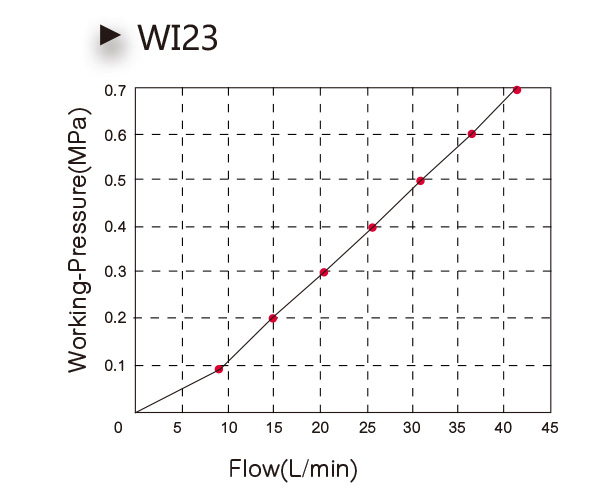

Flowing Character

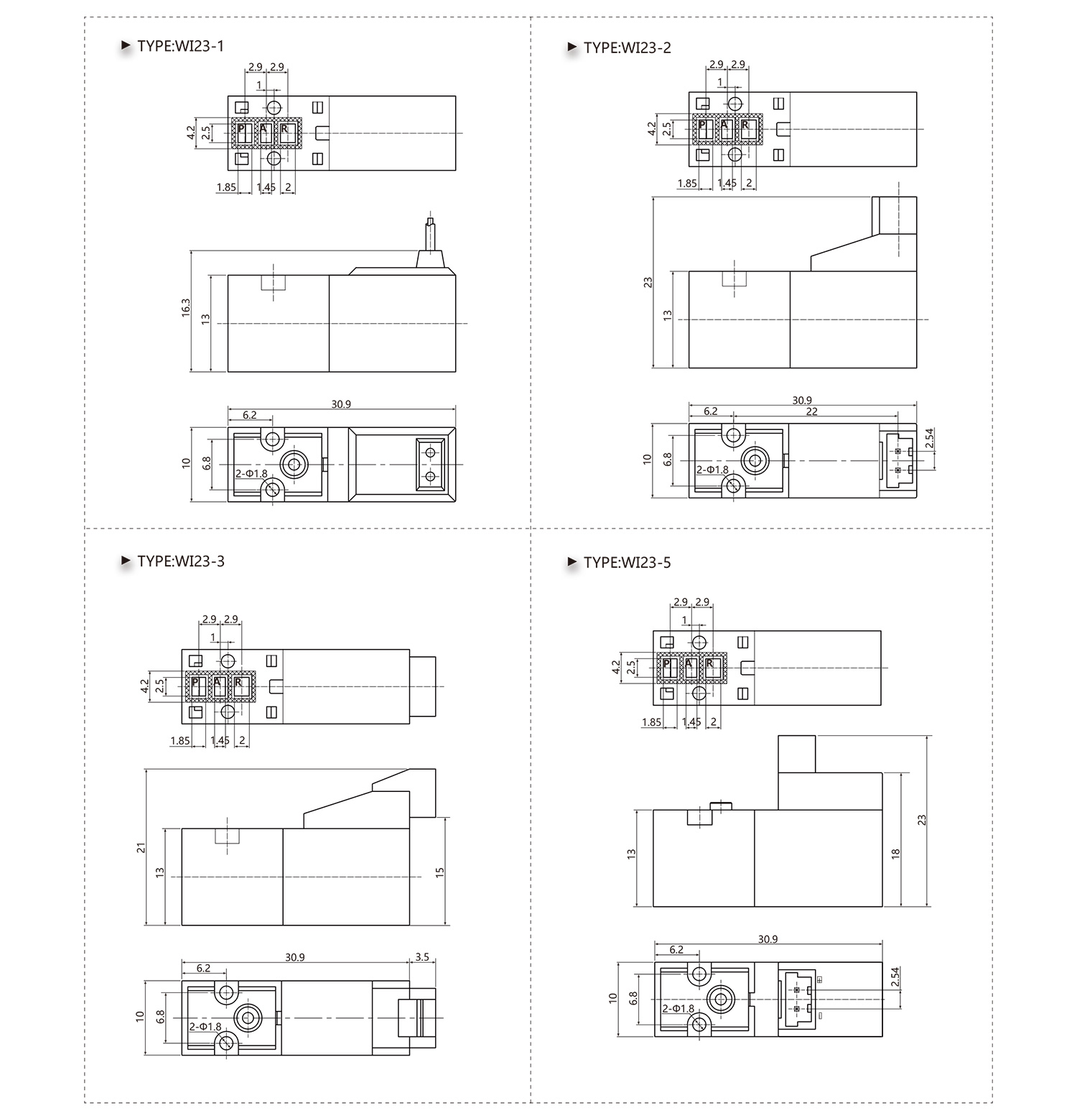

Overall Dimension

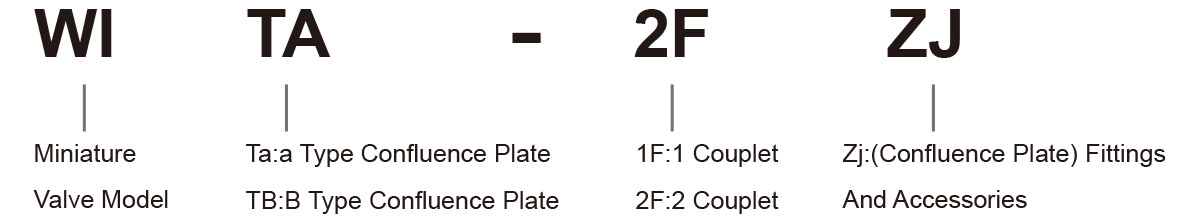

Ordering Code







Specification

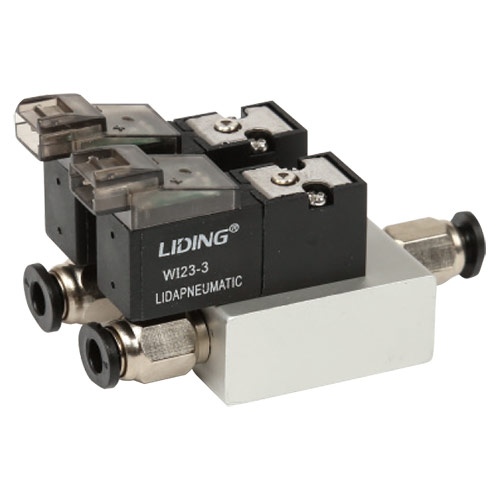

Model WITA-1FZJ    WITA-2FZJ WITB-1FZJ WITB-2FZJ
Working Medium 40 Micron Filtered Air
Motion Pattern Two-Position Three-Way Normally Closed
Path(mm) 1.0
Working-Pressure 0~0.7MPa
Power Consumption 1W/Pcs.
Connection Threads Plate Connection Type
Material of Oil Seal NBR

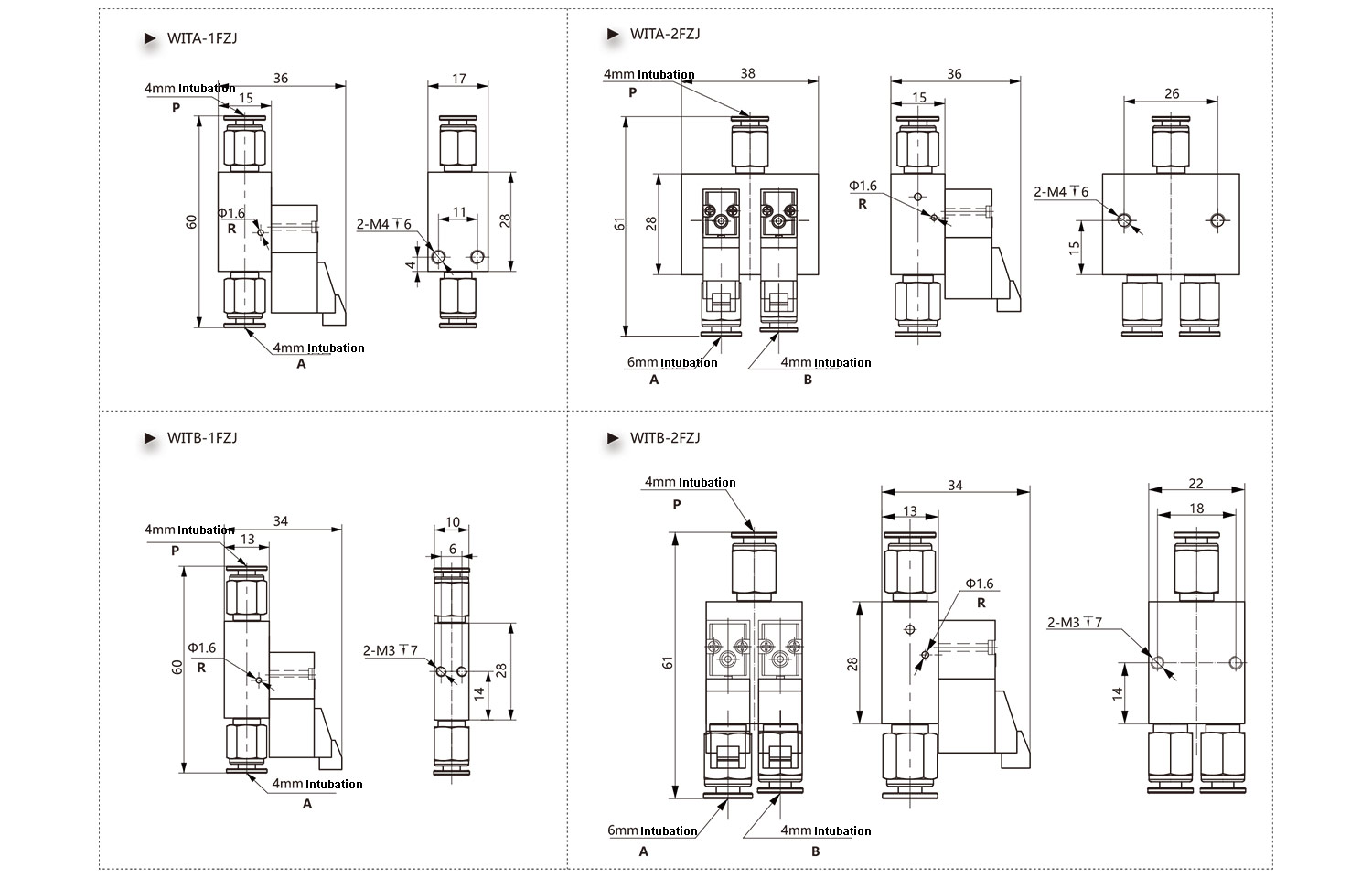

Overall Dimension

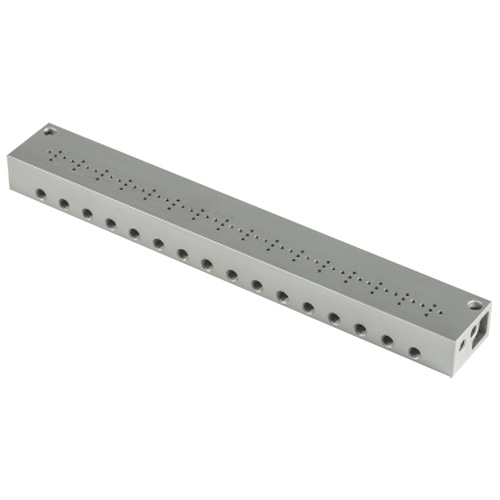

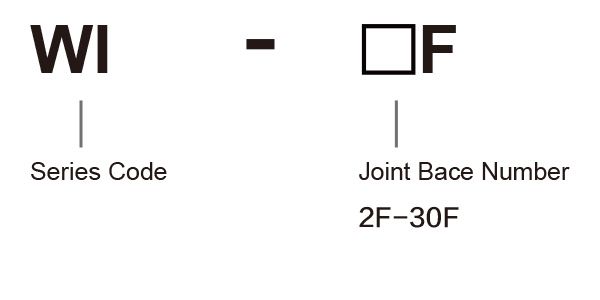

Base Ordering Code



Note:If the bottom plate matches the valve, add the number of seats after the valve model.
For Example: WI23-2-4F

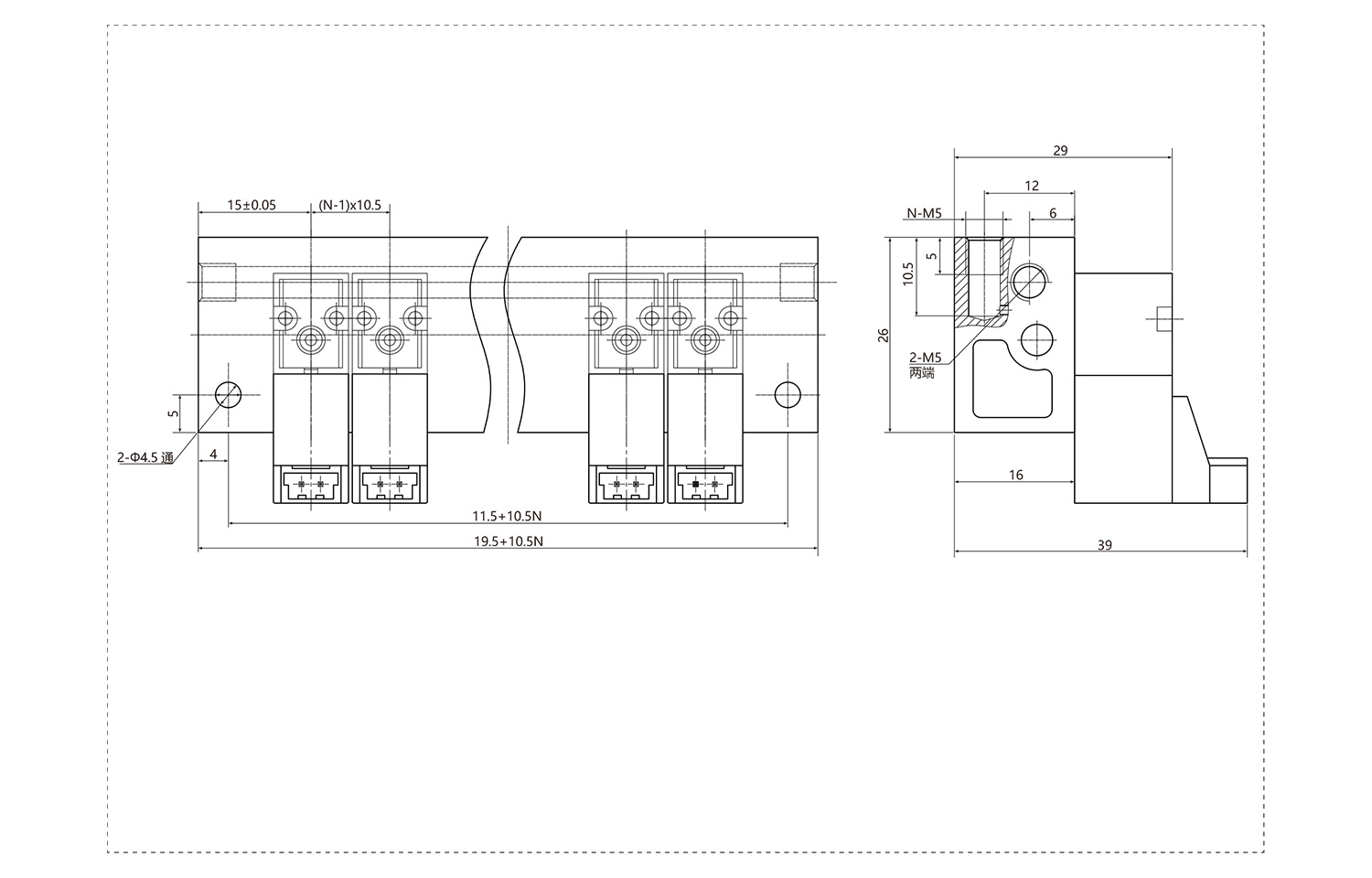

Overall Dimension
