LY Series Solenoid Valve、solenoid valve base Suppliers

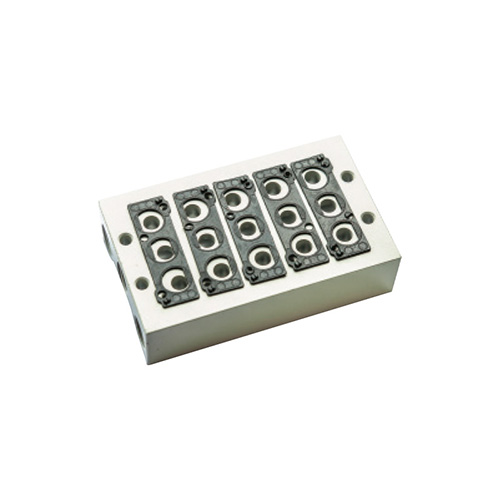

LY Series Solenoid Valve、solenoid valve base

LY Series Solenoid Valve、solenoid valve base

Product Details

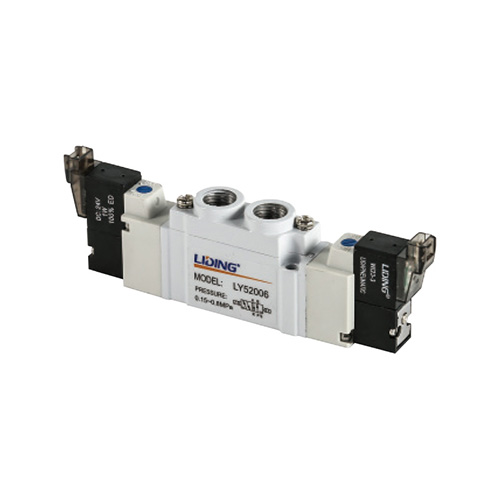

LY Series Solenoid Valve

Place of Origin: Zhejiang, China

Price: Negotiate

Supply Ability: 1000 Piece/Pieces per Day

Packaging Details Carton packaging of pneumatic components

Port Shanghai or Ningbo

0
Views: 808

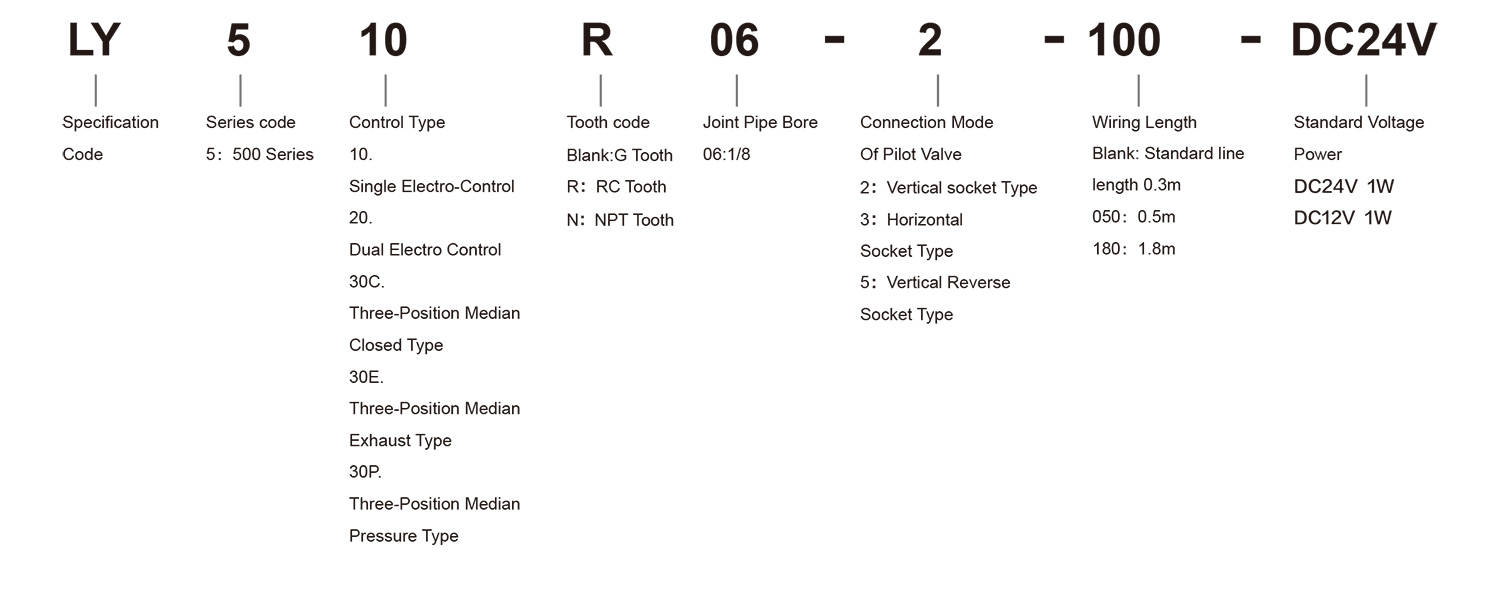

Ordering Code







Specification



Model

LY51006

LY52006

LY530C06

LY530E06

LY530P06

Working Medium

40 Micron Filtered Air

Motion Pattern

Inner Guide Type

Joint Pipe Bore

Intake = Outlet = Exhaust = G1 / 8

Operating Temperature

-5~50℃

Effective Sectional Area

9.8mm² (Cv=0.57)

8.4mm² (Cv=0.5)

Working-Pressure

0.15~0.8MPa (Dual Position)

0.2~0.8MPa (Three Position)

Max.Pressure Resistance

1.2MPa

Wiring Form

Lead Wire or Connector Type

Exhaust mode

Main Valve And Pilot Valve Centralized Exhaust Type, Internal Exhaust Type

Highest Action Frepuency

5 Cycle/Sec

3 Cycle/Sec

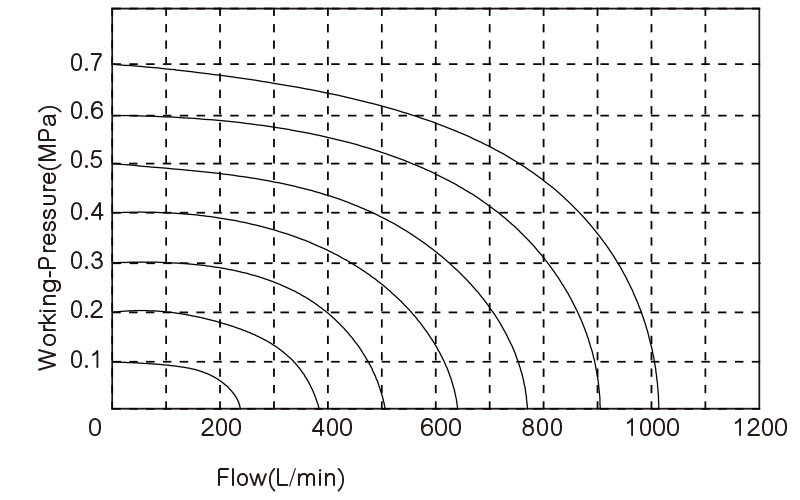

Flowing Character

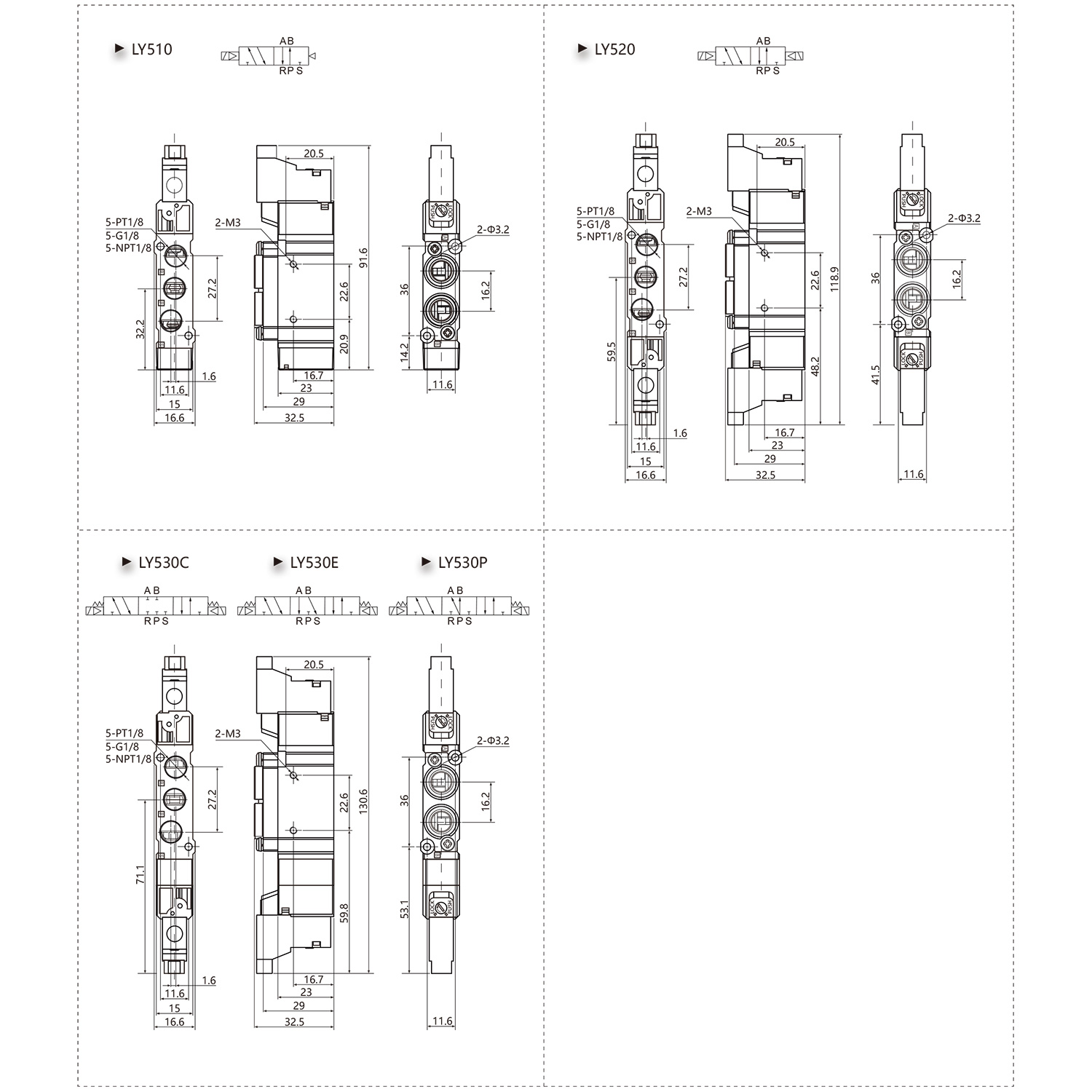

Overall Dimension

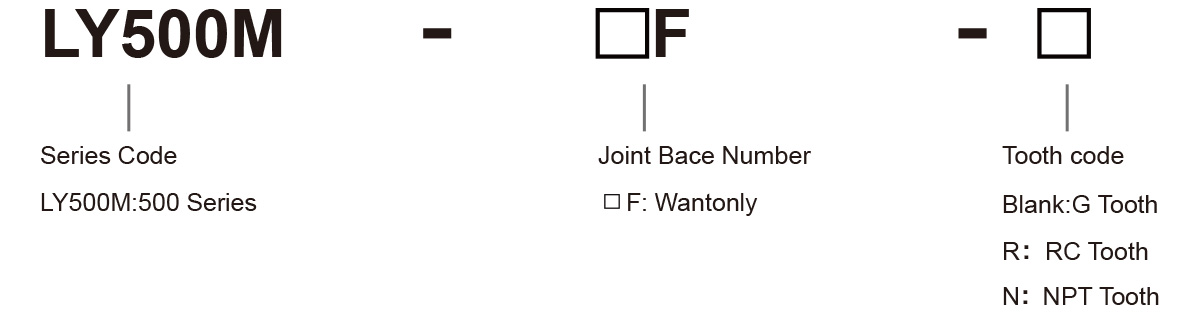

Ordering Code









Specification



Model/Symbol

A

B

C

D

E

F

G

H

I

J

K

L

N

O

P

Q

R

S

LY500M-DF

130.6

60

20

4.5

59.5

32.2

119

5

-

16

24+(N-1)x16

34+(N-1)x16

53

42

23

1/4

I 25

57.5

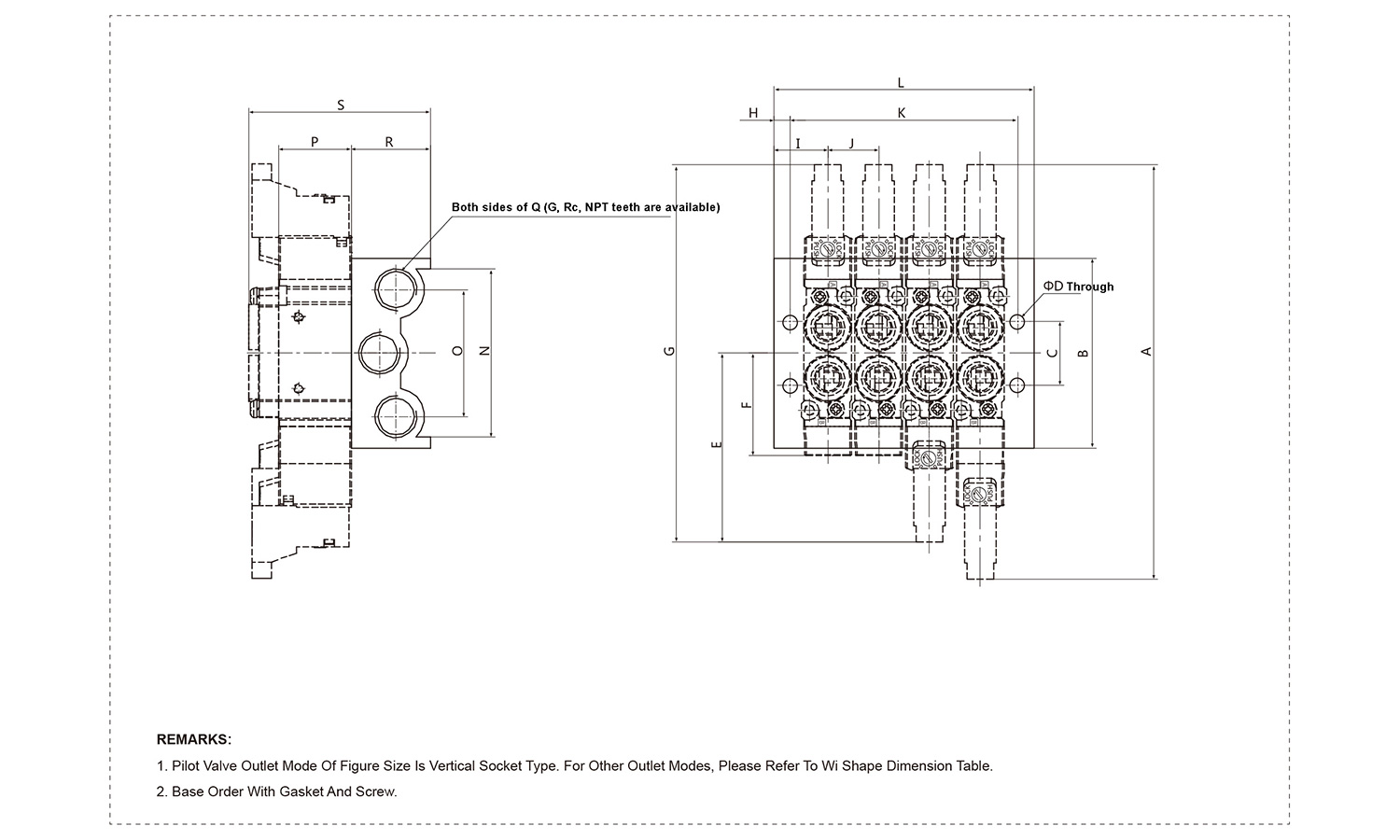

Overall Dimension





Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LY Series Solenoid Valve、solenoid valve base Suppliers and LY Series Solenoid Valve、solenoid valve base company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LY Series Solenoid Valve、solenoid valve base are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
