LQD Series Multi-door Cylinders Suppliers

LQD Series Multi-door Cylinders

LQD Series Multi-door Cylinders

Product Details

0
Views: 101

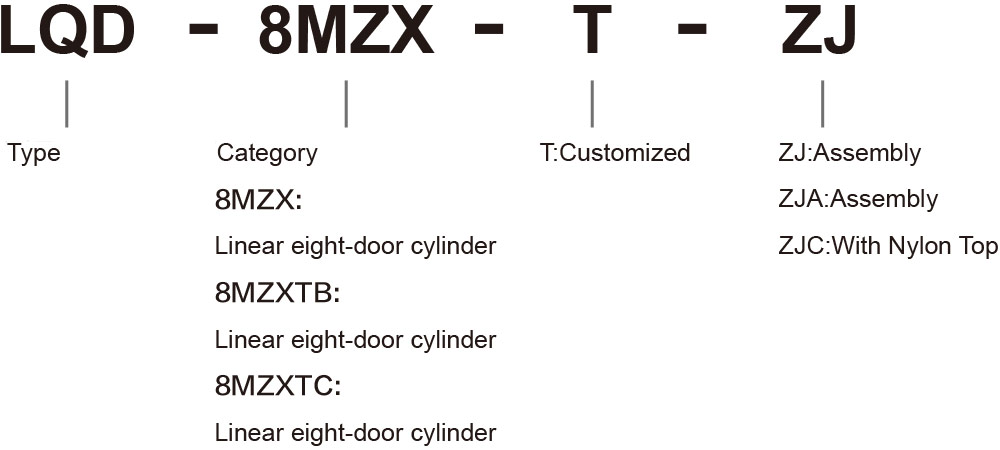

Ordering Code







Synopsis

This series of cylinders are specially customized multi-integrated micro-cylinders, which can be customized in size, installation mode, number of cylinder piston rods and stroke according to customers'requirements, and can be controlled by micro-valves according to needs. The cylinders and valves are designed as a whole, which makes the installation simple and convenient, saves space, beautifies the overall structure and can be used for bullets. Springs or driven components are mechanically repositioned, with high repetitive positioning accuracy, sensitive response, safety and reliability, and long service life.





Overall Dimension

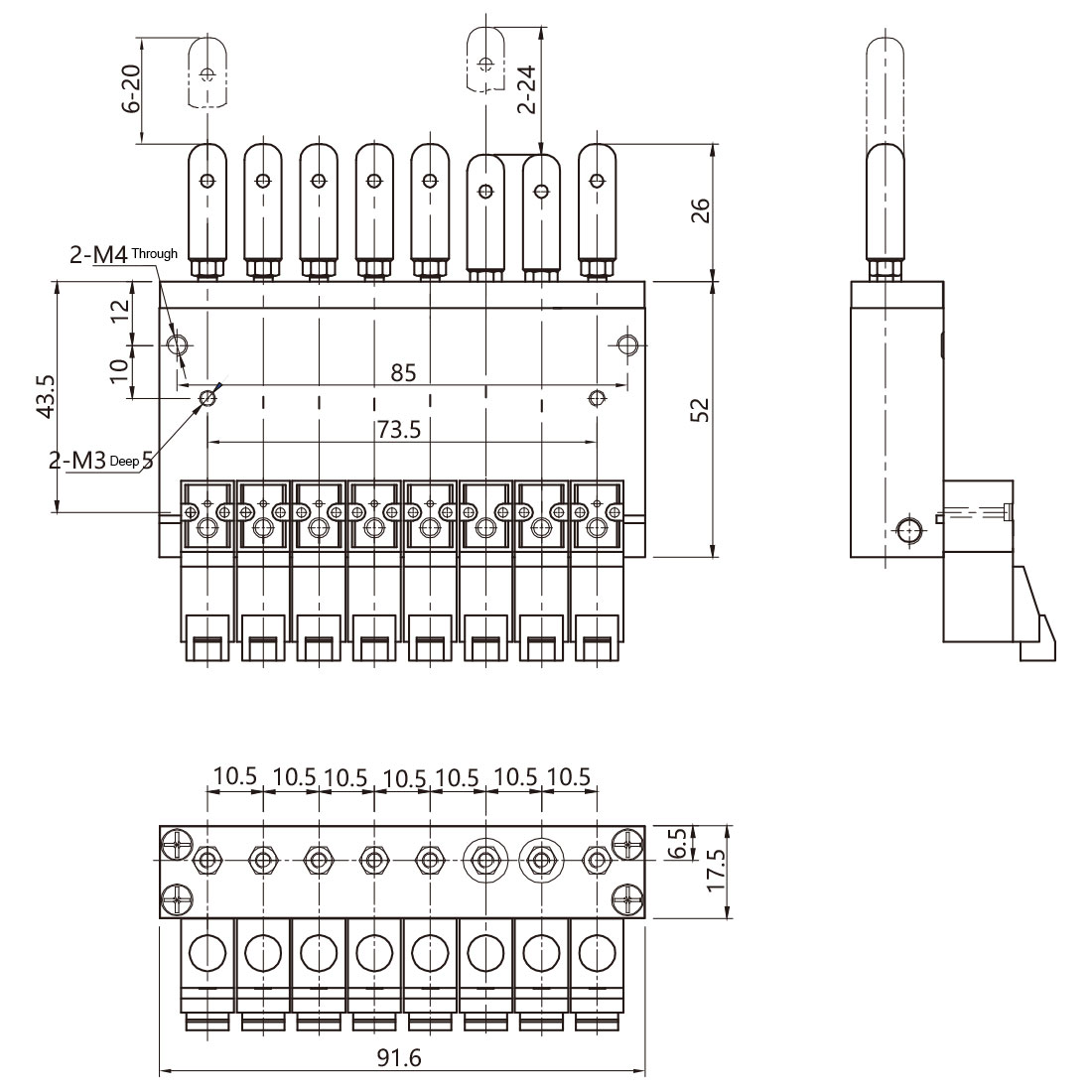

LQD-8MZX-ZJ

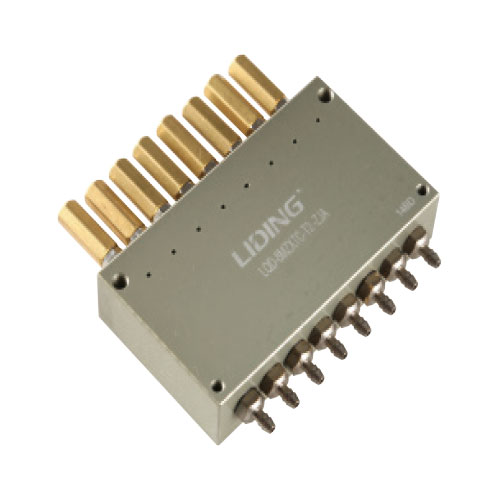

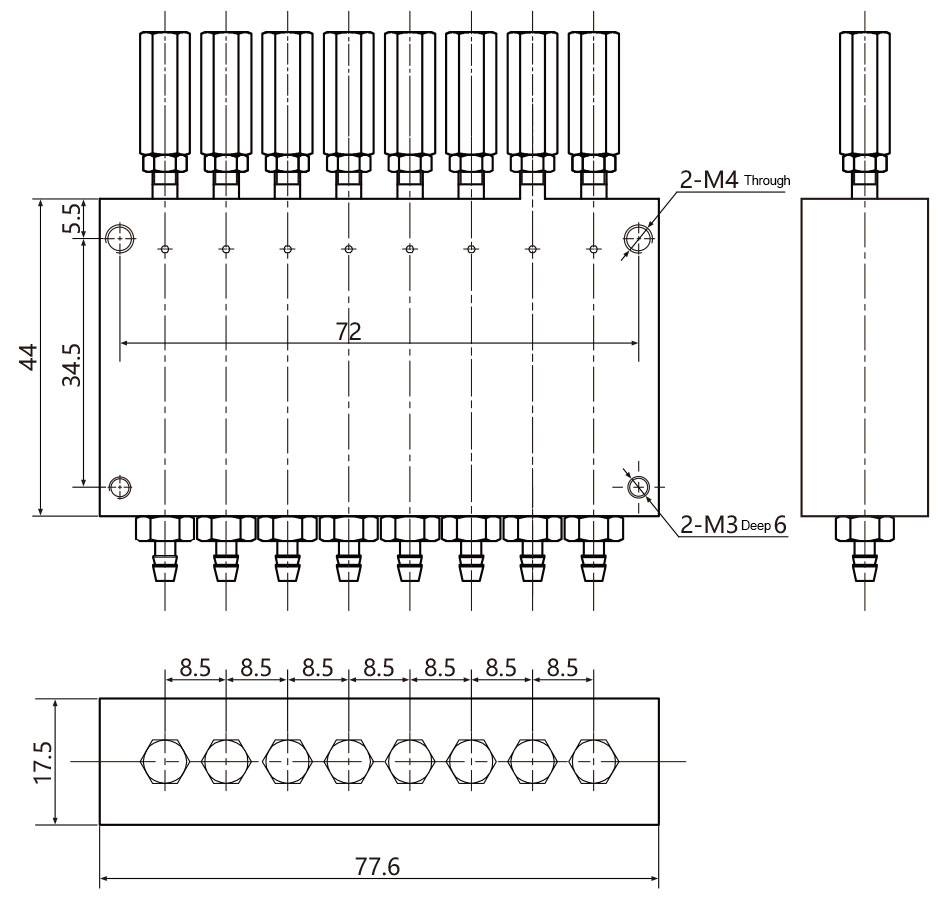

LQD-8MZXTC-T2-ZJA

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LQD Series Multi-door Cylinders Suppliers and LQD Series Multi-door Cylinders company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LQD Series Multi-door Cylinders are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
