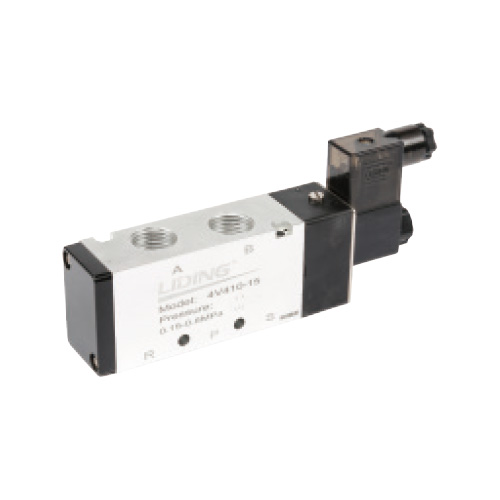

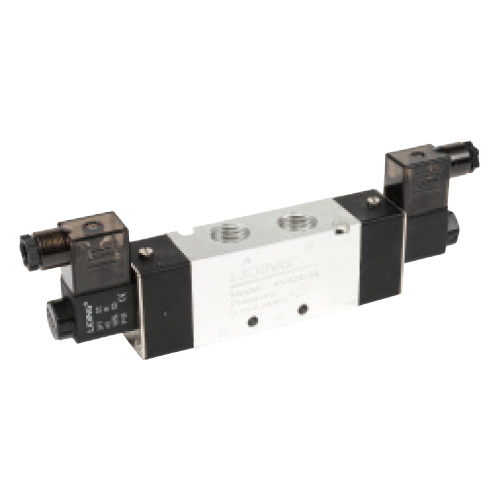

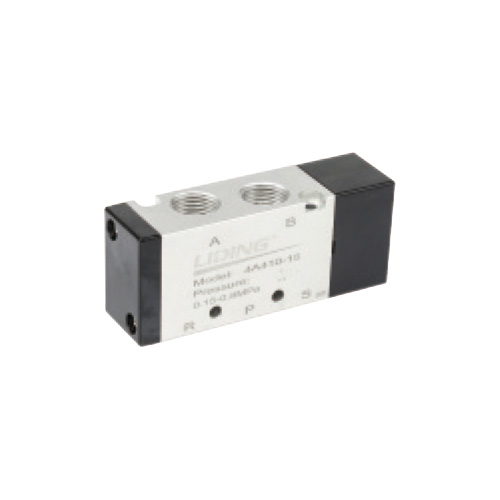

3V/4V 400 Series Solenoid Valve,Pneumatic Control Valve、Base Suppliers

3V/4V 400 Series Solenoid Valve,Pneumatic Control Valve、Base

3V/4V 400 Series Solenoid Valve,Pneumatic Control Valve、Base

Product Details

0
Views: 1,166

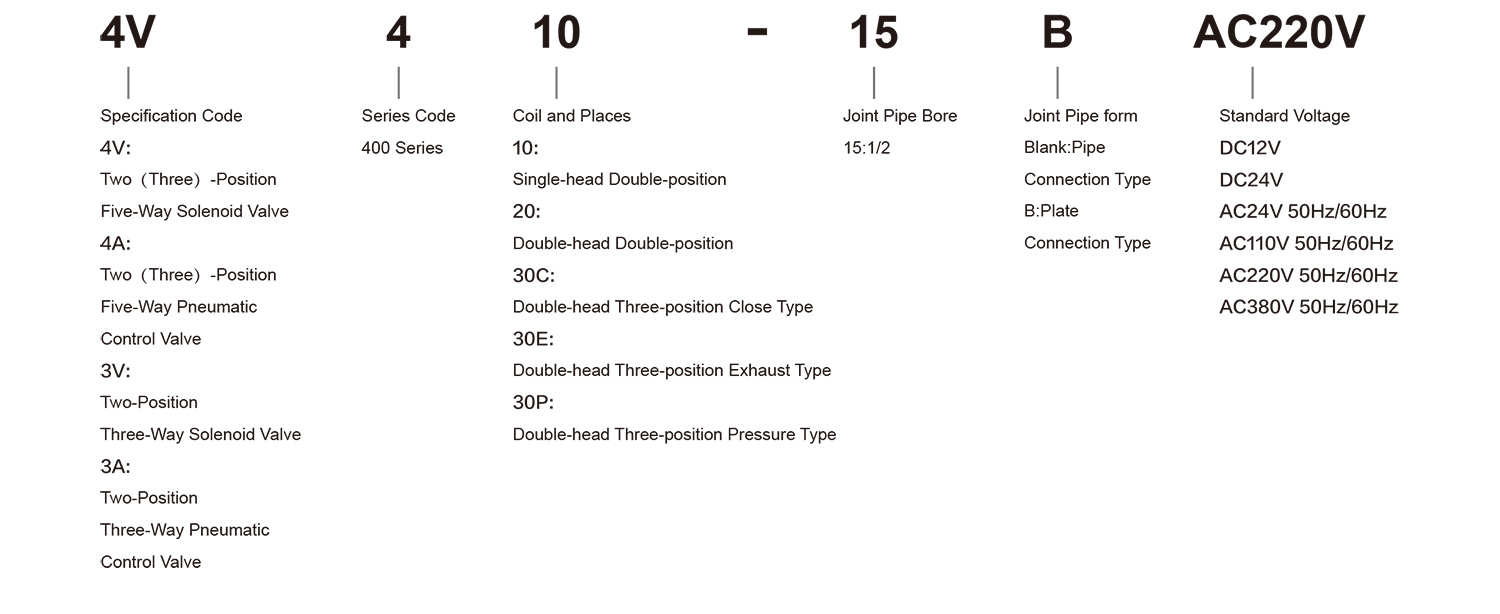

Ordering Code





Specification



Model

3V410-15

3V420-15

4V410-15

4V420-15

4V430C-15

4V430E-15

4V430P-15

3A410-15

3A420-15

4A410-15

4A420-15

4A430C-15

4A430E-15

4A430P-15

Working Medium

40 Micron Filtered Air

Motion Pattern

Inner Guide Type

Joint Pipe Bore

Intake = Outlet = Exhaust =G1/2

The Position Counting

Two-position Three-way

Two-position Five-way

Three-position Five-way

Operating Temperature

5~50℃ (41-122°F)

Effectjve Sectional Area

50mm² (Cv=2.79)

50mm² (Cv=2.79)



30mm² (Cv=1.67)

Working-Pressure

0.15~0.8MPa

Max.Pressure Resistance

1.2MPa

Power Consumption

AC:5.5VA DC:4.8W

Protection Class

IP65 (DIN40050)

Insulation

Class F

Wiring Form

Lead Wire or Connector Type

Voltage Range

±10%

Highest Action Frepuency

5 Cycle/Sec

5 Cycle/Sec

3 Cycle/Sec

Shortest Excitation Time

0.05 Second





Flowing Character





Test Condition



Pressure

0.5MPa

Tube

PU Pipe 12×8 Bore:8mm

Fitting

4V410-15:PC12-04

Load Facto

Load Factor=Load/Cylinder Theoretical Output Power×100%

Cylinder Stroke

300mm

Value Model

4V400 Series





Overall Dimension



Ordering Code





【Note】

1. Model of a single busbar base, for example: 3V200M-4F
2. The valve is replaced with a specific valve model, for example: 3V210-4F



Specification



Model/Symbol

A

KA

D

BA

BC

K

D

E

F

G

H

J

P

3V100M-□F

19N+19

19N+9

68

56.5

22.5

4.5

31

88

131

7.7

18.6

27

G1/8

3V200M-□F

23N+23

23N+11

83

69

24.5

4.5

45

112

166

9.5

23.5

35

G1/4

3V300M-□F

28N+26

28N+14

98

81.5

32

4.5

50

123.5

182

12

28

40

G3/8





Overall Dimension





Ordering Code



【Note】

1. Single busbar base model, example: 200M-4F
2. The valve is replaced with a specific valve model, for example: 4V210-4F



Specification



Model/Symbol

A

B

C

E

F

G

H

I

K

L

M

Q

R

S

W

X

Y

100M-□F

60

43

20

4.3

18

19

5

10

142

(N-1)x19+38

157

G1/4

40

30

60.5

25

27

200M-□F

60

50

21

4.5

22

23

6

12

174

(N-1)x23+46

193

G1/4

43

32

91.5

25

35

300M-□F

75

60

26

4.5

27

28

6

14.5

193

(N-1)x28+54

213

G3/8

53

48

100

31

40

400M-□F

100

95

32

5.5

34

35

7

18

244

(N-1)x35+63

244

G1/2

68

67

113

42

50





Overall Dimension







Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China 3V/4V 400 Series Solenoid Valve,Pneumatic Control Valve、Base Suppliers and 3V/4V 400 Series Solenoid Valve,Pneumatic Control Valve、Base company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our 3V/4V 400 Series Solenoid Valve,Pneumatic Control Valve、Base are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
