2TWA016-M5 Mini-Valve Suppliers

2TWA016-M5 Mini-Valve

2TWA016-M5 Mini-Valve

Product Details

0
Views: 417

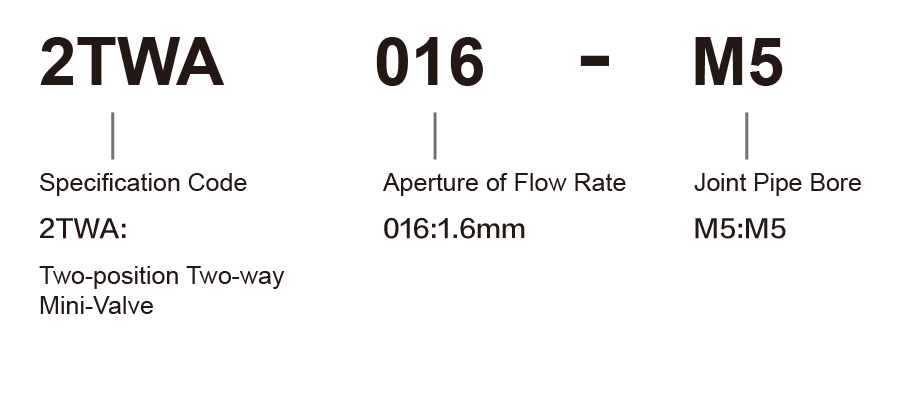

Ordering Code

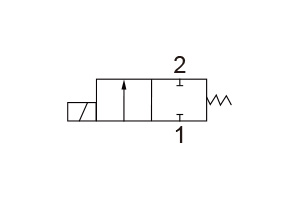

Graphic Symbol



Synopsis



The valve is a two-position two-way miniature solenoid valve, which is made of high-quality stainless steel and special sealing materials. It has the advantages of wide application range, strong corrosion resistance, compact appearance (17.2x50), large flow rate (flow rate greater than 80L/min at 0.5MPa), stable performance and long service life.





Specification



Model 2TWA016-M5
Solenoid Valve Structure Direct-Acting Type Two-Position Two-Way Solenoid Valve
Rated Voltage DC24V
Rated Power 2.5W
Effective Section (CV) 1.2mm²(0.07)
Working Pressure Range 0~0.7MPa
Ambient Temperature -10~50℃
Liquid Temperature 1~50℃
Use Medium Water、Air
Flow (0.5MPa) 80L/min

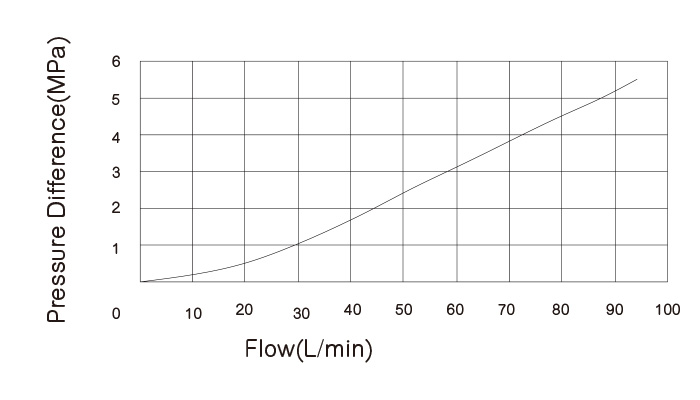

Flowing Character

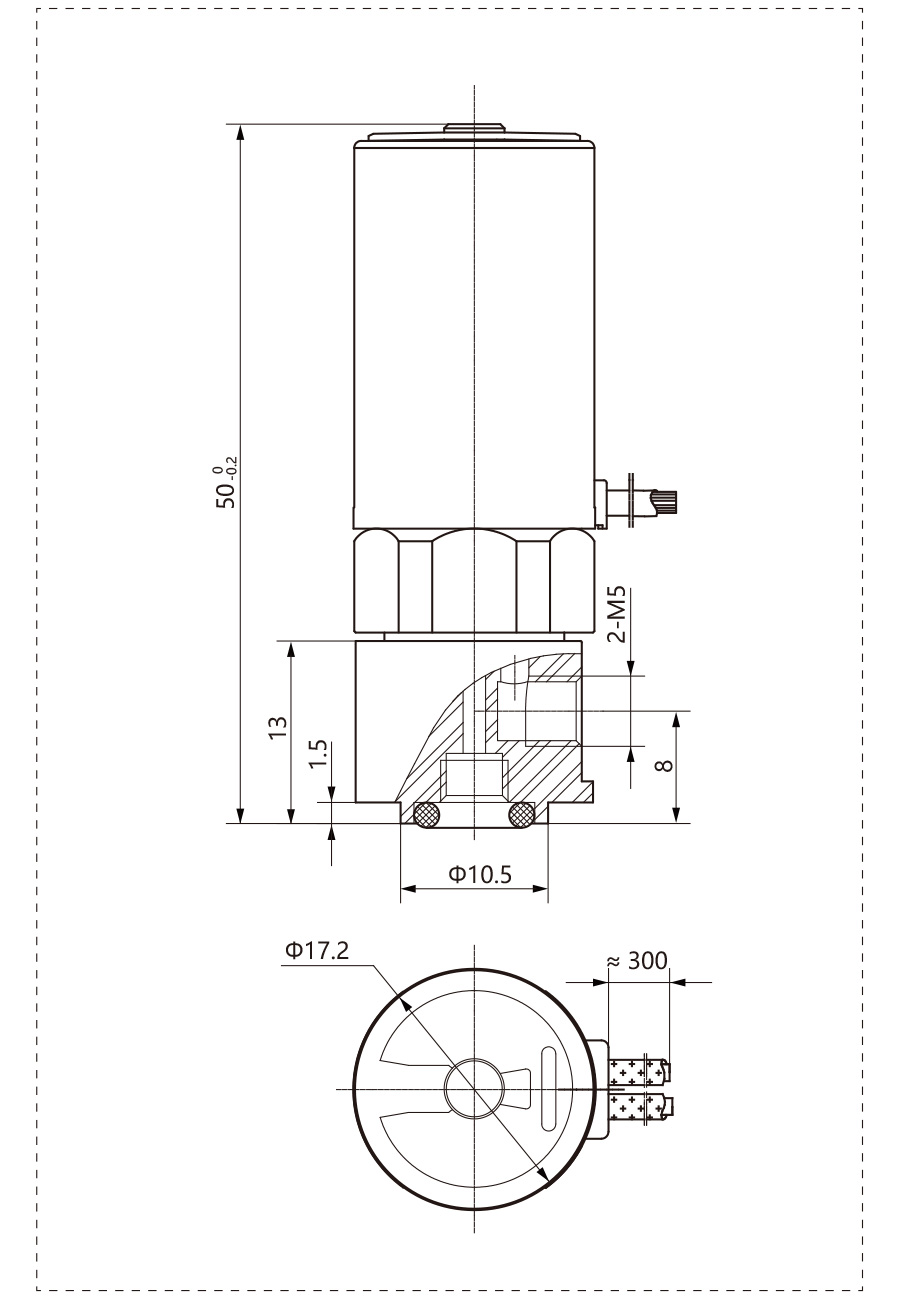

Overall Dimension









Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China 2TWA016-M5 Mini-Valve Suppliers and 2TWA016-M5 Mini-Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our 2TWA016-M5 Mini-Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
